Enhance Productivity with our Fanless Industrial Panel PC – Waterproof, Dustproof, Capacitive Touchscreen, 8GB RAM, 250GB SSD – Available in 10, 12, 15, 17 Inch Options.

Description

10.4/12.1/15/17 inch industrial PC resistive touch computer
Industrial computer parameters
Brand：Balahome
Aterial：Metal
Memory: 8GB DDR3 System Memory
Storage: 250G SSD
System: WIN7/WIN8/WIN10/Liunx optional
BIOS: AMI BIOS
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 5-7Kgs
System Parameter：
Configuration 1：integrated Intel Celeron Processor J1900（4 cores, 2m cache, up to 2.00 ≤ 2.41 GHz, TDP power consumption: 10w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Configuration 2：integrated Intel Core i3-4120U（Dual-core, 3MB cache, 1.9 GHz，TDP power consumption: 15w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Configuration 3：integrated Intel Core i3-6100U（Dual-core, 3MB cache, 2.3 GHz，TDP power consumption: 15w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Configuration 4：integrated Intel Core i5-4300U（Quad core, 3MB cache, 1.9 GHz，TDP power consumption: 15w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Configuration 5：integrated Intel Core i5-6360U（Quad core, 3MB cache, up to 2.00-3.10 GHz，TDP power consumption: 15w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Configuration 6：integrated Intel Core i7-3537U（Dual core, 4MB cache, 2.00 GHz，TDP power consumption: 17w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Configuration 7：integrated Intel Core i7-4500U（Quad core, 3MB cache, 1.9 GHz，TDP power consumption: 15w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Configuratio 8：integrated Intel Core i7-6500U（Quad core, 8MB cache, up to 2.50-3.10 GHz，TDP power consumption: 15w）
Storage space：250Gb SSD
Internal storage：8GB DDR3 System memory
Parameters of LCD Touch screen：
Brightness：250cd/m2
Contrast Ratio：1000: 1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ. )(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
Power requirement of system：+ 12V DC power input
Power adapter：input：100〜250VAC，50 / 60Hz
Output：60W Adapter（12V 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU, EU, USA, UK plug available
Menu Languages：English, , Francais, Italiano, Deutsch, Espanol, Russian, Traditional Chinese, Simplified Chinese, etc
VISA Hole distance：75*75mm
Delivery Time
Sample: 1~5 working days.
10~100pcs: 2~7 working days.
More than 100pcs: 5~15 working days
★★★ SPECIAL REMINDER ★★★
LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame), etc. , can be customized for you(But need to meet the requirements of MOQ). If you have this demand, please contact us, we will provide you with timely and thoughtful service!

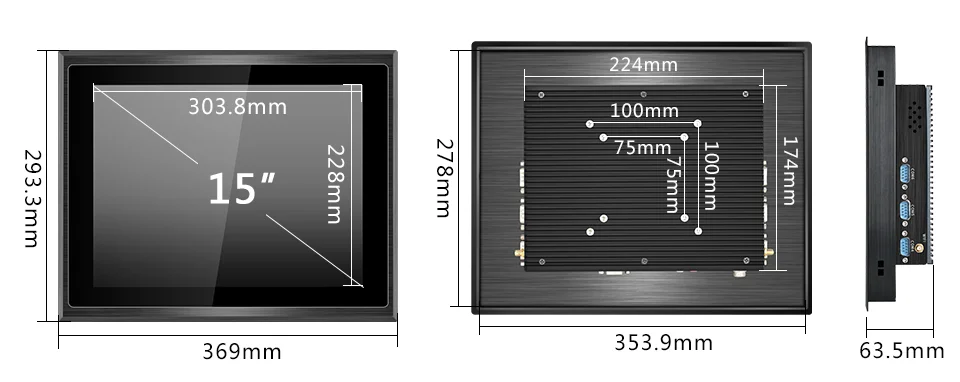

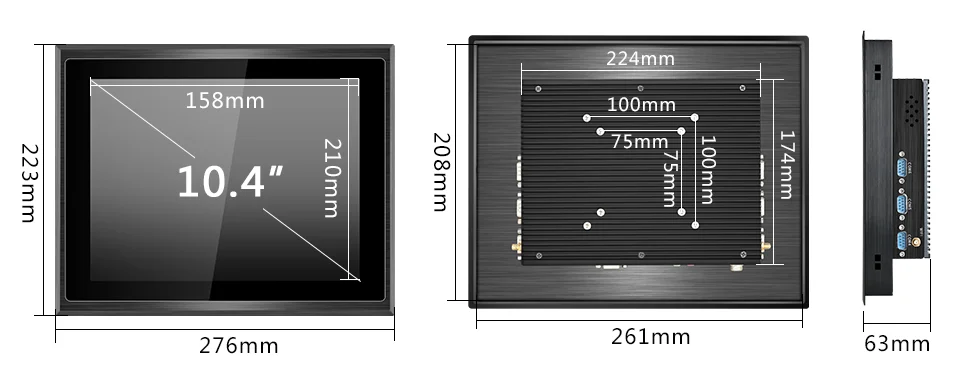

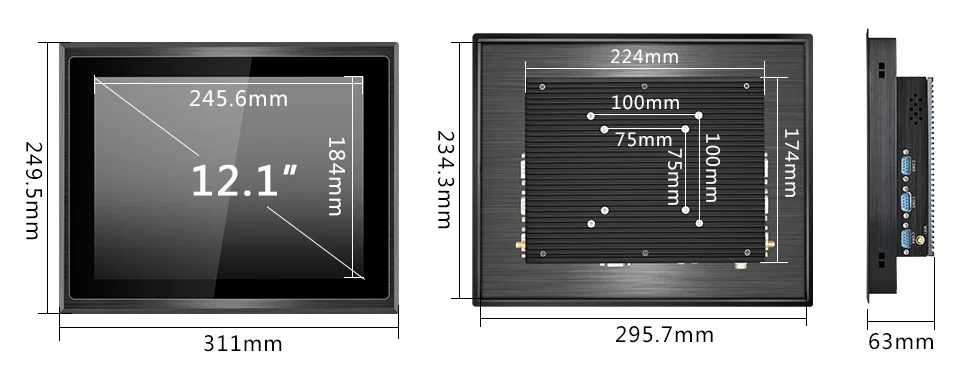

Size
Resolution: 10.4 inch(1024*768 ppi)/12.1 inch(1024*768 ppi)/15 inch(1024*768 ppi)/17 inch(1280*1024 ppi)
Unit of measure: mm

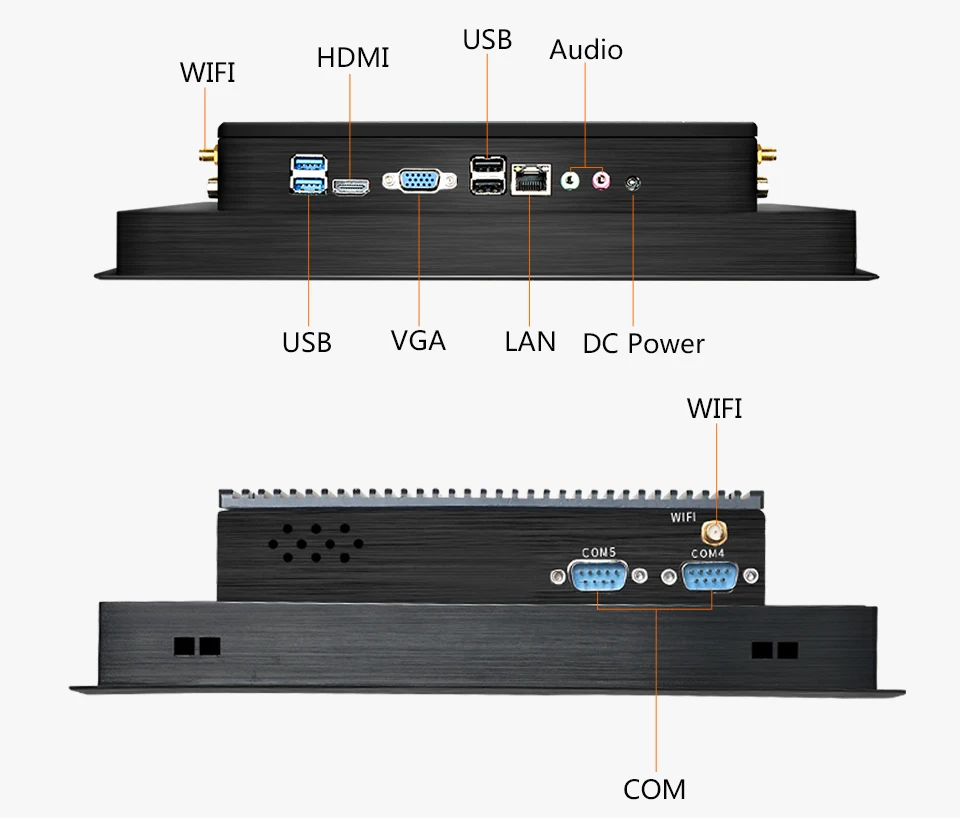

Product interface (support customization)
1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

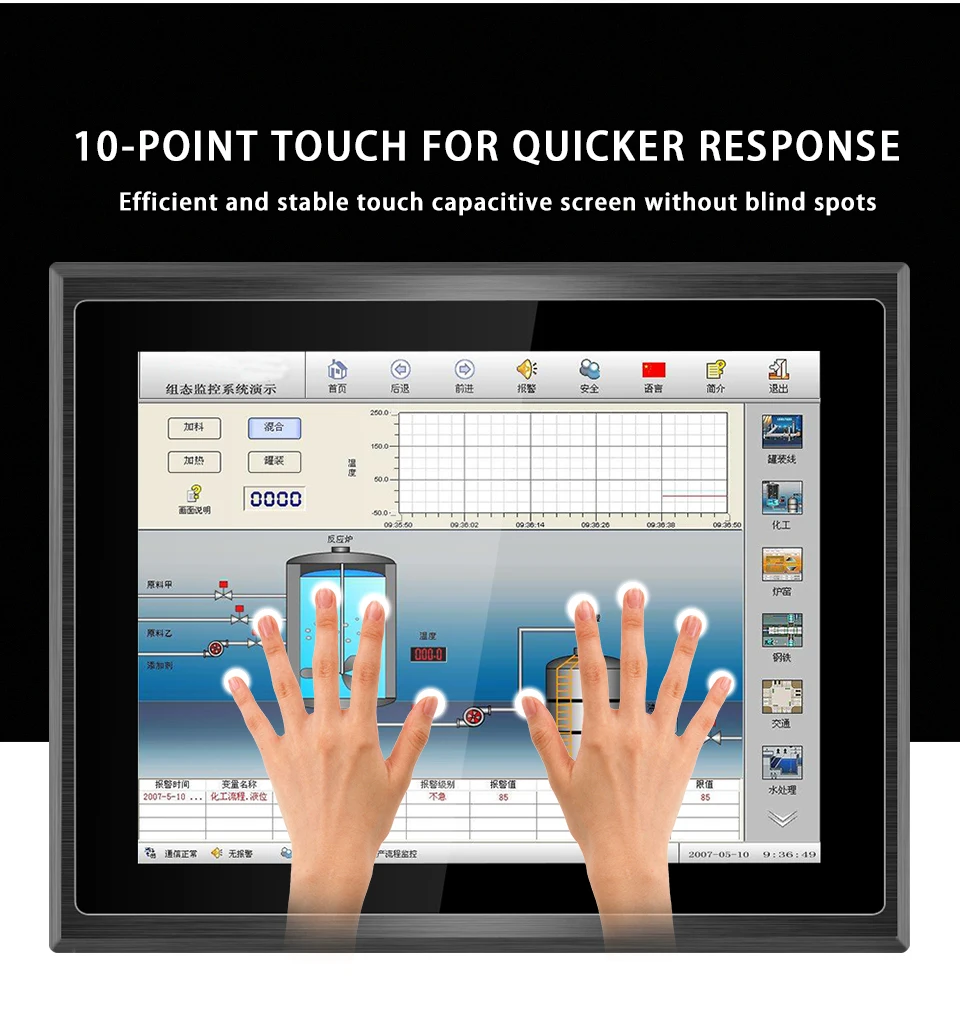

Sensitive Touch Rapid Response
Capacitive touch (multi point touch, induction by current )
Capacitive touch times > 50 million times, backlight life 50000h

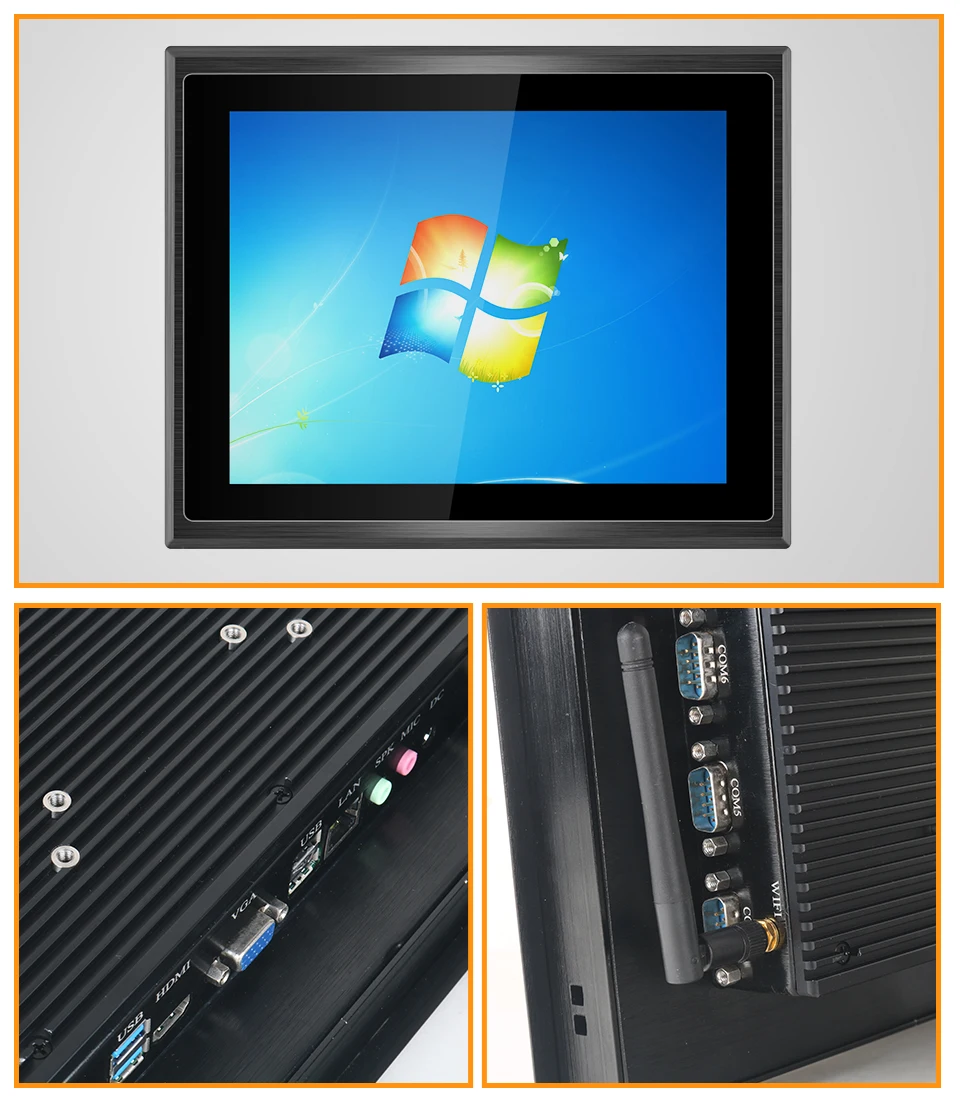

Show details
Due to the difference between the shooting and the monitor, there may be color difference, please refer to the actual product
Industrial-grade custom motherboard
A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.

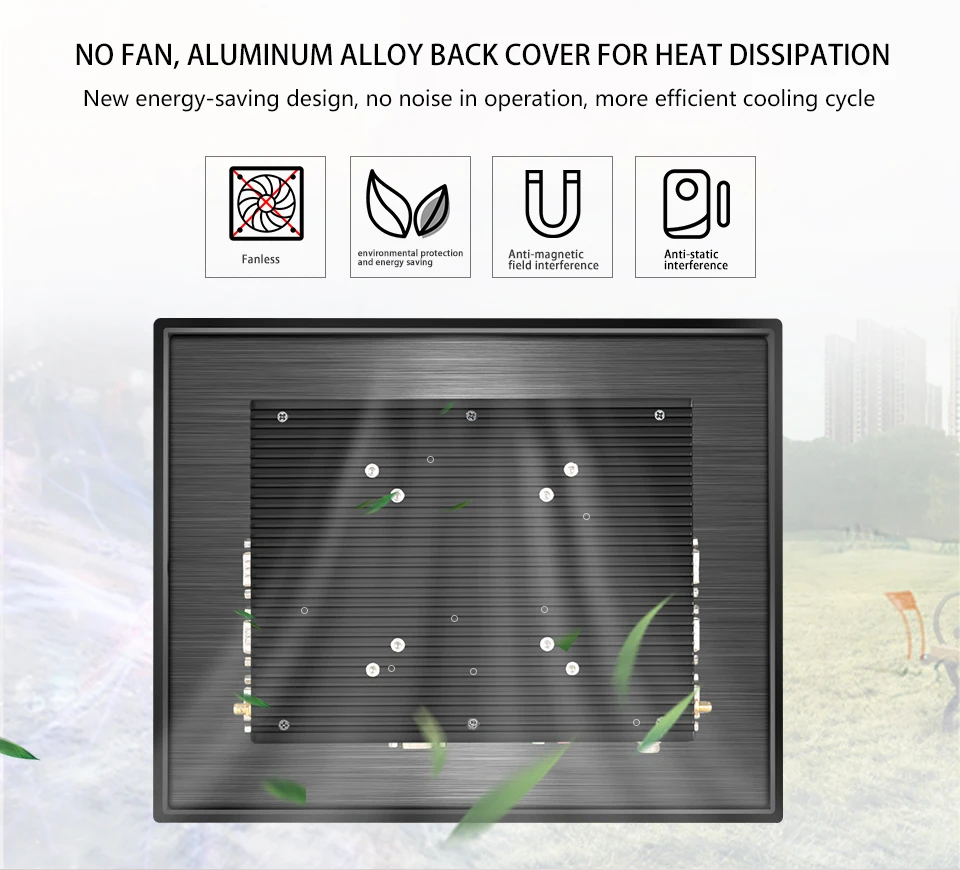

Aluminum alloy shell/fanless cooling
24/7 stable operation
Efficient work for a long time, fanless cooling

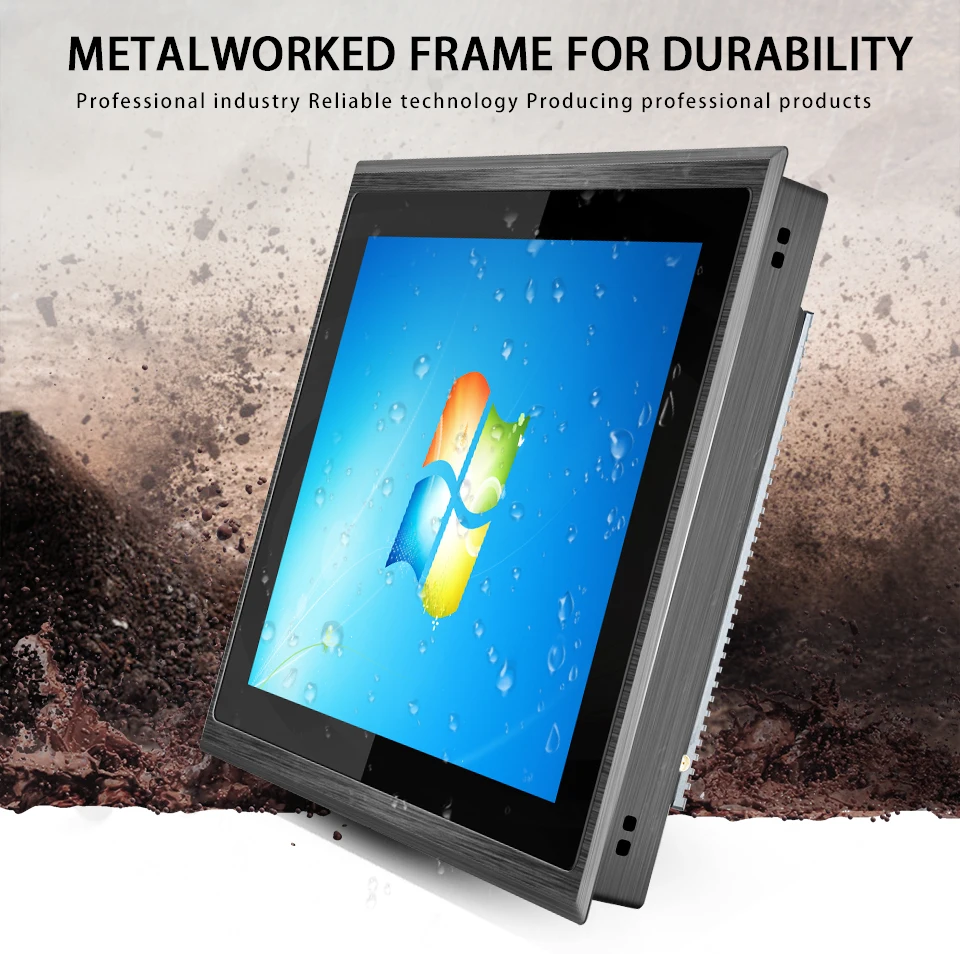

Metal case, resist to high and low temperature environment
Industrial cold-rolled sheet metal shell, cold and high temperature resistance, as low as -20 ℃ ~ 60 ℃.
Can effectively adapt to stable work in harsh environments
Installation Mode
There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.
About customization
Please contact customer service to state your needs.
Support logo, shell, color, function, interface and other customization, please contact us for the best price
Product application field display
Products are widely used in industrial control CNC industry, medical industry, factory production workshop,
Bank automatic ticket vending machines, supermarket advertising, video surveillance, etc.
