Yanling 15 Inch Industrial All-In-One Computer with Intel Celeron 4205U Processor and Resistive Touch Screen

Description

Yanling 15 Inch Panel PC Industrial Intel Celeron 4205U Resistive Touch Screen All in One Computer
Warm tips: This products price are not included Ram, Hard disk, Wifi card, WiFi antennas and Bluetooth, if you need them, you need to pay extra fee, please contact us to change the price. Thanks.
And If you need other Configuration of ram and hardisk, please contact us.
1. This computer only works with RAM at lower voltage 1.35V instead of normal 1.5V RAM.
2. The RAM and SSD/HDD are from famous brand, the RAM is normally Kingston, Sam’sung, etc.
The SSD is normally from Hoodisk, Biwin, FORESEE, Sam’sung, ADATA, SanDisk, etc. they will be shipped out at random for stock.
3. Barebone system means no ram no storage, and we won’t install OS to you.
4. The Operating System is just for testing, copied but NOT activated and not licensed, please install the licensed one by yourself if you prefer. All of our products don’t support Windows XP OS, please know it.
5. About customs fees, we are not responsible for buyer’s customs taxes or VAT. We will declare true value by default. If you need us to offer an invoice, please leave a message. Pls do not open a dispute or give us a bad feedback due to the extra importing fees, otherwise pls do not buy it, thanks.
6. Please carefully read the SHOPPING GUIDELINES on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won’t take responsibility for any problems might caused except the quality problem of the product.
Thank you !

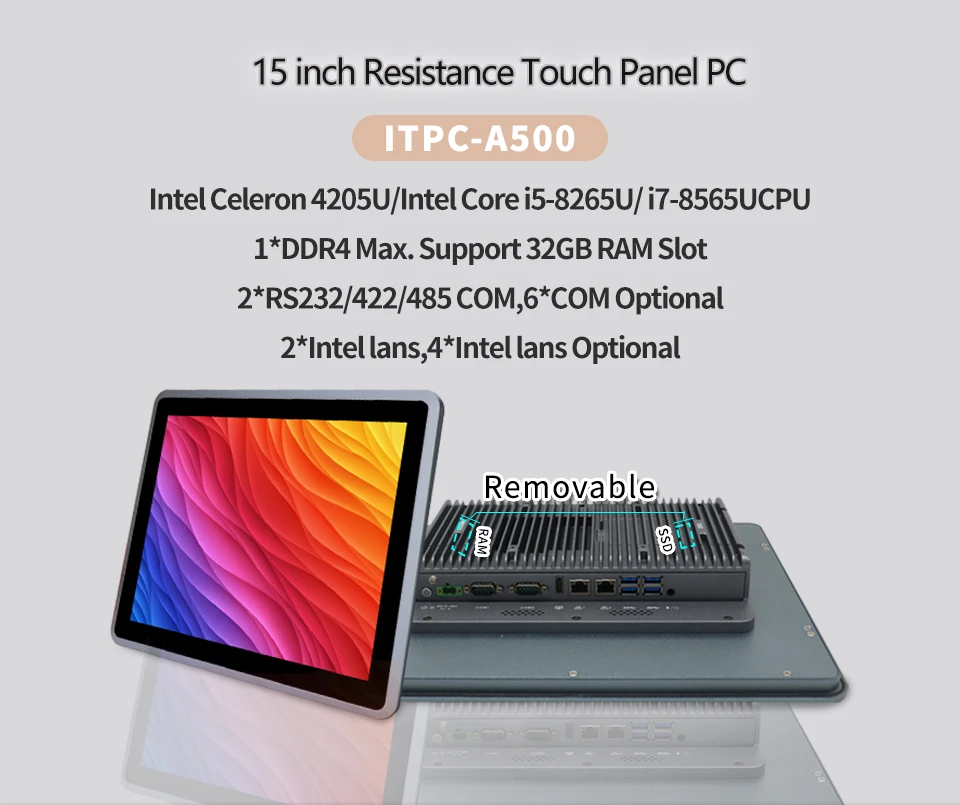

Model: ITPC-A500 Fanless Panel PC
Brand Name: Yanling
Case Color: Titanium gray (color can be customized, more details please contact us)
Case Material: High-quality Aluminum alloy chassis
CPU: Intel Celeron 4205U DualCore 1.8Ghz, (Core I5 4210U4300U dual core 2.7Ghz optional)
Intel Core i5-8265U(Quad core eight threads,1.6Ghz, Max turbo 3.9Ghz,6MB Cache)
Ram: Support 1*DDR4 2133/2400 SODIMM Memory Slot, Max 32GB
Storage: Support 1*M.2 2280 slot(SATA Protocol),1*2.5” HDD, Support RAID 0/1 (16G/32G/64G/128G/500G/1TB optional)
Audio: 1*SPK, 1*MIC
Speaker: Two 8-ohm 2-watt speaker
Display Port: 1*VGA, 1*LVDS
Display Chip: Intel UHD Graphics
Network Card: 2*Intel 1000M LAN（4*LAN Optional）

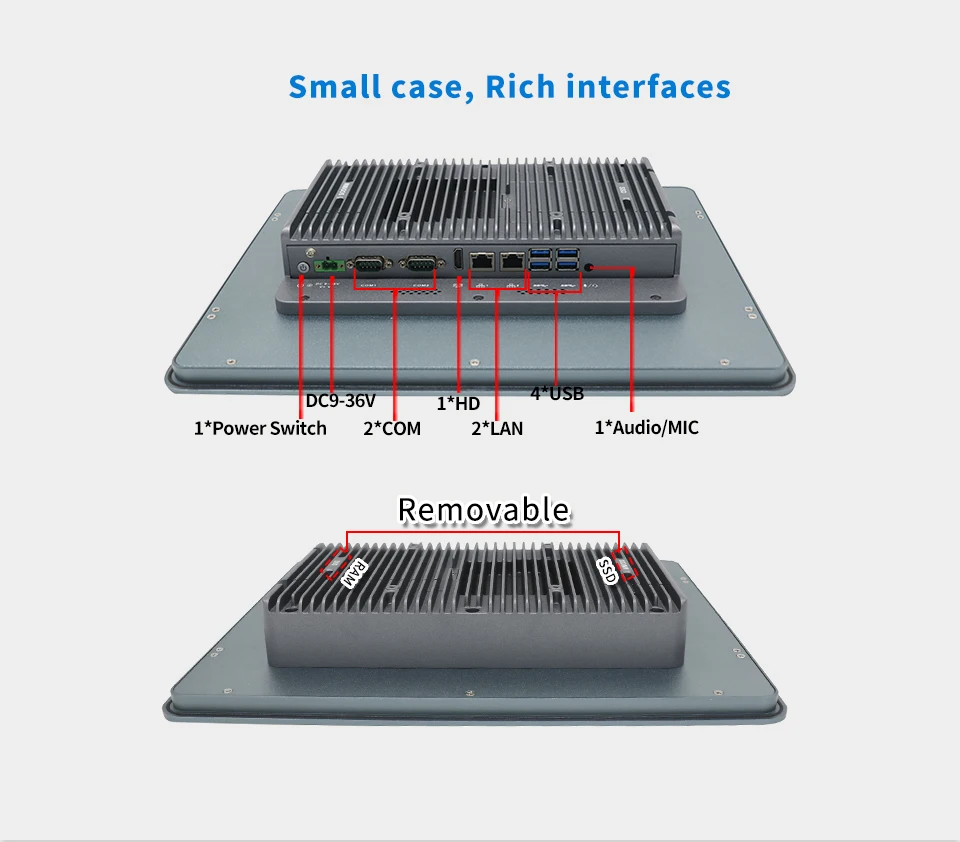

I/O: 4*USB3.0,1*2Pin power supply phoenix connector,
1*HDMI,
2*COM(COM1&COM2 RS232/RS422/RS485 Optional,6*COM Optional)
2*Intel Lan, 1*MIC, 1*SPK
1*Power Switch,1*2Pin power supply phoenix connector
1*DC-IN 12V
Touch Screen: Size：15 inch
Ratio：4：3
Resolution：1024 * 768
Brightness ：350cm/m2
Industrial grade multi-touch resistance touch screen, Life Time: more than 50000 Thousand Times;
Power Supply: DC 9~36V，
O S: Support Windows 10/11, Linux
Working Temperature: 0℃ ～ +50℃（Commercial），-20℃ ～ +60℃（Industrial SSD），Surface air flow
Working Humidity: 0% – 95% relative humidity, Non-condensing

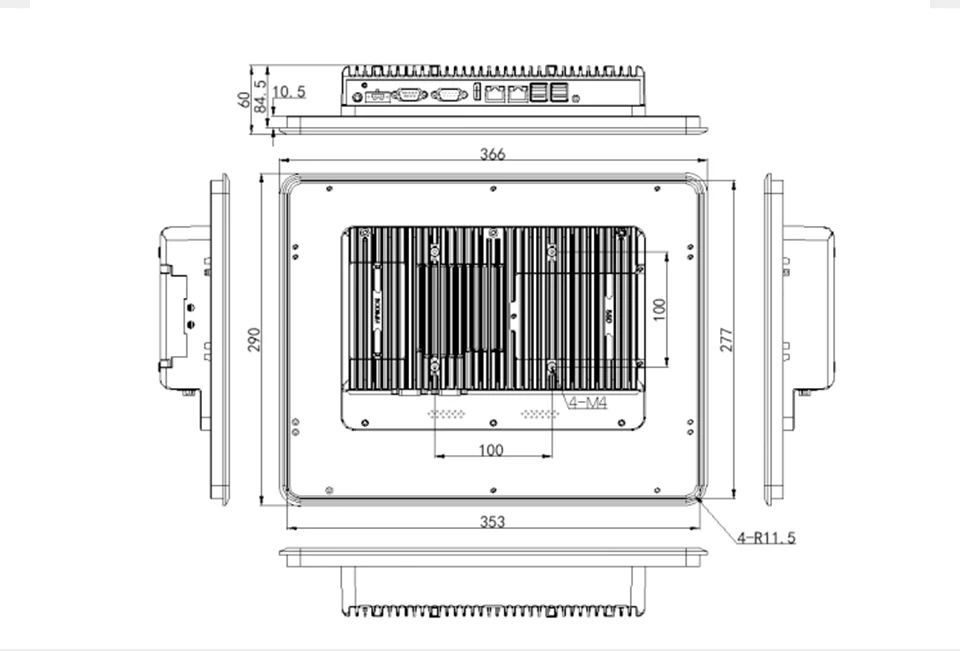

Dimension: 366 * 290*60 mm
Embedded Installation: 355 * 279 mm
Application: Applied in Automation, ATM, Pos, CNC, Digital signage, kiosk, Energy, telecomommunication, Networking, Transportation etc.
