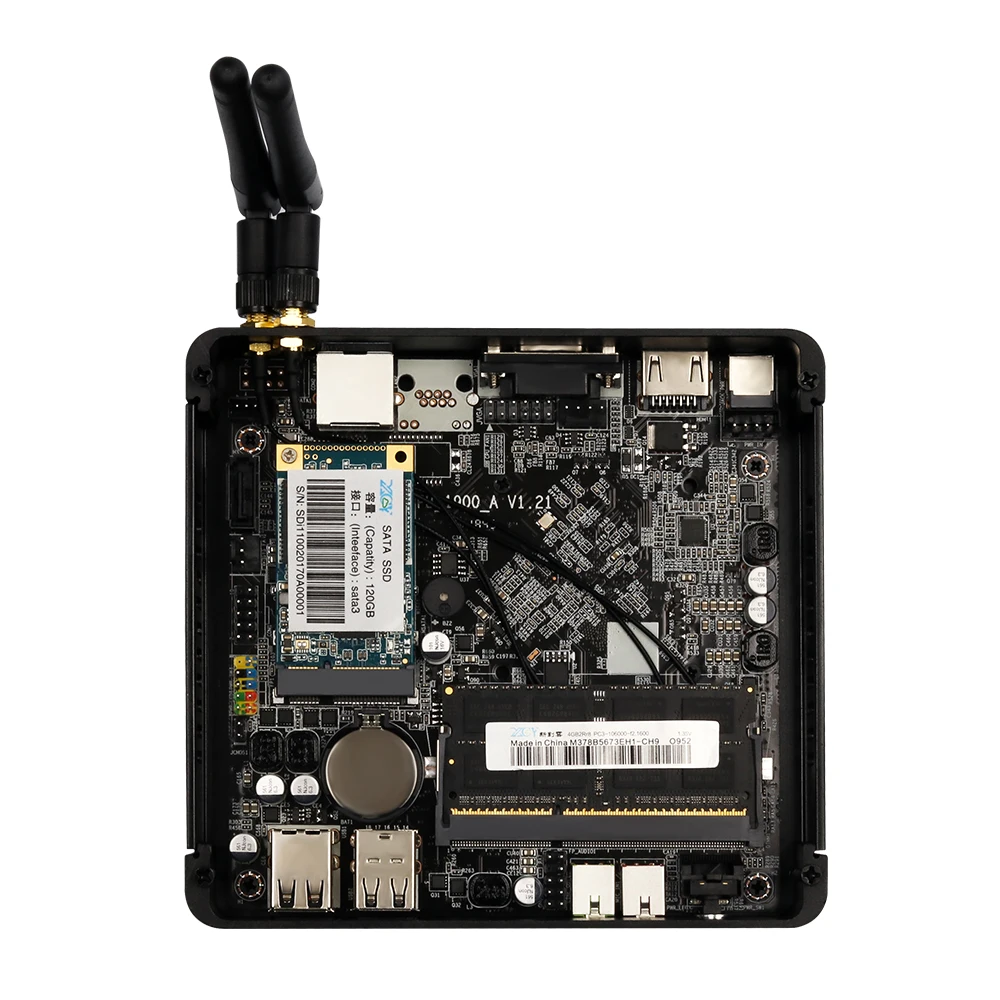

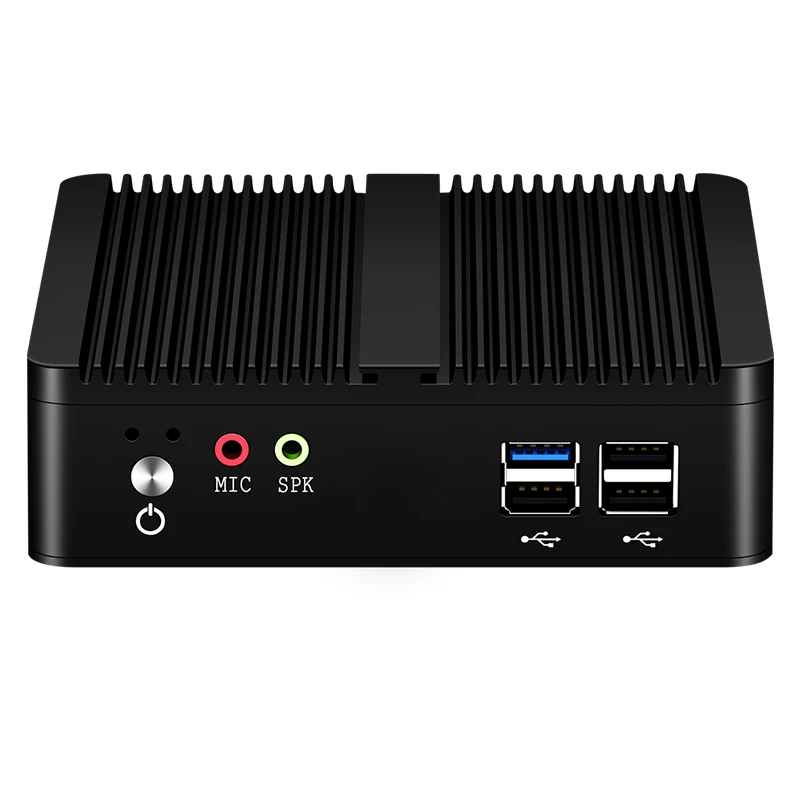

XCY Fanless Mini PC – Intel Celeron J1900 Quad Cores, Gigabit Ethernet, HDMI/VGA Display, WiFi Support, Windows/Linux Compatibility

Description

XCY-X30B Fanless Mini PC, Intel Celeron N2830/N2840/J1900 Processors, SODIMM-DDR3L RAM, Support mSATA and 2.5 inch SATA, Gigabit Ethernet, Support WiFi, 4x USB, HDMI+VGA Dual Display, Support Windows LInux, Industarial and Embedded IPC
Processors: Intel Celeron Processor N2830, 1M Cache, 2 cores 2 threads, 2.16GHz, up to 2.41GHz;
Intel Celeron Processor N2940, 2M Cache, 4 cores 4 threads, 1.83GHz, up to 2.25GHz
Intel Celeron Processor J1900, 2M Cache, 4 cores 4 threads, 2.0GHz, up to 2.42 GHz;
Memory Type: SODIMM, DDR3L 1333/1600MHz 1.35V
Max support 1x 8GB
Storage: Support 1x mSATA SSD ( defaulted install this type hard drive )
Support 1x 2.5 inch SATA HDD/SSD
Graphics: Intel HD Graphics
Network Interfaces: Realtek 8111F GbE RJ45, Support Wake on LAN, PXE boot
WiFi: 300Mbps
OS Support: Windows 7/8/10,
Windows 10 iOT,
Windows 10 Embedded,
Linux, Ubuntu
USB Ports: 1x USB3.0,
3x USB2.0
Display Port: 1x VGA,
1x HDMI
Max resolution 1920*1080P
Audio Ports: 1x SPK, 1x MIC, 3.5mm jack
Construction: Fanless passive cooling
Case Materials: Aluminum Case
Dimension: 136x128x44mm
Netweight: 0.85Kg
Operating
Temperature: -20℃ to +60℃
RH: Power Adapter

Input AC100-240V, Output DC12V-3A
Package List: 1x Mini PC X30A
1x AC Adapter
1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )
1x SATA cable
1x User manual
NOTE:
1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;
2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;
3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need
