Description
Device parameters

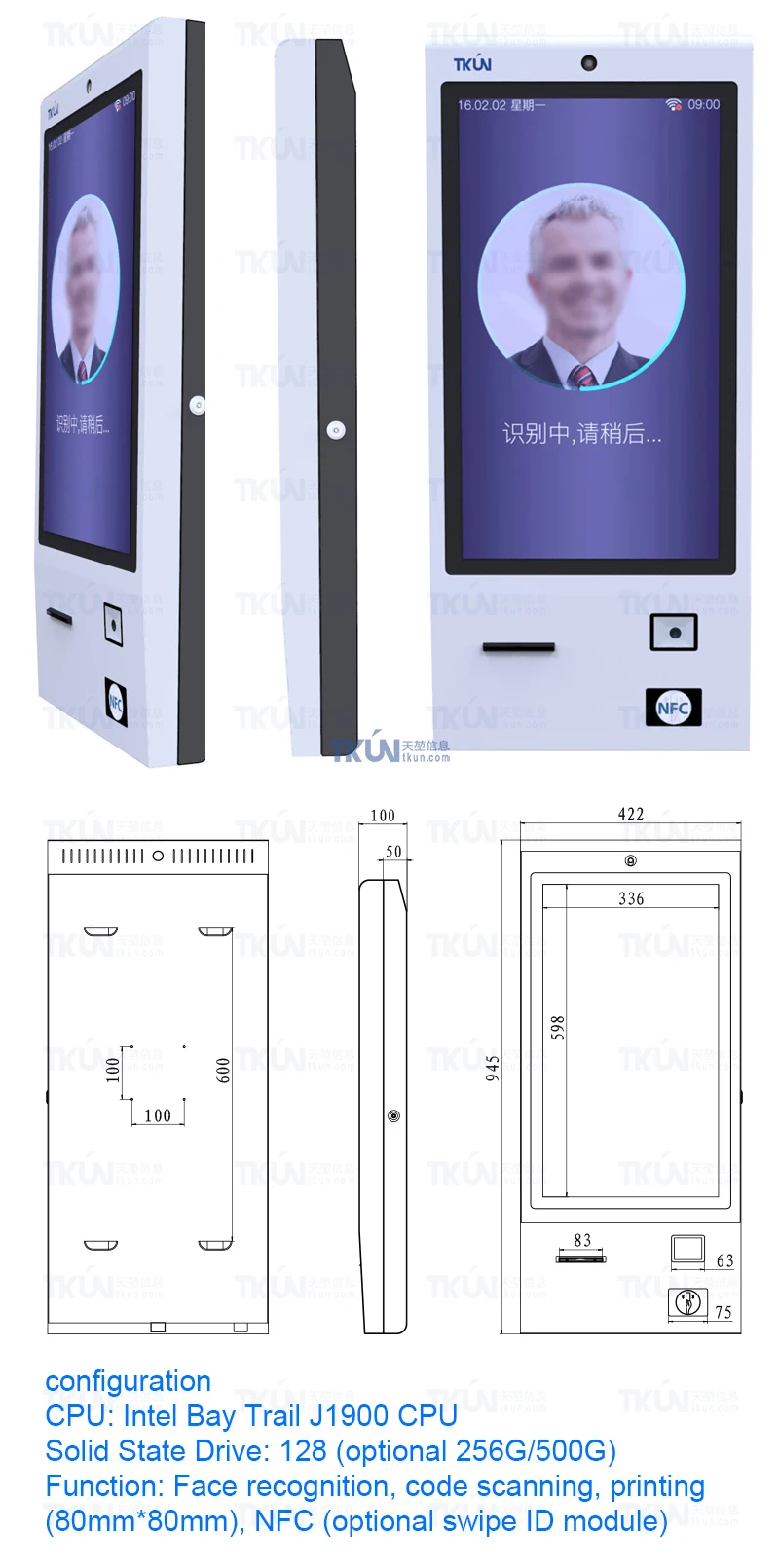

Processor: Intel® Bay Trail J1900 CPU, Quad-core, up to 2.42 GHz, TDP 10W
Memory: DDR3L 1600 MHz 2G/ 4G/ 8G
Storage: SSD MSATA 32G 64G 128G 256G 500G
Sound card: Realtek® ALC662 5.1 channel HDA Codec, supports MIC/Line-out Ports
Network: 1xIntel WGI211AT for 10mbps/100mbps/1000 Mbps
Operating System: support win7/win8/win10/linux / ubuntu win CE
On-screen interface: Multi-touch capacitive touch
Size: 27″ / 21.5
Resolution: 1920(RGB)×1080 [FHD]
Display area: 597.6 (horizontal) × 336.15 (vertical) mm / 476.064 × 267.786 (H×V) mm
Brightness: 400 cd/m² (Typ. )
Viewing angle: 89/89/89/89/89 (Typ. )(CR≥10)
Number of colors: 16.7M, 72% NTSC
Screen type: IPS WLED,
Contrast ratio: 2000: 1
Touch Type: Projected multi-point capacitive touch screen (10 touch points)
IO/ Interface: AC220V~240V LAN USB
Input voltage: AC220V~240V
Electrostatic testing: Level 2

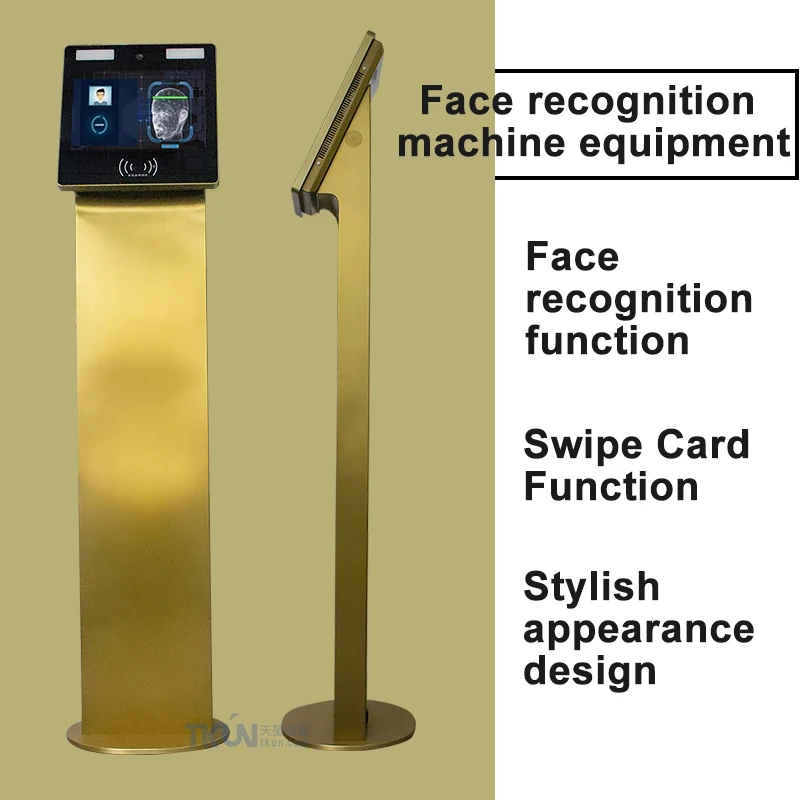

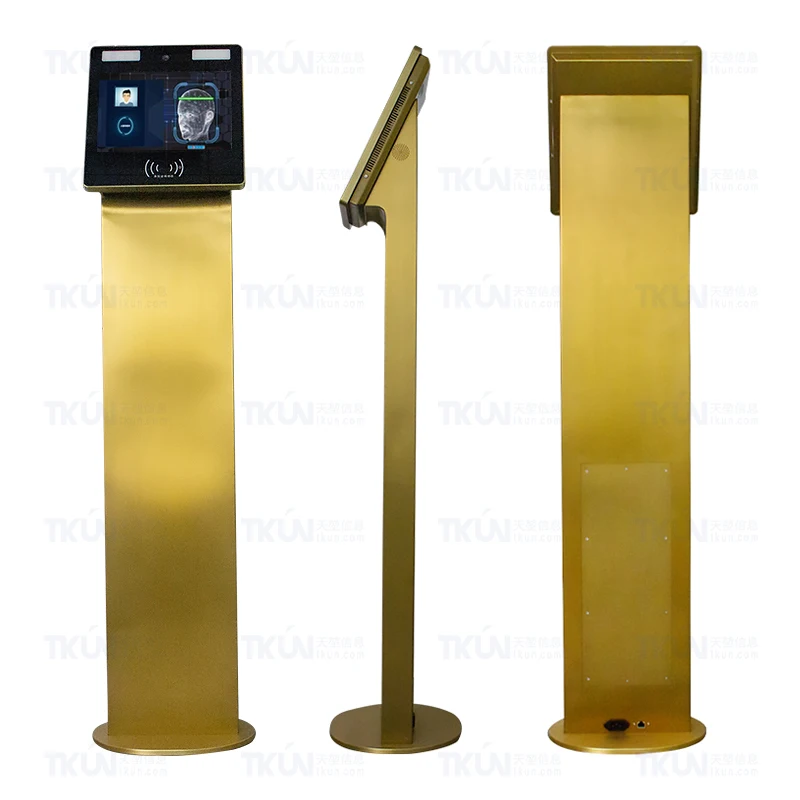

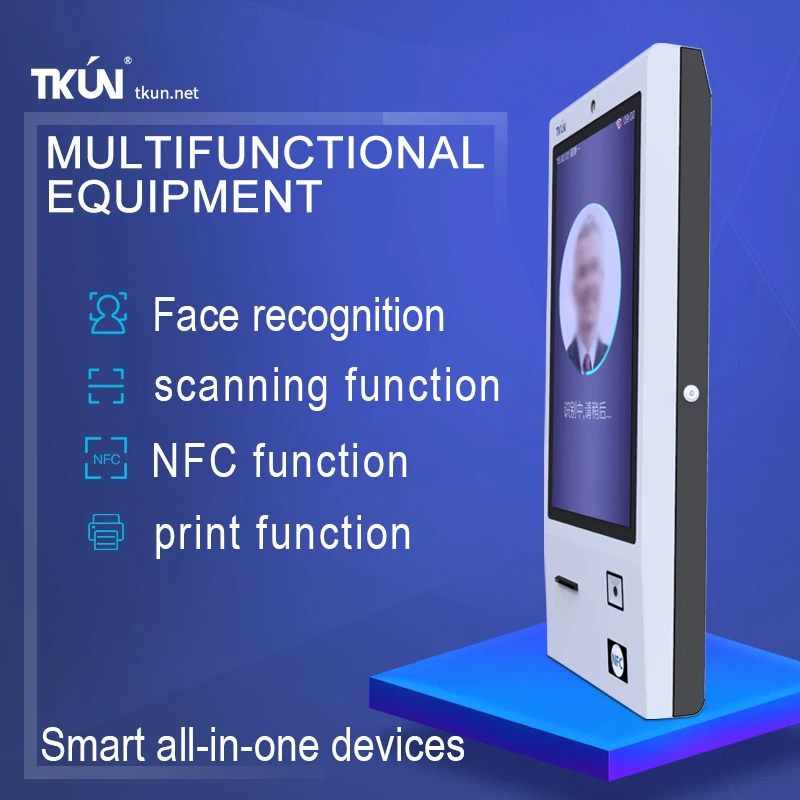

Main functions: face recognition, two-dimensional code scanning recognition, ID card identification brush (IC/ID), 80MM wide automatic cutting paper printing
Temperature: Operating: -10 ~ 60 °C; Storage: -20 ~ 70 °C.
Relative humidity: operating 10%~90%, storage 5°C~95°C, non-condensing
Device parameters
CPU: Rk3568
Memory: 2GB
WIFI: Support
Bluetooth: Support
Speaker: 8 ohms 5 watts
Storage: 16G (expandable high capacity)
System: Android 6.0
Screen size: 12.1 inches
Resolution: 1024*768
Touch mode: Capacitive touch
Touch screen interface: USB
Ratio: 4: 3
Screen type: TFT LCD
Number of colors: 16.7 million
Contrast ratio: 1000: 1
Brightness value: 400cd/m2
Brightness value of high brightness model: 1000cd/m2
Viewing angle: 75/70
Response time: 2ms
Touch screen hardness: 6H
Positioning accuracy: less than 2mm
Click life: ≧50 million
Touch Media: Capacitive Touch Pen/Hand
Operating temperature: -10 to 50°C / 20-80% (non-condensing)
Storage temperature: -10 to 60°C / 5 to 95% (non-condensing).

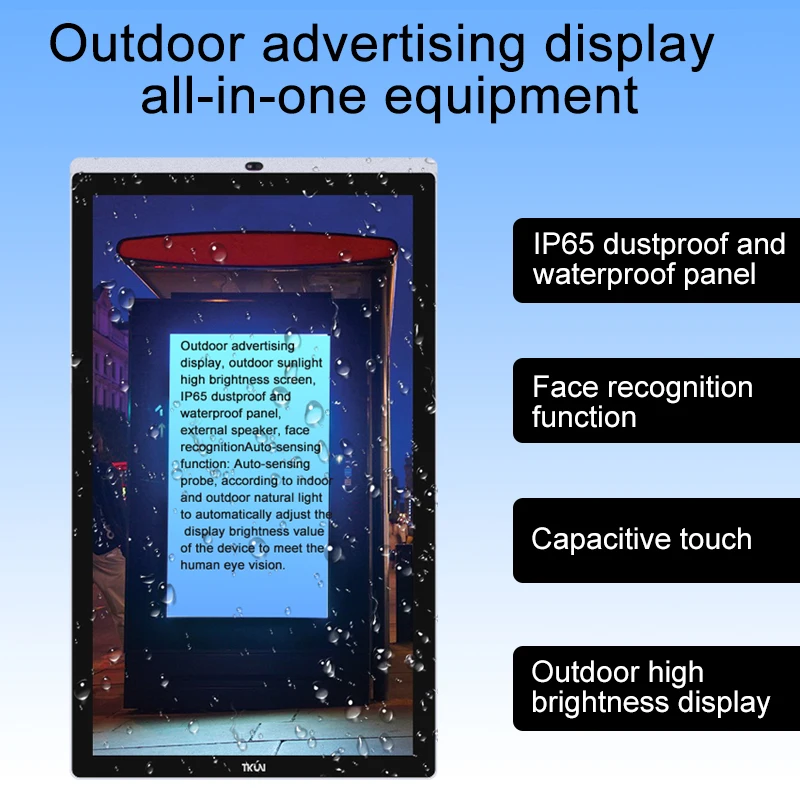

IP rating: IP65 waterproof panel
Auto photosensitive function
Auto-sensing.
The automatic light sensor can adjust the display brightness value of the device automatically according to the natural light of indoor and outdoor to match the human eye

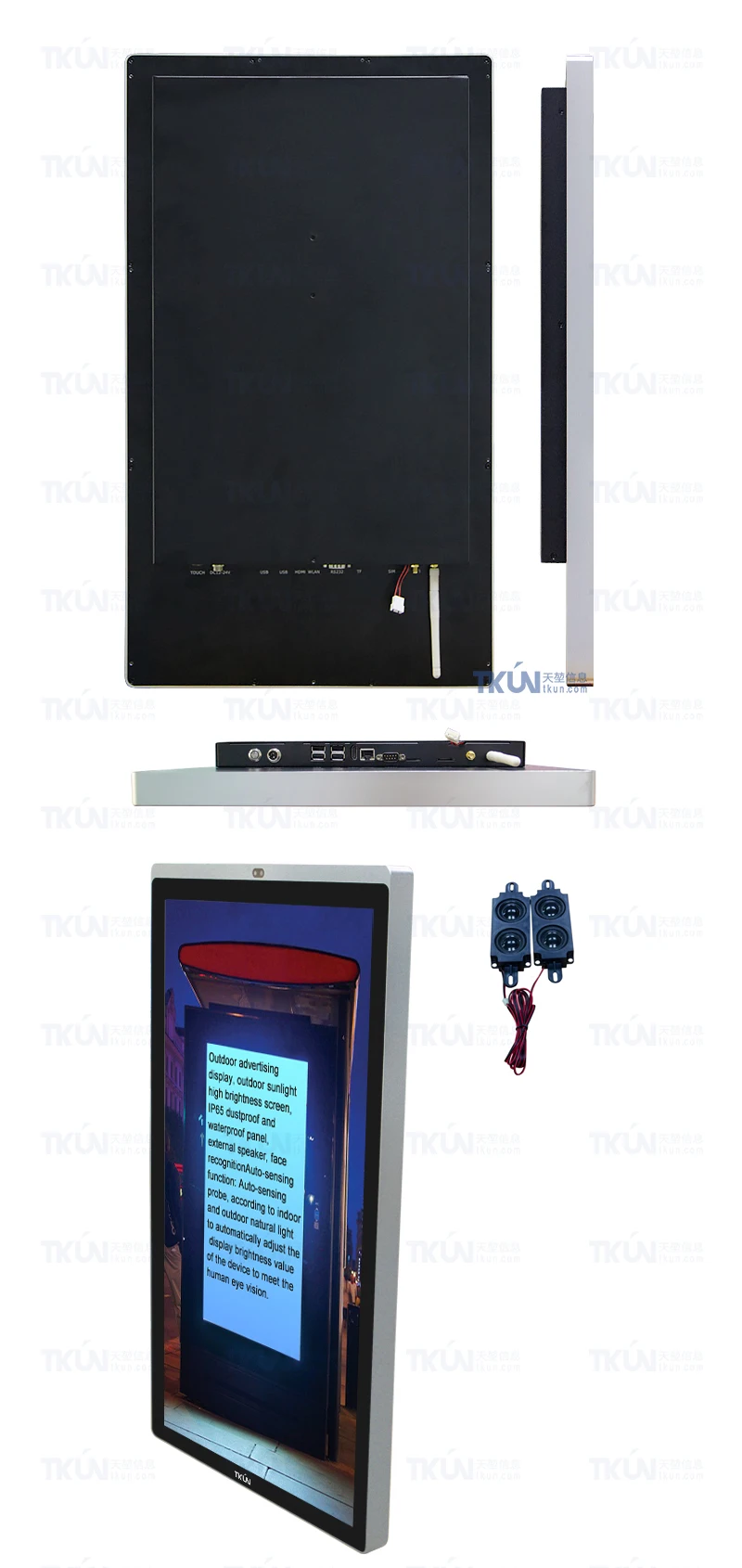

Device parameters
Screen size: 27 inches
CPU: Rk3568
Memory: 2GB
WIFI: Support
Bluetooth: Support
Speaker: 8 ohms 5 watts
Storage: 8G (expandable high capacity)
System: Android 6.0
Camera: 3 megapixels
Power input: 9~30V
Ratio: 16: 09
Resolution: 1920*1080
Auto-sensing brightness range: 220~1000cd/m²
Contrast ratio: 2000: 1
Viewing angle: 175/175
Response time: 2ms
Touch screen type: Projected multi-point capacitive touch screen (10 points)
Touch screen hardness: 6H
Positioning accuracy: less than 2MM
Click life: ≧50 million
Touch Media: Capacitive touch pen, finger
Right click function: Click on a point and hold it for more than 3 seconds.
Material: Aluminum alloy construction
Operating temperature/humidity: -25°C to 50°C / 20-80% (non-condensing)
Storage temperature/humidity: -30°C to 80°C / 5-95% (non-condensing)
IP rating: IP65 waterproof panel
