Quad Core Mini PC with 4x Gigabit NICs for High-Performance Router/Firewall Appliance

Description

Dimension: 134*126*36mm
Only support 1x mSATA SSD

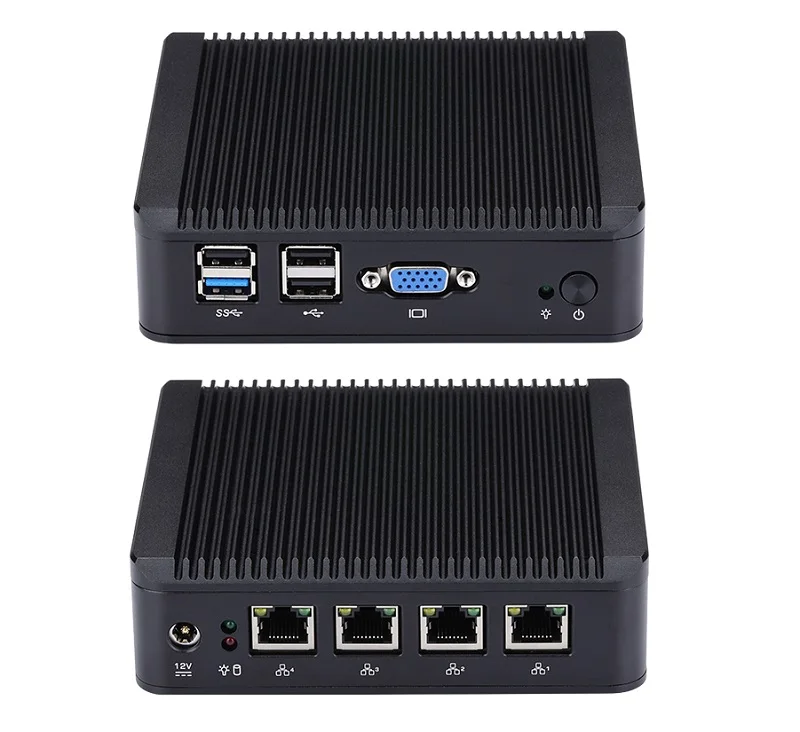

Connectors
• Power on/off
• Power LED
• 3 x USB 2.0 Ports
• 1 x USB 3.0 Port
• 1 x VGA Port
• 1 x DV 12V input
• Power LED, HDD LED
• 4 x RJ-45 Ports – Intel i210/ i211-AT- 10/100/1000 Controller
Router Firewall Appliance
With 4x Intel 1GbE and operating system like pfsense, OPNsense, this appliance can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and so on.
Personal Computer
• Attaching a keyboard & monitor and reinstalling a Operating system and some softwares, it’s your new personal computer, excellent POS terminal, mini server, etc.
• Small size, fan-less design quiet working, compact and cheap, running 24/7, it’s a good solution for home, office, factory and so on.
Operating System
• Mini PC supports Windows, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.
• Preload inactive Windows 10 Pro for test. Please preinstall OS by yourself if necessary. F11 key boot from USB Drive. Delete key enter BIOS.
• If you prefer to other OS, please leave a message.
Mini motherboard
Intel Celeron j1900/ Pentium N3540 Processor
• Q190G4U: Intel Celeron J1900 Processor Quad core 2.0 GHz, up to 2.42 GHz
CPU TDP: 10W
LAN Chip: Intel i210 1G LAN
• Q195G4U: Intel Pentium N3540 Processor, Quad core 2.16 GHz, up to 2.66 GHz
CPU TDP: 7.5W
LAN Chip: Intel i211 1G LAN
• Both of them do not support AES-NI
Internal Connectors
• 1 x Full Mini pcie slot (for mSATA SSD)
• 1 x Half Mini pcie slot (for WIFI/Bluetooth Module)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x Automatically boot jumper
Wi-Fi (Optional)
• Only support USB Signal wireless
Packing
• 1 x Mini PC
• 1 x Power supply: adapter and plug (US/ UK/ EU/ AU/ IT)
• 1 x VESA bracket & screws
• 2 x Antennas (if you choose WIFI)
• 1 x color box
You can leave message to require for Motherboard User Manual and Windows drivers download link.
