Qotom Quad Core Mini PC with Pentium J3710, 2HD Display, VGA, AES-NI, Fanless Industrial Design – Q170P

Description

Shipment & clearance:
1. For remote address, carrier will charge for additional remote delivery cost.
2. Buyer need to work with carriers to pay taxes/duties for customs clearance.
DHL/ Fedex express:
1. Generally, you need to waite 2-5 workdays.
Hubzig shipping method
For Canada, Spain, Germany, Poland, Hungary, Belgium, Denmark, the Netherlands, Austria, Finland, Ireland, Portugal, Sweden, Italy etc.
Generally, you need to waite 10~20 days
Specification:
Dimension: 135 x 128 x 48mm (support Msata SSD and 2.5″ HDD)
Power Consumption: 10w
Processor: Intel Pentium J3710 Processor, Quad core ( 2M Cache,1.6GHz, Max 2.64GHz, base Graphic)
Memory: SO-DIMMs Support DDR3L 1333/1600 MHz,1.35V 1 x DDR3 DIMM Memory Slot, Max. 8GB
Hard Disk: SSD MSATA – support HDD (2.5 inch SATA HDD )
Onboard VGA: Intel HD Graphics
Onboard LAN: 2* Rj45 Realtek RTL8111H 10/100/1000
WiFi: Support RTL8111H (NO WIFI, NO pigtails antennas)
Audio Solution: Realtek ALC662 6-Channel HD Audio

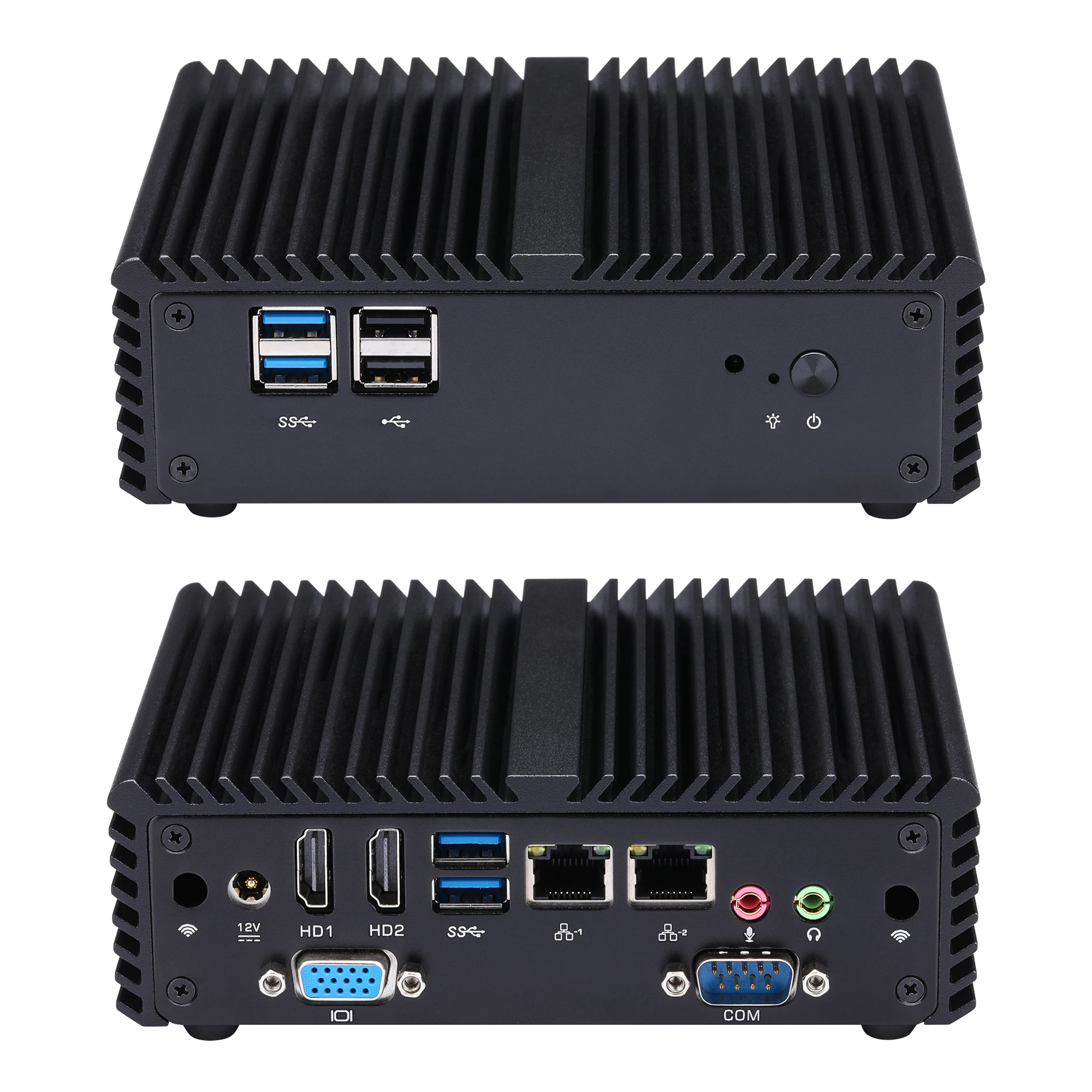

Front-Panel Connectors: • power on/off button
• Power LED
• 2 x USB 2.0 Ports
• 2 x USB 3.0 Ports

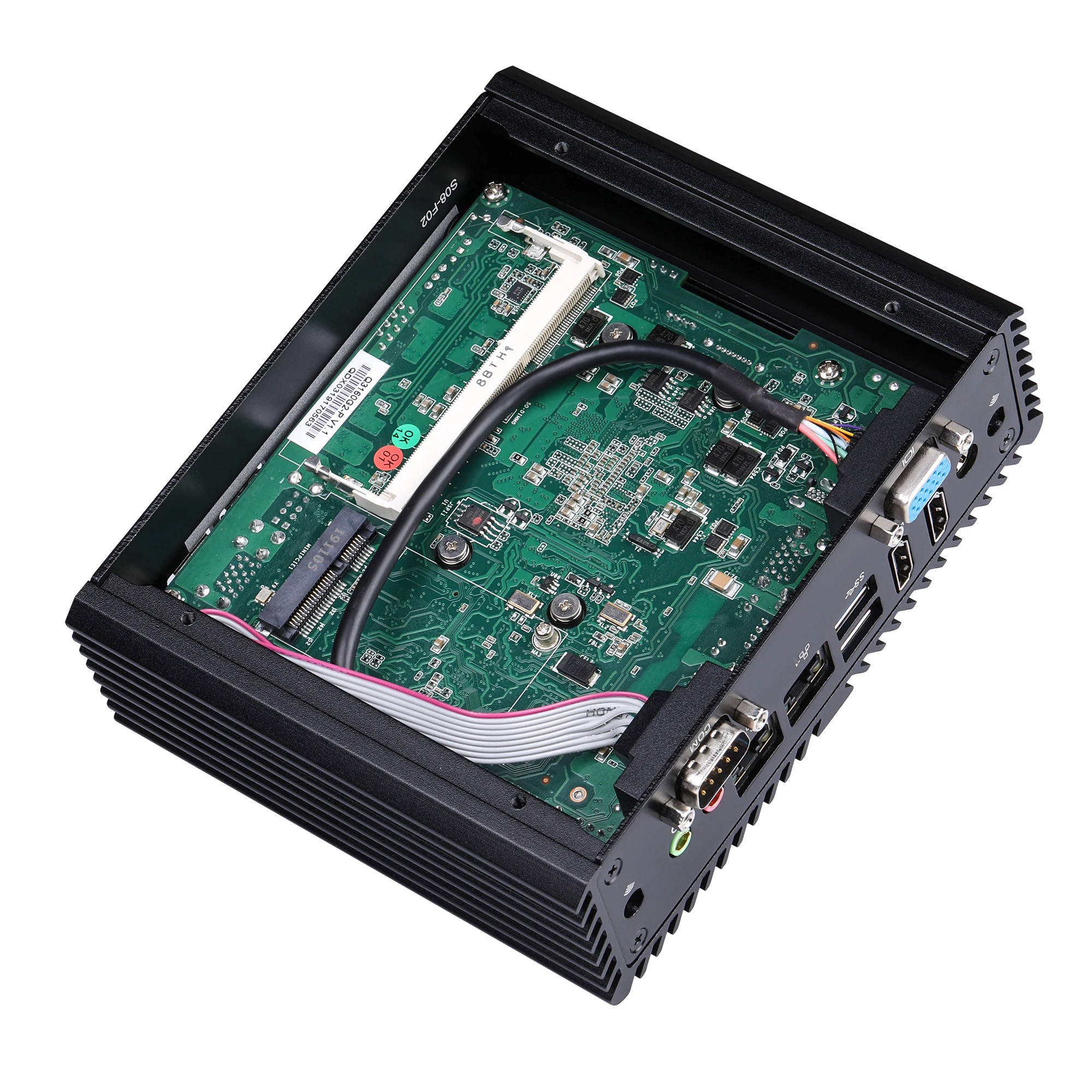

Internal Connectors: • 1 x Minipcie port (for mSATA SSD)
• 1 x Minipcie port (for WIFI/3G/4G Module) VGA 2.0 pitch header 3 *RS232 2.0 pitch header
• 1 x DDR3 DIMM Memory Slot
• 1 x GPIO header(2.0mm pitch header)
• 1 x SIM card Slot
• 1 x M.2 E key slot for wifi(Type: 2230mm)
• 1 x SATA power header
• 1 x Front panel header
• 1 x Front panel audio header
• 1 x Front panel USB header
Rear-Panel Connectors: • 1×DV 12V DC input
• 2 x HD Video Connectors(Support 1.4a)
• 2 x RJ-45 Ports
• 2 x USB 3.0 Ports
• 1 x Speak Out Connector
• 1 x Mic In Connector
• 1 × VGA port
FAQ:
Q1: About the system.
A1: It will come with unactivated win 7. we can provide inactive Windows, Linux, pfSense, Sophos, VyOS, Linux iptables, Untangle, Ubuntu ect. Would like other OS, give me an attached message. You also can install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.
Q2. Could you print our company logo on the product?
A2. Yes.
Q3. Could you produce customized package box for us?
A3. Yes, the MOQ. for that is 500pcs. Extra cost will be charged if quantity less than that.
Q4. How about the import tax?
A4. We are not responsible for your import fees (duty and tax, VAT and others), but we can our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country.
Q5. Does it support 3G/4G?
A5. Yes, there is a mini PCI-e slot for wifi or 3G/4G module but it supports wifi by default, if you want to install a 3G/ 4G module, please leave a message. By the way, we don’t supply any SIM card and 3G/4G module.
