Description
Qotom-Q330G4-1U/Q350G4-1U Spec:
Dimensions: 440*112*44mm
Q330G4 CPU: Intel Core i3-40005 Processor 3M Cache, 1.70 GHz Haswell TDP 11.5 W, Intel HD Graphics 4000
Q350G4 CPU: Intel Core i5-4200U Processor 3M Cache, 1.60 GHz, up to 2.60 GHz, Haswell, TDP 11.5 W, Intel HD Graphics 4200
Active cooling(CPU FAN)
Intel AES New Instructions: YES
Secure Key: Yes
Memory:
1 x DDR3L SODIMM Memory Slot
Support DDR3 1333/1600 MHz,
Max. 8GB Memory
Storage: support
1x mSATA SSD
1 x 2.5-inch HDD/SSD
Wi-Fi:
1x a half mini pcie slot for WIFI
Warranty: 1Year
Front-Panel Connectors
• 1 x Power Button
• 1 x Power LED
• 1 x Serial Port (RS-232)
• 1 x HD Video Port
• 2 x USB 2.0 & 2 x USB 3.0

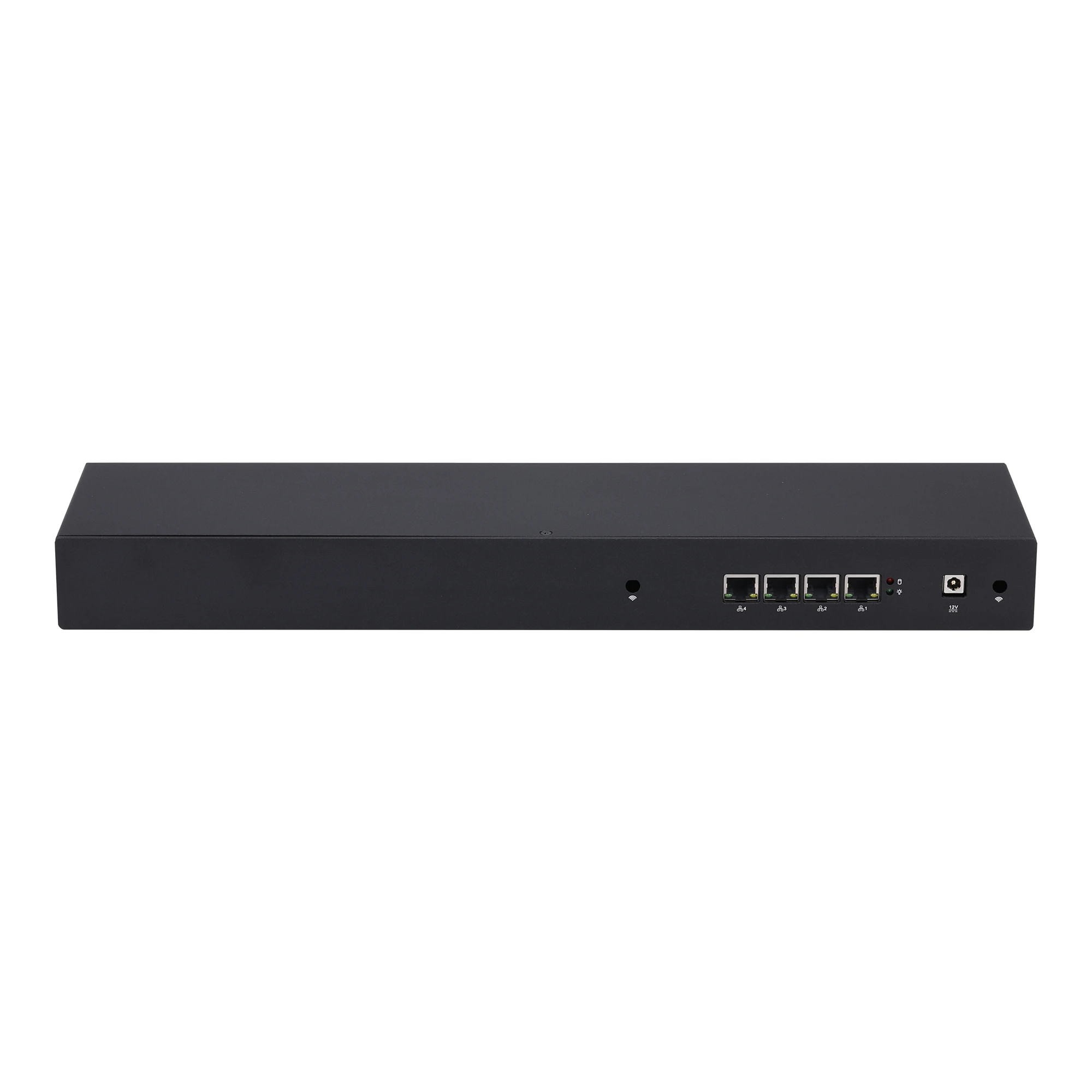

Back-Panel Connectors
• 1 x DV 12V DC input
• HDD LED, Power LEDs
• 4 x Intel I211-AT / I210- 10/100/1000 Controller

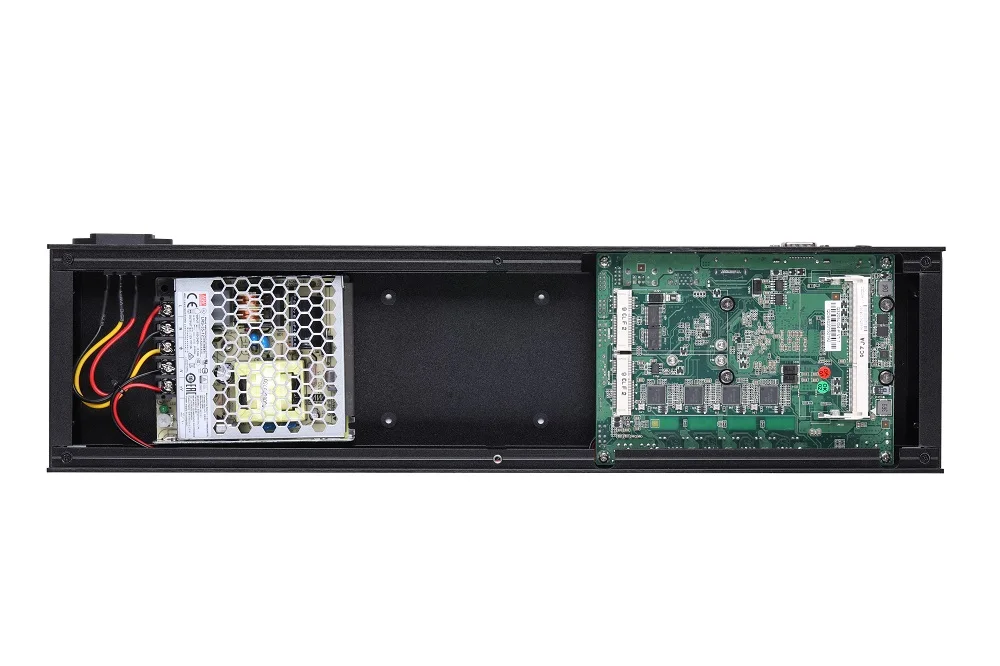

Internal Connectors
• 1 x Full Mini pcie slot (for mSATA SSD)
• 1 x SATA connector
• 1 x Half Mini pcie slot (for WIFI/Bluetooth Module)
• 1 x DDR3L SO-DIMM Memory Slot
• 1 x Automatically boot jumper
Operating System
Mini PC supports Windows 10, Linux, pfSense, CentOS, Sophos, OPNsense, VyOS, Linux iptables, Untangle, etc.
Preload Pfsense(Username: admin, Password: pfsense) for test. Buyer can reinstall OS.
F11 key boot from USB Drive. Delete key enter BIOS.
Packing
1 x Mini PC
1 x Power plug (US/ UK/ EU/ AU/ IT standard)
1 x ear bracket & screws
1 x neutral box by default,
You can leave message to require for Motherboard User Manual and Windows drivers download link.
