Description

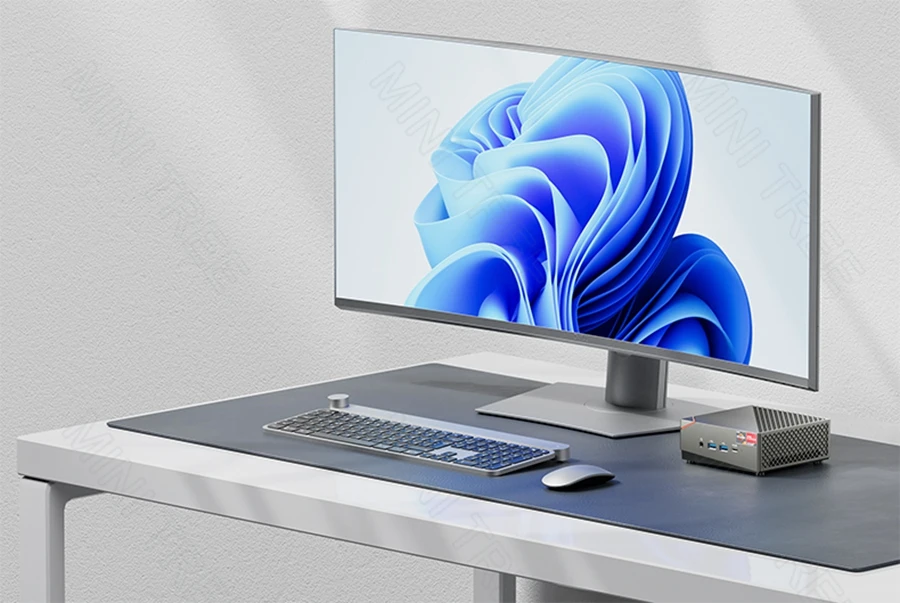

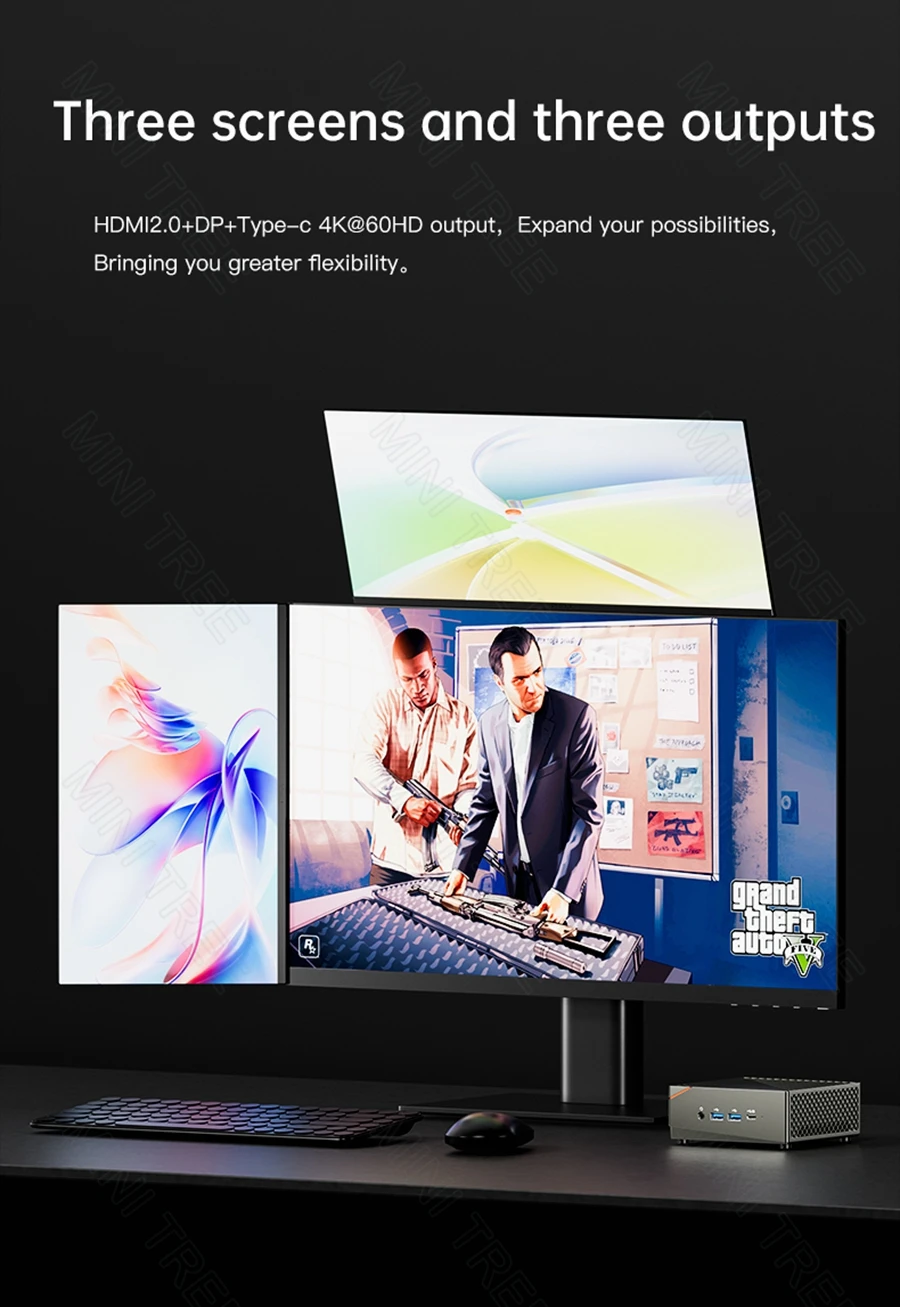

AMD Ryzen 7 5800U Micro Gaming Mini PC DDR4 M.2 NVME Win 11 Gamer Desktop Computer Dual 2.5G 4K Triple Display HD DP WiFi6 BT5.2
Processor parameter for referance only:
1. 7nm AMD Ryzen 5 4500U 6 cores 6 threads 2.3GHz up to 4.0GHz 8MB cache TDP 15W Radeon™ Graphics 1500MHz.

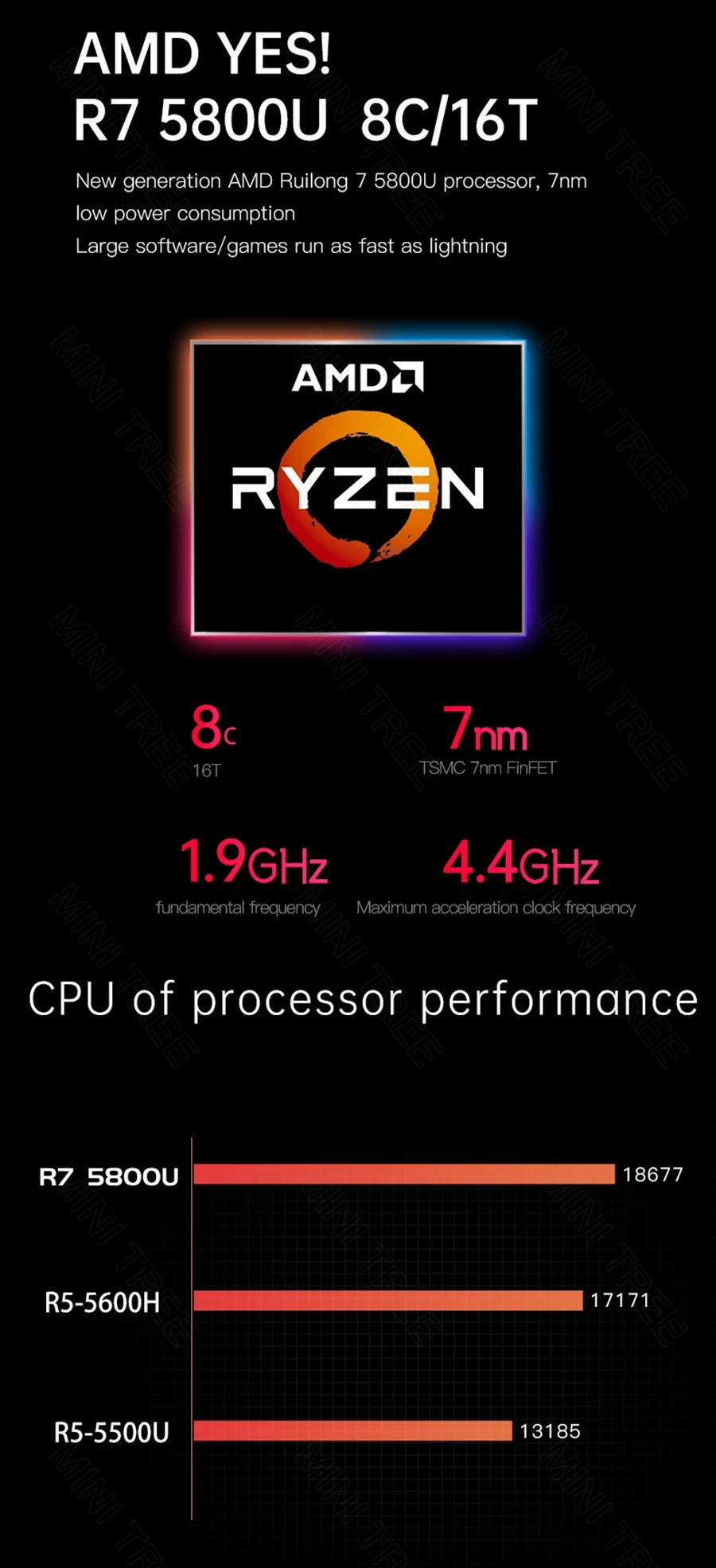

2.7nm AMD Ryzen 7 5800U 8 cores 16 threads 1.9GHz up to 4.4GHz 16MB cache TDP 15W Radeon™ Graphics 2.0GHz.

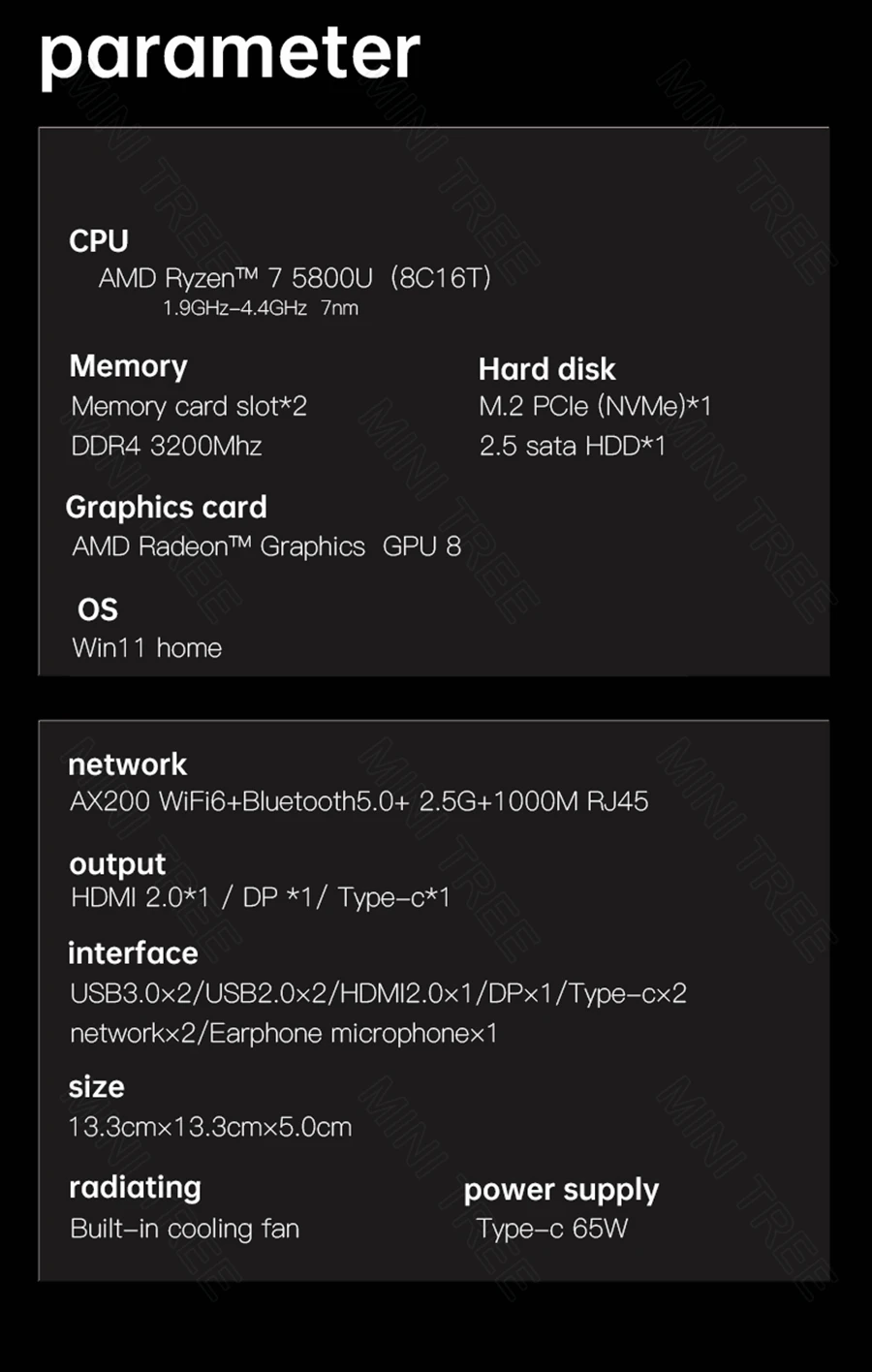

Specification:

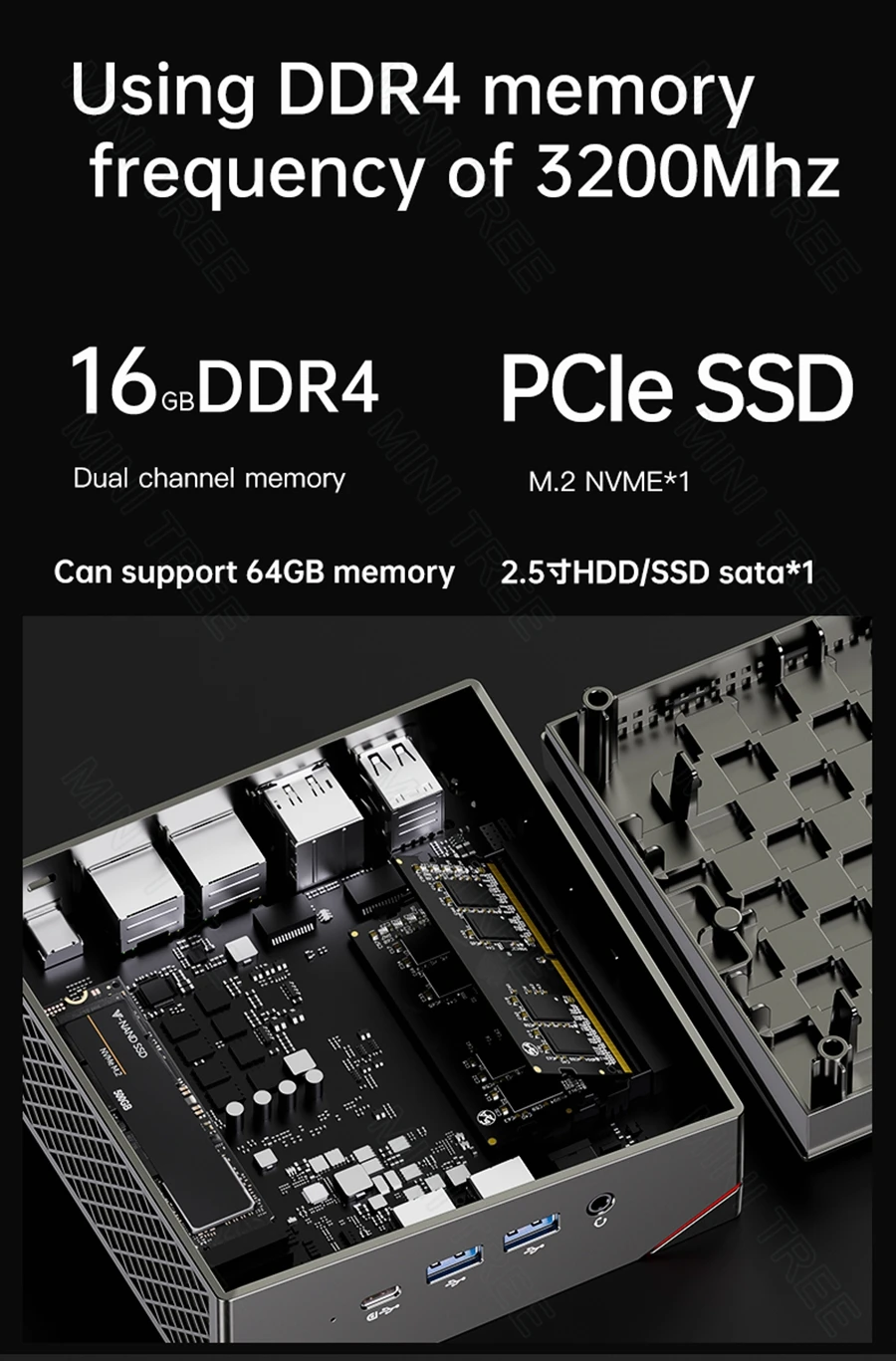

Memory: 2*DDR4 SO-DIMM ram slots
Storage: 1*M.2 22×80 SATA/NVMe/PCIE3.0x4SSD+1*2.5” SATA SSD/HDD
Graphic card: Radeon™ Graphics
(DP and type-C request activate cable for display)
Network card: 1x100M/1000M,1x100M/1000M/2500M +AX WiFi6&Bluetooth5.1
Function: SenseMI Technology/DirectX®12/Wake on lan/ PXE/Auto restart when lost power
USB: 2*USB3.0+2*USB2.0+1*Type-C USB 3.1

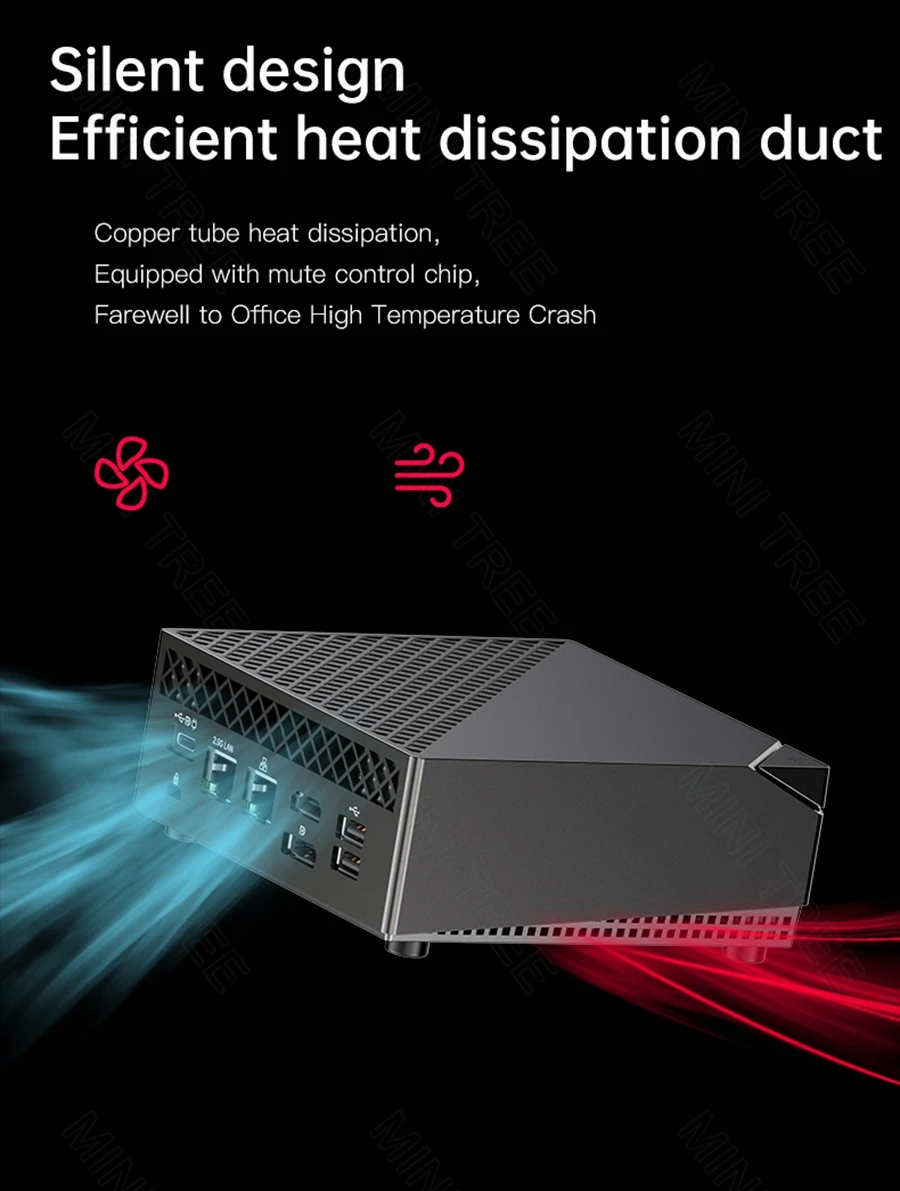

Heat-sink: Silent turbo cooler
Power Supply: GaN PD 65W
Notice:
1. We have an Official Fedex Express IP account which picks up the package that day and you will receive it about 3-7 days.
2. We will install OEM Cracked Windows 11 egnlish by default. Please note the Language you need.
3. Barebone Mini PC (“NO RAM NO SSD” bundle) package. DO NOT include RAM SSD HDD.
4. DO NOTbuyBarebone Mini PC (“No Ram SSD No WiFi” bundle)
If you are not a Computer/IT experts. If you don’t know how to install the Operating system,
We can’t pre-install the system for you without a hard disk.
We DO NOT compensate for buyer’s own ram and hard drive.
Basic Information:
CPU: AMD Ryzen 5 4500U /Ryzen 5800U
TDP: 15W
Level 3 Cache: 8MB
BIOS: AMI (American Megatrends Inc. )
Chipset: AMD PRO A Series
Memory: 2 x SODIMM-DDR4 Slot, up to 64GB
OS: Windows 10
Audio: HD Audio realtek ALC 662
Network: RTL 8111
10/100/1000Mbps Adaptive LAN
Video: Radeon™ Graphics 6 Core 1500MHz

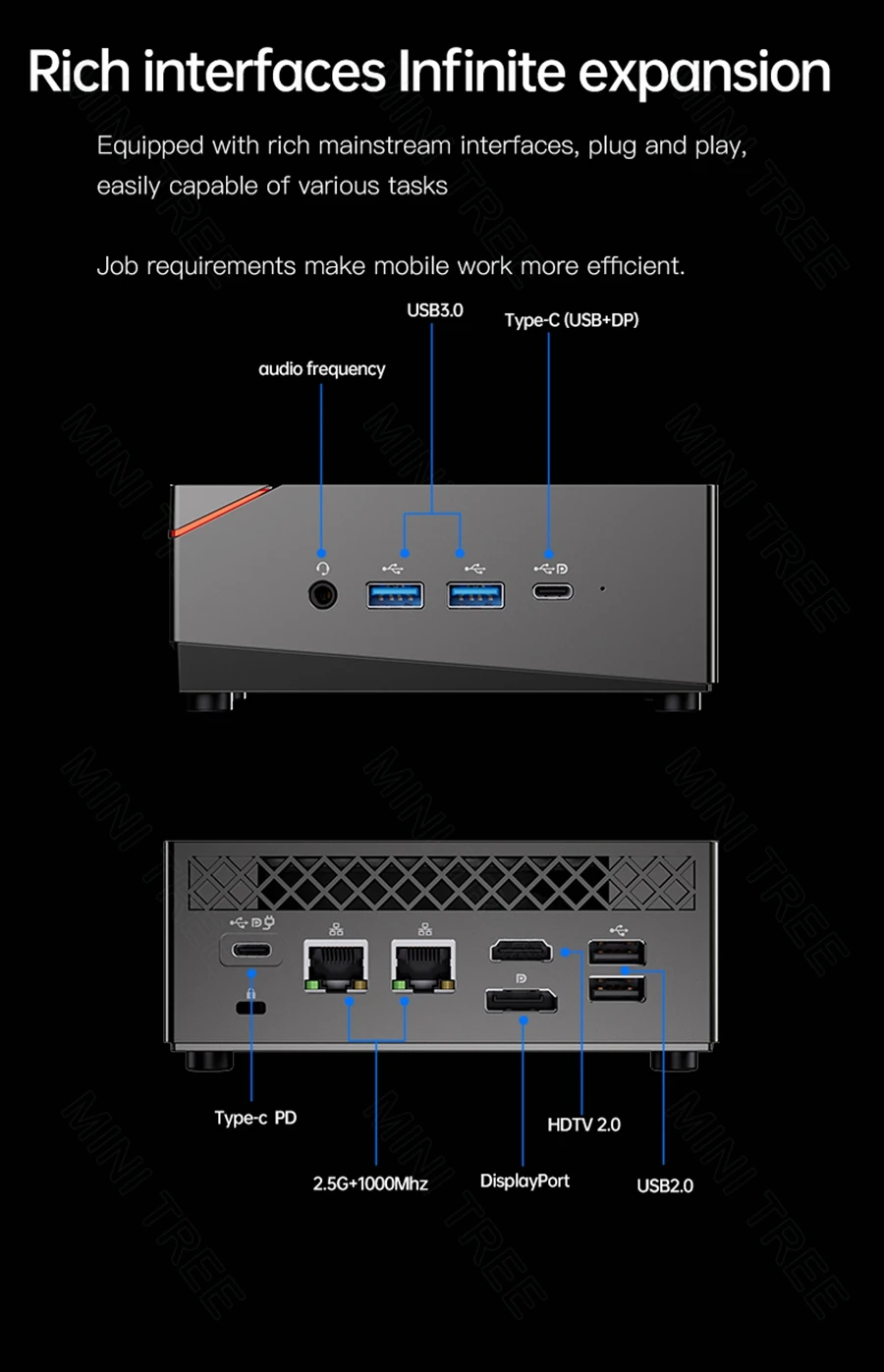

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x Type-C PD charge max 65W
USB: 2 x USB3.0, 2X USB2.0
Display: LAN
1 x RJ45 LAN
Audio: 1 x Power Switch Headphone
Others: 1 x Kensington lock hole
Storage: M.2
1 x M.2 NVMe/PCIE3.0x4 22*80 SSD, up to 2TB
SATA: 1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 2TB, support 6Gb/s
Wi-Fi
Module: 1 x M.2 NGFF 2230(Key E) slot for WiFi+AX200 dual-band WiFi6&Bluetooth5.1
Antenna: 2 x inner RF cables without external antenna
Power and Working Environment
Input: 100-240V AC/50-60Hz
Output: Type-C PD charge max 65W
Operating Temperature: -10/60 Centigrade
Storage Temperature: -10/+60 Centigrade
Relative Humidity: 0%~95% (non-condensing)
Product Dimension & Details

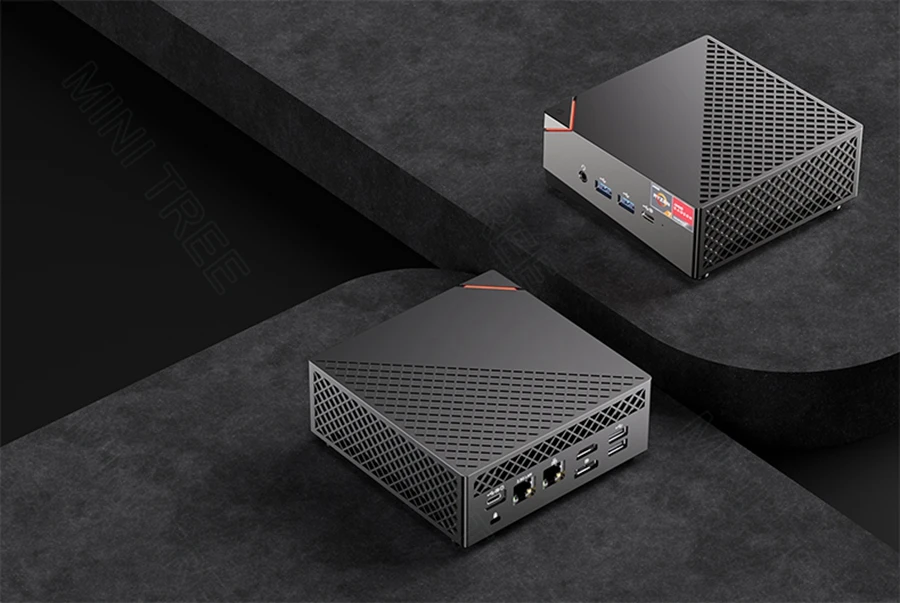

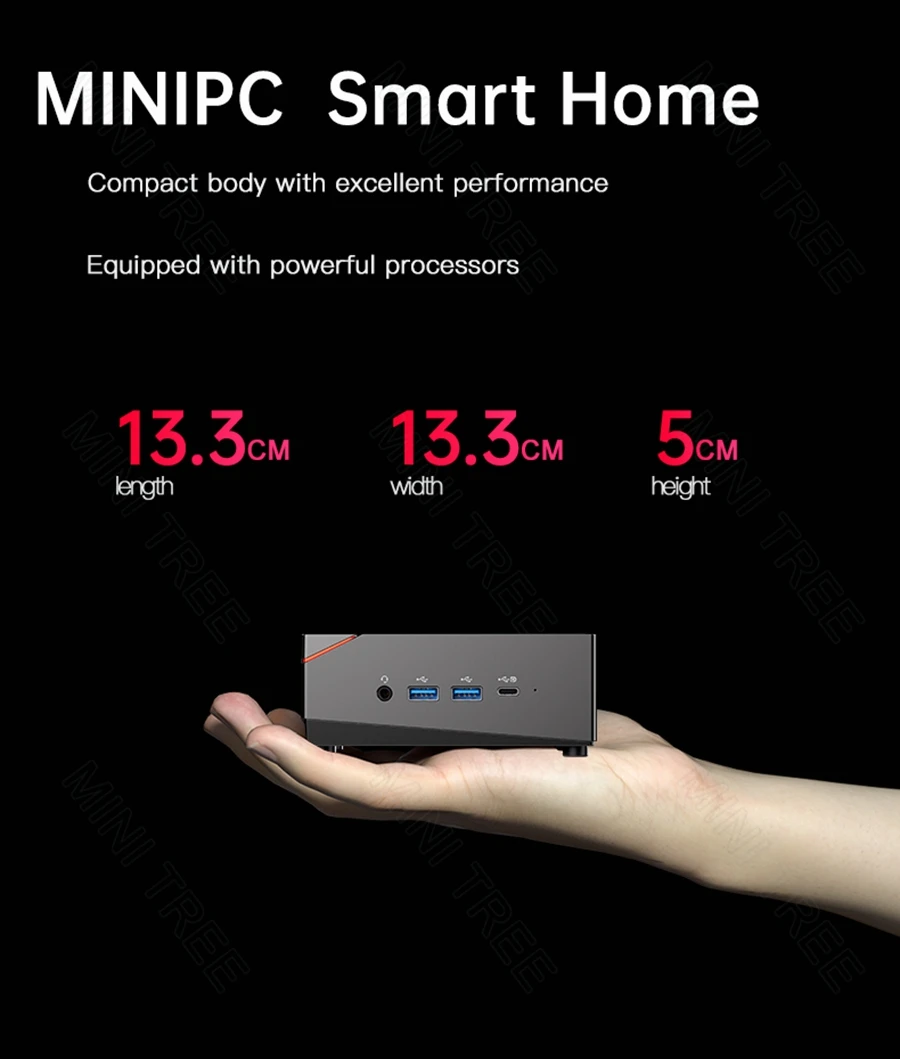

Size: 133 x 133 x 50mm
Weight: Net 0.65kg, Gross 1.5kg
Shell: High-quality PVP
Cooling Mode: Silent turbo cooler
Functions: SenseMI Technology/DirectX®12/Wake on lan/ PXE/Auto restart when lost power
Package Content
Standard: 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,
Optional: 1xUser Manual, 1xHDMI cable
For Operating System:
We can pre-installed well the OEM Windows 10 OS for you before shipment, if you order the Mini PC bundle with RAM and SSD, please kindly leave us message which OS you want to install. English version is for free, other languages can be selected amount Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc, Please inform us which language you want to install. Other systems we can install for free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need, Supplier is not responsible and make no compensation for OEM system.
For RAM and hard drives, we use well-known brands: samsung, micron, SanDisk, toshiba, hynix, critical, liteon, kingfast, phison, longsys, SCY, etc. What brand we use depends on our testing and inventory.
About RAM and hard disk storage space:
The actual available storage space may have some difference from the marked capacity. The reason we can explain is that the software configuration will take up part of the storage space.
1. If you are satisfied with our products and services, please leave a 5-star praise.
2. Please contact us before leaving a bad review. We will do our best to provide you with support
And provide satisfactory solutions.
3. Negative feedback or low DSR will not solve any potential problems. If you have any questions, please contact us by message first, so that we have the opportunity to make reasonable rectifications within a reasonable time. We will respond as soon as possible, and we are willing to solve the problem.
