PCI-E EXP GDC External Laptop Graphics Card Docking Station – Mini PCI-E/NGFF/M.2/Expresscard Interface

Description

PCI-E EXP GDC External Laptop Dock Graphics Card Video Card Laptop Docking Station ( Mini PCI-E / NGFF / Expresscard Interface)
Introduction:
EXP GDC is the laptop external graphics adapter equipment; it can help you to use the external independent high-performance graphics, can be used to access any of the PCI-E interface equipment, used to enhance the performance of the laptop, so that you can play those huge games requesting high-performance graphics.
Please refer to the user manaul step by step to use this product. Be carefully when connect the power and cable. If you your laptop can not work with the product, please refer to the trouble shooting part in the user manul at first.
Please distinguish your laptop’s interface:
Please refer to theoperation guidein the package carefully when you install this product. You can view the video in the product link too.
The link for download the user guide:
Specifications:

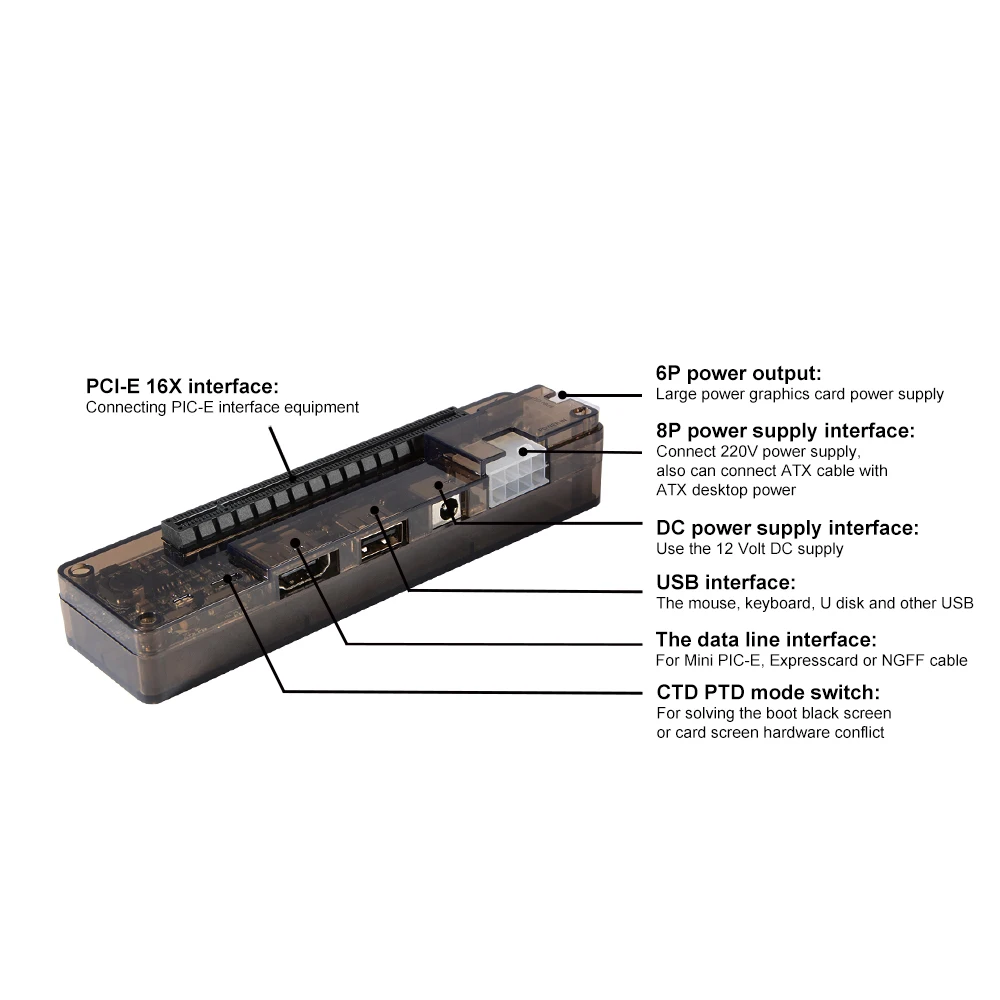

Support Interface: PCI-E X16
Input Interface: Mini PCI-E/NGFF M.2 A Key/Expresscard
Extand Support: PCI-E X16 DMI 5 GT/s
Power: Max. 220W(8Pin interface)/Max. 150W(DC interface)
USB: 1.0/1.1/2.0
Compatible system: Windows XP/7/10, Linux
Features:

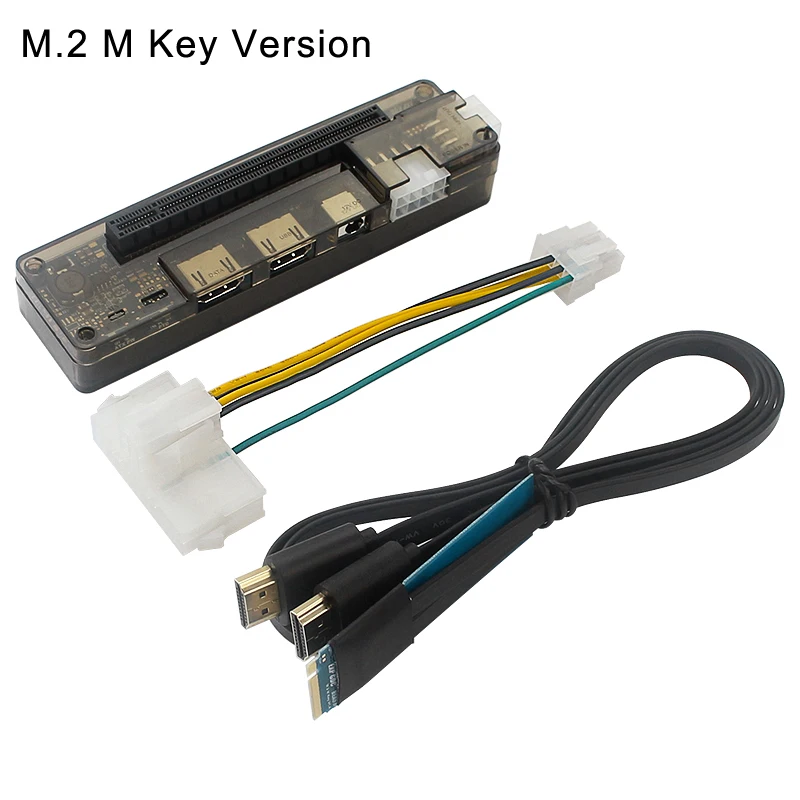

EXP GDC Laptop external independent video card dock w/ expresscard data line and 6 Pin/8 Pin power supply cable.
Dual TD compatible switch (resolution of hardware conflict).
High quality imported electronic component, multistage anti interference and Isolation protection circuit.
Multi power automatic switching (support for soft start).

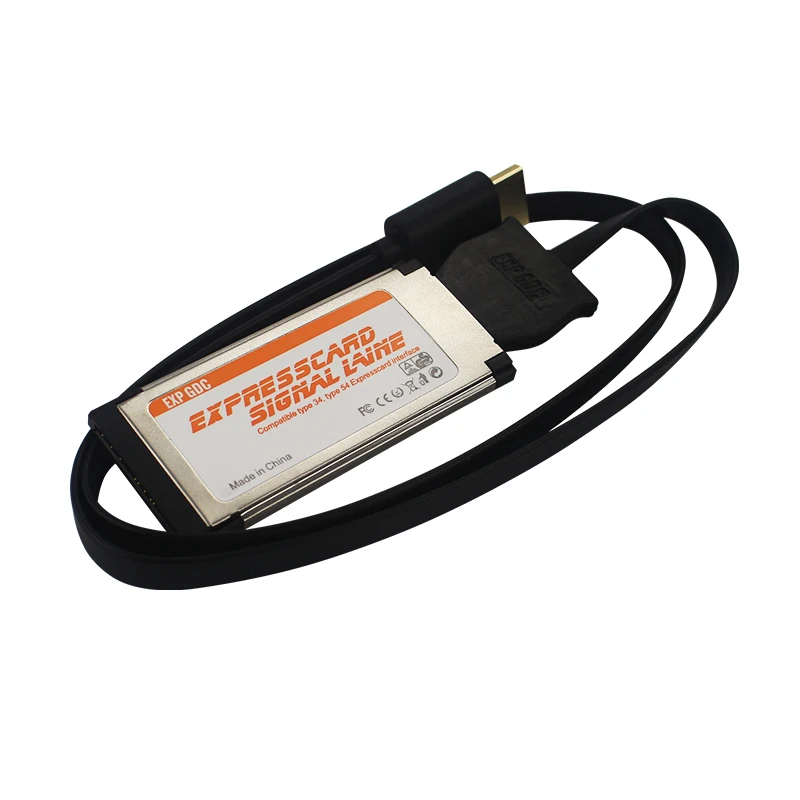

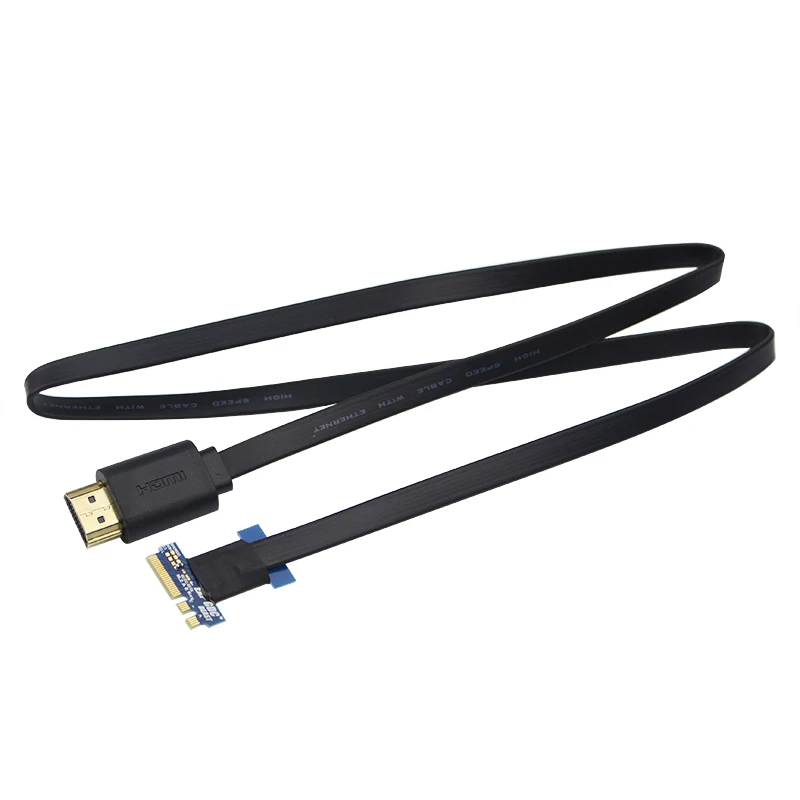

Enhanced MINI PCI-E data line with 26pin interface, supports 54 type and 34 type expresscard interface.

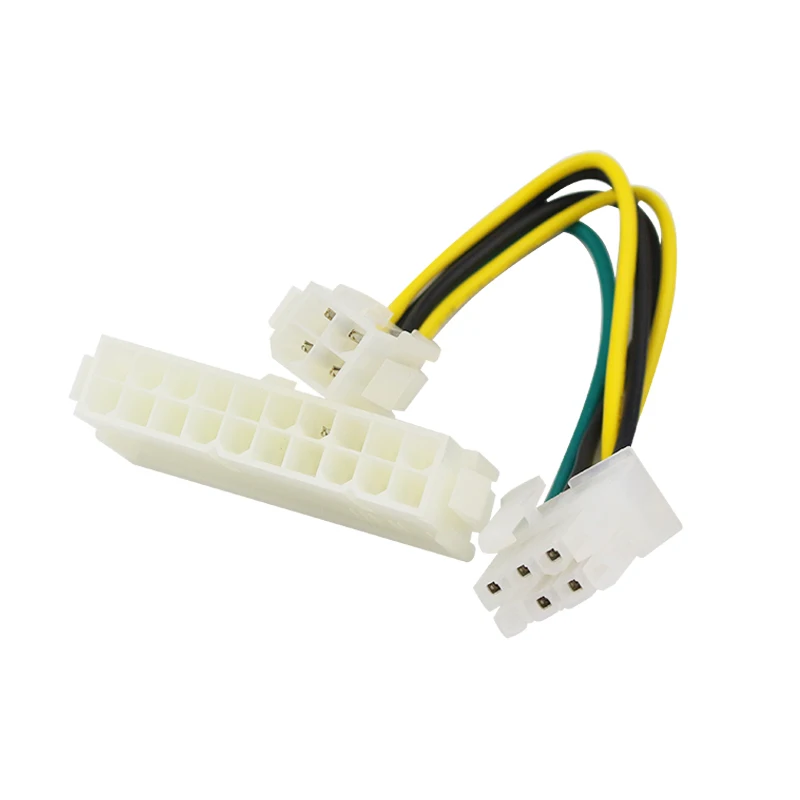

With 6pin interface for connecting video card power supply; 8pin interface for connecting EXP GDC power supply.
Use for engineering measurement, data collection, server debugging, GPU computing and other industrial applications, of course, still be used to access most of the graphics card to play the game.
Note:
EXP GDC is a NOTEBOOK external graphics adapter equipment, do not include graphics card.
If you use your notebook display, please make sure it has Intel (R) HD graphics and connected above GTS450 as NVIDIA graphics. Otherwise you need external monitor. Usually the external monitor can get better performane.
This products doesn’t support these model of laptops, please don’t make the order if you use these laptops:
1. Asus (N55SF, N75SL, ASUS A53XI24 1SV-SL, K43SD, A73S, K53SD, X8dij, A43s, N55SL, K45dr)
2. Lenovo E530, L430, E43, U410, E49, K49, G50-75M(New Add)
3. HP H533OM, 6910, 5310M
4. Hasee ui45, EVI4
5. Haier T68
6. Acer 4739z, Acer E1-451G
7. Samsung 450R, 270e5k, np450r5j-x05cn
8. Dell 5437, N55SL.
These models of laptop is the known model which is not suitable. BUT that does not mean any laptop other than this list will work. You still need to learn if your laptop is suitable for use EXP GDC adapter to connect external graphic card.
Supported Laptops (known):
For Lenovo
W530/T520/W520/X220/X220/TZ570/T420/Y460/Y560/T410/E420/X201/X201s Edge/ /T410s/T400/T510/X201T/X200/W500/T61p/X61/T61/T60/T520/T420S//y470/T420I/Y480/G480/k580s/E520/Y580/G500/E46A/Y530/G510/Y400/G500/V460/Y560P/y480n/y480/E420/K29/B470/Z470/L421/SL410K/E420S/G470/G450/z465/Y500/V370/G430/Z370/Y485/Y410P/v1000/s410p/y471a/s230u/V570/e420s/Z500/V470/Y40 70/G710 AT-ISE/y430p/S400/SR1000/B5400/405S/A8/Y50/Z501/Z480/Z580/U310/K46A/z380/P51/
For Dell
E6520Vostro/3450/XPS15/L502Studio/1557/E6220/M4500/E6420/E4300Studio/1557XPS 1645E4310M4600Insp.1545XPS/1340E4300 XPS 1640 E6500Insp 1420XPS 1340Vostro 1500 1440Vostro v130XPS M1530D830M1330Studio 1555Insp 1520Vostro 1310E15051545E6520E6520E 6220E 5410E 4310E 641014RM12104600MD630E64206320N4120N50103421N3010772014R4728152014rd658N411014RD658inspiron15-3521e632074205537xps164515r7520767015R 4526 5547 773014R 5420M6600752055374050vostro3300n3420L702X3542155815 75484z-5423 E6230
For Fujitsu
AH531/T731/S6420/T901/T5010/U9200/AH56/Gnh532
For HP
4530s/2560P/8460P/4330s/2540P/8440P/DV4-2000/2530P/2740P/6930P/6930P/2730P/HDX9000/ Pavilion DV4/DV9690en/CQ60/DV7126/7CLHDX16HDX18TTX22510PDV7-3020EDDV2000dv2416US6910PNC640021334530sHp8440p14 beatsG42DV51220TXN51108570PCQ35-219TXDV2804TXCQ45CQ40CQ42 285TX8560P2730p4321sDV7HP44318470P2570Penvy17j120usHP6450BHP 8470Pcq15-102tx/2570P/8460P
For Sony
Z21VPC-Z11, VPC-Z13, VPC-Z12, VGN-FW45Z46GD, VGN-NS110eEA27ECVPCCA36ECEA47ECCB36ECNw35eEA200CS138Vgn-nw71fbSVT11138CCS, vpcs128ec, FW17Z45vpcea25fgvpcea18ec, VPCEB26FXVPCZ138GGsve14a28ccsPcg-71212tSVE 141
For Acer
5755G/3820TG/5920G/5620Z/5742G/6930/5620/1810TZ/5720G/1410 Ferrari One/4752G/4750G/E1-471G/5750G/5951G/E1-571G/V3-571G/V5-472G/4315/V5-471G/V3-772G/4738G/4745G/E5-511G/5552G
For MSI
CX623/CR720/A6200-021US/CR630/M610/GX640/GE60
For Toshiba
R840/A665/L305-S5921/L300/A505-6965/L300/L305-S5921/M332/M780/L700/L650-02B/L800
For Clevo
M860T/UM570RU
For Sager
NP2096/NP8662/NP5793
For NEC
Versa E6500
For Asus
F8SA/X42JR/X59SL/1015PEM/M60J/Y581/CX81/x55v/X450VB/X450JS/x450c/N61JV/x402ca/U24E/r400/P53SJ/n75sl/n75s/N61JQ/N56/n55sf/n53/k56c/k55vd/K53SV/K52DR/k45vs/K43SM/a55vd/K42JB/K40IP/K40IN/g73sw/F83se/A73S/A55VM/A53/a450j/A43X/A43s/a42j/k55vm/k43/SDG74S/XN43sl/n55sl/k55vm/A45/K56CB/K43DK42kv/X55XI237VD-SL/X550VC/N81/VG X751L/A53S/A53SM/a450jf/X75VC
For LG
P300
For Samsung
R780/NP300E4A/NP270E5J-K01CN/r428/rv420
For HASEE
A460-I7/K590C/A560P/K580P/A430/K470p/460P/A550/k602c/K590S/K500DE400/K500C-i7 /D1/k660E/A460p-i7/K480N
For Tsinghua
University u49fK41H/A14RM0C
For Blue sky
P170em
For Haier
7g-2X5P
For Gigabyte
P15f V2
For Fangzhengyihe
A600
