Description
Product Highlight
– Onboard Intel Coffee Lake 10th/9th/8th generation powerful processor for online games.
– 2xSODIMM DDR4 memory slot up to 64GB more powerful performance improve work efficiency and give you a smooth experience.
-Support 2*M.2 2280 NVME/PCIE3.0x4 SSD+1*2.5” SATA HDD/SSD.
– Support Intel optane technology(M.2 slot on rear of motherboard).
-Support 2*Intel RJ45 Lans+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/Bluetooth.

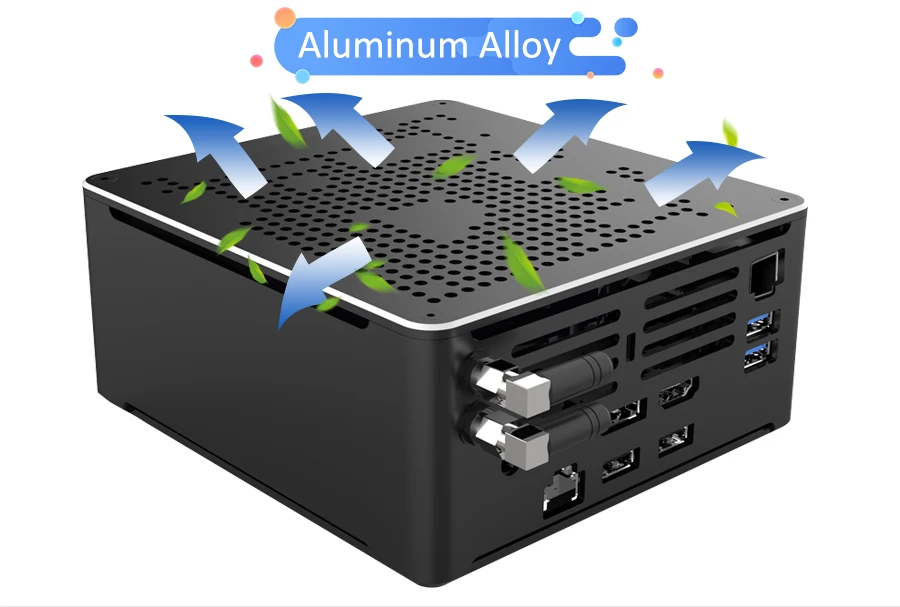

– Brushed Aluminum Alloy Black color shell, Exquisite production craft on outside design.
– Onboard a silent copper fan for heat dissipation can keep the computer steady working long time.
– One Kensington Lock hole keep the computer more safe in school, office, hotel, etc.
– Support VT-x, PXE, RTC, Wake on LAN, Auto power on.
Processor Proformance(All support AES-IN)
Processors: Cores & Threads
Cache: Base Frequency
Max Turbo Frequency: Graphics
Xeon-2276M: 6core,12 threads
12M: 2.80GHz
4.7GHz: Intel HD Graphics P630
Xeon w-10885M: 8core, 16 threads
16M: 2.40GHz
5.3GHz: Intel UHD Graphics
Xeon E3-1505M: 4 cores, 8 threads
8M: 2.80 GHz
3.70 GHz: Intel® HD Graphics P530
350MHz-1.05GHz
Notice
1. We have an Official Fedex Express IP account which picks up the package that day and you will receive it about 3-7 days.
2. If you need to install Windows11, please note in the order. We will install OEM Cracked Windows 11 for you for free. Without remarks, we will install OEM Cracked Windows 10 by default.
3. Barebone Mini PC(“NO RAM SSD NO WIFI” bundle) package. DO NOT include RAM SSD HDD and WiFi(antennas), if you need WIFI, please pay extra US $6 at this link. Other bundles include WiFi(antennas).
4. DO NOT buy Barebone Mini PC (“No Ram SSD No WiFi” bundle)if you don’t know how to install the system. We can’t pre-install the system for you without a hard disk.
5. we will ship normally DDR4 RAM by default, Please contact Customer service if you need ECC RAM !
If you need to upgrade your Mini PC accessories:
1. USB Infrared remote(can turn power off but not on) add extra cost US $6.
2. USB 2.4GHz Air Keyboard& Mouse, add extra cost $25.
3.500GB 2.5” HDD add extra $25,1TB 2.5” HDD add extra $60,2TB 2.5” HDD add extra $80
4. Intel AX200 WiFi6 Bluetooth5.1card add extra $30.
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example, upgrade USB IR remote, pay 5pcs for US$5, remember to leave a message indicating which one to upgrade)
Basic Information:
CPU: Intel Core i9 10980HK/ i9-10880H/ i9 9880H/ i710750H/ i7 8850H/ i7 8750H
Xeon E-2176M/ E-2186M/ E-2276M/ E-2286M/ E-1505M
TDP: 45W
Motherboard: 120 x 120mm customized size
Code Name: Intel Coffee Lake/Comet Lake
Chipset: Intel 300 series PCH

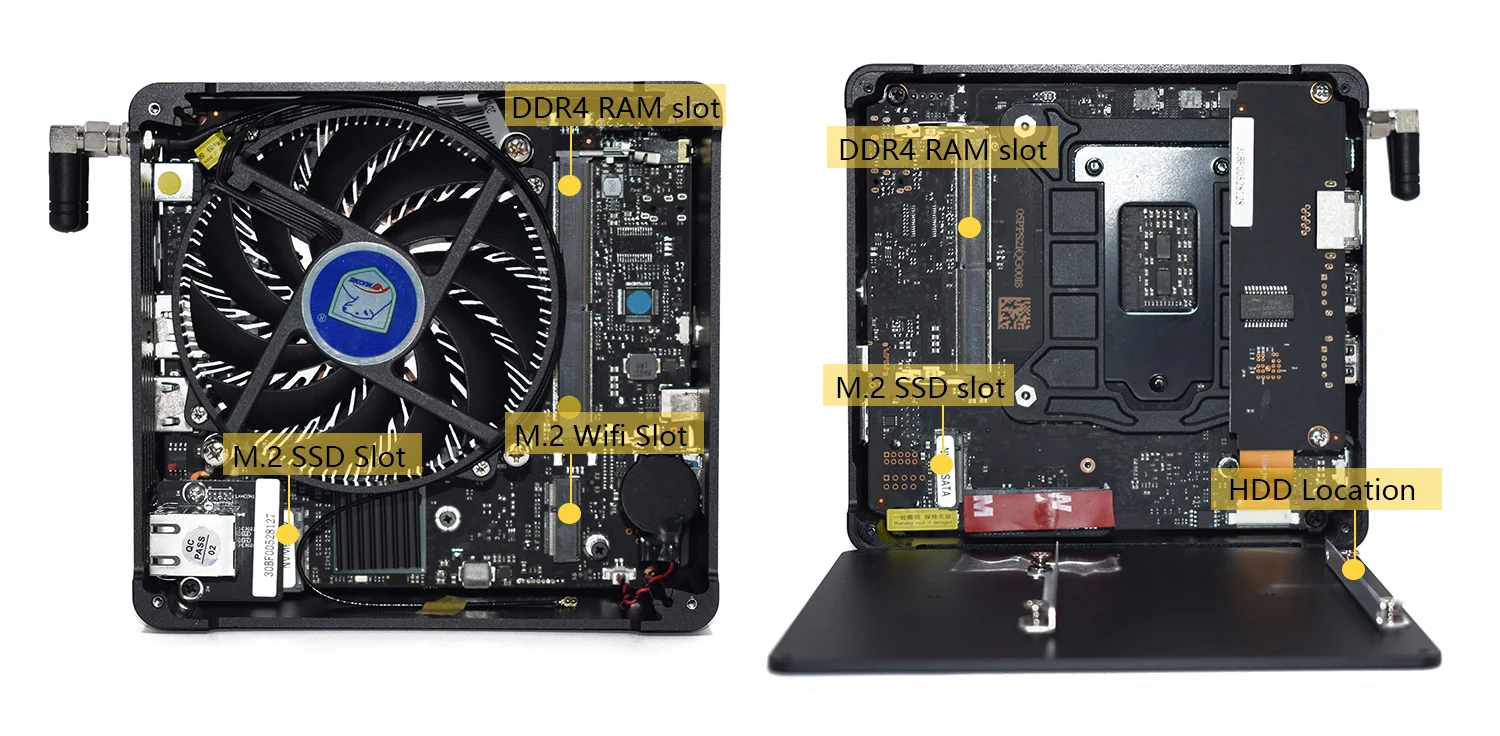

Memory: 2 x SO-DIMM SDRAM Slot, up to 64GB
Dual Channel, DDR4 2133/2400/2666/2888MHz
ECC Memory Support: YES
OS: Windows 11/10 Linux Mint Ubuntu
Storage: NGFF(M.2) 22*80(Key M) Slot, UP to 2TB
(Only Nvme PCIe3.0x4)
NGFF(M.2) 22*80(Key M) Slot, UP to2TB(Nvme or SATA)
2.5”9.5mm SATA HDD, UP to 3TB
Audio: Azalia Codec support 2.1 channel output
High Definition Audio Controller
Network: 1)10/100/1000Mbps Ethernet
2)Intel® Ethernet Connection I219-V
3)Intel® Ethernet Connection I211-AT
Video: Depend on CPU

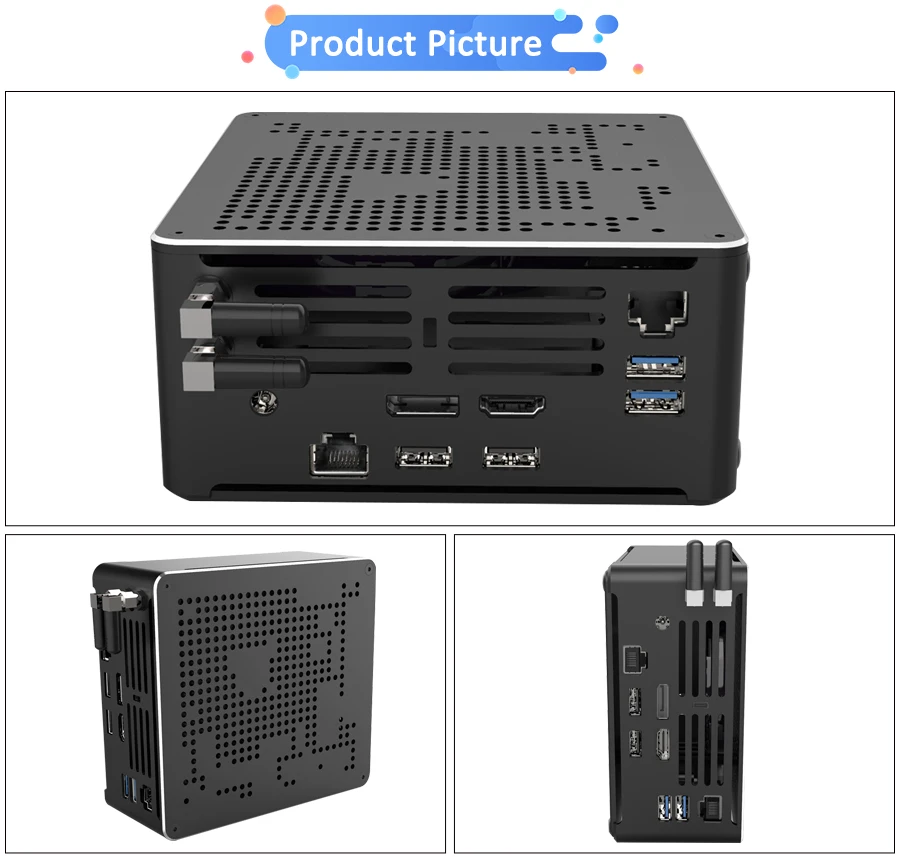

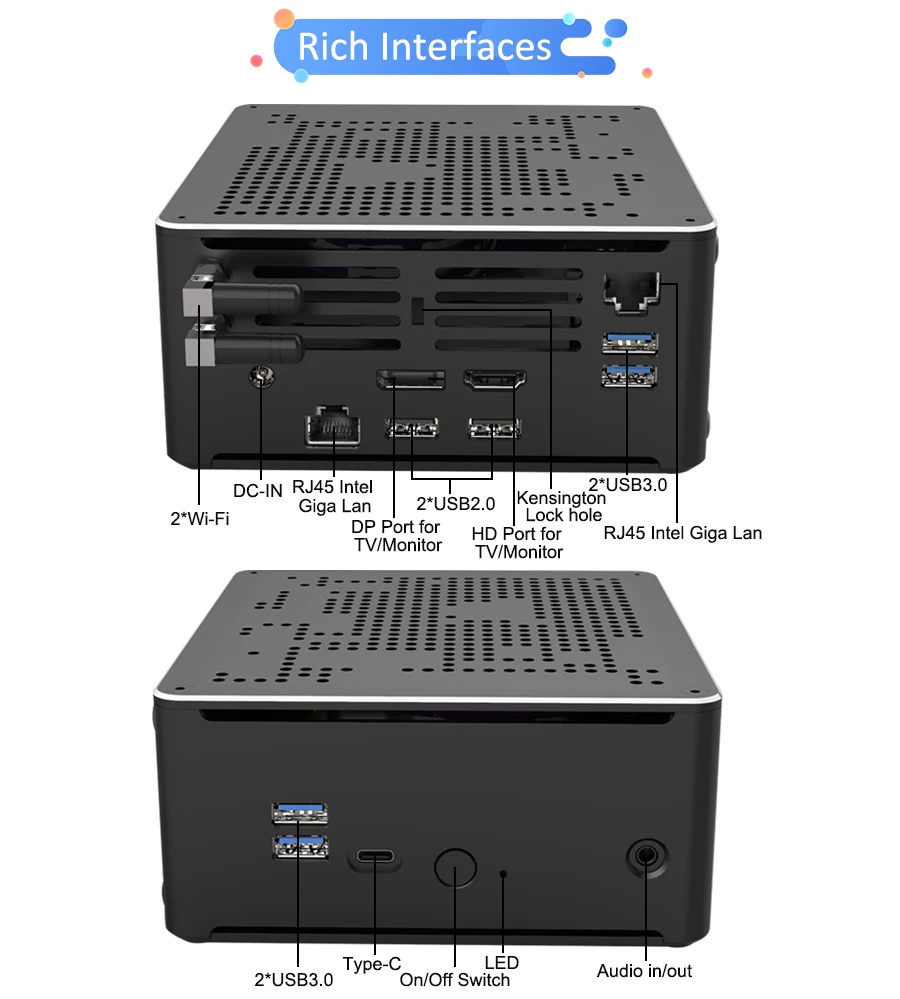

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 19V DC In
LED: 1 x LED
USB: 4 x USB 3.0 + 2 x USB2.0
USB-C: 1 x Type-C (USB3.1)

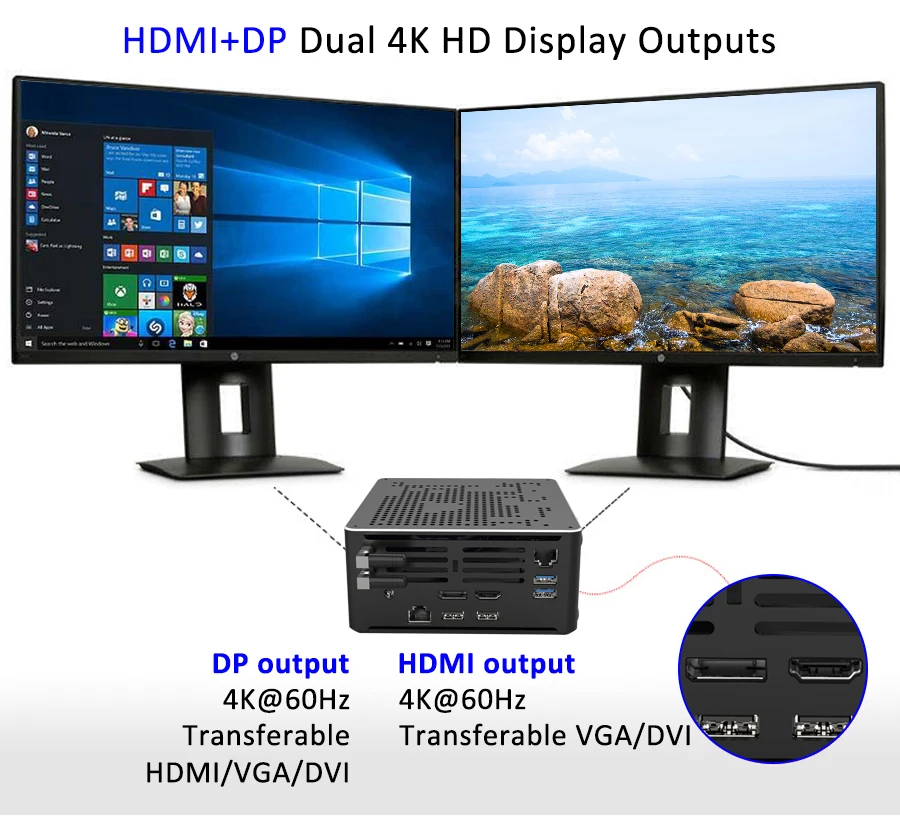

Display: LAN

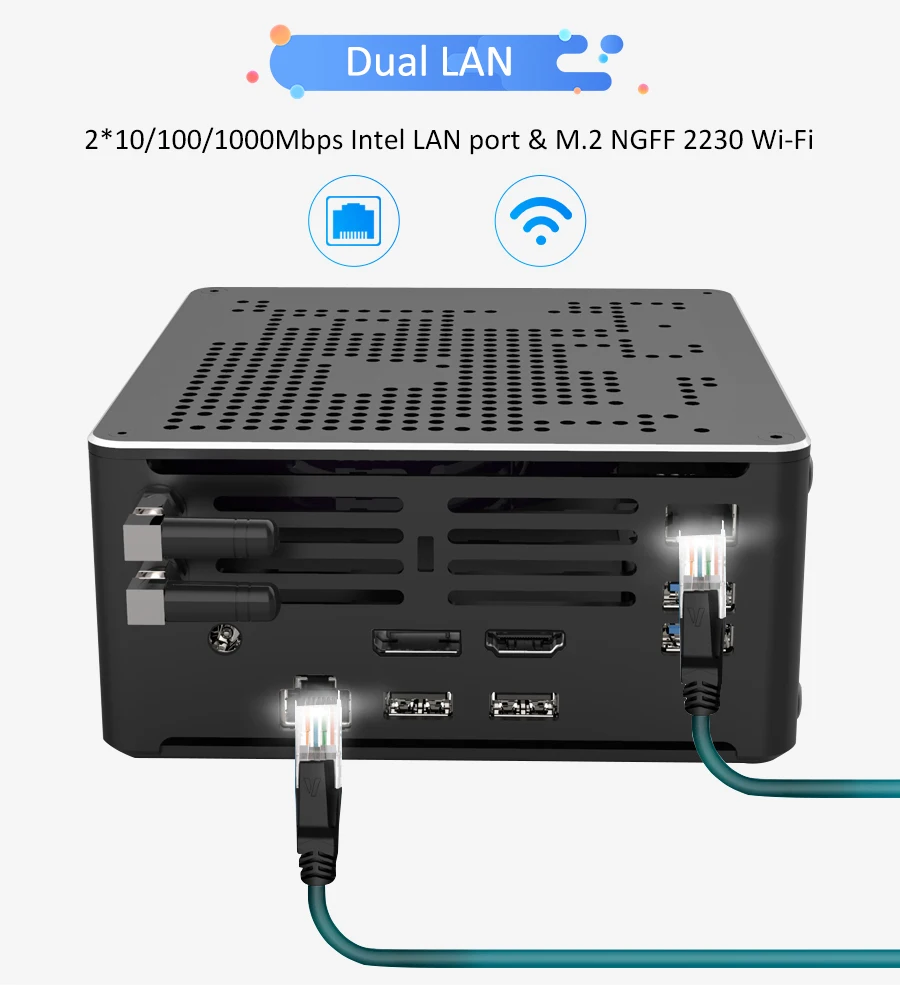

2 x RJ45 Giga LAN
Audio: 1 x Headphone-out/ MIC-in phone jack
Others: 1 x Kensington Lock hole
Storage: M.2
1 x M.2 slot for M.2 NGFF 22*80, up to 2TB(Only NVME), support 6Gb/s
1 x M.2 slot for M.2 NGFF 22*80, up to 2TB(NGFF/NVME), support 6Gb/s
SATA: 1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s
WiFi: Module
1 x M.2 NGFF 2230 slot for WiFi module (uprade to intel INTEL3160AC)
Antenna: 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: DC +12V~+19V, recommend 19V/3~5A
Operating Temperature: 0/70 Centigrade
Storage Temperature: -20/+80 Centigrade
Relative Humidity: 0%~90% (non-condensing)
Product Dimension & Details

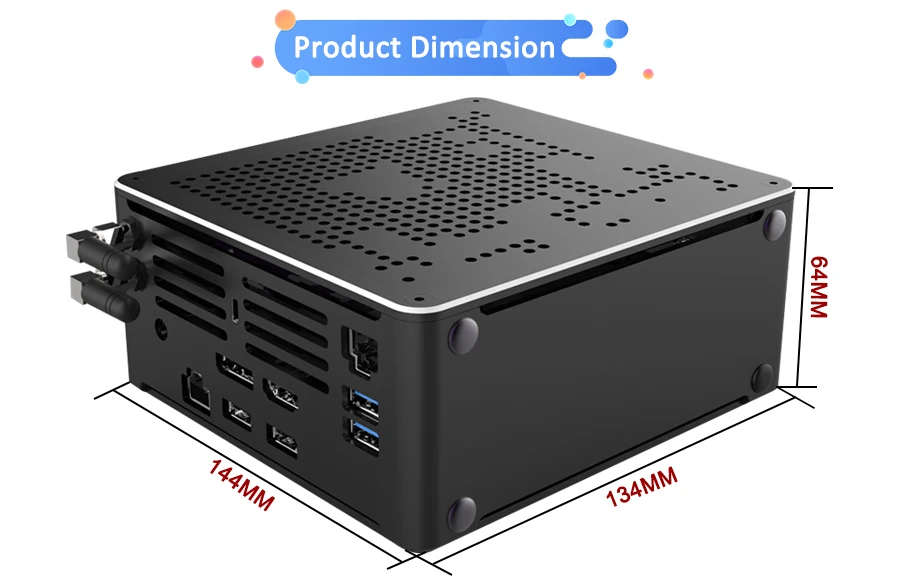

Size: 134*144*64mm
Weight: Net 1.05kg, Gross 2.5kg
Shell: Brushed Black color aluminum alloy, a film covered on surface
Cooling Mode: Silent Cooling Fan
Functions: Support PXE, AWAL, RTC

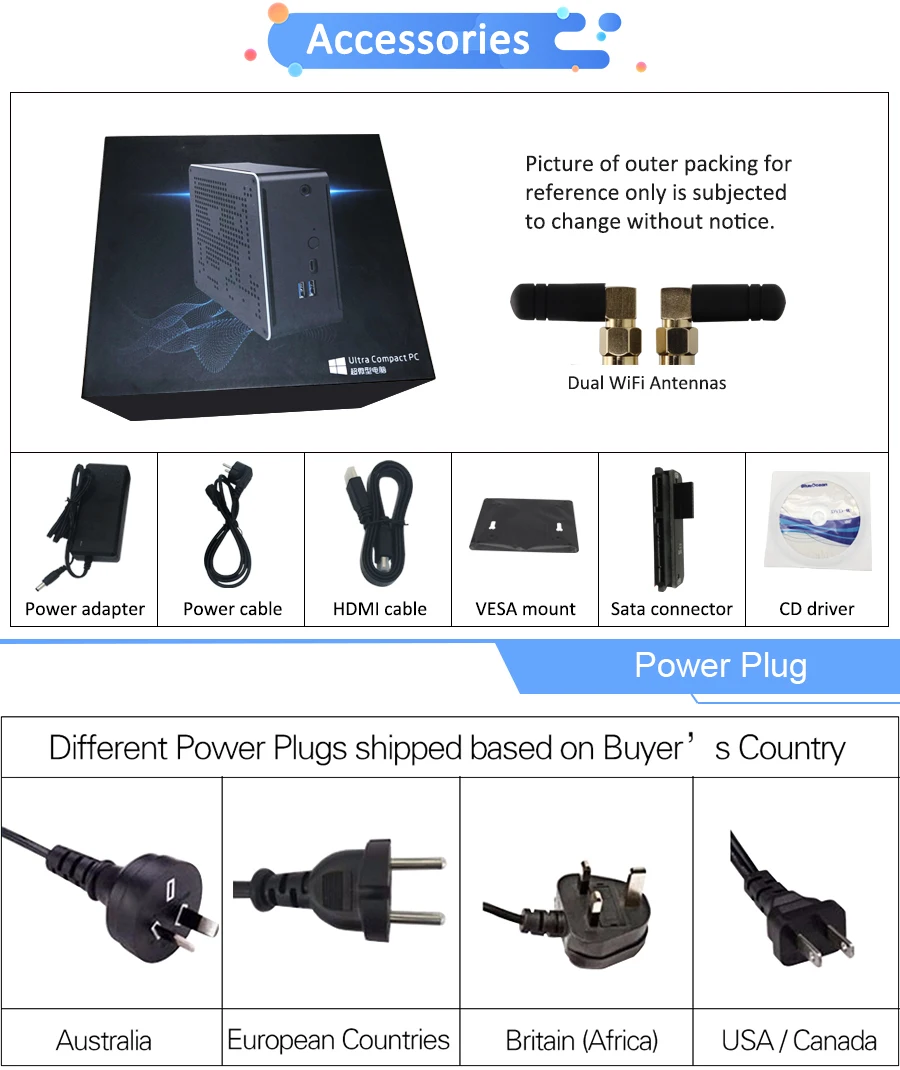

Package Content: Standard

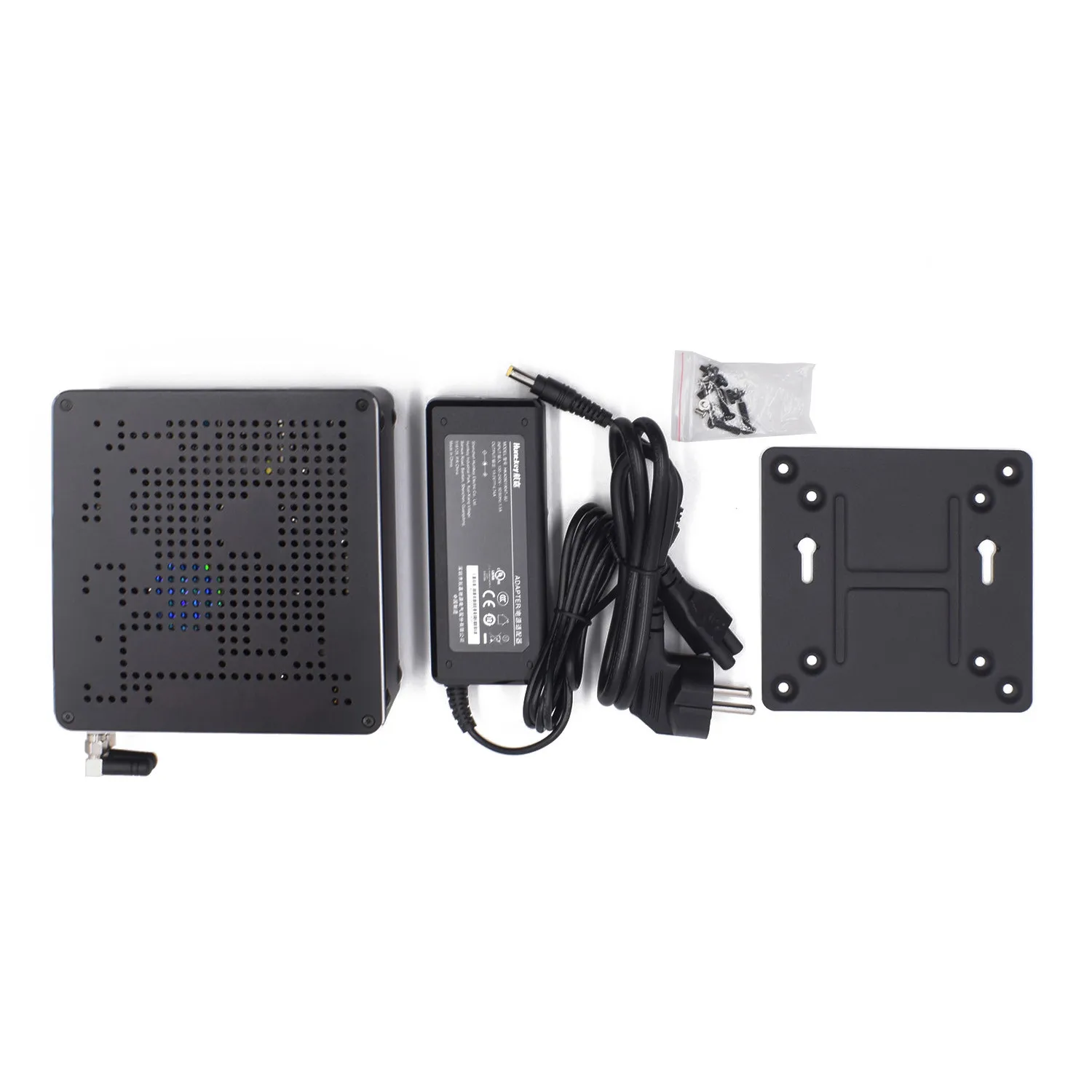

1xMini PC,1xPower Adapter,1xPower Cord,1xHDMI cable,1xSATA cable,1xScrews Bag, 2xWiFi antennas
For Operating System:
We can pre-installed well the OEM Windows 10 OS for you before shipment, if you order the Mini PC bundle with RAM and SSD, please kindly leave us message which OS you want to install. English version is for free, other languages can be selected amount Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc, Please inform us which language you want to install. Other systems we can install for free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need, Supplier is not responsible and make no compensation for OEM system.
For RAM and hard drives, we use well-known brands: samsung, micron, SanDisk, toshiba, hynix, critical, liteon, kingfast, phison, longsys, SCY, etc. What brand we use depends on our testing and inventory.
About RAM and hard disk storage space:
The actual available storage space may have some difference from the marked capacity. The reason we can explain is that the software configuration will take up part of the storage space.
1. If you are satisfied with our products and services, please leave a 5-star praise.
2. Please contact us before leaving a bad review. We will do our best to provide you with support and provide satisfactory solutions.
3. Negative feedback or low DSR will not solve any potential problems. If you have any questions, please contact us by message first, so that we have the opportunity to make reasonable rectifications within a reasonable time. We will respond as soon as possible, and we are willing to solve the problem.
