LOTO OSC482 5-in-1 Instrument: Oscilloscope, Signal Generator, Logic Analyzer, 50M S/s, 8~13 Bit Resolution, Optional Modules

Description

LOTO products help you solve the problems bellow:
1: As a junior hardware engineer, which oscilloscope to choose to get started?
2: Have to share a oscilloscope with your colleagues, how to break?
3: Need to carry a heavy oscilloscope to debug on site, what should I do?
4: Developing electronic projects at home, no oscilloscope is inconvenient, what should I do?
5: Traditional oscilloscopes are expensive, and many functions are not used. Need a powerful and inexpensive oscilloscope?
6: Traditional oscilloscopes are too clumsy
to be customized and difficult to integrate into your project. How to solve it?
Official video introduction, answers all your questions.
OSC482 series provide you 5 in 1 excellent choice:
With OSC482-based PC oscilloscope, you can combine it with signal generator module as OSC482S, combine logic analyzer module as OSC482L or combine both modules as OSC482X. OSC482M is OSC482 with an android app support with no module. If you want a OSC482X with android app support, OSC482F is available.
We keep updating oscilloscope software for improving software features/operations to the link:
Please check to download the latest version one.
Let’s have a look at the Software Application on Windows
Application scenarios and applicable population
In the above picture, we will see serial port decoding, X_Y drawing, carrier amplification, multi-point automatic measurement, analog input and logic analysis, printing and FFT of the Windows Software Application, and the working scene of the data logger.
This product is recommended for hardware circuit development and measurement, teaching equipment, on-site commissioning, encoder inspection, vehicle maintenance, automated inspection equipment, power ripple testing, solar system inspection.
It is developed for
Hardware engineer
Auto electronics
Electronic Geek
Field engineer
Colleage student
Hardware features and specificaitons
8~13 bit Vertical Resolution
Module Extensions
Let’s take a look at the product hardware interface for extensions:
The open DE-15 hardware interface can provide digital power as well as analog power, GPIO ports and analog input channels as shown below.
This interface an be used as a standard access for signal generator modules or logic analyzer modules.
Although these two modules can be plug and play in frequent use, it is recommended to connect the module after the device is powered off.
It can also be DIY a function module as shown in the figure below, and also access the device through the DE-15 interface.
Package List
Go ahead and let’s take a look at the Package List:
The picture above shows the uniform packaging appearance and the internal accessories, which vary according to the model chosen by the customer.
Of course, you can also choose a carrying case to package and store the oscilloscope and its modules and accessories, as shown below, this carrying case need to be purchased separately. You can find its link in this shop.

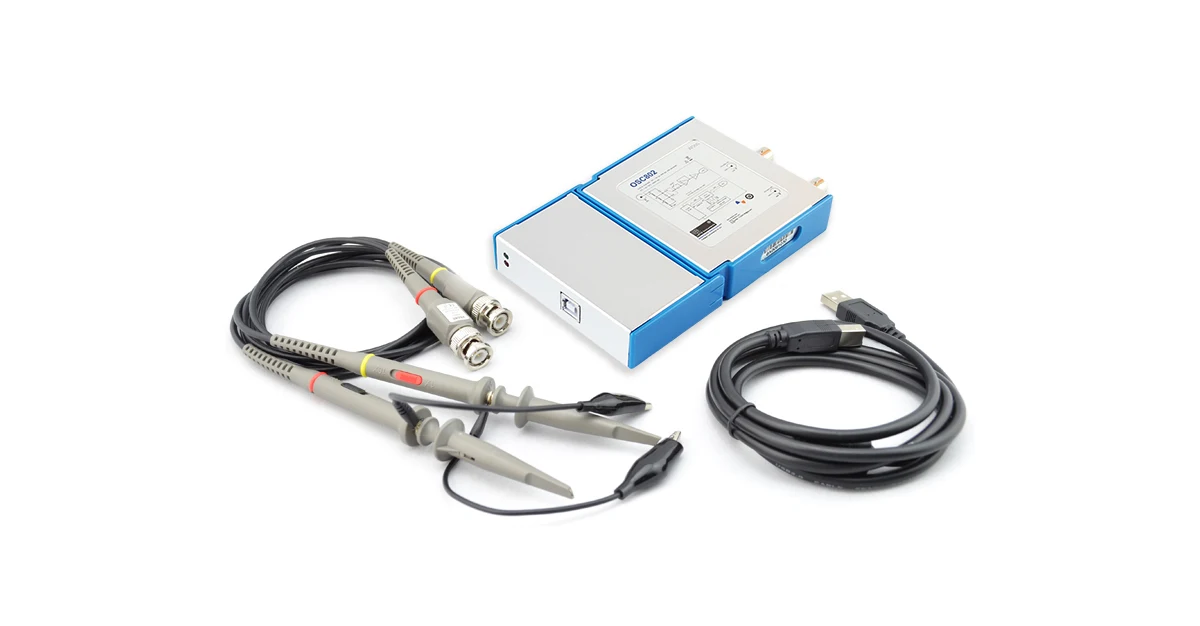

The USB oscilloscope and the required accessories( including extension modules and standard accessories) may be different according to your different purchase:
About Smart Phone/Tablet Support
OSC482M/ OSC482F can’t support all kinds of Android devices. Customers may need to check their Android phone/Tablet with these requirements, or contact us to check the support list.
FAQ
Q: what is the measuring range
A: The scope could measure 5V(with probe on X1)
And 50V(with probe on X10). If you need to
Measure higher voltage up to 500V, please
Purchase X100 probe separately.
Q: how to contact technical support?
Tech Dept will reply ASAP.
Q: How long of warranty?
A: 3-year warranty for all products.
Software Download
Please down load for free, we will keep updating.
