JHH-Link External Graphics Card Adapter Cable – PCIe 3.0 M.2 NVMe/NGFF/Mini PCIe/PCIe X1 X4 EGPU for Laptop Notebook PC

Description

Brand: JHH-Link

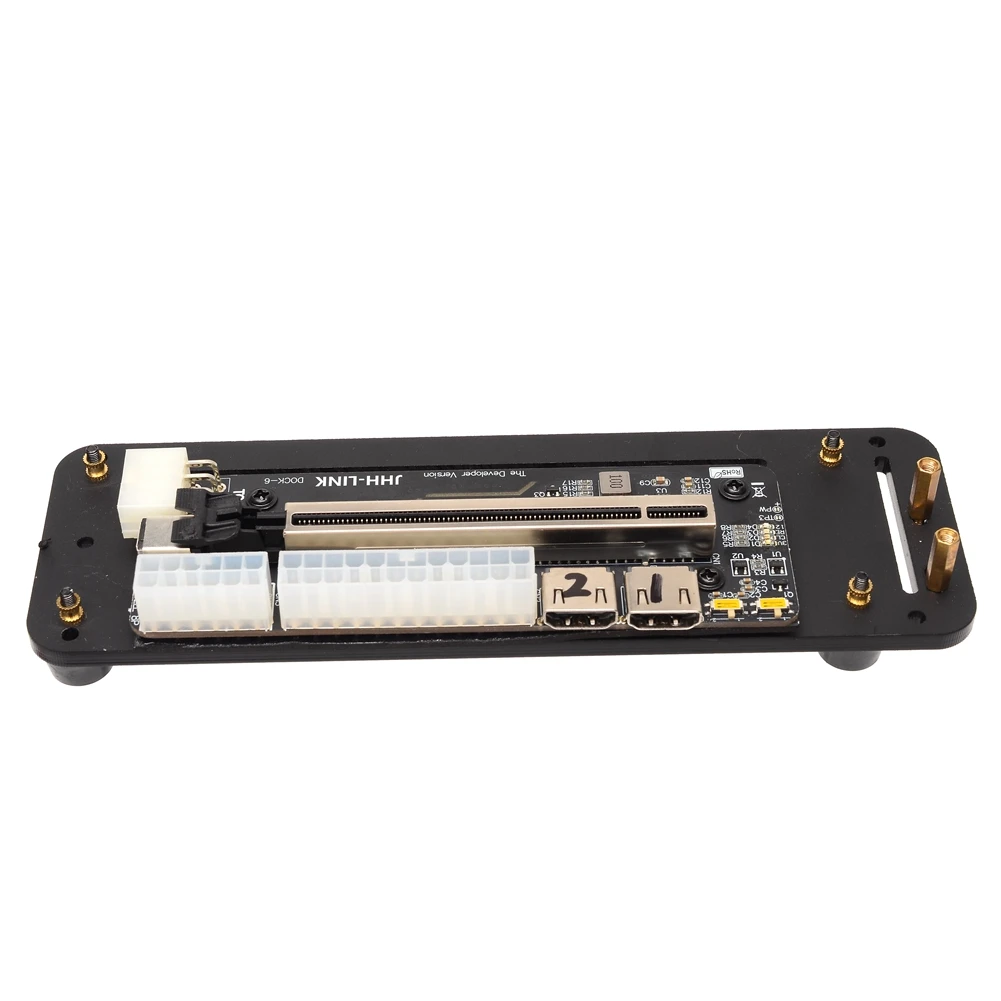

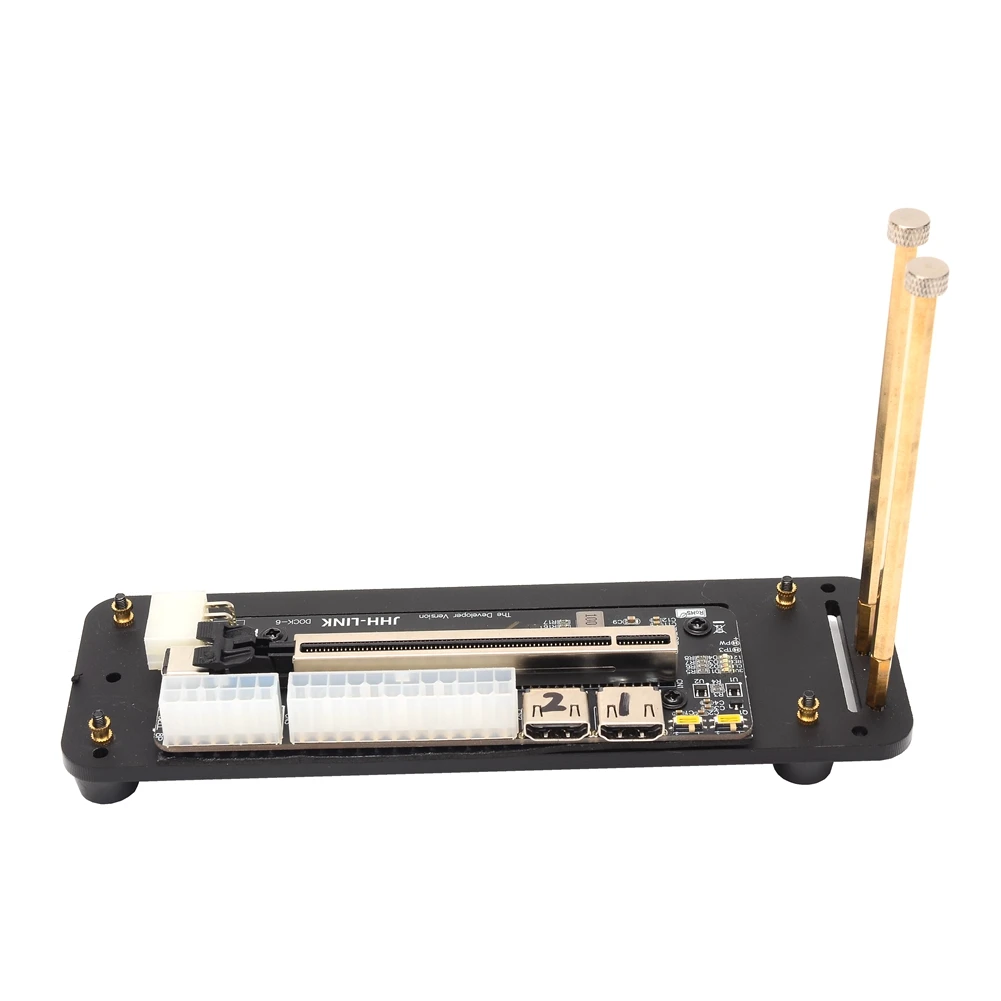

Product Name: Graphics card external adapter board extension cable
Wire length: 25cm, 50cm (bulk orders can be customized)
Bandwidth speed: PCIe3.0x4 (32G/Bps)/PCIe3.0x1 (8G/Bps)

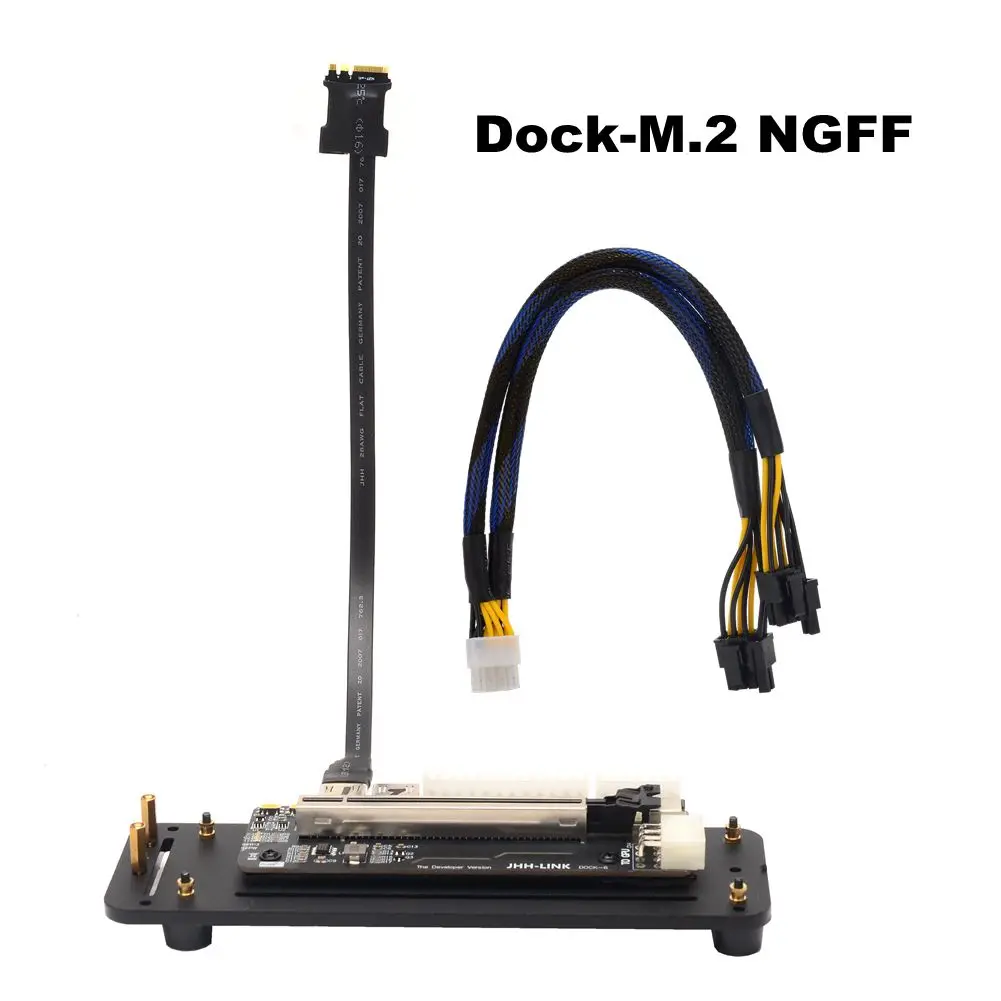

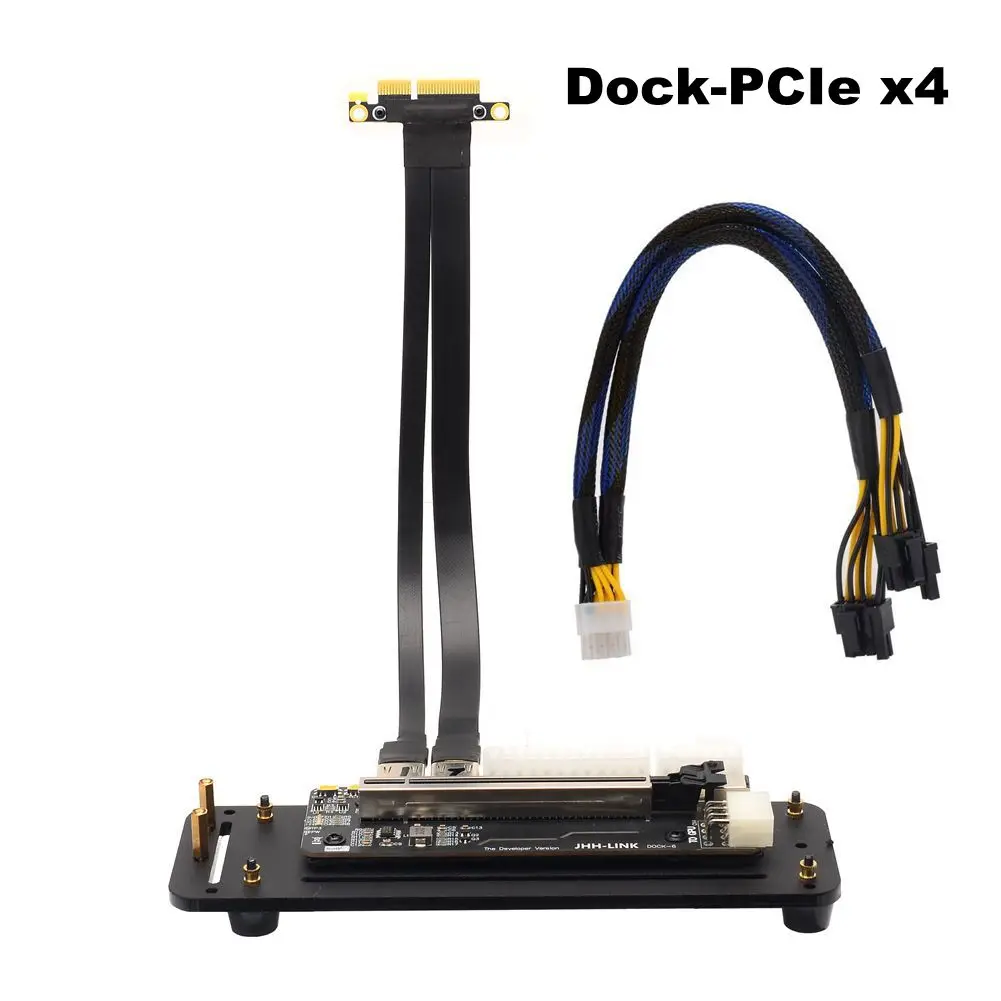

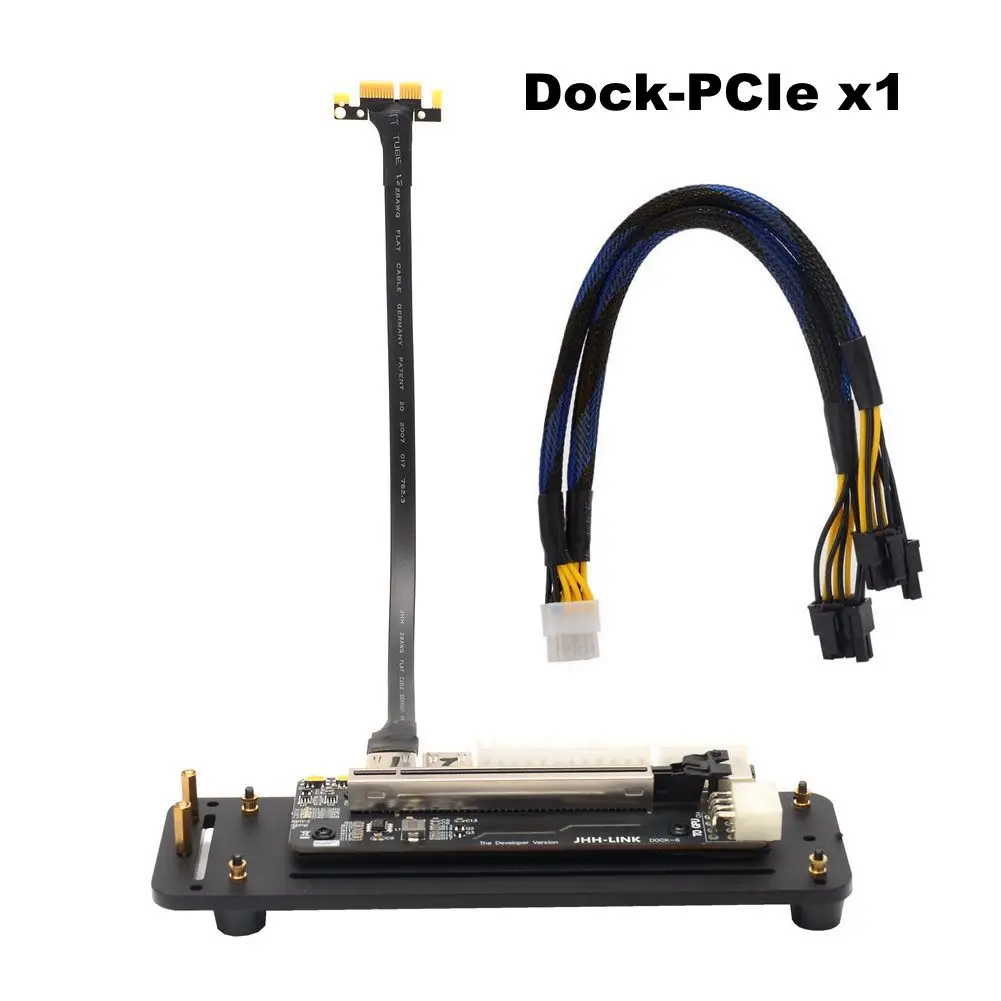

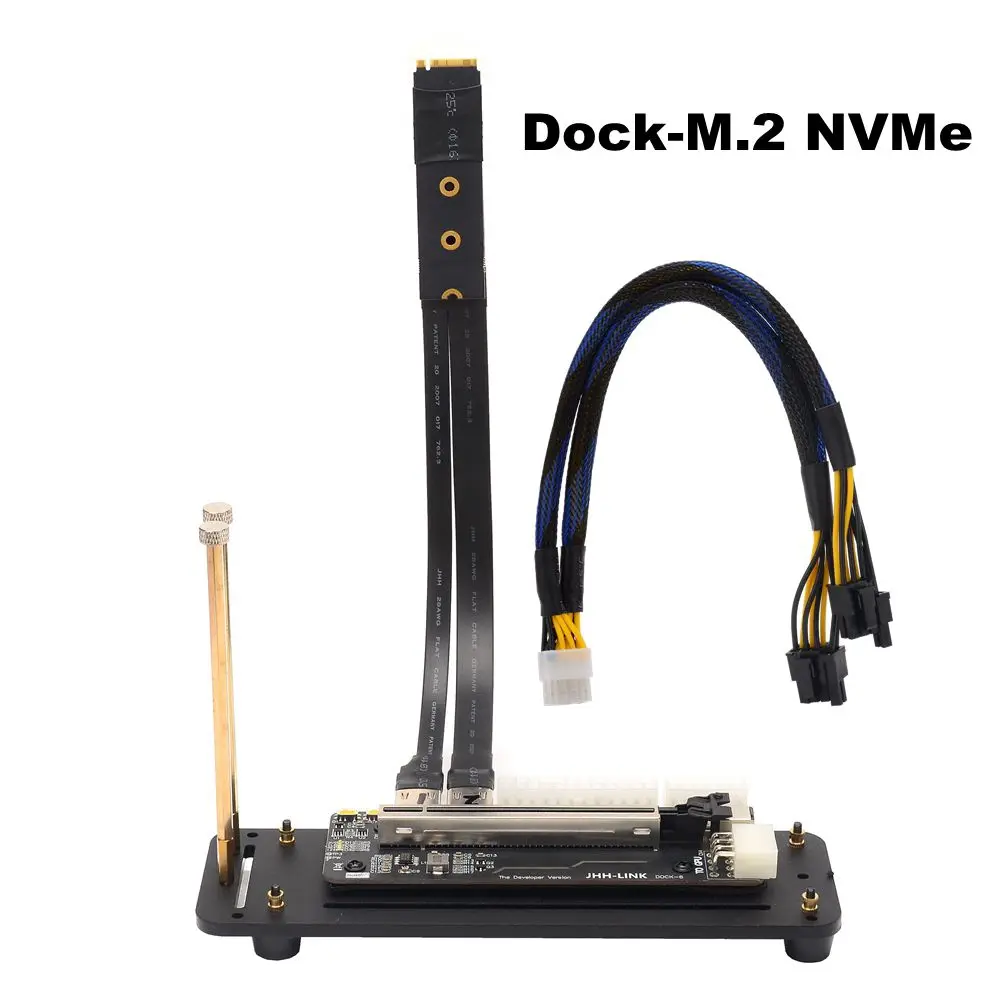

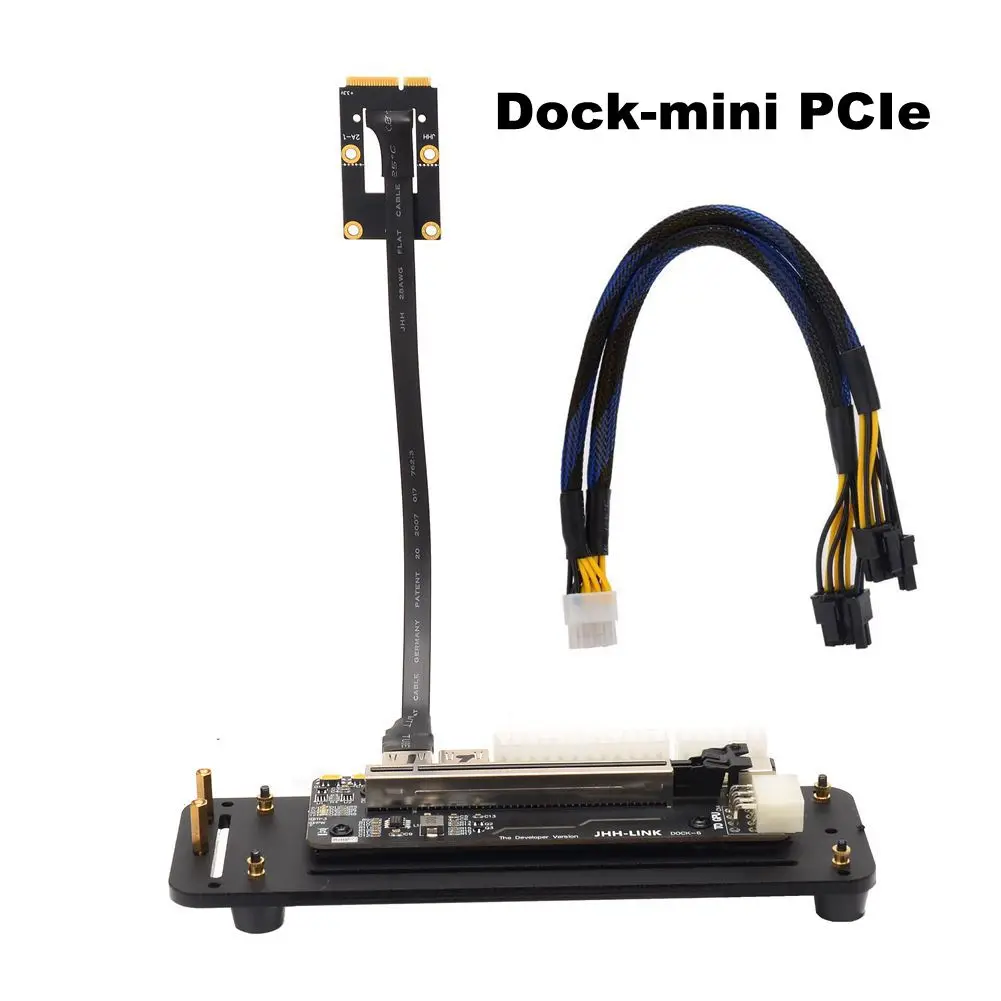

Model Description: DOCK-M.2 NVMe/M.2 NGFF/Mini PCIe/PCIE X1/PCIE X4 Interface
Application: eGPU for NUC / ITX / STX / Notebook PC
Graphics card compatibility: support for new graphics cards shipped after 2015 (old graphics cards shipped before 2014 are not supported)
Motherboard compatibility: ITX/STX motherboard, NUC. . .

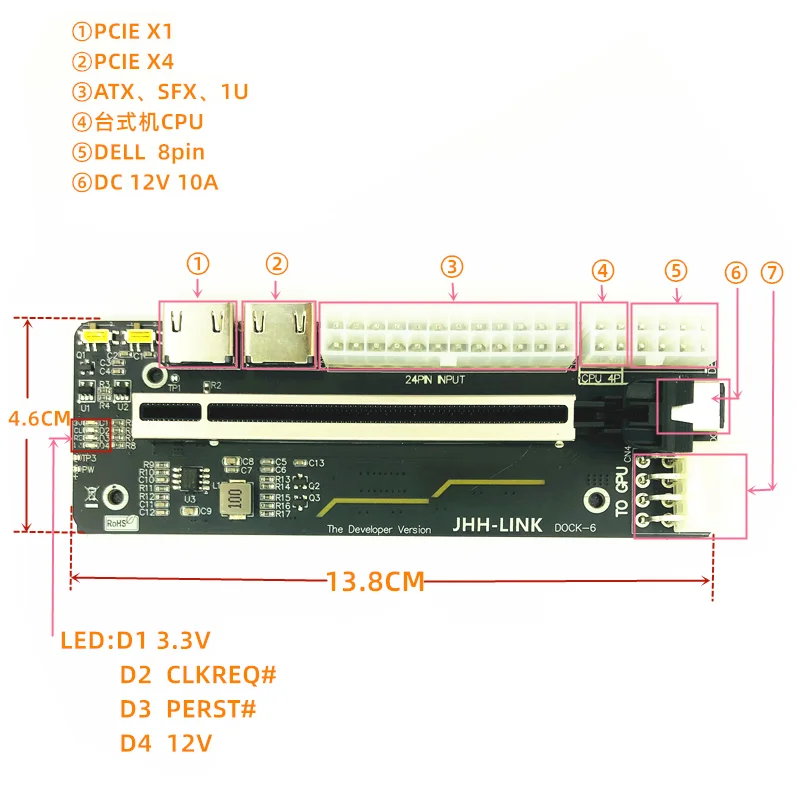

Power Description: The model that supports the power supply is DELL 12V/18A/220W power supply, or the standard ATX power supply. Please prepare or purchase the power separately.
Note:
1. Professional use is highly recommended. This item don’t include user manual, and we don’t support technical support, pls take it into account before placing the order.
2. System support: Only supports Win10 and GTX1060ti later version.
3, DC power supply is forced to power, shutdown will still power the external equipment, DC can support the maximum power supply of 120W, please pay attention to the power consumption of external equipment.
4, The external graphics card is preferred to the external screen, and the internal screen may be limited by the CPU’s processing mode, resulting in large loss. At present, the 10 generation CPUs are more friendly to the PCIE channel and the Thunderbolt interface, and the internal screen has considerable performance.
Recommend use:
1, Notebook or host with NVME solid-state disk interface, detachable notebook will be connected to the cable, the external device can be removed, no need to disassemble the main device.
2, NUC host (square NUC, skull gorge, Pluto gorge, etc. ) external transfer graphics card or gigabit network card for soft routing, the network card can be powered by DC power supply.
3, Laptop devices (MAC) with Thunderbolt 3 (not Type C) can be combined into external devices by using the way of bridge of the hard disk box of Thunderbolt 3 or Thunderbolt 4. The compatibility of Thunderbolt 3 or Thunderbolt 4 is high and the operation is easy.
EMI Shielding with Conducting Polymer
The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
