Industrial USB to TTL Converter FT232RL/CH343G – Multi-Protection, System Support, Stable Transmission, LED Indicators

Description

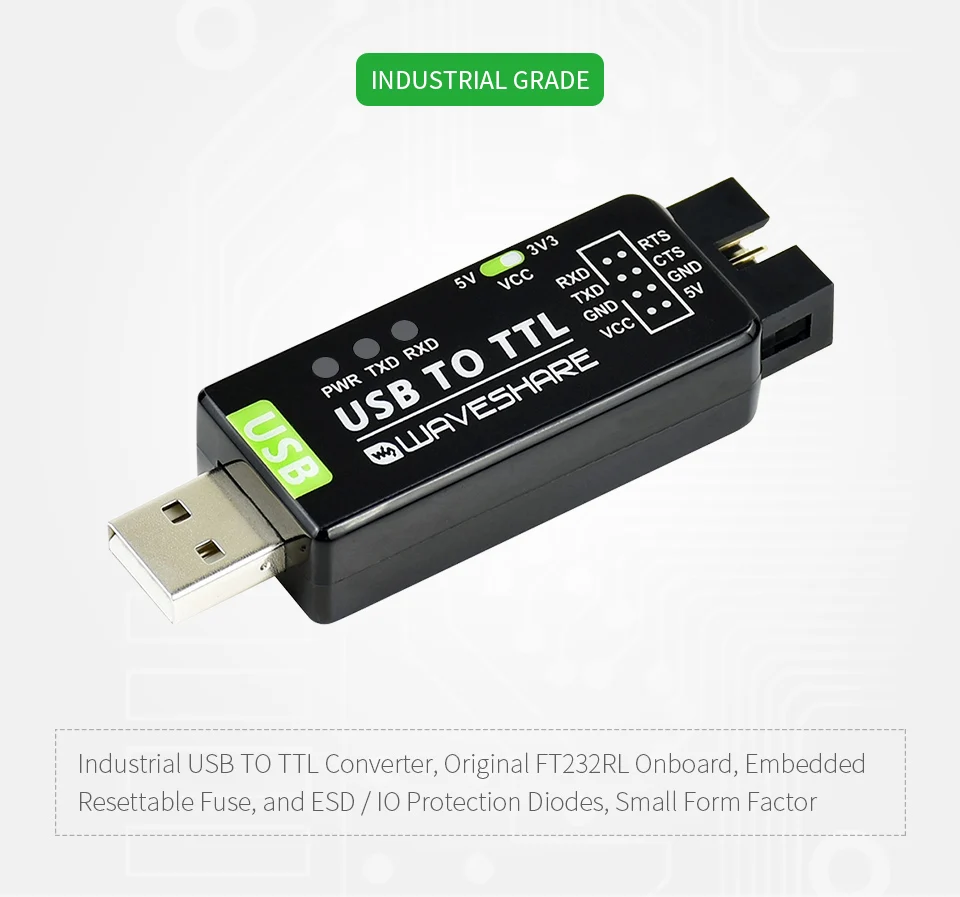

Industrial USB TO TTL Converter, Original FT232RL Onboard, Multi Protection Circuits, Multi Systems Support
USB TO TTL CONVERTER (FT232R)
Original FT232RL | Stable Transmission | Multi Devices | Multi Systems

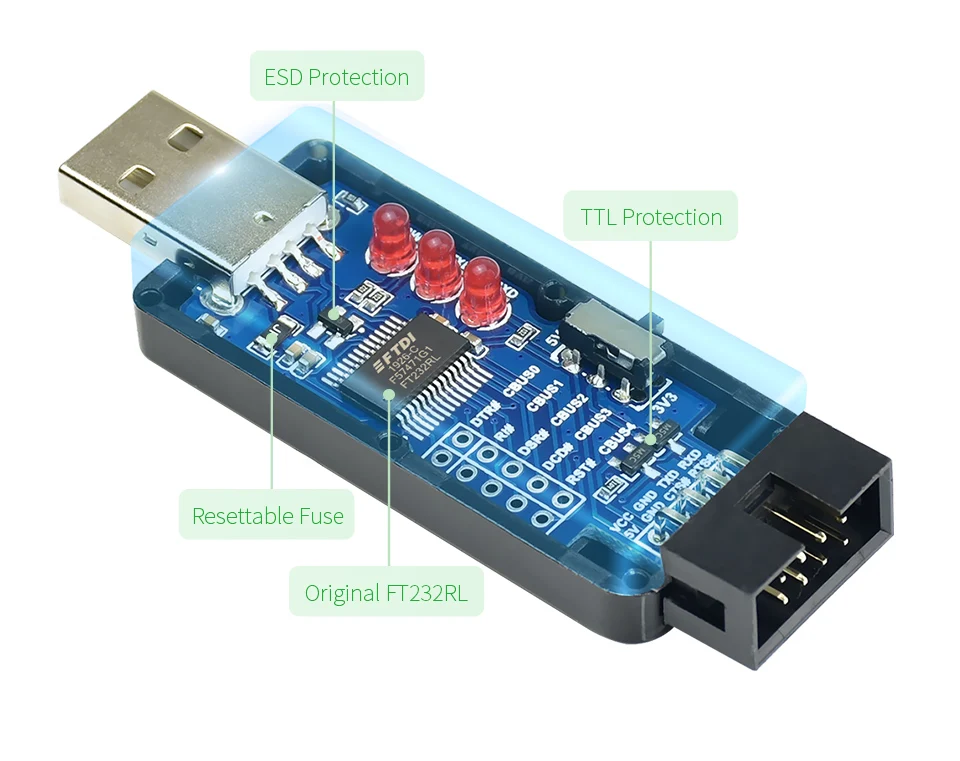

Original Chip Onboard
Adopts Original FT232RL Converter, Providing Better Stability And Compatibility, Enabling Industrial Grade High Performance Communication Between Computer And TTL Devices
Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10, Mac, Linux, Android, WinCE. . .

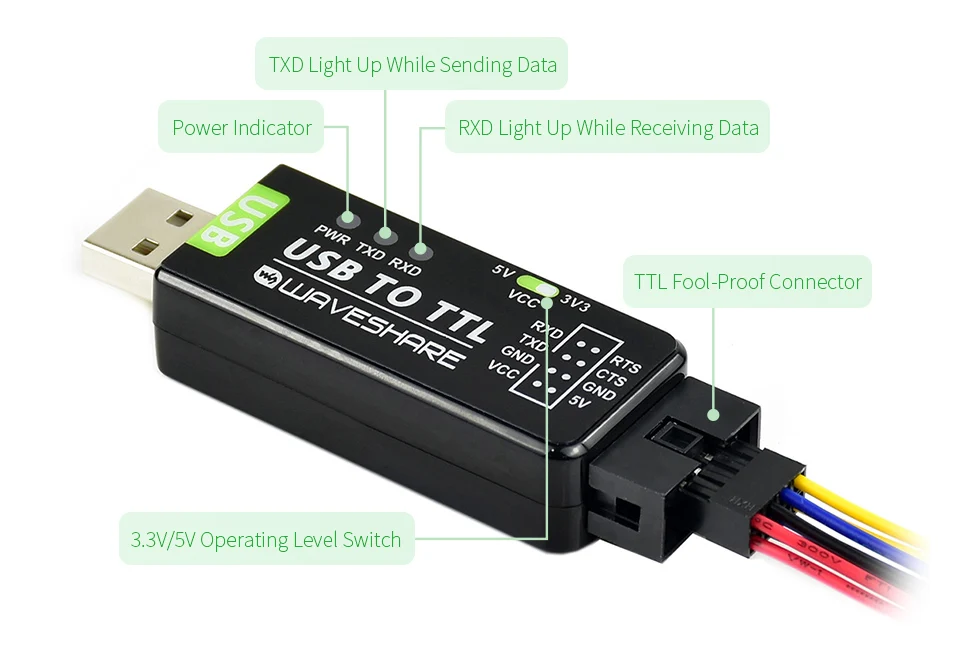

Three LED Indicators
Easily Checking The Operating Status, Convenient For Programming / Debugging
USB Signal & Pinouts Definition
5V: 5V output
VCC: 3.3V or 5V output, configured by switch
GND: Ground
TXD: Connecting to MCU. RX (signal direction: MCU. RX << FT232 <> FT232 >> PC. RX)
RTS: Connecting to MCU. CTS (signal direction: MCU. CTS << FT232 <> FT232 >> PC. CTS)
USB cable is not included
This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage
Specifications
PRODUCT CATEGORY: Industrial USB TO TTL converter

HOST PORT: USB
DATA RATE: 300bps ~ 3Mbps

DEVICE PORT: UART
USB PORT: Connector: USB-A
Protection: resettable fuse, ESD protection
UART PORT: Connector: 8PIN fool-proof header
Protection: IO protection diode
INDICATOR: PWR: power indicator, turns red when USB voltage is detected
TXD: TX indicator, turns red while the USB port is sending data
RXD: RX indicator, turns red while the device port is receiving data

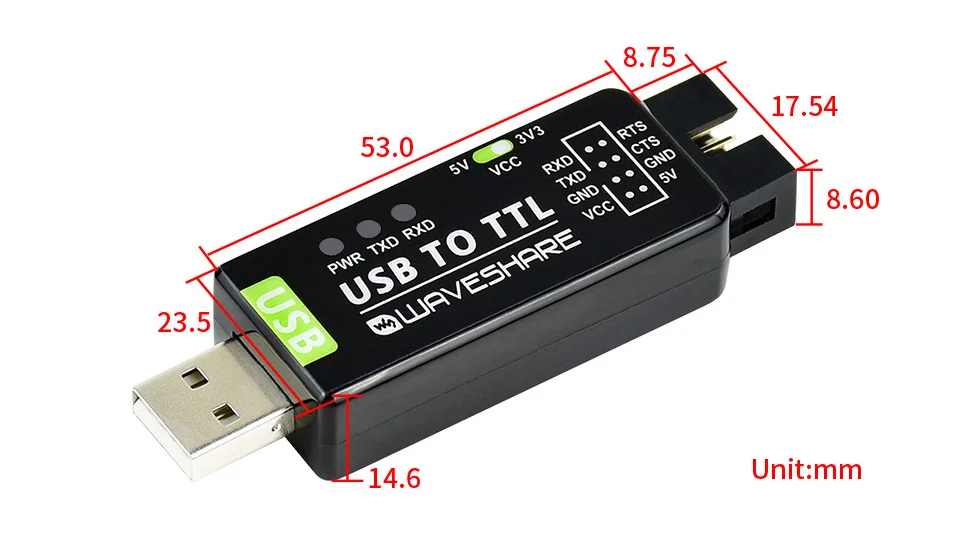

Outline Dimensions
* measured manually, for reference only
Resources & Services
PACKAGE CONTENT
Weight: 0.023 kg
USB TO TTL x1
8PIN fool-proof wire x1
1
2
USB TO TTL CONVERTER (CH343G)
Original CH343G | Stable Transmission | Multi Devices | Multi Systems
Industrial Grade Quality
Features At A Glance
Onboard resettable fuse and TVS diode, providing protections including over-current, over-voltage, backward-proof, and ESD protection, improving shock resistance, safe and stable communications
Onboard IO protection circuit for surge suppress
Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level
3x LED indicators for easily checking power connection and signal TX/RX statuses
Quality plastic case with dull-polish surface, well-crafted
IDC connector with fool-proof design
Specifications
PRODUCT CATEGORY: Industrial USB TO TTL converter

HOST PORT: USB
DATA RATE: 50bps ~ 6Mbps

DEVICE PORT: UART
USB PORT: Connector: USB-A
Protection: resettable fuse, ESD protection
UART PORT: Connector: 8PIN fool-proof header
Protection: IO protection diode
INDICATOR: PWR: power indicator, turns red when USB voltage is detected
TXD: TX indicator, turns red while the USB port is sending data
RXD: RX indicator, turns red while the device port is receiving data
Multiple Protection, Safe And Stable
Onboard Resettable Fuse And TVS Diode, Providing Protections Including Over-Current, Over-Voltage, Backward-Proof, And ESD Protection, Improving Shock Resistance, Safe And Stable Communications
Multiple Systems Support
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android. . .
Three LED Indicators
Easily Checking The Operating Status, Convenient For Programming / Debugging
USB Signal & Pinouts Definition
5V: 5V output
VCC: 3.3V or 5V output, configured by switch
GND: Ground
TXD: Connecting to MCU. RX
RXD: Connecting to MCU. TX
RTS: Connecting to MCU. CTS
CTS: Connecting to MCU. RTS
Outline Dimensions
Resources & Services
Packing List:
USB TO TTL (B) CH343G x1
8PIN fool-proof wire x1
1
2
