High-Speed Flexible PCIE 4.0/3.0 X16 Riser Cable – 180 Degree GPU Extension for RTX 4090, 4080, 4070, RX 7900 XT

Description

Brand name: ADT-LINK
Product name: PCIe 4.0/3.0 x16 to x16 extension cable
Product models
R33UF-TU-BK-3.0( Black color ) R33UF-TU-SI-3.0 ( Silver color)
Transfer speed: PCIe 3.0 x16 full speed, 128G/bps (Max)
Notes: 3.0 models has no 100% compability for pcie4.0, it can be used for pcie4.0, but has very high requirements for your equipments. . . . if you need high quality more professional PCIe4.0, pls choose our 2022 new 4.0 Types
R33JK-BK-4.0( Black color ) R33JK-SI-4.0 ( Silver color)
Transfer speed: PCIe 4.0 x16 full speed, 256G/bps (Max)
Wire length: 150 ~ 300 mm, the length can be customized
Application: PCIe x16 graphics video card to PCIe x16 slot extension cable for ITX mainboard housing
Suitable graphics card: RTX3090 RX6800xt, Supports PCIe4.0 graphics cards
Compatible chassis: A4 ITX custom chassis
Use limitation: PCIE4.0 has high requirements on equipment, and the signal will decay as long as the extension cord is connected. This product does not guarantee the full speed of PCIE4.0. If the equipment is aging, the signal is poor or the environment is bad, please use it at a lower speed GEN 3.0.
Restrictions: Only for ITX motherboard and its compatible mini chassis installation. Older graphics cards or motherboards older than four years are not supported
Support: RTX3060 RTX3060Ti RTX3070 RTX3080 RTX3090 GTX1080, GTX1080Ti, RTX2060, RTX2070, RTX2080, RTX2080Ti, RX570, RX580, RX590, RX5700 XT, R6800 XT RX VEGA 56, RX VEGA 64 etc, support for all graphics cards produced after 2015.
ADT Products number:
Model: Description:

Bandwidth
R33UF-TU-BK-3.0: X16 3.0 Double Reverse Black

PCIe 3.0 x16
R33UF-TU-SI-3.0: X16 3.0 Double Reverse Silver

PCIe 3.0 x16:
R33JK-BK-4.0: X16 4.0 Double Reverse Black

PCIe 4.0 x16
R33JK-SI-4.0: X16 4.0 Double Reverse Silver

PCIe 4.0 x16:
Cable length Description:
The 4.0 dual-reverse version of the PCB board is relatively large. If you upgrade from 3.0 to 4.0, the line length should be added by about 0.2~0.5cm. For example, the original 3.0 line length is 18.5cm, and the line length of the upgrade to 4.0 needs to be 19cm.

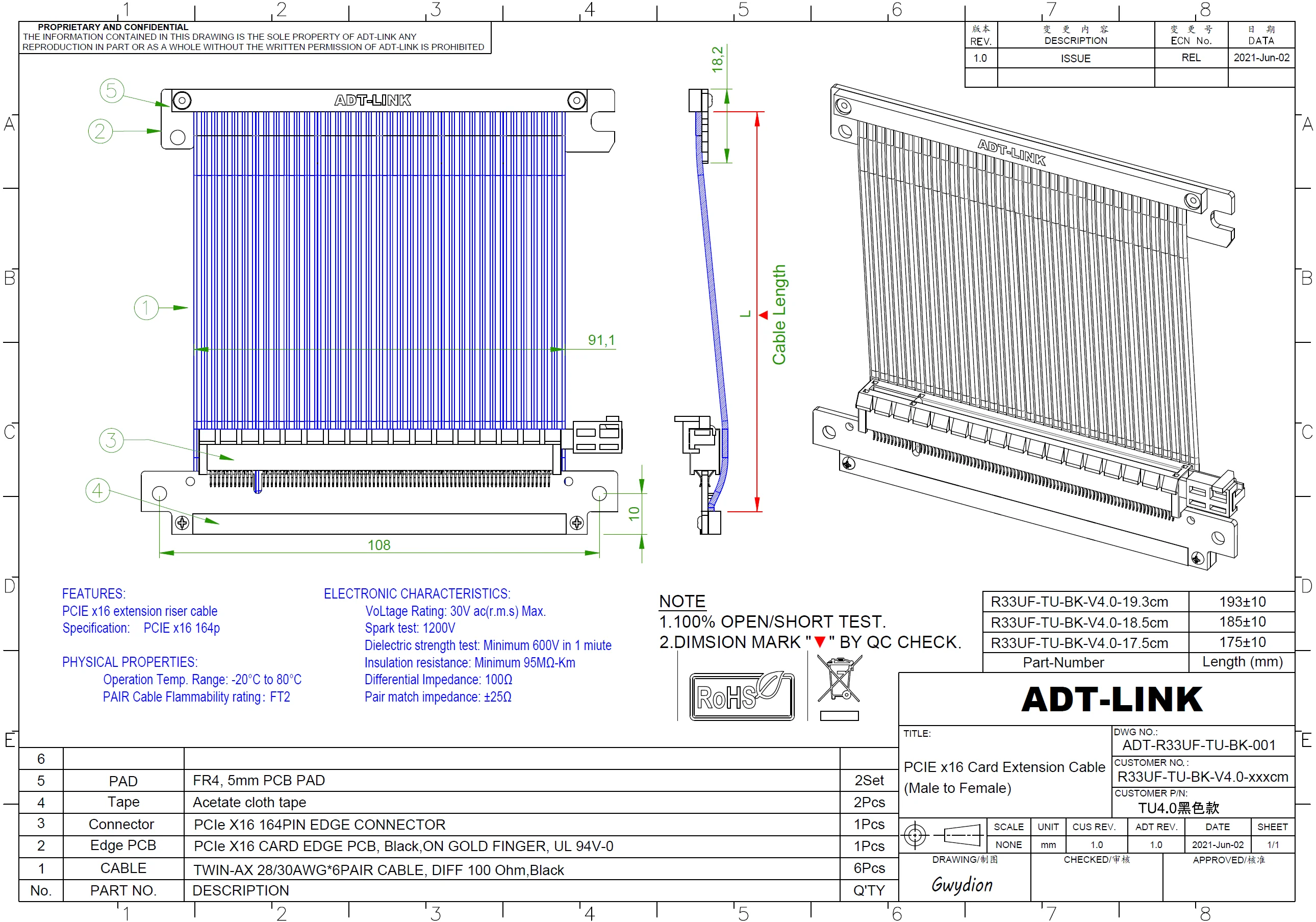

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector’s Lengths. For the wire length, please refer to the red arrow in the figure below.
Product advantages:
One. Wire advantage, the fourth-generation anti-interference low-resistance wire developed and designed by ADT is scratch-resistant and wear-resistant, and high-frequency supports PCIe 4.0 stable transmission
Two. Line length advantage, from 15cm to 60cm can be customized
Three. Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable
Four. The product is made of high-quality materials and the PCB is made of precision. The PCB uses high TG plates. The thickness of the copper material is thickened to 1oz. The gold fingers have sufficient gold plating content and the gold plating feet have good electrical conductivity, which can reduce the blue screen of crash caused by increased oxidation and rust resistance.
Five. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm to protect the metal welding points, and lock the screws and hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break the wire. The nail drop problem. The wire can be bent or folded without affecting the use.
Technical data download link
