FPV USB 3.1 Type-C to Type-C Flat Extension Cable – 90 Degree Up/Down Angle, 10Gbps Gen2 Full Speed

Description

3A USB Type C double 90 Degree USB C Cable highly-routable foldable axial elbow FPV Ribbon Flat Up Down Left Right Angled USB 3.1 type-C Fast Charging Data Cable 10Gbps for Industrial cameras, hard disk boxes, Brushless Handheld Gimbal Monitor
ADT-Link USB 3.1 type C to type C Flat Cable
Brand name: ADT-LINK
Product name: USB 3.1 flat Cable
Product model: UTT3-MF-13P UTT3-MM-13P
Product name: USB3.1 USB-C to USB-C extension cable
Wire length: 3cm-3m (the length can be customized)
Adaptation range: USB3.1 type-C to type-C
Transfer speed: support of increased bandwidth up to 10Gbps (50cm Max. ), 5Gbps (200cm Max. )
Current capacity: 3A(Length within 50cm supports 3A, within 2m supports 1.5a)
Application: GPS navigator, ROCK Pi 4 raspberry Pi microcontroller development board, built-in USB device extension switch use, convenient for brushless head, steering engine head, small s head, SLR handheld head USB power supply and AV transmission and so on

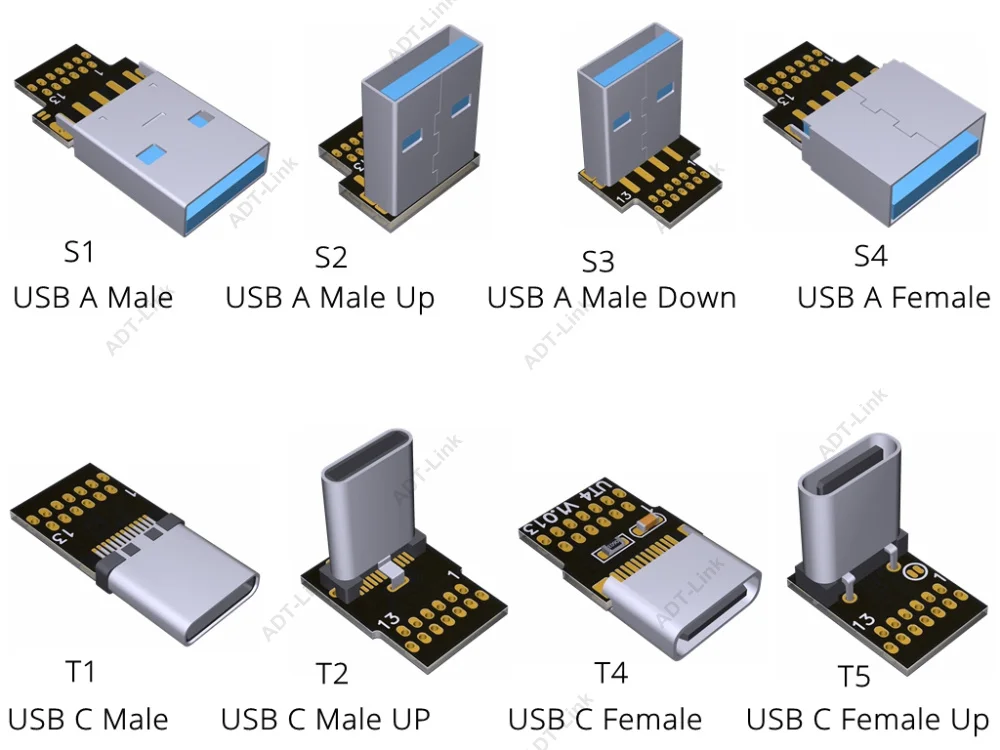

ADT USB series Part-Number Description:
With Chip Types ( T4A T5A Models have a Chip)
Without Chip Types ( T4B T5B Models have no Chip )
Remark 1: Speed bandwidth: Gen2 speed is supported within a cable length of 50cm, and gen1 speed is supported within 1 meter.
Remark 2: Male to male TX-RX signal exchange data line, CC pin is directly connected, no need to distinguish between one port and another port.
Remark 3: male to female TX-RX signal is directly connected to the extension cable, and the one port and another port must be distinguished when using.
Remark 4: one port means to connect to host port, another port means connect to the hard disk box camera and other equipments etc.
Remark 5: T4A/T5A with chip, support USB3.1 (10G/Bps ) positive and negative plug, both are 10G high speed
T4B/T5B does not have a chip, and also supports positive and negative insertion. The positive insertion can support USB3.1 ( 10G/Bps ) high speed but the reverse insertion only supports USB2.0 low speed (480M/Bps )
Pls check T4A T4B difference ( With Chip and Without Chip)
ADT USB series Part-Number Description:
Cable length Description:
The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.
Product advantages:
Material advantages: use German patented imported wire, use high quality gold-plated connectors, high frequency support HDMI 2.0 stable transfer. PCB uses high-quality low-resistance high-quality materials, PCB workmanship precision, PCB uses high TG sheet, copper thickness is thickened to 1oz; connector gold-plated conductive performance, can reduce the black screen blue screen splash caused by increased oxidation rust resistance Flower screen problem.
Design advantages: differential signal without via design, no CAF micro short circuit phenomenon, high speed signal data transmission without parasitic capacitance and parasitic inductance signal attenuation interference problem, power circuit enhanced wiring design, PCB board miniaturization design, can reduce mechanism interference, no card hardware, product installation is easy.
Production advantage: Our factory direct sales, product customized production, welding at the metal welding point during production. And put on the heat-shrinkable tube protection, the product is firm and reliable, there will be no problem of disconnection and disconnection. The product works well, stable and reliable.
Q&A:
Is there any EMI shielding for Cable?
The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
Can wires and PCB connectors be split?
No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.
How compatible are wires?
Supports USB 3.1 high-speed, all of product test PASS 100% before shipping.
Cable thickness? Can it be bent?
The thickness of the wire is 1.05mm, and it can be bent and folded without affecting the use.
Product real shot:
