Fanless Mini PC with Intel Core i3/i5/i7 Processors, 6x RS232 DB9, 2x Gigabit Ethernet, 4G LTE, WiFi, HDMI, VGA, and 6x USB Ports for Windows and Linux.

Description

Fanless Industrial IPC X26A
Processors: Intel Celeron Processor 2955U (2 cores 2threads, 2M Cache, 1.40GHz, TDP 15W )
Intel Celeron Processor J1900 (4 core 4 threads, 2M cache, 2.0GHz up to 2.42GHz, TDP 15W)
Intel Pentium Processor 3805U ( 2 core 2 threads, 2M cache, 1.90GHz TDP 15W)
Inte Core Processor i3 4005U (2 core 4 threads, 3M Cache, 1.70 GHz, TDP: 15W)
Inte Core Processor i5 4200U (2 core 4 threads, 3M Cache, 1.60 GHz up to 2.60 GHz, TDP: 15W)
Inte Core Processor i7 4500U (2 core 4 threads, 4M Cache, 1.80 GHz up to 3.00 GHz, TDP: 15W)
Intel Core Processor i7 5500U (2 core 4 threads, 4M Cache, 2.40GHz up to 3.00GHz, TDP 15W )
Graphics Card: Processor Graphics
Memory(RAM): J1900: 1x SODIMM DDR3L slot,
Other CPUs: 2x SODIMM DDR3L slots
Support 1333/1600MHz
Hard Disk(SSD): Support 1x SATA 2.5″HDD
Support 1x mSATA SSD
Dual Display: 1x VGA
1x HDMI
Support Synchronous or Dual-line Independently Display
Support System: Windows 10
Windows 8.1
Windows 7
Windows 10 Embedded
Windows 10 iOT
Linux/ubuntu/Openelec, etc.
Front-Panel Connectors: Power on/off
2 x USB 2.0
2 x USB 3.0
Rear-Panel Connectors: 1 x HDMI + 1x VGA
2 x USB 3.0
6 x RS232
2 x RJ45 10/100/1000 Mbps Adaptive
1 x AUD
1 x DC IN 12V
2 x WIFI antennas connectors
Ethernet port: 2x LAN RJ45 10/100/1000Mbps Inte i211AT Gigabits Ethernet
Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot. Restore AC power loss
WIFI: With dual antenna,300M,802.11. b/g/n
Expansion: 1x COM RS485,
1x LVDS optional
Watchdog Timer: Supports(If you need this hardware, please let us know before
Payment)
Extention: 2x Full Height Mini PCIE, for WiFi/ 3G/4G LTE module
1x SIM slot
Cooling System: Fanless Passive cooling with Heat Sink Aluminum Block
Audio port: Adopting Realtek ALC662/892 Chip, Supports dual channels, stereo,
And Line out
Power: Input: DC100-240V AC/50-60Hz
Output: DC 12V -5A/3A
Operating Temperature: -20-65℃
Storage Temperature: -20-65℃
Relative Humidity: 5%~95% (non-condensing)
Dimension: 235*137*51mm
Package Content: 1x Mini PC
1x Power Adapter( We send power plug type according to your address )
1x Power Cord
1x User Manual
NOTE:
1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;
2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;
3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need.

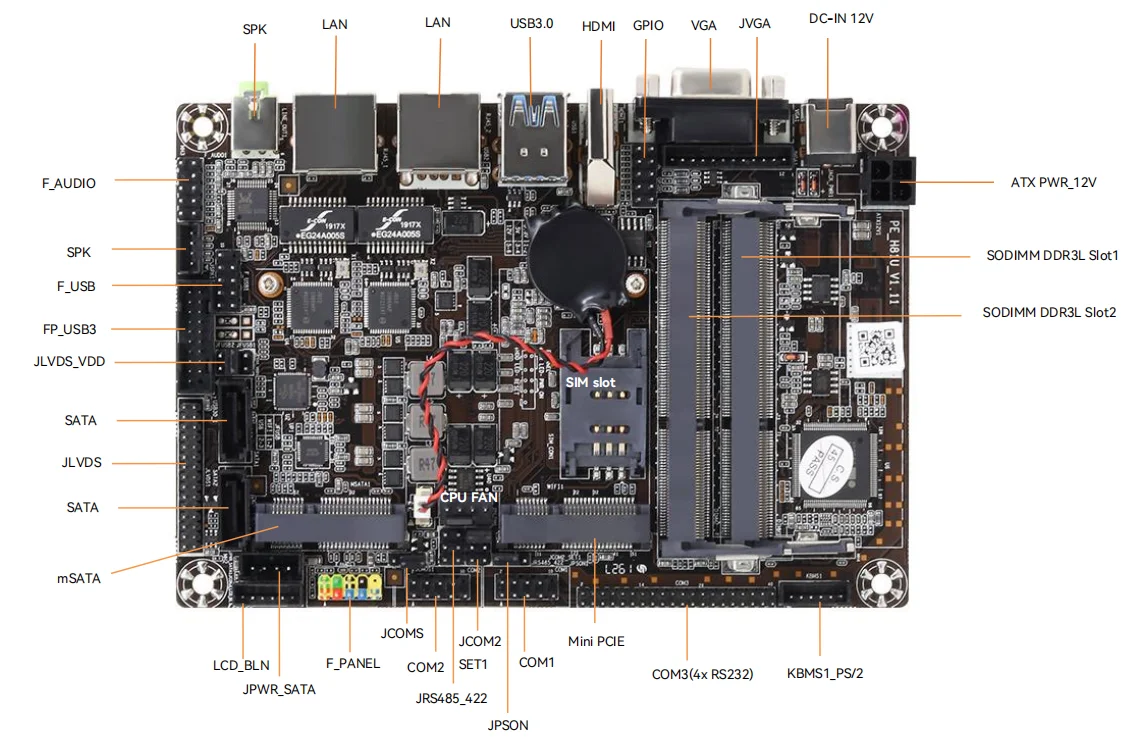

Intel Core i3-4010U/i3-5005U/i5-4200U/i5-5200U/i7-4500U/i7-5500U
Intel Celeron 2955U/Intel Pentium 3805U motherboards overview:

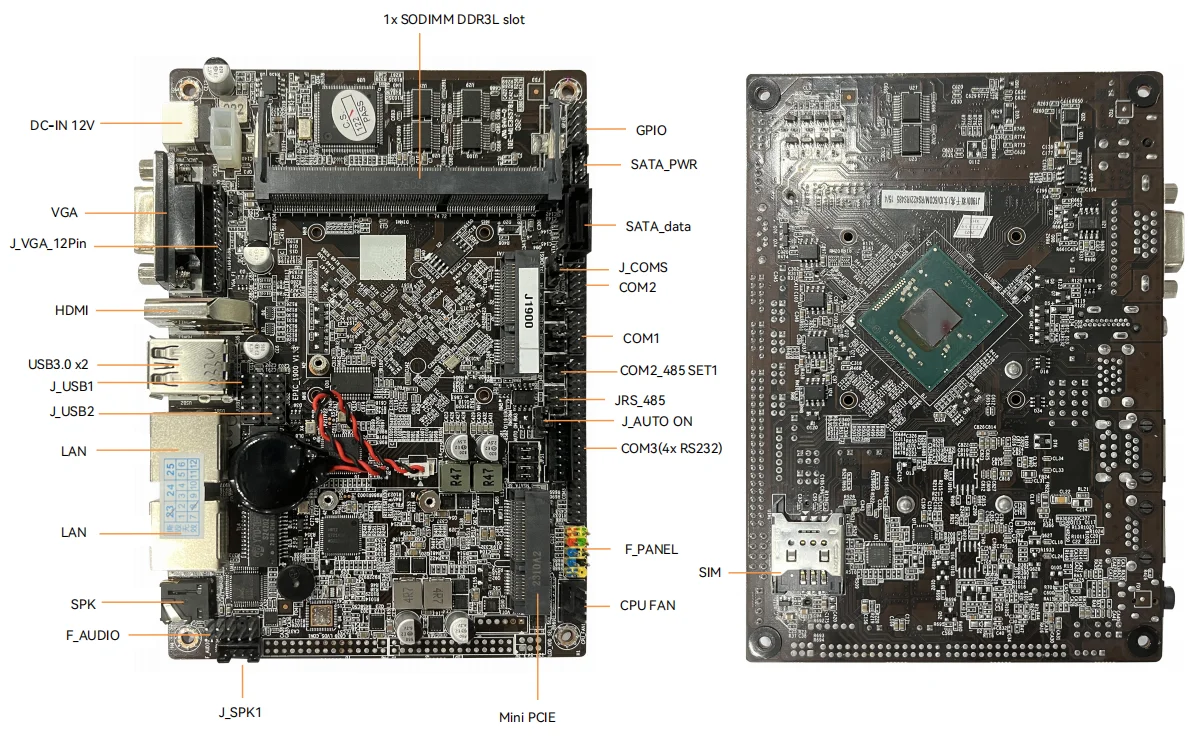

Intel Celreon J1900 motherboards overview:
