Description
X30G Fanless Industrial Mini PC-J4125/J6412
Powered by Intel Celeron processor J4125/J6412, the X30G provides outstanding performance not only on personal computing but also on intelligent and industrial computing solutions. 2x LAN and 2 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications, network applications and communication applications.
On-board Intel Celeron J4125/J6412 processor, 4 cores, 4 threads
1x SO-DIMM DDR4 slot, max support to 8GB
J4125 support 1x mSATA SSD, 1x 2.5 inch SATA
J6412 support 1x M.2 NVMe/SATA SSD 2280, 1x 2.5 inch SATA
Support Dual Independently display from HDMI and VGA
2x Realtek 8111E Gigabit LAN prots, support WOL, Teaming and PXE
4x USB3.0 & 2x USB2.0

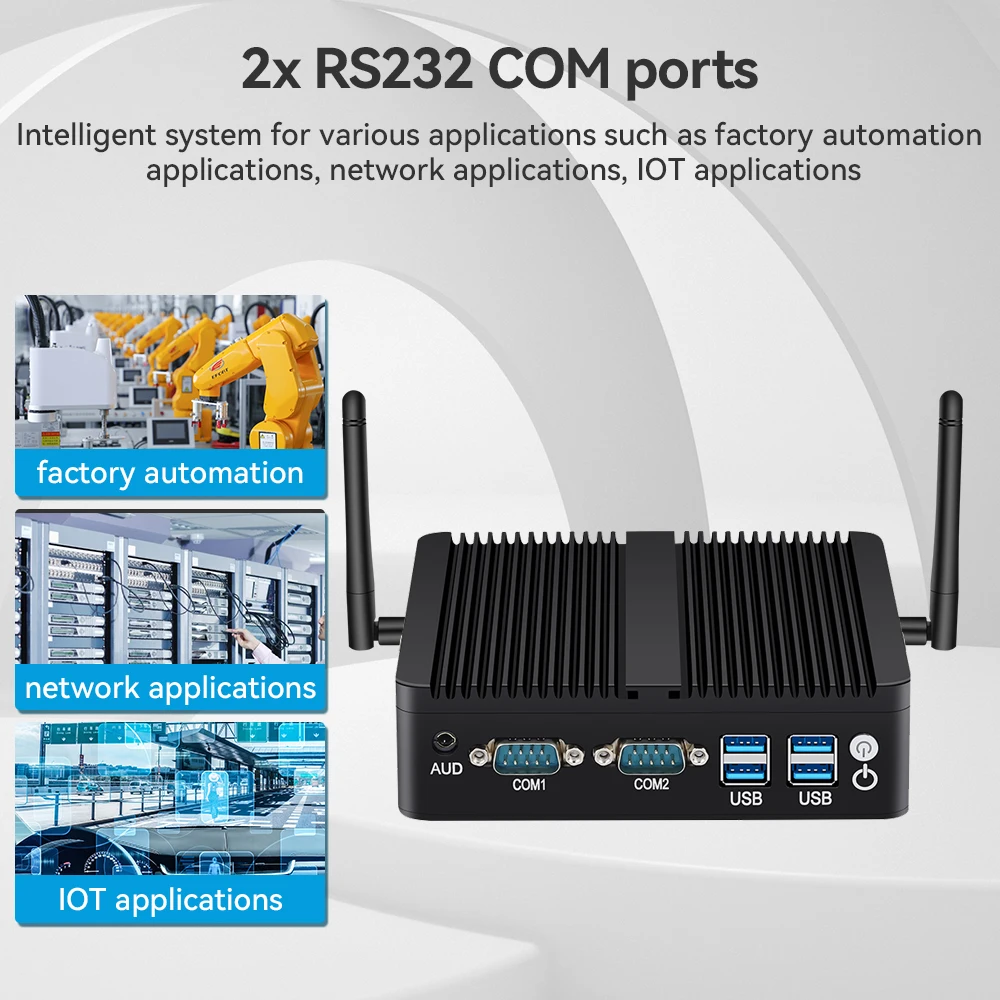

2x COM ports RS-232 ( J6412 COM ports support adjust to RS-485 )
1x mini PCI-E for Wi-Fi /4G module
CPU Option: . Intel Celeron J4125, 4 cores 4 threads, 2.00GHz, up to 2.70GHz
Intel Celeron J6412, 4 cores 4 threads, 2.00GHz, up to 2.60GHz
Memory: 1x DDR4 SO-DIMM
J4125 max support 8GB RAM, J6412 max support 16GB RAM
Storage: J4125 support 1x mSATA SSD, 1x SATA 2.5inch HDD ( Pre-installed mSATA type SSD )
J6412 support 1x M.2 NVMe/SATA SSD 2280, 1x SATA 2.5 inch HDD ( Pre-install M.2 SATA SSD)
I/O Interface-Front: 2x COM
4x USB 3.0
2x USB 2.0
1x Power button
I/O Interface-Rear: 2x Realtek 8111E GbE LAN ports, support WOL, teaming and PXE
1x HDMI
1x VGA
1x DC-IN 12V
1x Audio combo jack

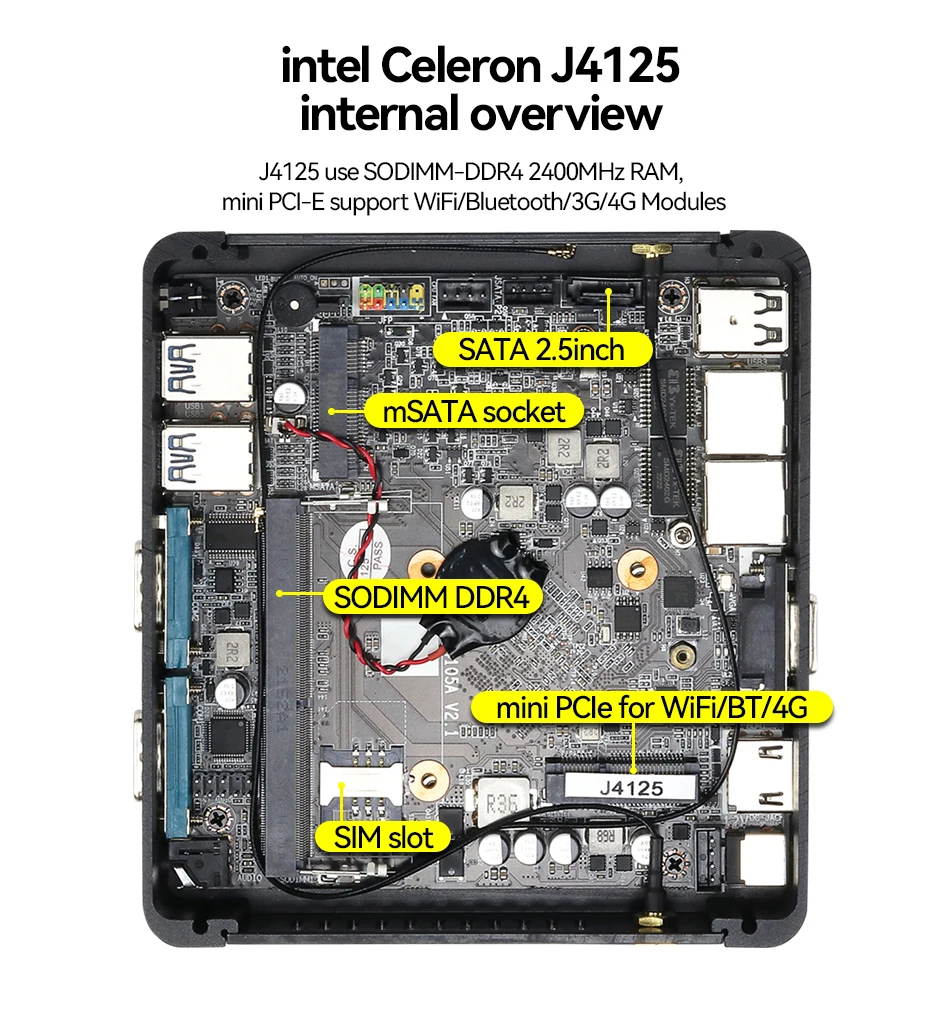

I/O Interface – Internal: 1x SODIMM-DDR4 slot
1x mSATA socket ( J6412 1x M.2 SATA/NVMe 2280 socket )
1x 2.5 inch SATA connector
1x Mini PCI-E socket for WiFi/Bluetooth/4G module
Support OS: J4125 support Windows 10, Linux /Ubuntu/CentOS
J6412 support Windows 11, Windows 10, Linux/Ubuntu/CentOS
Construction: Aluminum and metal case with fanless design
Dimensions: 135x124x40mm
Environment: Operating Temperature: -30°C to 70°C
Storage temperature: -30°C to 70°C
Relative Humidity: 5% to 95% (non-condensing)
Power Requirement: Power Input DC12V-3A
Package List: 1x Mini PC
1x Power Adapter
1x SATA cable
1x User manual
NOTE:
1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;
2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;
3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need.
