Elevate your workspace with the XCY Intel Core i7 Mini PC – 2 LAN, 6 RS232, 4 USB, HDMI, VGA, WiFi. Your versatile solution for embedded industrial computing on Windows and Linux platforms.

Description

XCY X26A 6USB Fanless Mini PC Embedded Industrial Computers
1) J1900 model has 1x DDR3L memory slot, other CPUs has 2x DDR3L memory slots, support 1333/1600MHz
2) J1900 model support one mSATA SSD and one 2.5 inch SATA HDD/SSD; other CPUs support one mSATA SSD and two 2.5 inch HDD/SSD
3) 6x RS232 serial ports (DB9), support expansion 1x COM RS485
4) 4x USB 3.0, 2x USB 2.0
5) Dual Gigabit Ethernet intel i211AT
6) 1x HDMI, 1x VGA, support connect two monitors display
7) 2x Mini PCI-E sockets for add WiFi/3G/4G LTE/GPS Modules
8) OS Support Windows 7, Windows 8, Windows 10, Linux, Ubuntu, CentOS;
9) Fanless passive cooling, aluminum case;
10) Support wake up on LAN, PXE boot, Terming, automatically power on when power restored after power loss;
11) 1x LVDS optional, please confirm with us if you need LVDS connetor on-board
Supported OS: Windows 10
Windows 10 ioT
Windows 8.1
Windows 7
Windows Embedded
Linux, Ubuntu
CPU: Intel Pentium 3805U processor, 2 cores 2 threads, 2M Cache, 1.90GHz
Intel Celeron J1900 processor, 4 Cores 4 threads, 2M Cache, 2.0GHz, up to 2.42GHz;
Intel Pentium J2900 processor, 4 cores 4 threds, 2M Cache, 2.41GHz, up to 2.66GHz
Intel Core i3-4010U processor, 2 cores 4 threads, 3M Cache, 1.70GHz;
Intel Core i5-4200U processor, 2 cores 4 threads, 3M Cache, 1.60GHz, up to 2.60GHz;
Intel Core i7-4500U processor, 2 cores 4 threads, 4M Cache, 1.80GHz, up to 3.0GHz;
Intel Core i7-5500U processor, 2 cores 4 threads, 4M Cache, 2.40GHz, up to 3.0GHz;
Graphics: Integrated Intel HD Graphics ( Depends on CPU )
Memory Types: J1900: 1x SODIMM DDR3L,
Others CPUs: 2x SODIMM DDR3L slots,
Max support to 8GB, 1333/1600MHz
Hard Drive: J1900 Support 1x mSATA SSD + 1x SATA 2.5 inch HDD/SSD,
Others CPUs Support 1 x mSATA SSD + 2 x SATA 2.5 inch HDD/SSD
Wireless: Support add WiFi/Bluetooth/3G/4G LTE modules
1x SIM slot
LAN: 10/100/1000Mbps Intel i211AT Gigabit Ethernet
Audio: Realtek ALC662 HD Audio
Connectors: 2 x RJ45 LAN
4 x USB 3.0
2 x USB 2.0
6 x RS232 DB9 ( COM 1 to COM 6 )
1 x HDMI
1x VGA
1x 3.5mm Audio combo jack
2x WiFi antennas connectors
Construction: On-board fan cooling with aluminum alloy
Power Adapter: Input AC 100-240V, Output DC 12V-5A/3A
Dimension: 235x137x51mm
N. Weight: 1.5kg
Case Color: Black
Features: Support wake-up on LAN, PXE, automatically power on when power restored

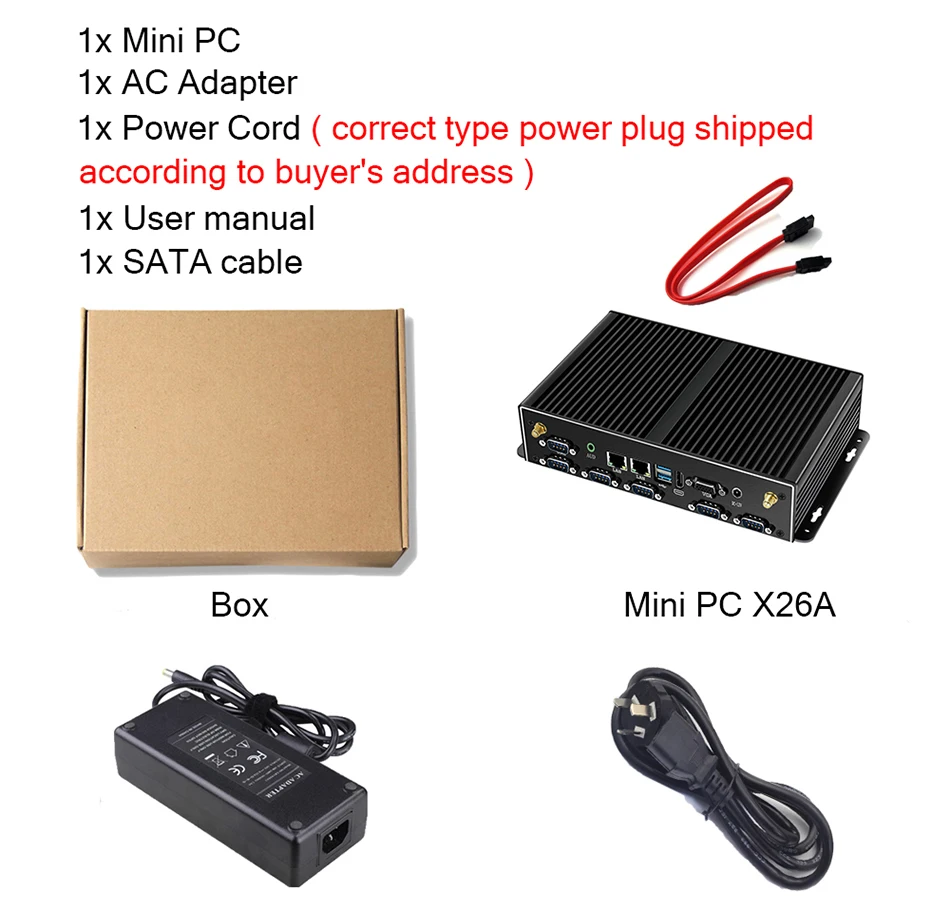

Package List: 1x Mini PC
1x AC adapter
1x Power Cord ( EU/AU/UK/US type plug shipped according to buyer’s address )
1 x User manual
NOTE:
1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;
2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;
3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need

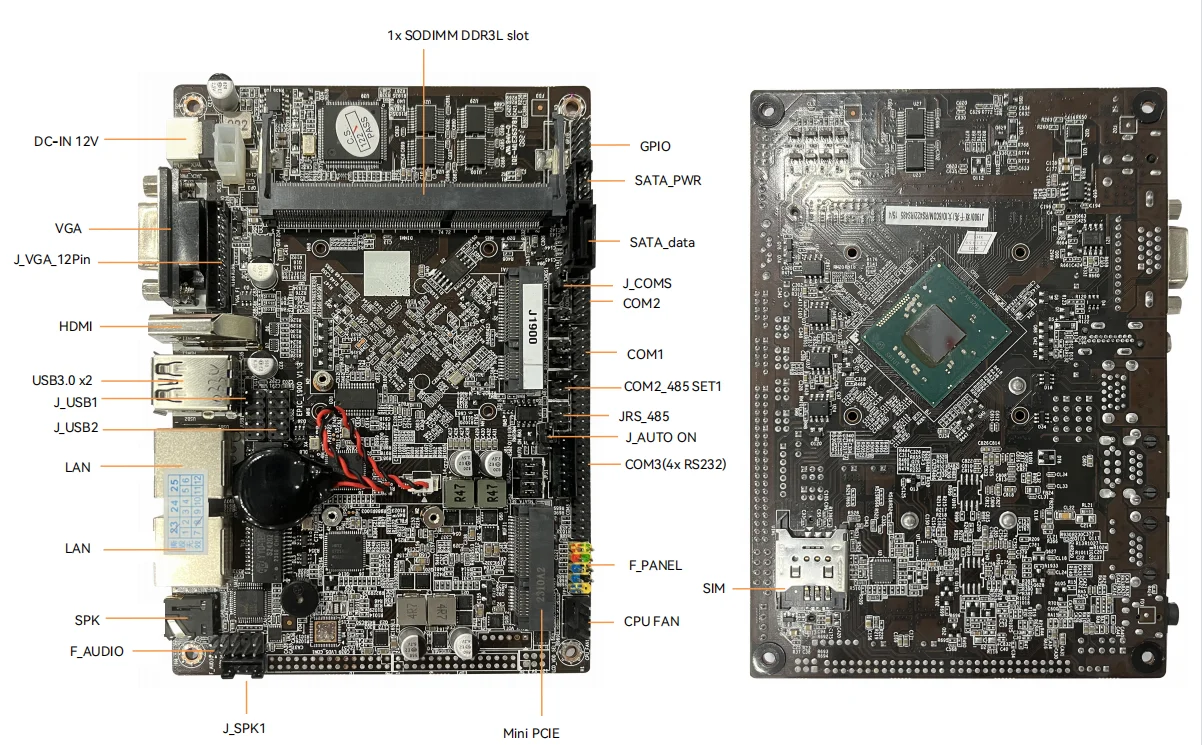

J1900 model motherboard overview:

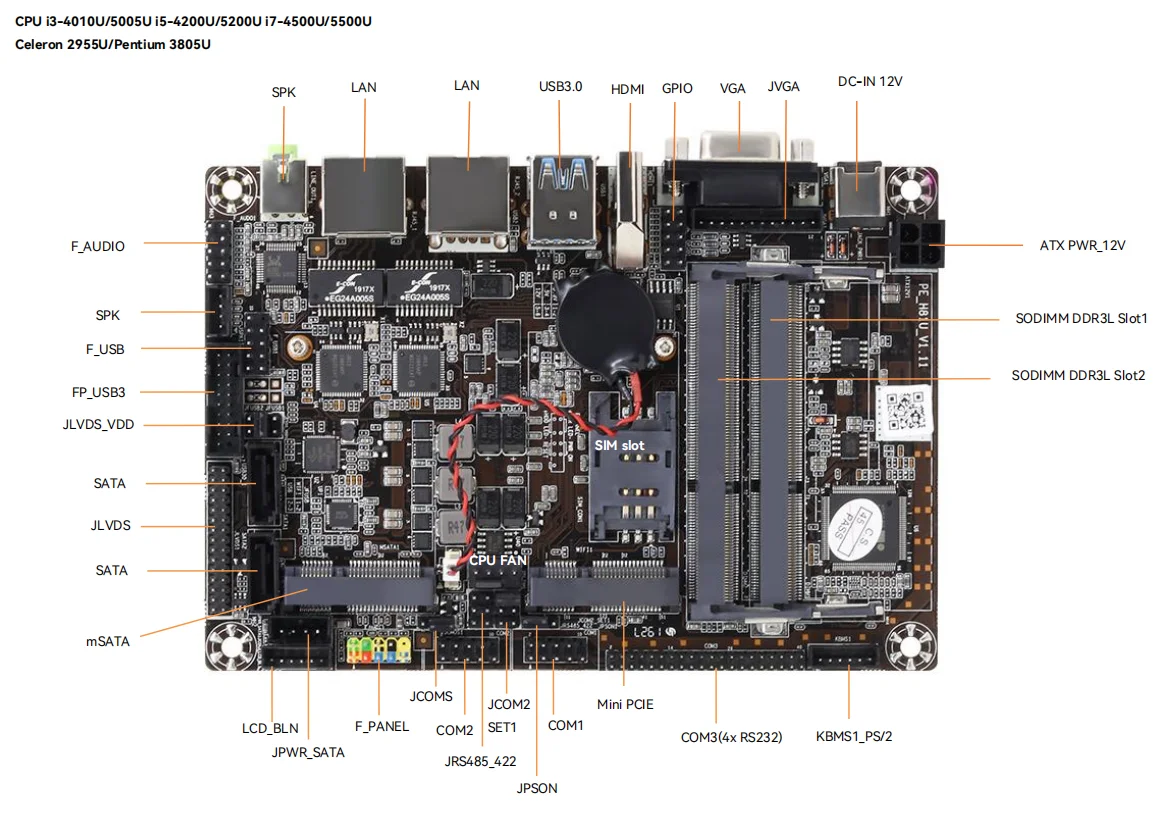

Others CPUs motherboard overview:
