Description
Onboard Intel Celeron 2955U 1.4GHz Dual Core Dual Threads
Intel Core i3-5005U 2.0GHz 2 core 4 threads, Intel Core i5 4200U 1.6GHz, max 2.6GHz CPU,3.0MHz(Turbo boost Technology) Dual Core Four Threads
Onboard Intel Core i3-4005U 1.7GHz (Turbo boost Technology) Dual Core 4 Thread
Intel Core i7 4500U 1.8GHz, max 3.0GHz Intel HD Graphics 4400 * 22nm Intel Haswell, 4MB cache

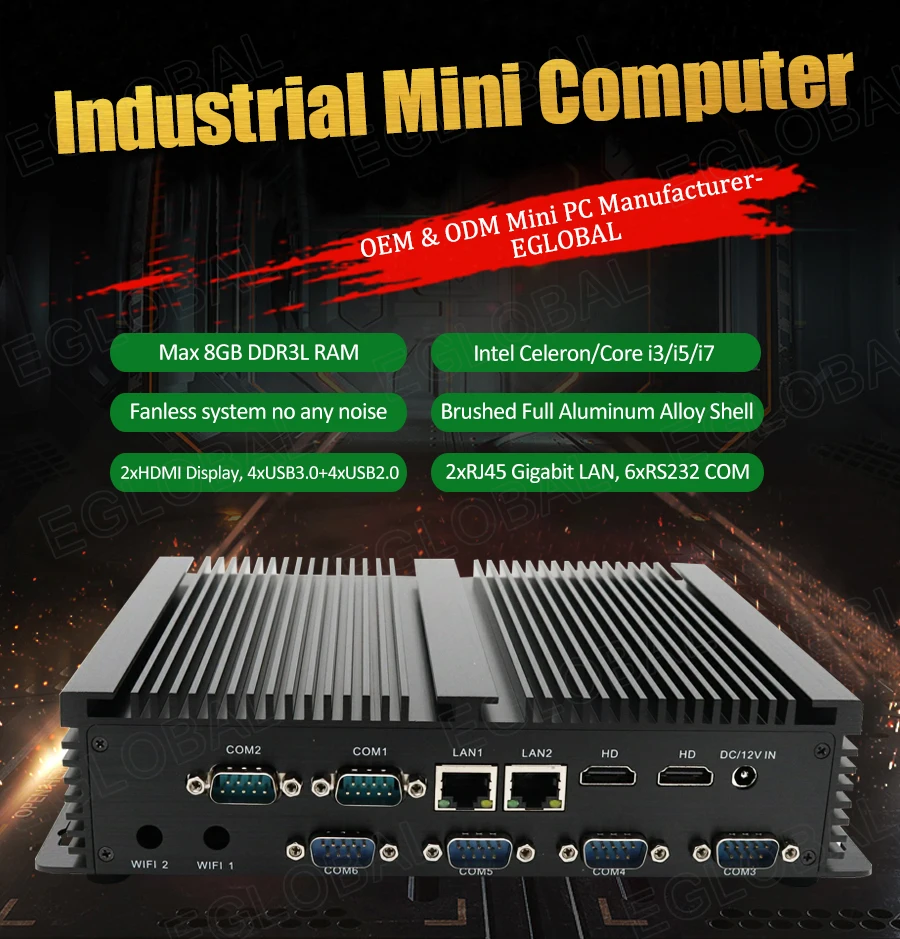

– 2 Intel Gigabit RJ45 LAN, 2 HDMI display output and 6 RS232 COM ports.
– One embedded SIM card slot for 3G/4G Module for option.

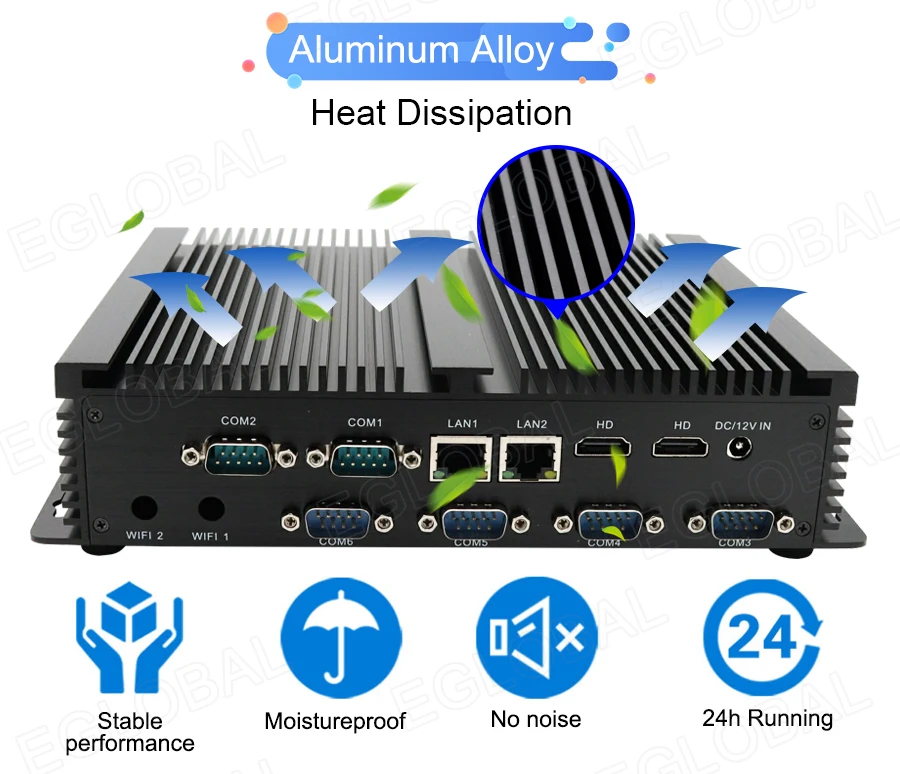

– Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on outside design.

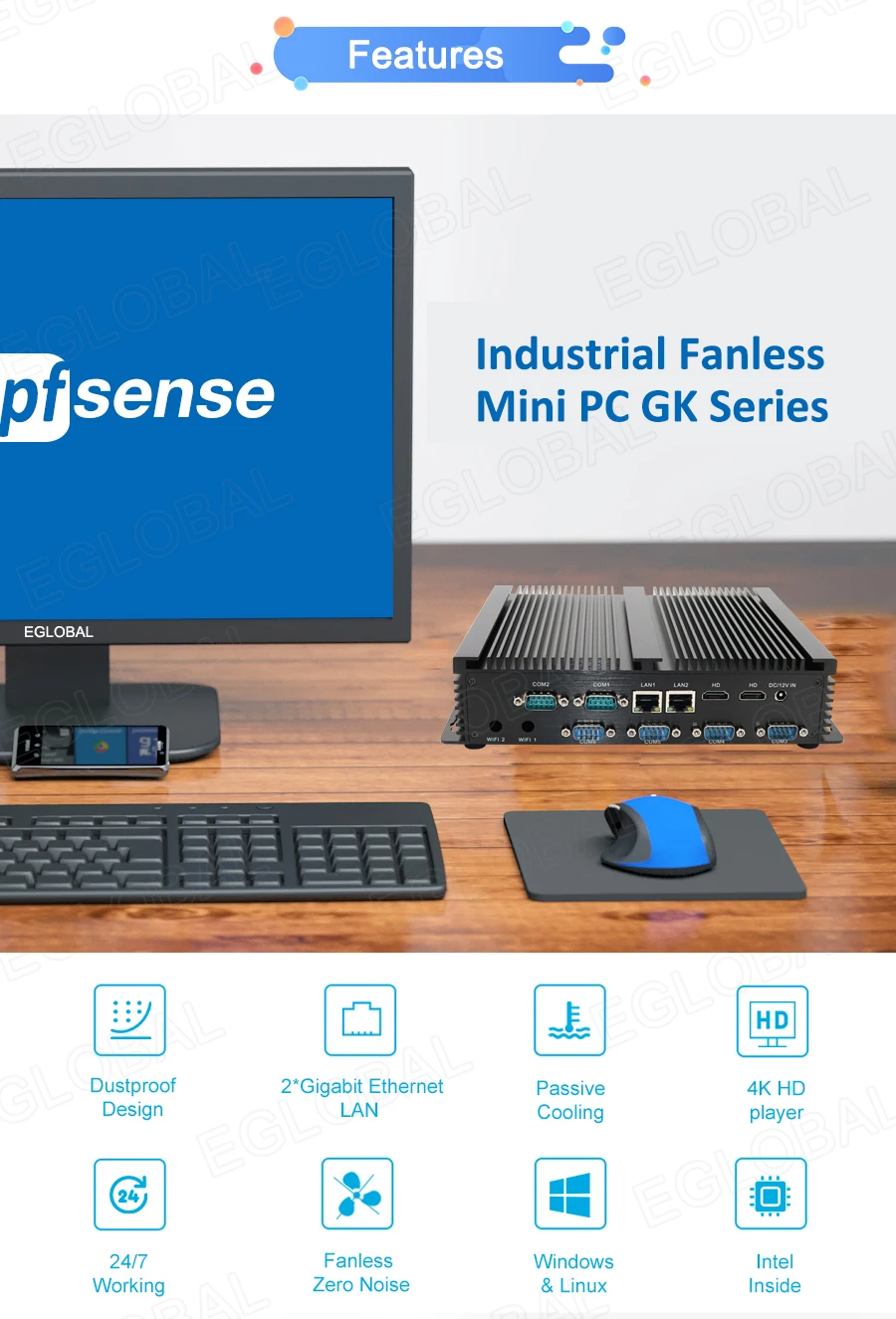

– Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
– Low consumption TDP only 15W and can be mounted on the wall.
– Cost saving, save more than 50% hardware cost by comparing with other reliable brand computers.

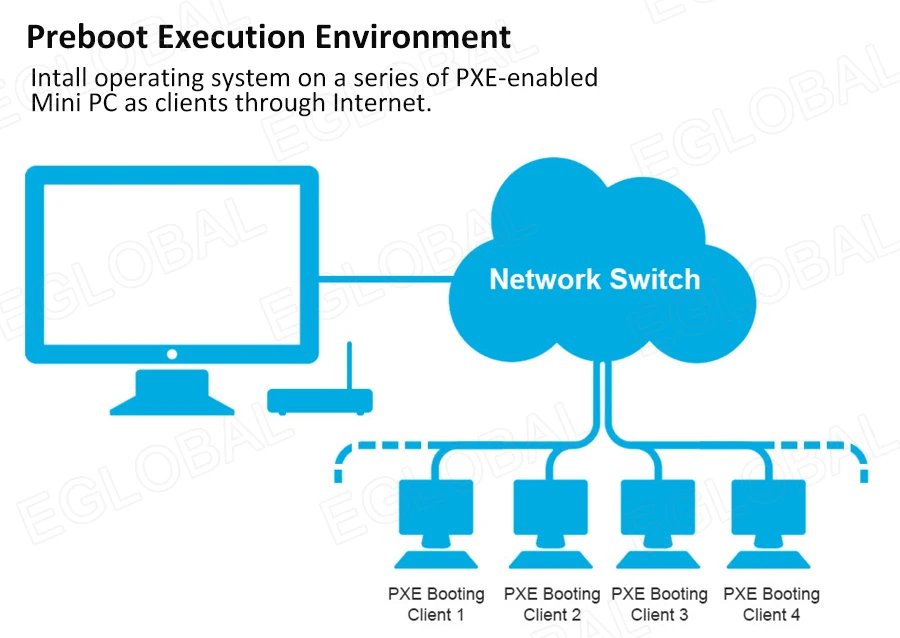

– Multiple working modes: Support PXE and call on function automatically, it’s a high-end small computer.
Basic Information:
CPU: Intel Core i3 4005U/ 5005U/Intel Core i5 4200U/ Intel Core i7 4500U/ Intel Celeron 2955U
TDP: 15W
BOIS: AMI BIOS, ACPI supported, support call on function automatically
Chipset: Intel QS77 Express High Speed Chipset
Memory: 1 x SO-DIMM DDR3L Slot, Support 2GB/4GB/8GB
DDR3L 1333/1600, LPDDR3 1333/1600

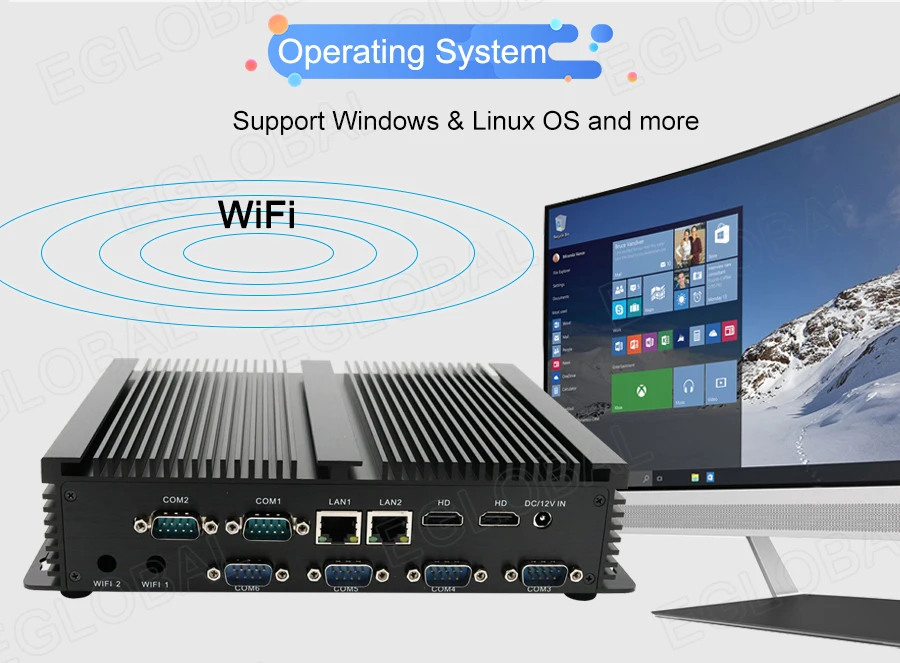

OS: Windows 7/Windows 8/Windows 10/Linux
Audio: ALC892 HIFI sound chip, 6-channel
Network: Intel 82583V/82574L PCI-E Gigabit Ethernet NIC
10/100/1000 BaseT LANLAN
Video: Up to CPU

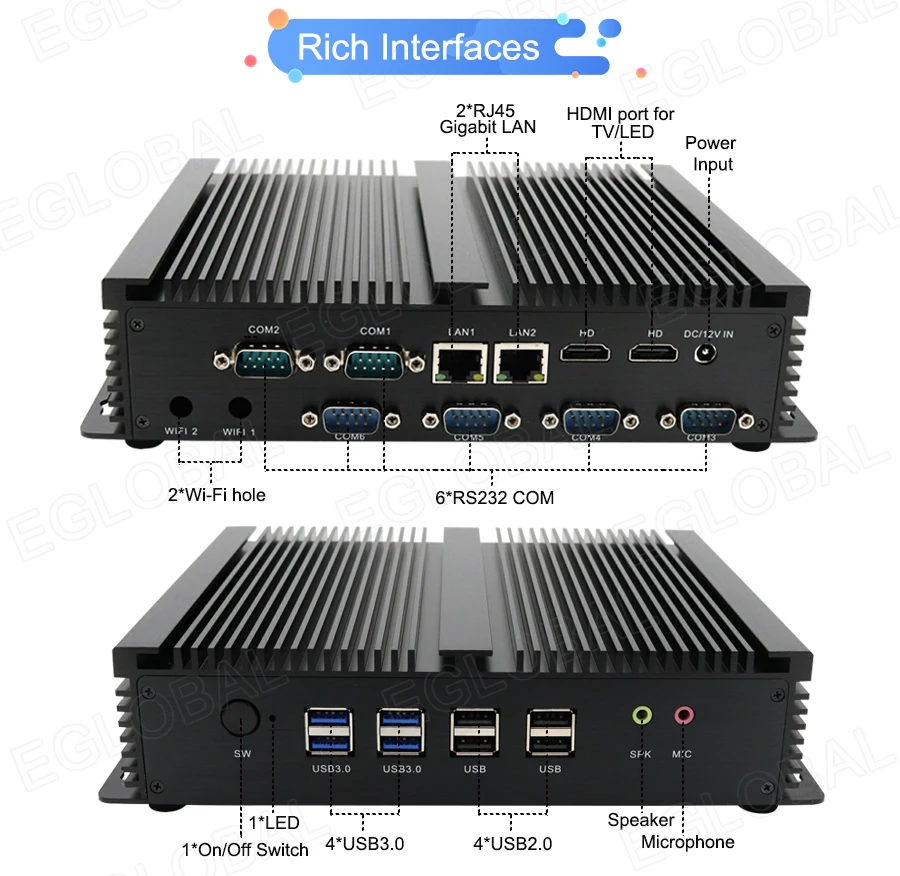

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 12V DC In
LED: 1 x LED
USB: 4 x USB2.0, 4 x USB3.0
Display: 2 x HDMI

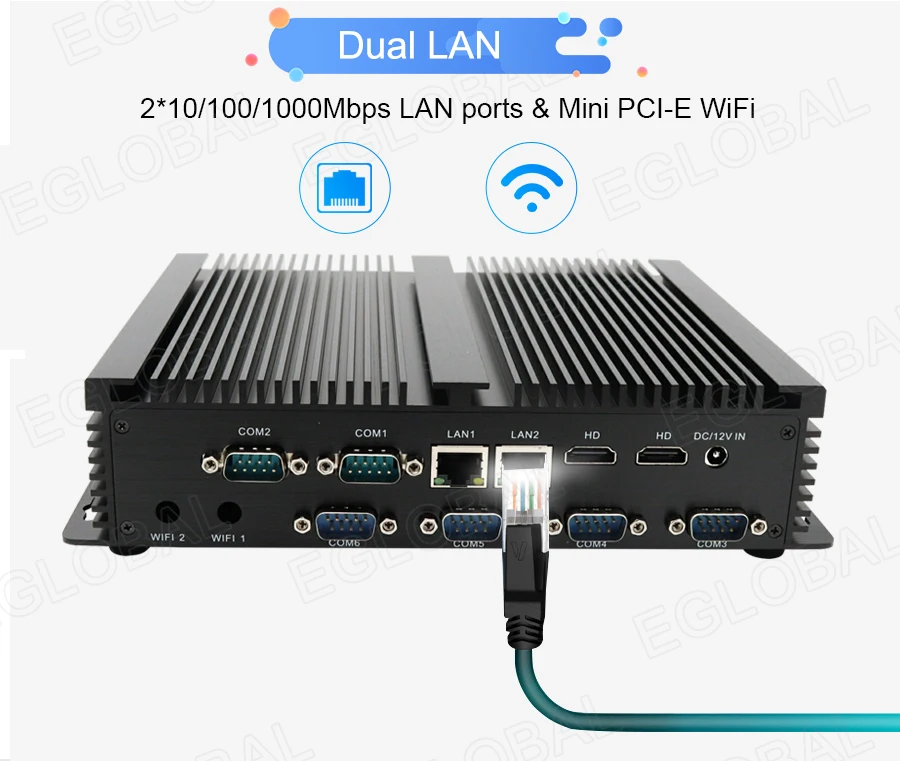

LAN: 2 x RJ45 Intel Giga LAN
COM: 6 x COM RS232 ports
Audio: 1 x MIC, 1 x SPK

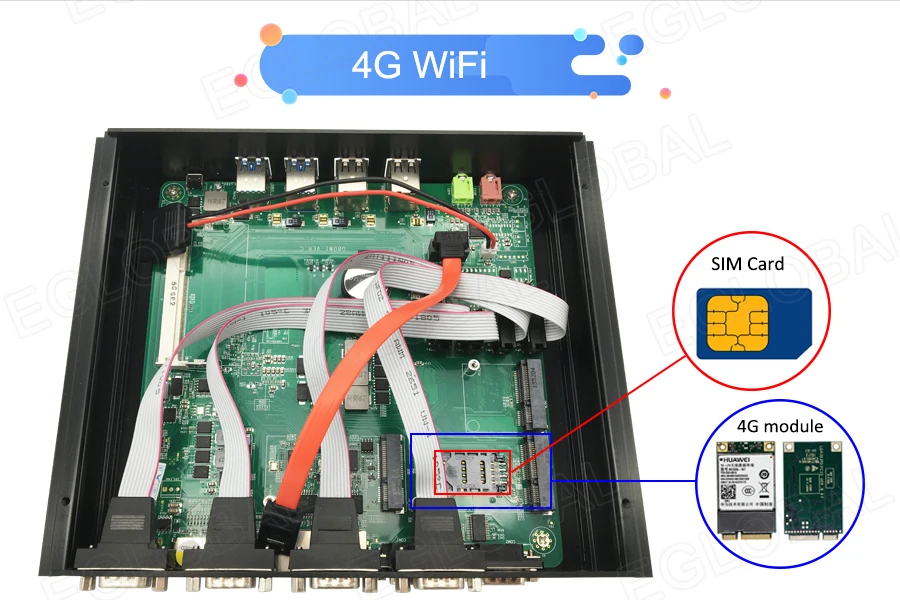

SIM: 1 x embedded SIM card slot onboard(optional)

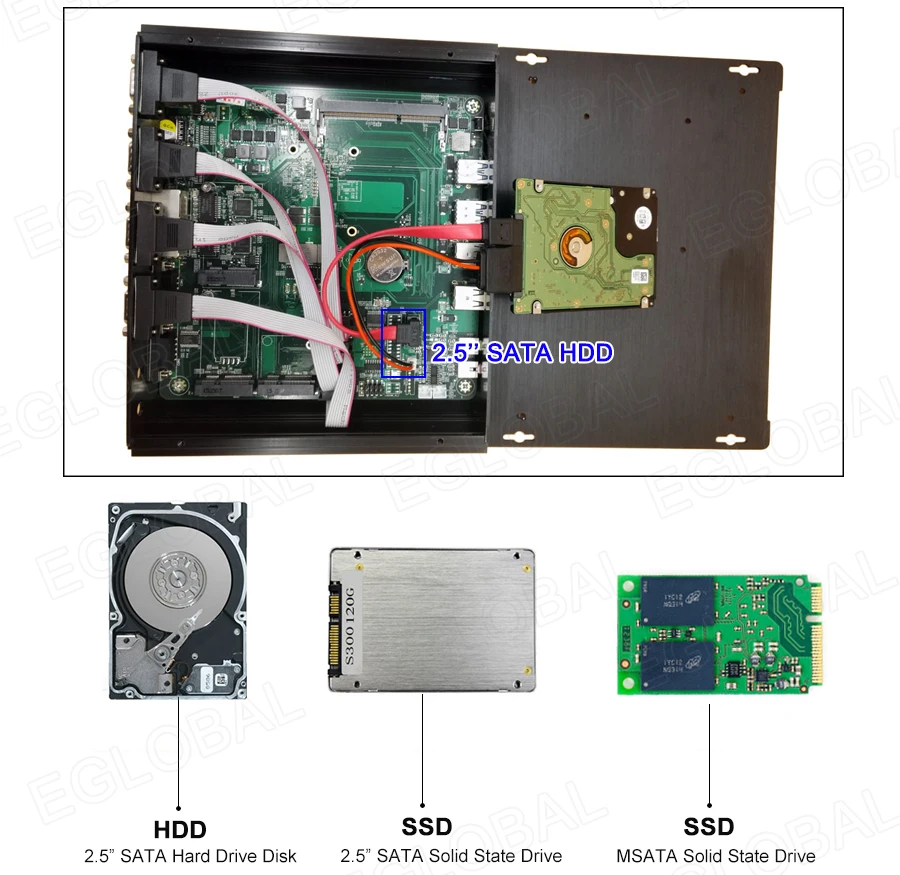

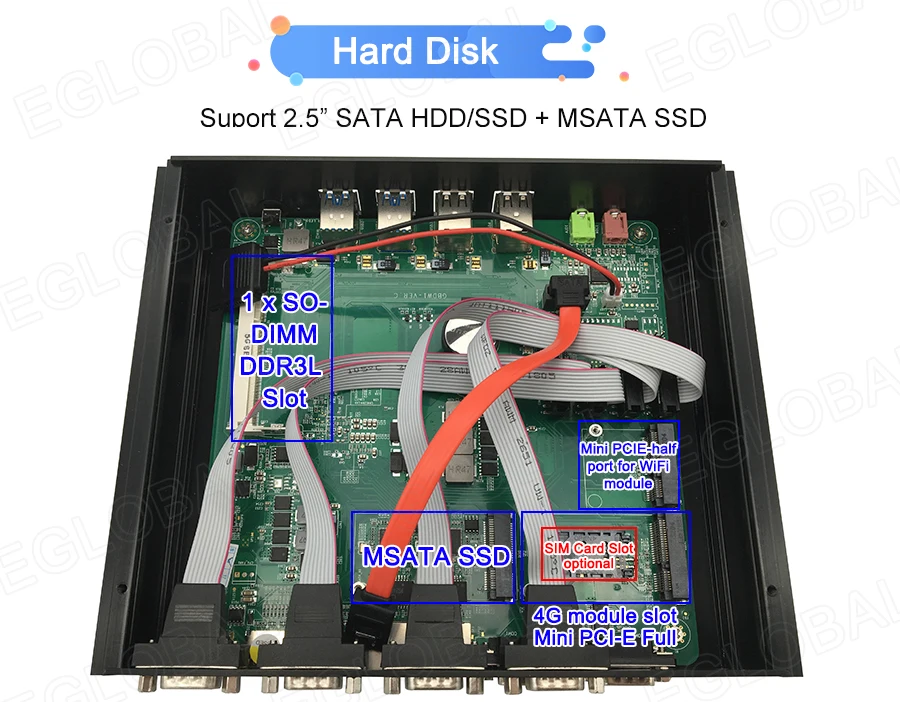

Storage: MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

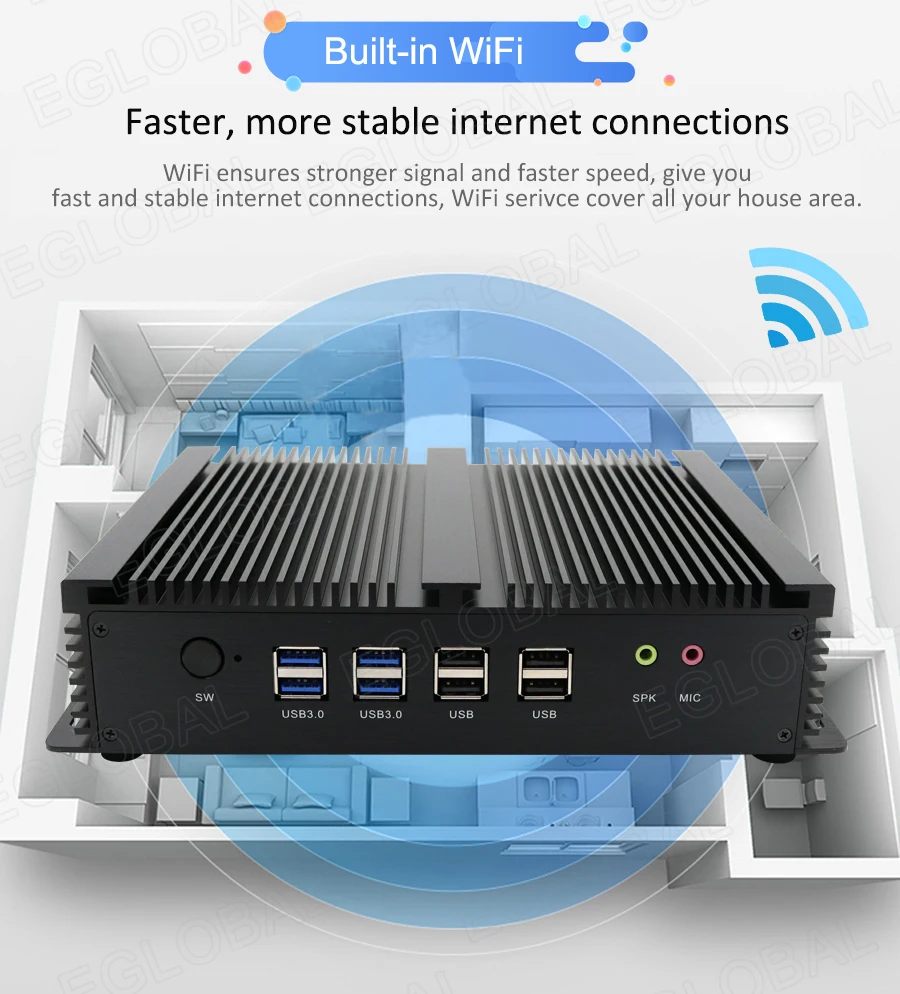

Wi-Fi: Module
1 x mini PCIE-half port for Wi-Fi/3G/4G module
Antenna: 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: DC +12V~+19V, recommend 12V/5A
Operating Temperature: 0/+70 Centigrade(32°F~140°F)
Storage Temperature: -20/+80 Centigrade(-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)

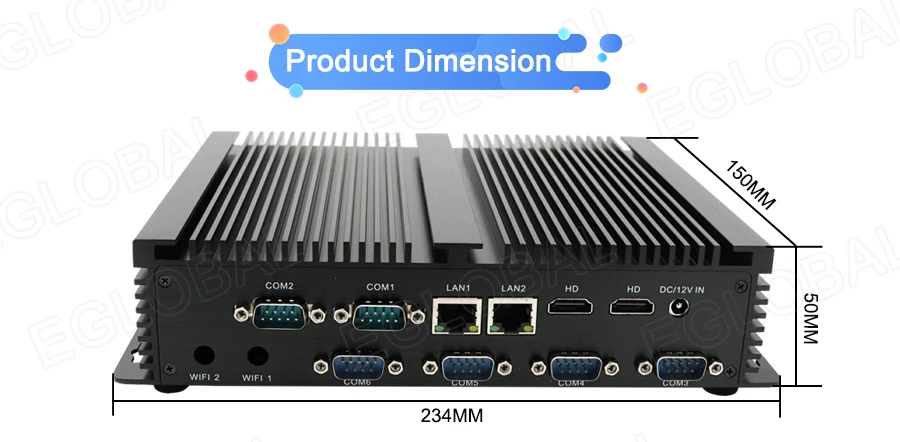

Product Dimension & Details
Size: 234*150*43mm
Weight: Net 1.6kg, Gross 2.5kg
Shell: Black color aluminum alloy(any customized color for bulk order)

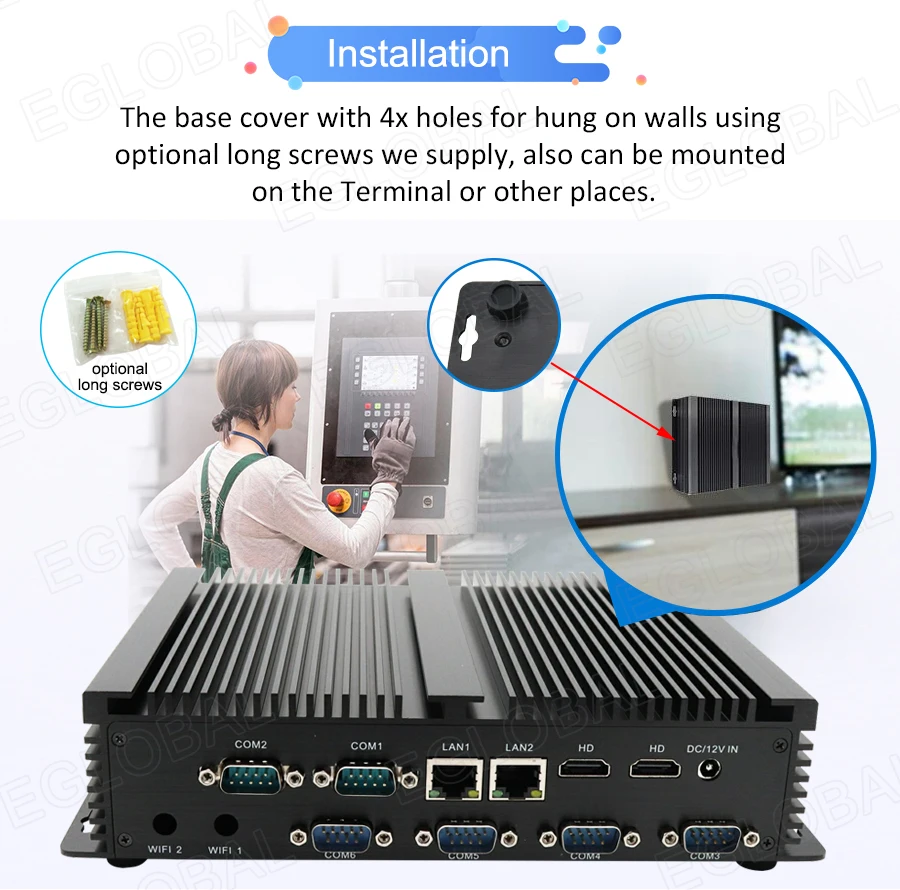

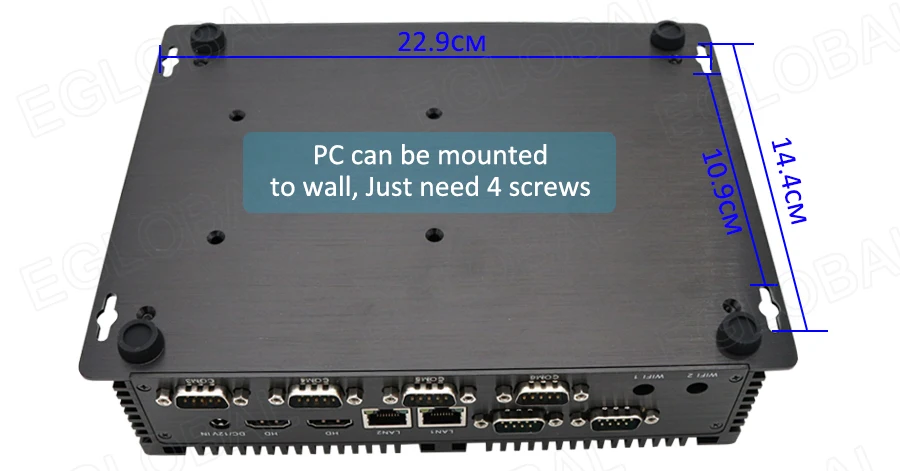

Mounting: 4 Mounting holes on case
Cooling Mode: Fanless
Function: Hyper-Threading, Virtualization technology, 64 bit computing, PXE

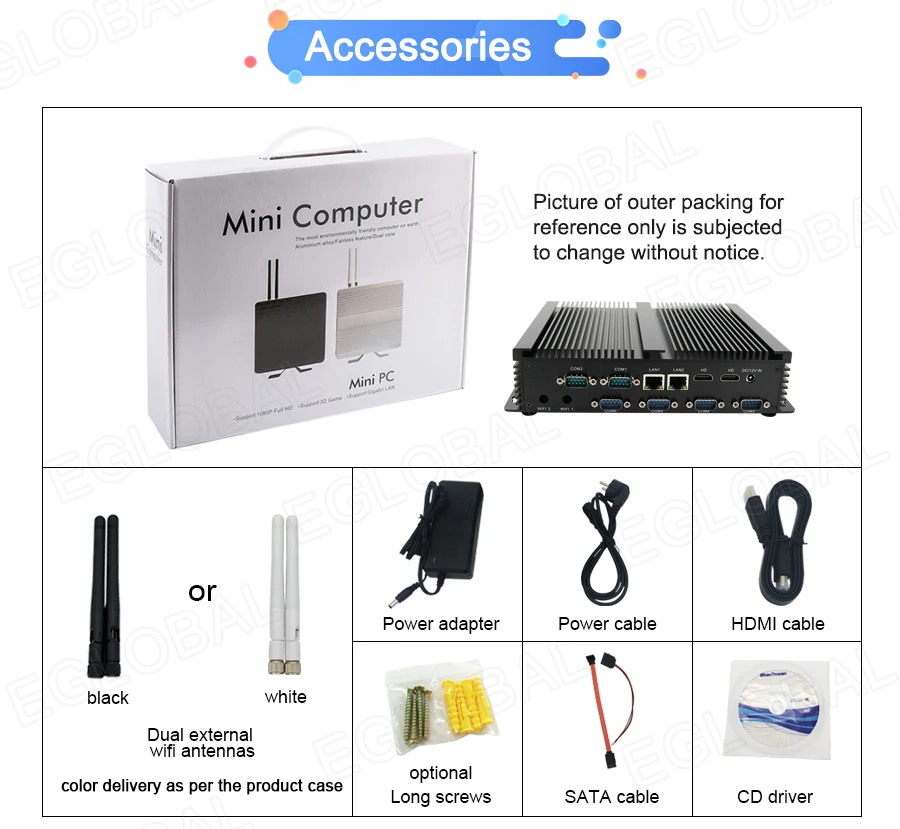

Package Content: Standard

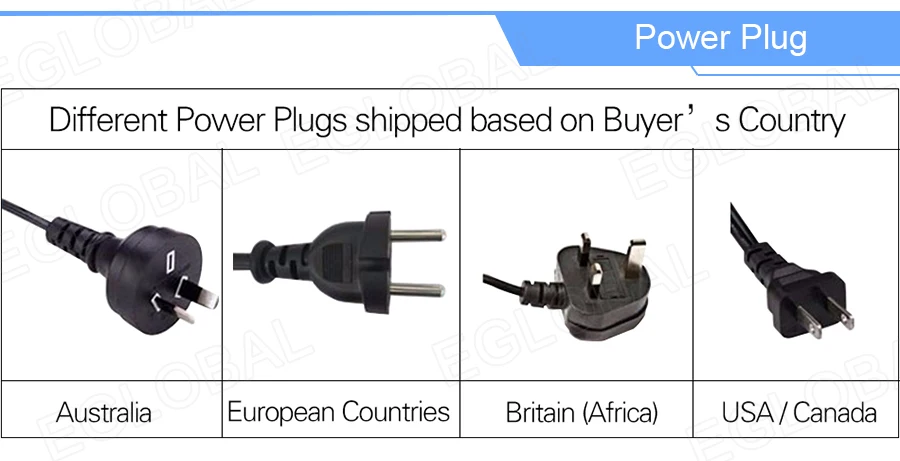

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional: Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
DETAILS ABOUT OPERATING SYSTEM
Free Operating System: Default installed our trial activated OEM windows 10 pro license English for free, other languages can be selected among: Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Supplier is irresponsible and makes no compensation for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, What brand we use depends on our test and our stock.
TIPS
1. USB Infrared remote (can turn power off and control media center like kodi) add extra cost US$14.
2. External USB DVD-ROM add extra cost $18.
3. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
4. Genuine OEM license sticker cost $35.
5. 2.5” 500GB HDD add extra $50, 2.5” 1TB HDD add extra $65, 2.5” 2TB HDD add extra $100.
(how many dollars to upgrade, pay how many pieces, US$1=1pc, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for. . . )
Buy with confidence! 3 Years long warranty for EGLOBAL Mini PC!
