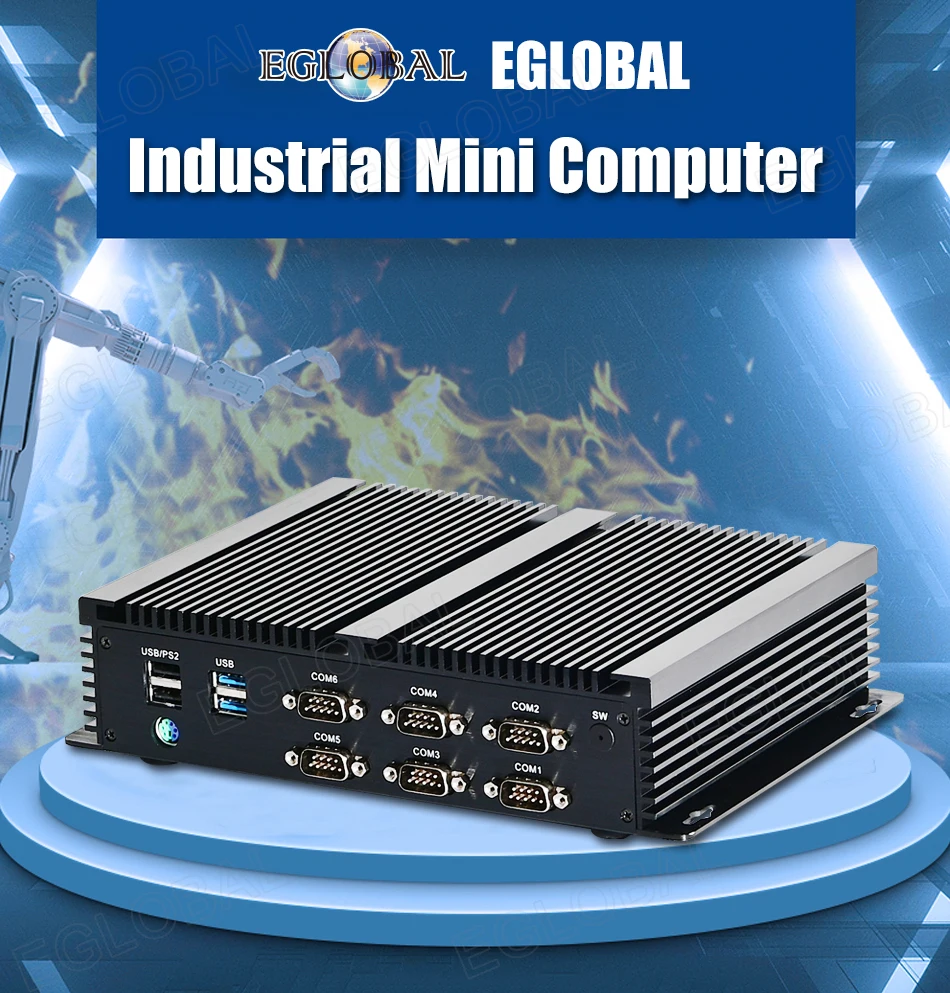

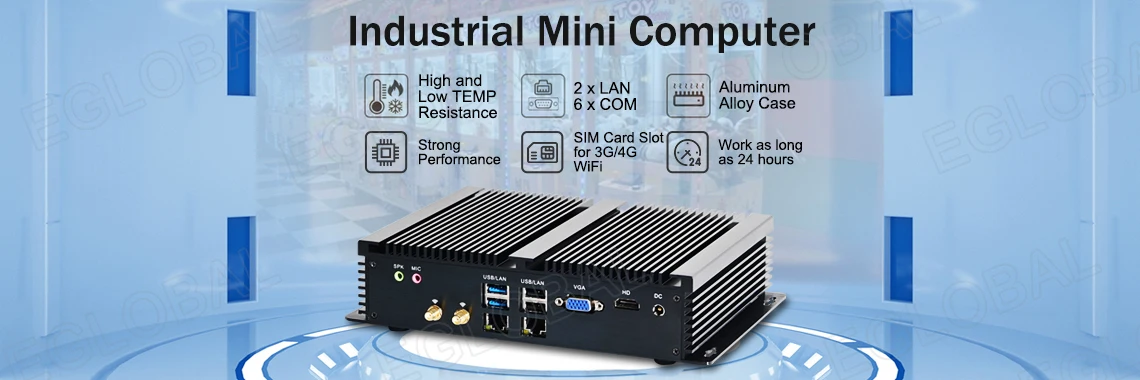

Eglobal 6 COM Computer Windows Linux Barebone System 2 Lan Industrial Fanless Mini PC 7*24 Hours Working 4 USB 2.0 4USB 3.0 HD VGA Display 3G/4G Module

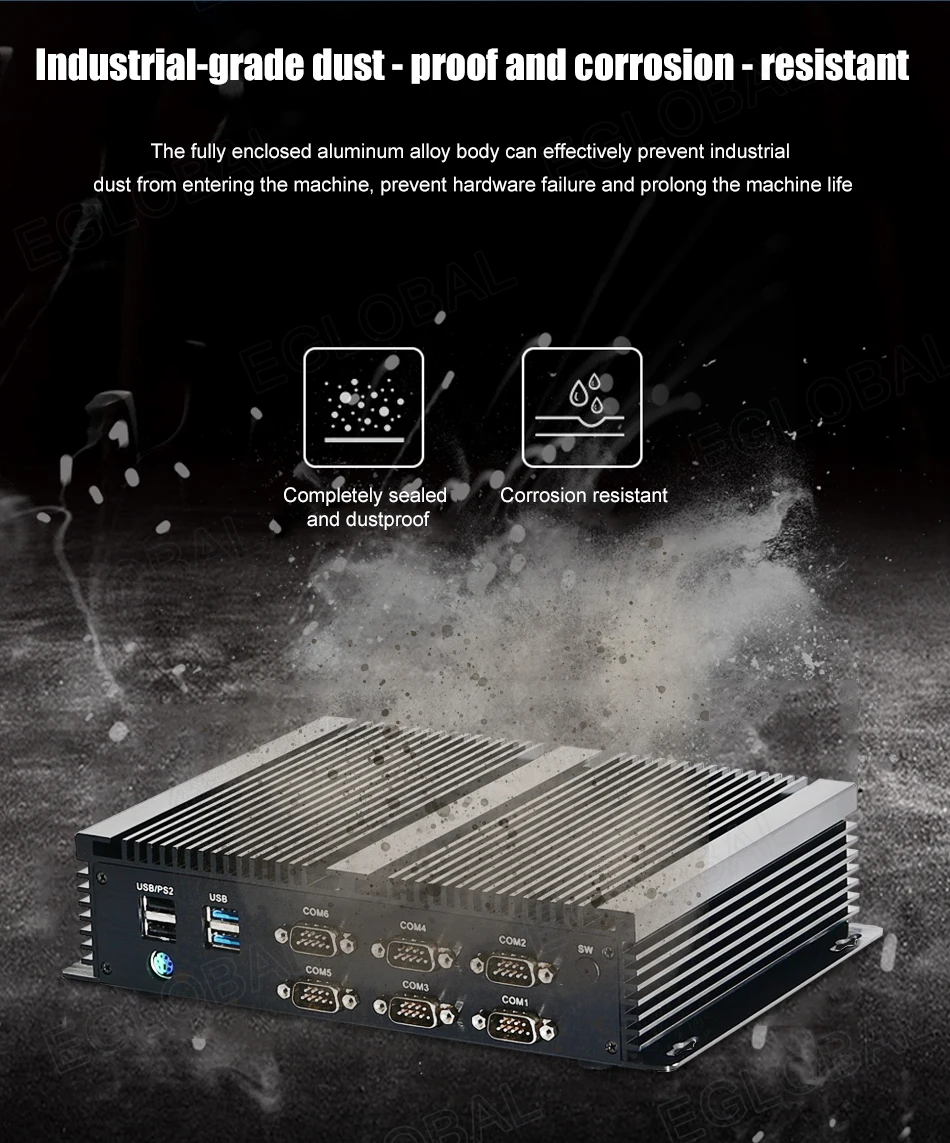

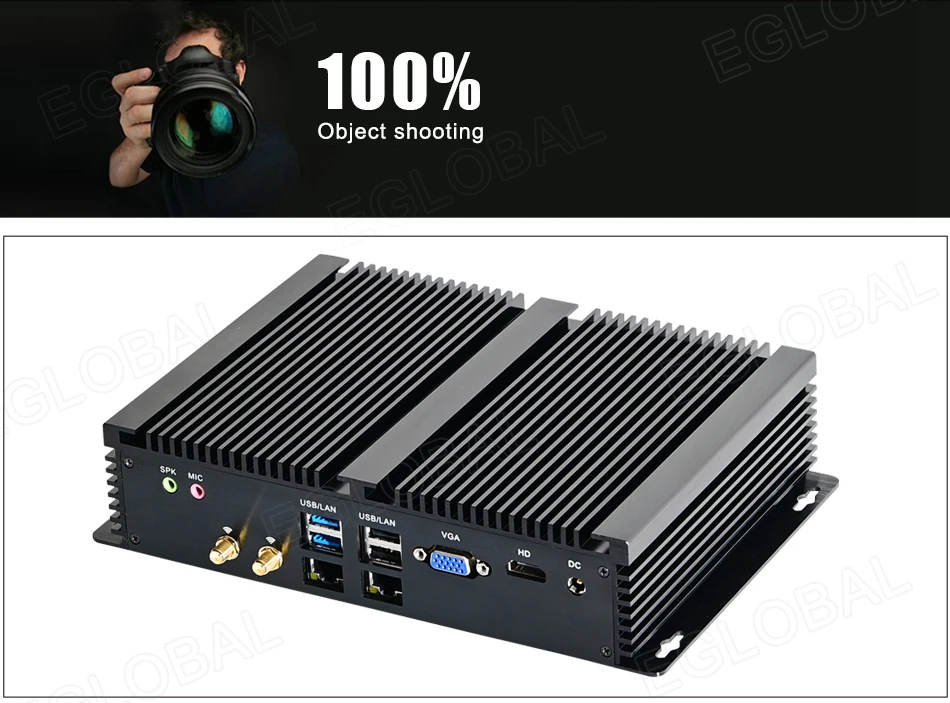

– Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation, fit for industrial grade field, work as long as 24 hours.
– 2 Intel Gigabit LAN and 6 COM(COM1 COM2 can change to RS232/422/485 from BIOS).

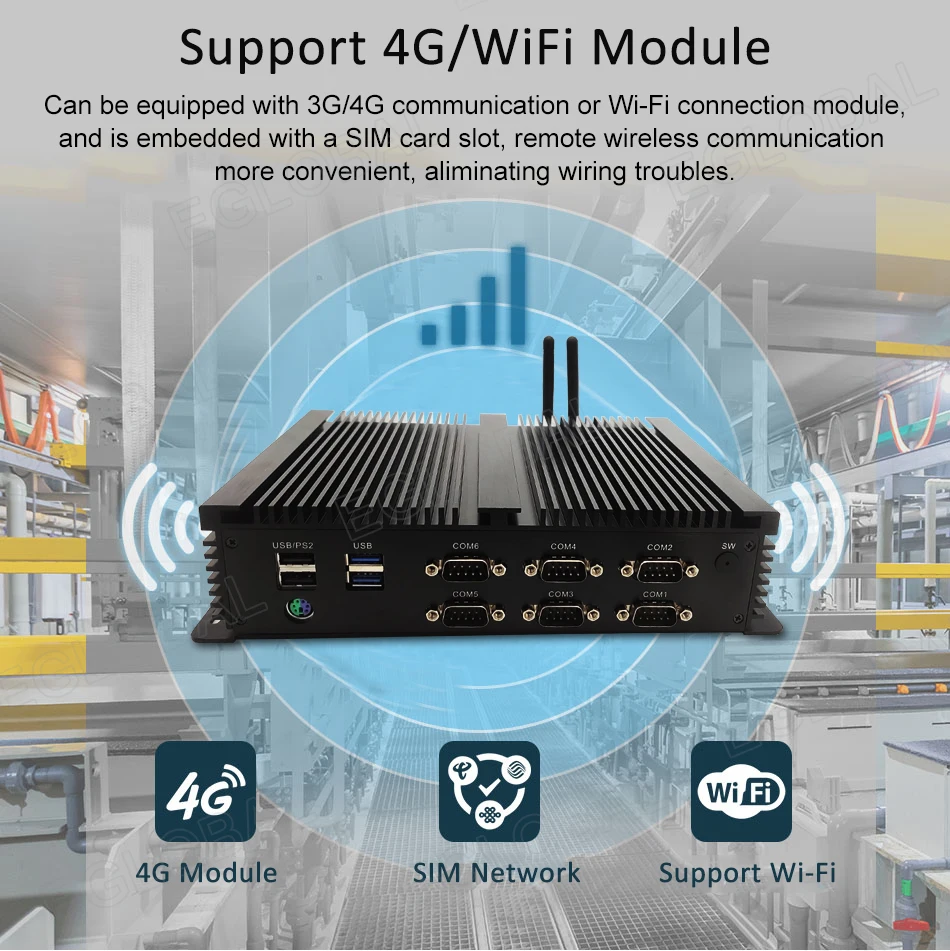

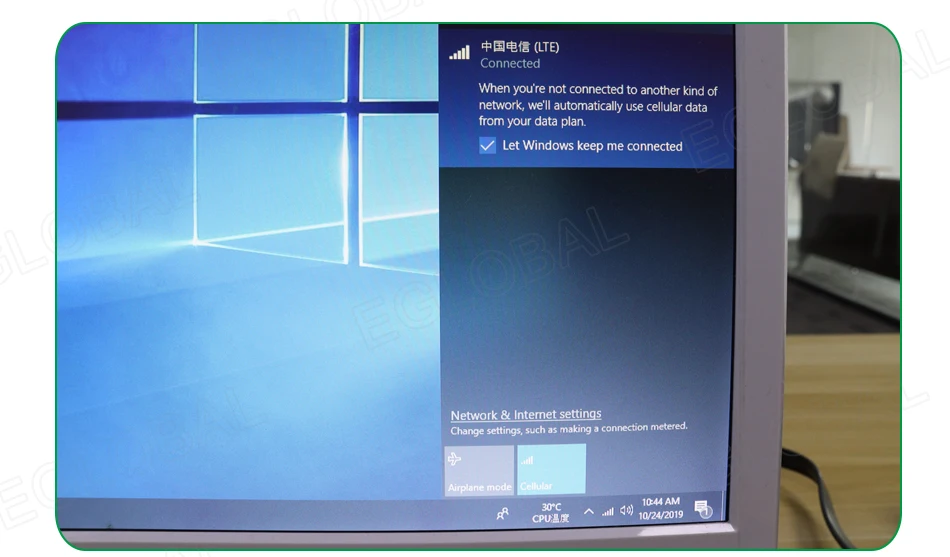

– One embedded SIM card slot onboard for 3G/4G Wi-Fi module.

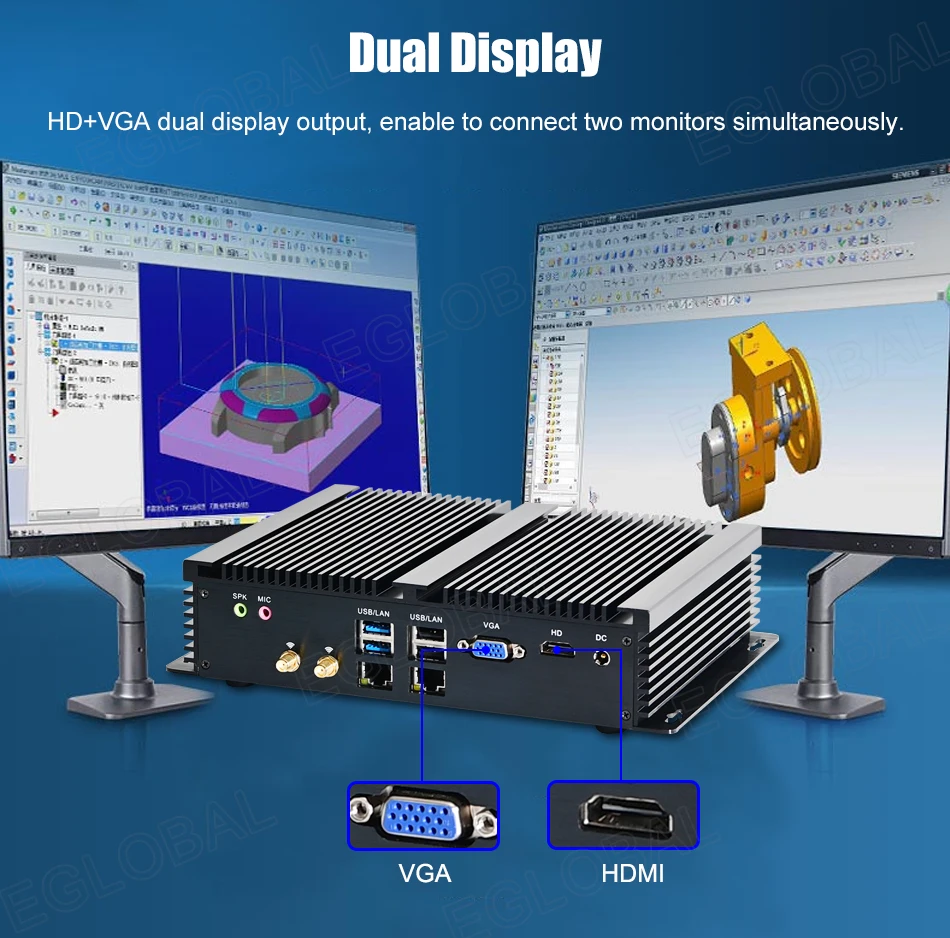

– Support VGA + HD dual display output synchronously.
– Low consumption can save much energy and eco-friendly.

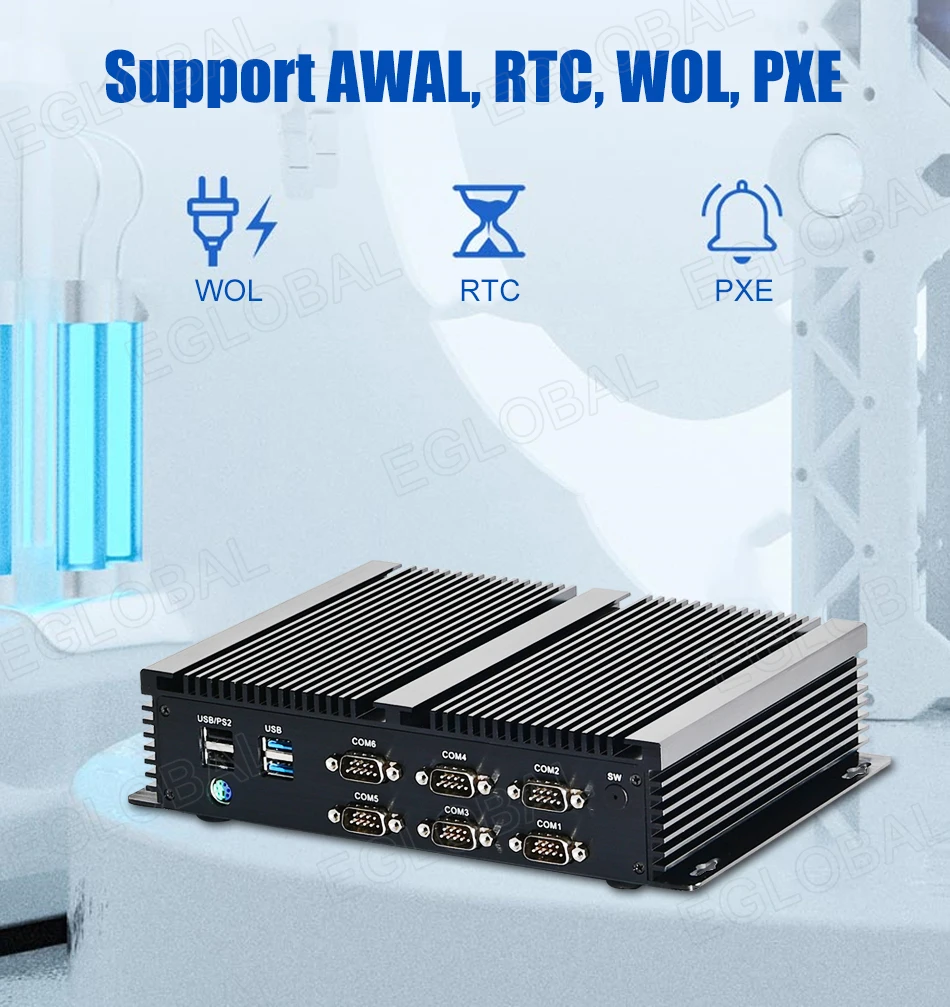

– Support Watchdog, AWAL, RTC, WOL, PXE.
Model: G10-6157U
CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i3-6157U 2.4GHz Dual Cores Four Threads 3MB cache TDP 28W Intel® Iris® Graphics 550.
Model: G10-7267U
CPU: Onboard Intel KABYLAKE 14nm CPU Intel Core i5-7267U 3.1GHz Max 3.5GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 28W Intel® Iris® Plus Graphics 650.
Model: G10-8250U
CPU: Intel KABYLAKE 14nm CPU Intel Core i5-8250U 1.6GHz Max 3.4GHz Quad Core Eight Threads 6MB cache TDP 15W Intel® UHD Graphics 620.
Model: G10-8550U
CPU: Onboard Intel Core i7-8550U 1.8GHz Max 4.0GHz (Turbo boost Technology) 4 Cores 8 Threads.

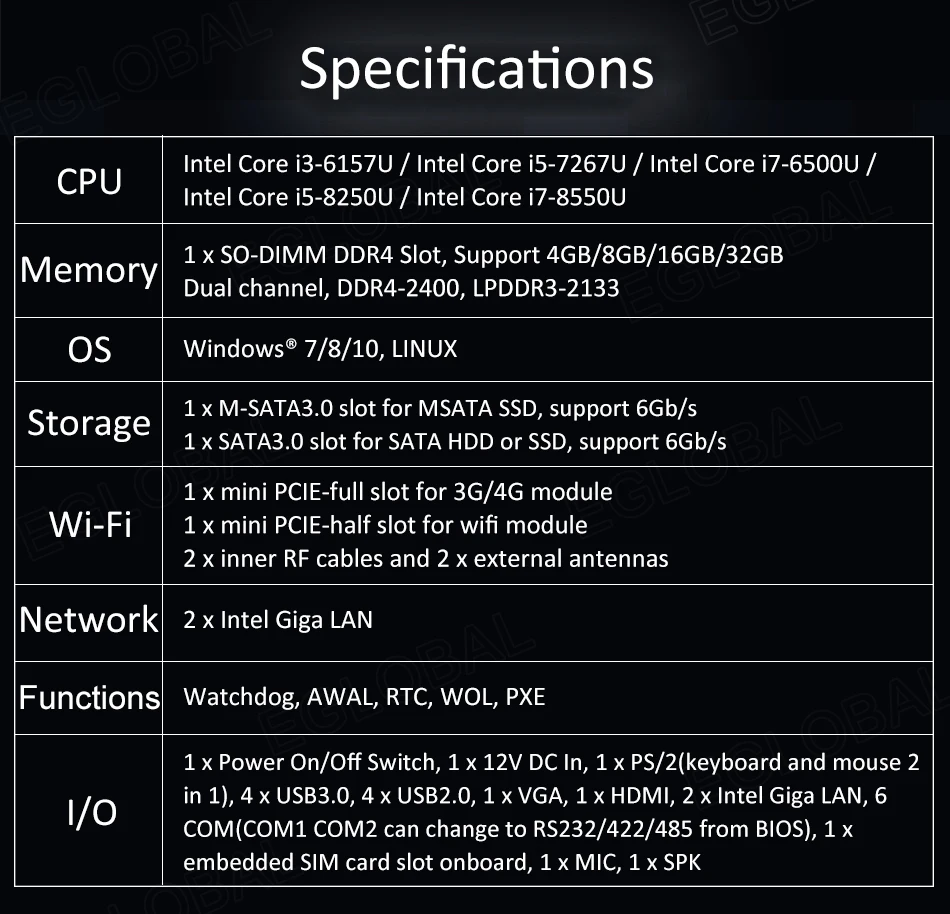

Basic Information:
CPU: Intel Core i3 6157U /Intel Core i5-7267u / Intel Core i5-8250u/ Intel Core i7-8550u
TDP: 15W
PXE: YES
BOIS: AMI BIOS, ACPI supported
Chipset: Intel SOC

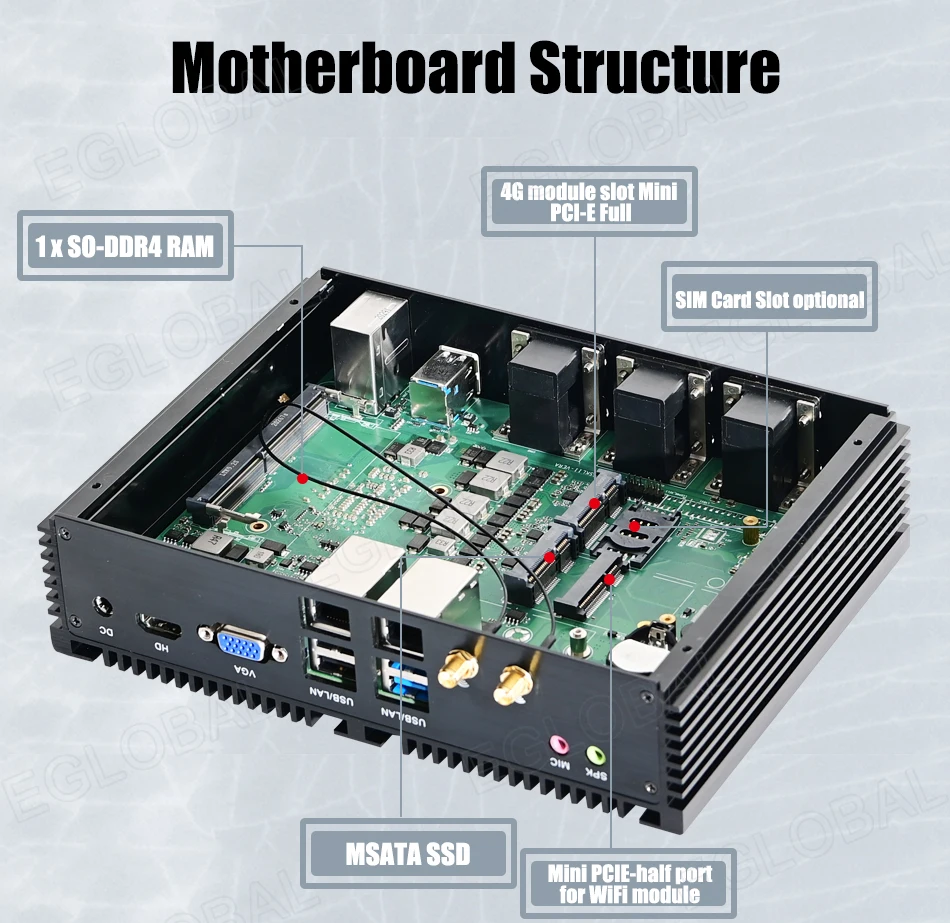

Memory: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB
DDR4-2400, LPDDR3-2133
OS: Windows 7/Windows 8/Windows 10/Linux
Audio: Network
Intel(R) i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN
Video: Refer to CPU

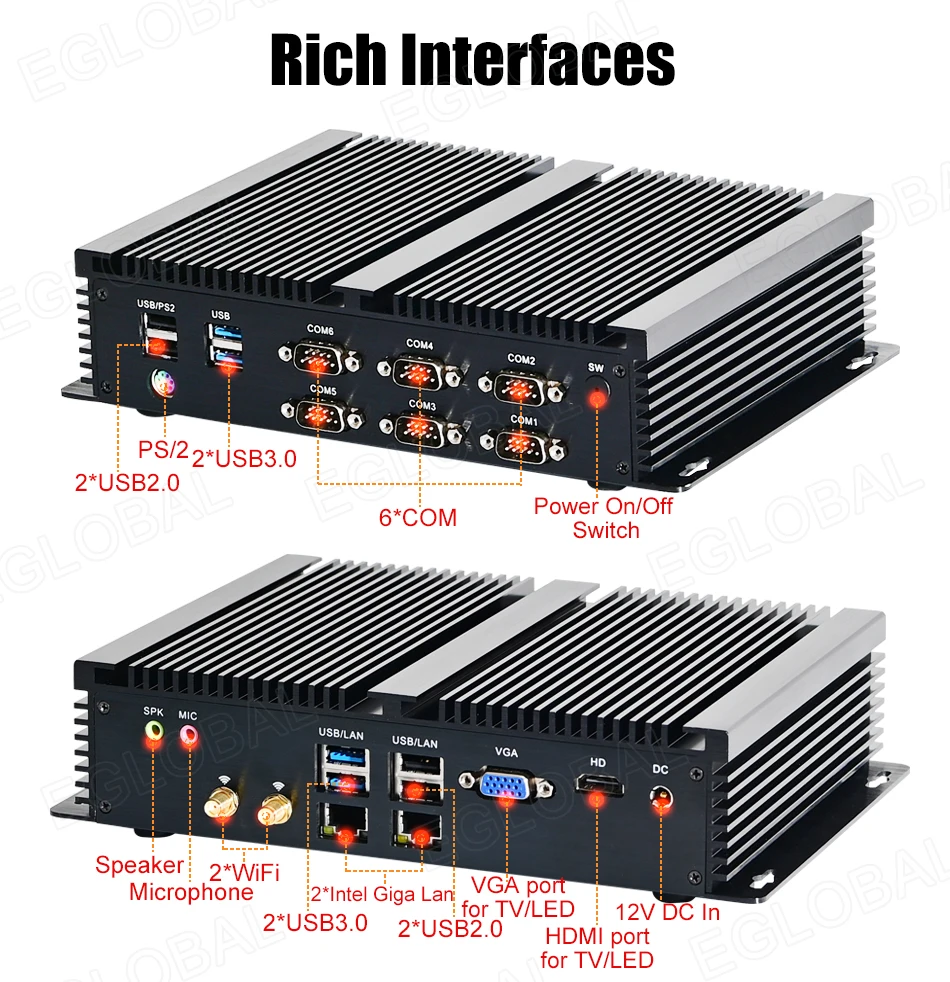

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 12V DC In
PS/2: 1 x PS/2(keyboard and mouse 2 in 1)
USB: 4 x USB2.0, 4 x USB3.0
Display: 1 x VGA, 1 x HD
LAN: 2 x RJ45 Giga LAN

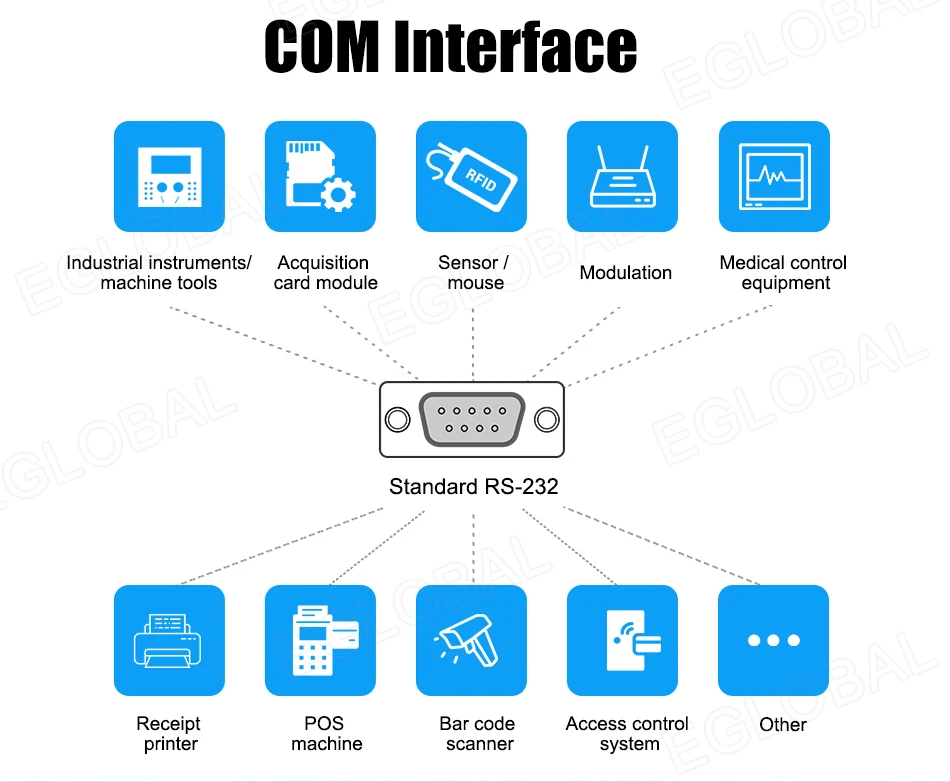

COM: 6 x COM RS232 ports (COM1 COM2 can change to RS232/422/485 from BIOS)
Audio: 1 x MIC, 1 x SPK

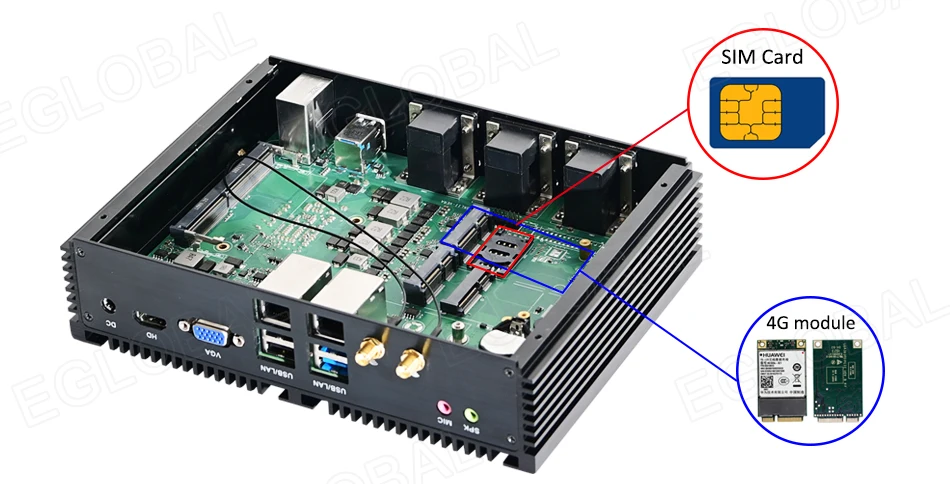

SIM: 1 x embedded SIM card slot onboard(optional)
Storage: MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi: Module
1x mini PCIE-full slot for 3G/4G module
1x mini PCIE-half slot for wifi module
Antenna: 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: DC +12V~+19V, recommend 12V/5A
Operating Temperature: -10/+60 Centigrade
Storage Temperature: -20/+80 Centigrade
Relative Humidity: 10%~90% (non-condensing)

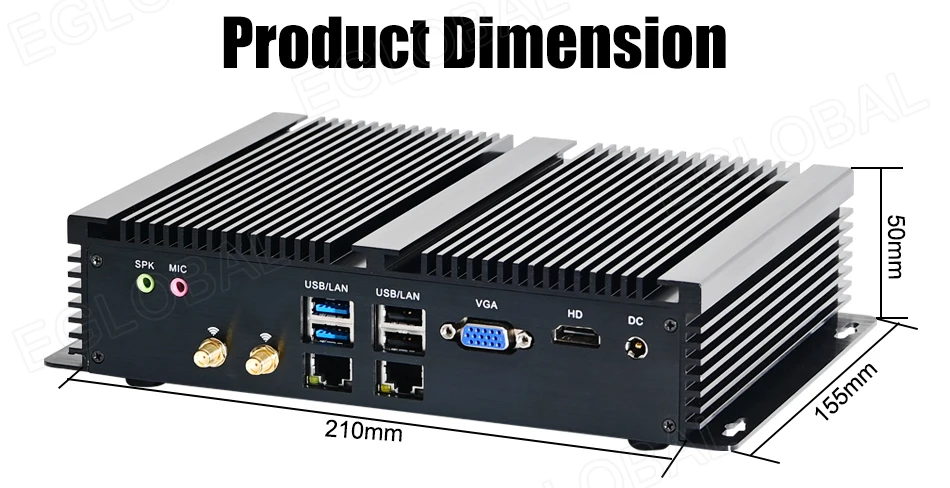

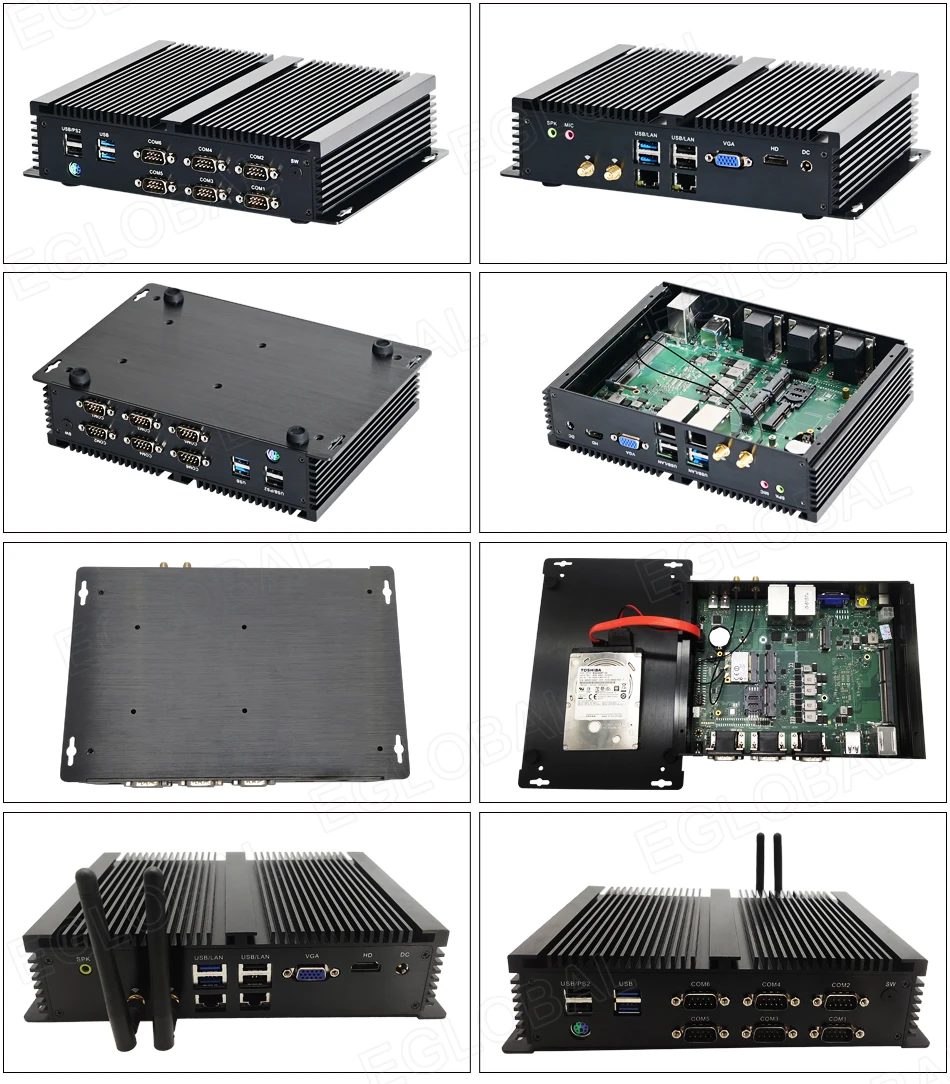

Product Dimension & Details
Size: 210*155*50mm
Weight: Net 1.6kg, Gross 2.5kg

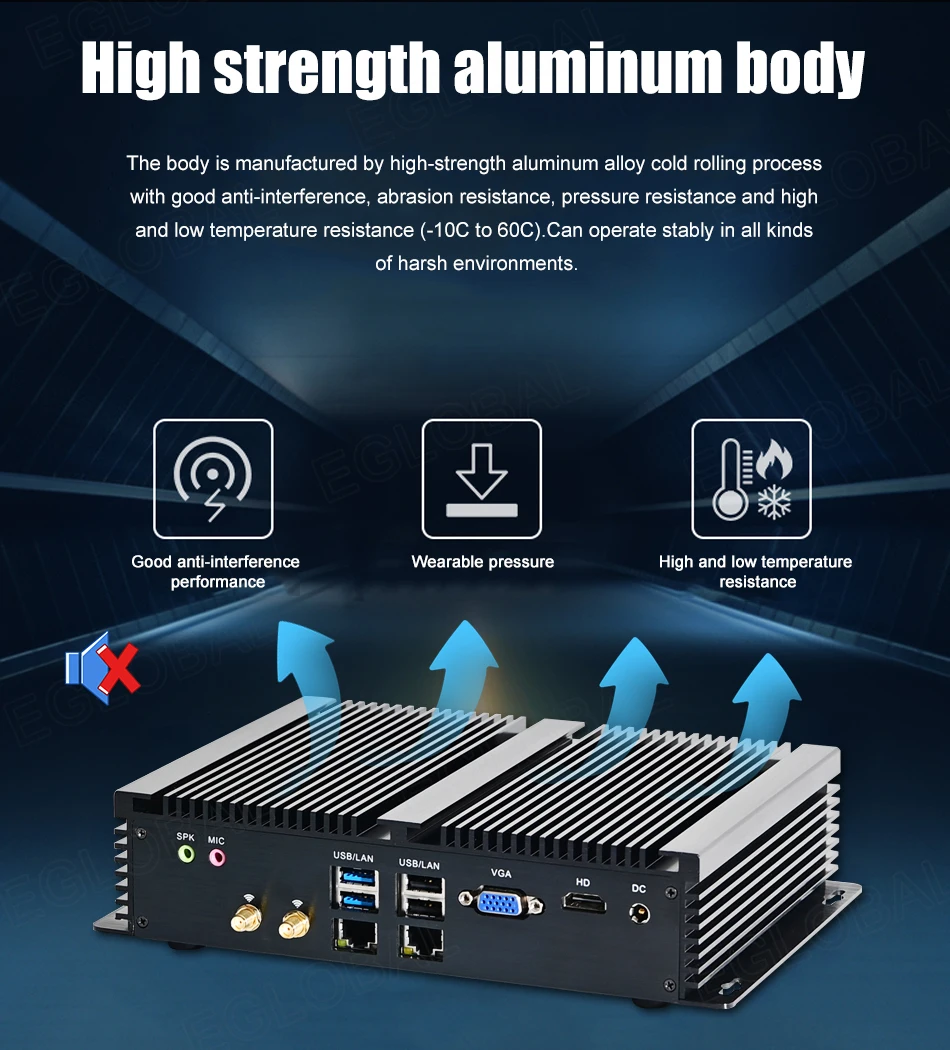

Shell: Black color aluminum alloy(any customized color for bulk order)

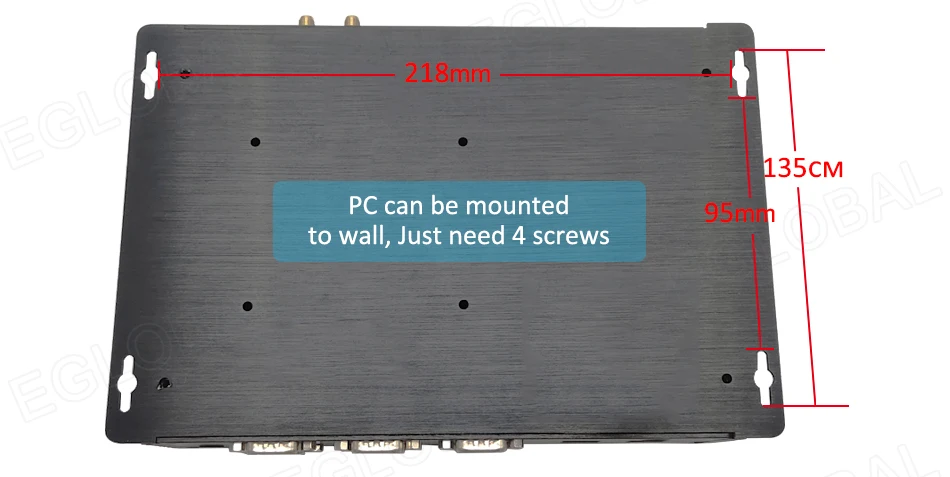

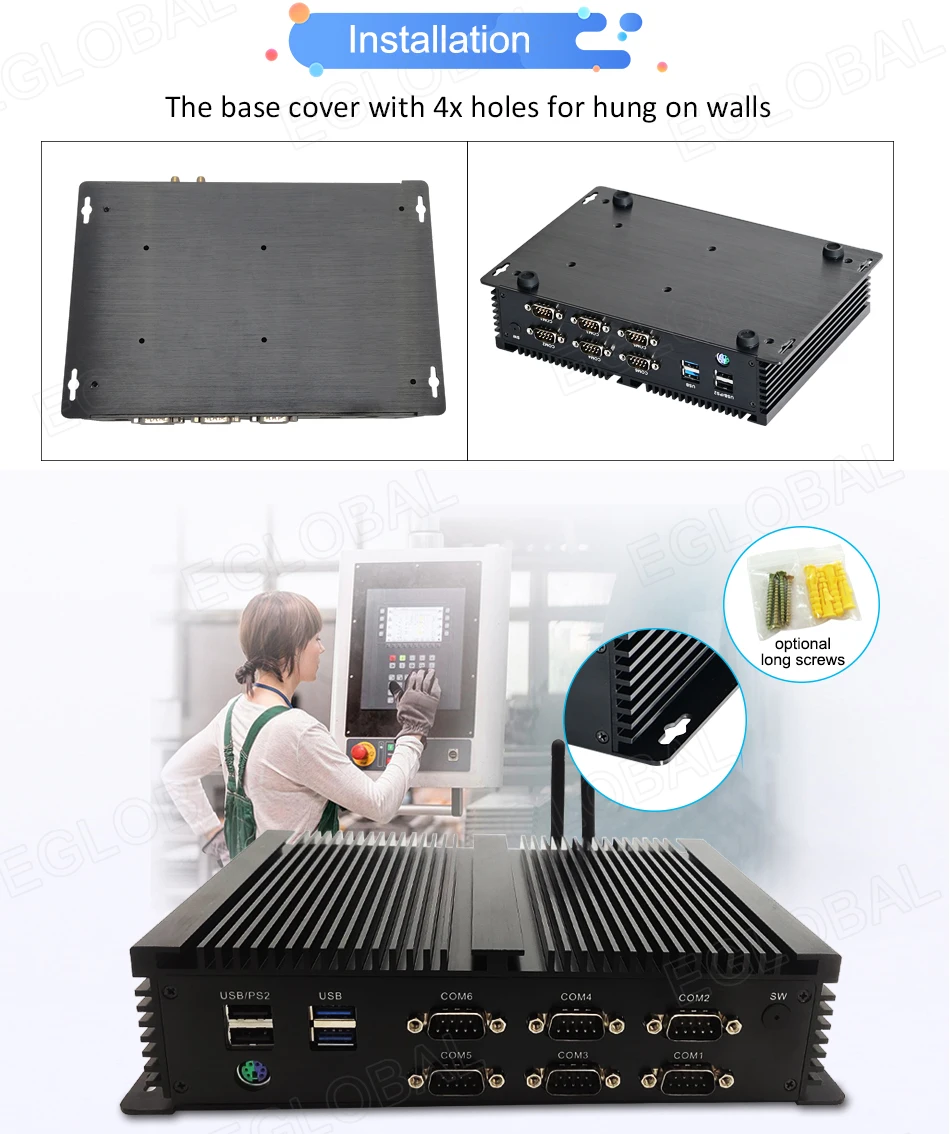

Mounting: 4 Mounting holes on case
Cooling Mode: Fanless
Function: Watchdog, AWAL, RTC, WOL, PXE

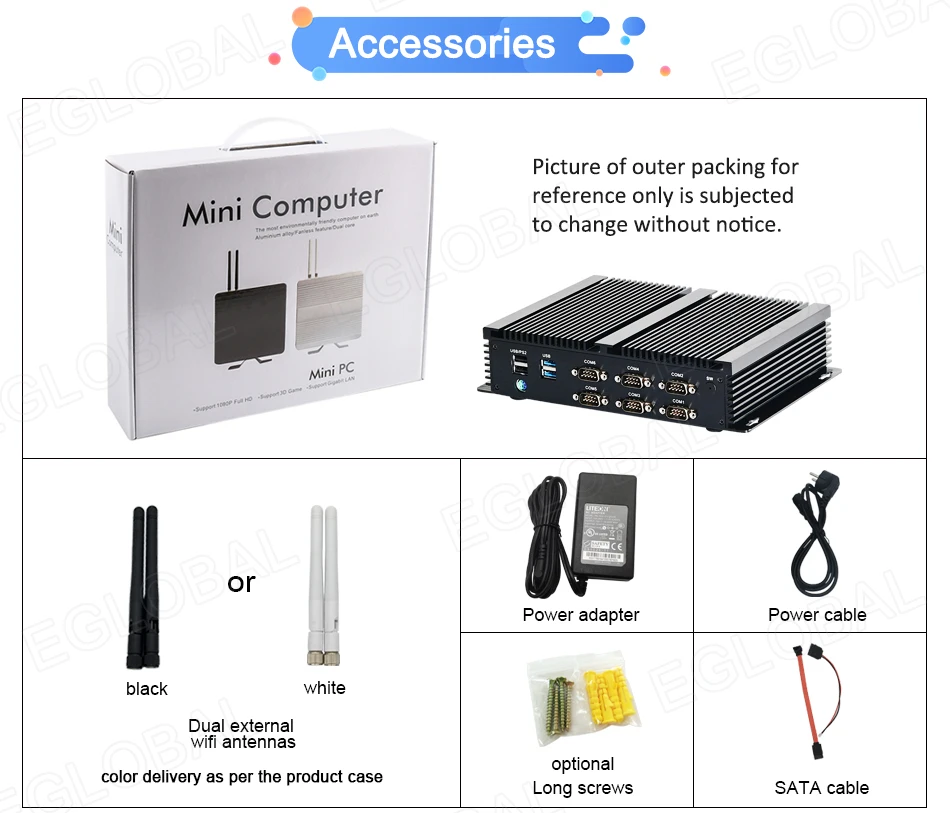

Package Content: Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional: Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
