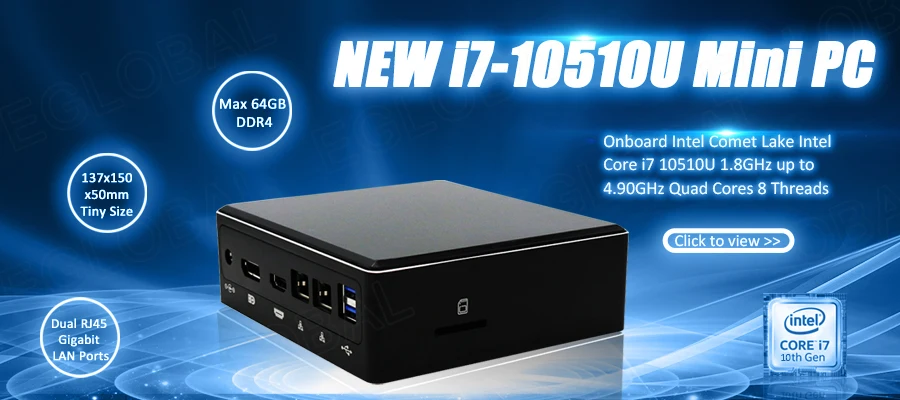

Eglobal Micro PC Barebone with New Intel Core i7 10510U/i3 10110U, Windows TV BOX, 2 LAN, DP, HD, Dual Band WiFi, Desktop Mini Computer.

Description

Eglobal New Intel Core i7 10510U i3 10110U Micro PC Barebone Windows TV BOX Dual Lan DP HD Dual Band WIFI Desktop Mini Computer
1. Upgrade DDR4 ram to 2400MHz free!
2. Upgrade 2.4G/5G dual band WiFi free!
3. Upgrade Msata SSD to fast M.2 NVMe/PCIe 3.0×4 SSD free!
– Smart tiny case 137x150x50mm hold by a hand, powerful processor 8th Gen stronger performance.

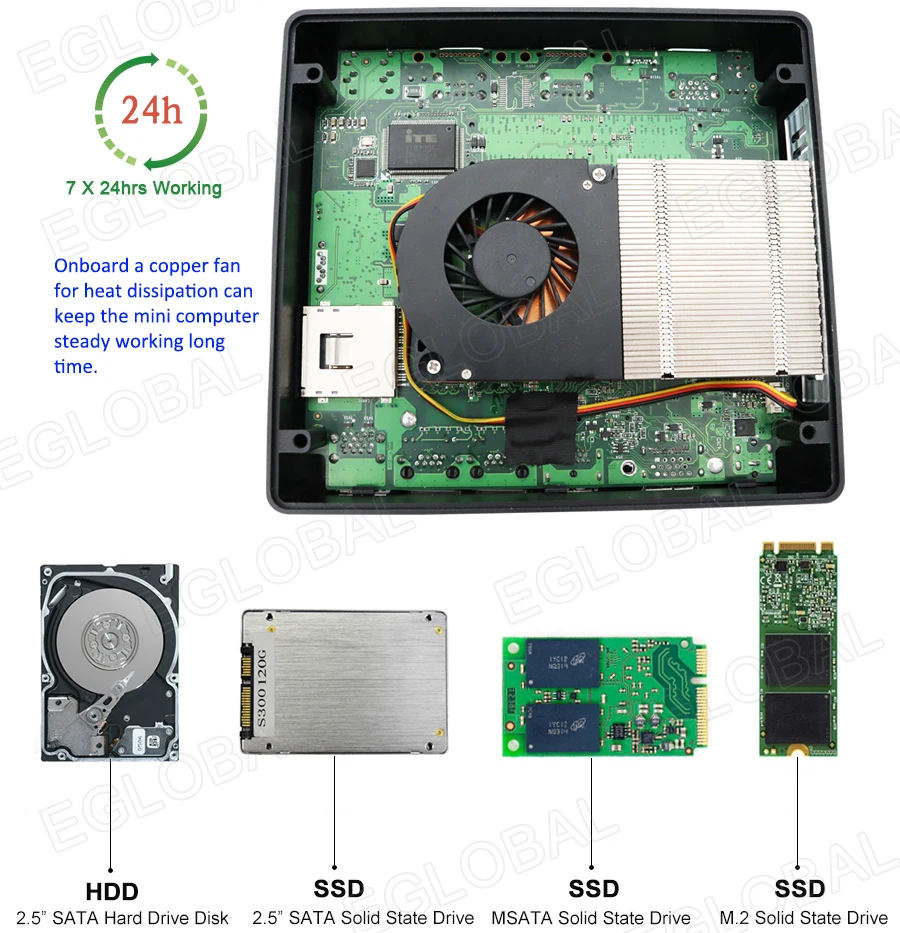

– Onboard a copper fan for heat dissipation can keep the computer steady working long time.
– 2xSODIMM DDR4 memory slot up to 64GB more fast speed improve work efficiency and give you a smooth experience.
– 1*M.2 2280 NVMe/PCIe/NGFF SSD up to 32Gbps.
– 2*Lans, One Intel Gigabit Ethernet and one Realtek Gigabit Ethernet.
– Rich interfaces with USB, Type-C, SD Card, DP, HDMI, 2*LAN, etc to connect with more devices.
– Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc.
CPU: Onboard 10th Gen 14nm CPU Comet Lake Intel Core i7-10710U 6cores 12 threads 1.1GHz up to 4.7GHz 12MB cache TDP 25W Intel UHD Graphics.
CPU: Onboard 10th Gen 14nm CPU Comet Lake Intel Core i7-10810U 6 cores 12 threads 1.1GHz up to 4.9GHz 12MB cache TDP 25W Intel UHD Graphics.
CPU: Onboard 10th Gen 14nm CPU Comet Lake Intel Core i5-10210U 4 cores 8 threads 1.6GHz up to 4.2GHz 6MB cache TDP 25W Intel UHD Graphics.
CPU: Onboard 10th Gen 14nm CPU Comet Lake Intel Core i3-10110U 2 cores 4 threads 2.1GHz up to 4.1GHz 4MB cache TDP 25W Intel UHD Graphics.
CPU: Onboard 10th Gen 14nm CPU Comet Lake Intel Core i5-10510U 4 cores 8 threads 1.8GHz up to 4.9GHz 8MB cache TDP 25W Intel UHD Graphics.
CPU: Onboard Intel Comet Lake Refresh Intel Core i3-7020U Processor, 3M Cache, 2.30GHz up to 1.00GHz(Turbo boost Technology) Quad Cores 4 Threads TDP 15W Intel® HD Graphics 620.
CPU: Onboard Intel Kaby Lake Refresh Intel Core i5 8250U Processor, 6M Cache, up to 3.40 GHz(Turbo boost Technology) Quad Cores 8 Threads TDP 15W Intel® UHD Graphics 620
CPU: Onboard Intel Kaby Lake Refresh Intel Core i5 8350U Processor, 6M Cache, up to 3.60 GHz(Turbo boost Technology) Quad Cores 8 Threads TDP 15W Intel® UHD Graphics 620
CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i3-8145U Dual Cores Four Threads 2.1GHz up to 3.9GHz(Turbo boost Technology) 4MB cache TDP 15W Intel® UHD Graphics 620.
Basic Information:
CPU: Onboard Intel Core i7-10510u(V310-i3 7020U support max 32GB DDR4 Ram)
TDP: 15W
Motherboard: 140 x 130mm customized size
Chipset: Intel Xeon E3 – 1200 v6/7th Gen Intel Core/DRAM Registers – 5914 – 7th Generation Intel Processor Fami
Memory: 2 x SO-DIMM DDR4 Slot
Support 4GB/8GB/16GB/32GB/64GB
DDR4-2133/2400

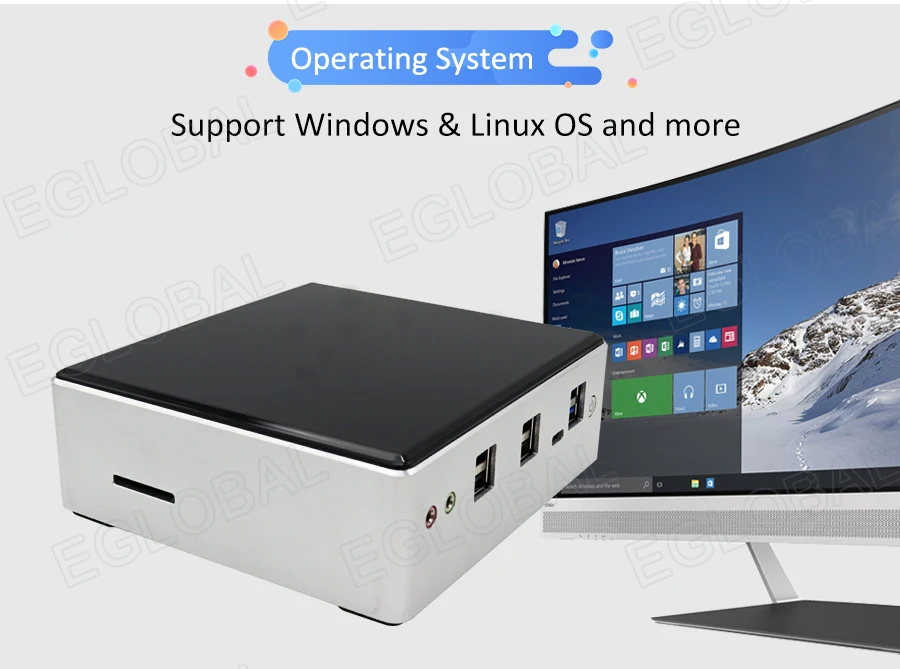

OS: Windows 10/Linux
PXE: YES
Audio: Intel High Definition Audio Controller
Network: 1 x Onboard Intel Ethernet Connection I219-LM
1 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
10/100Mbps/1000Mbps BaseT LAN
Video: Intel® UHD Graphics

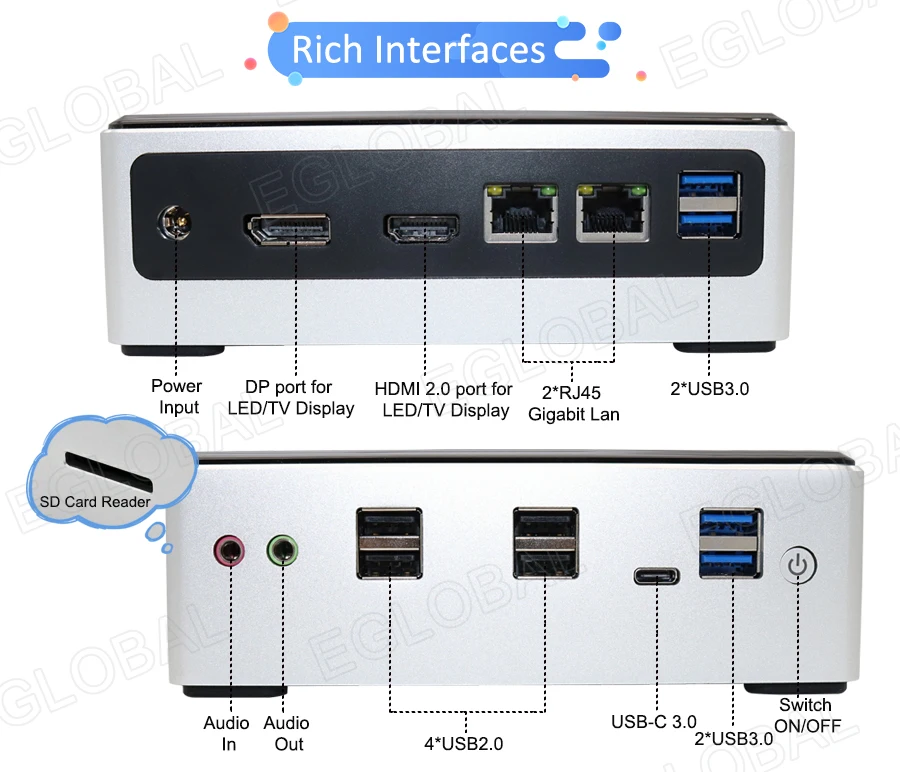

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x Power In
USB: 4 x USB2.0, 4 x USB3.0
SD Card: 1 x SD Card Reader
USB-C: 1 x Type-C USB3.0

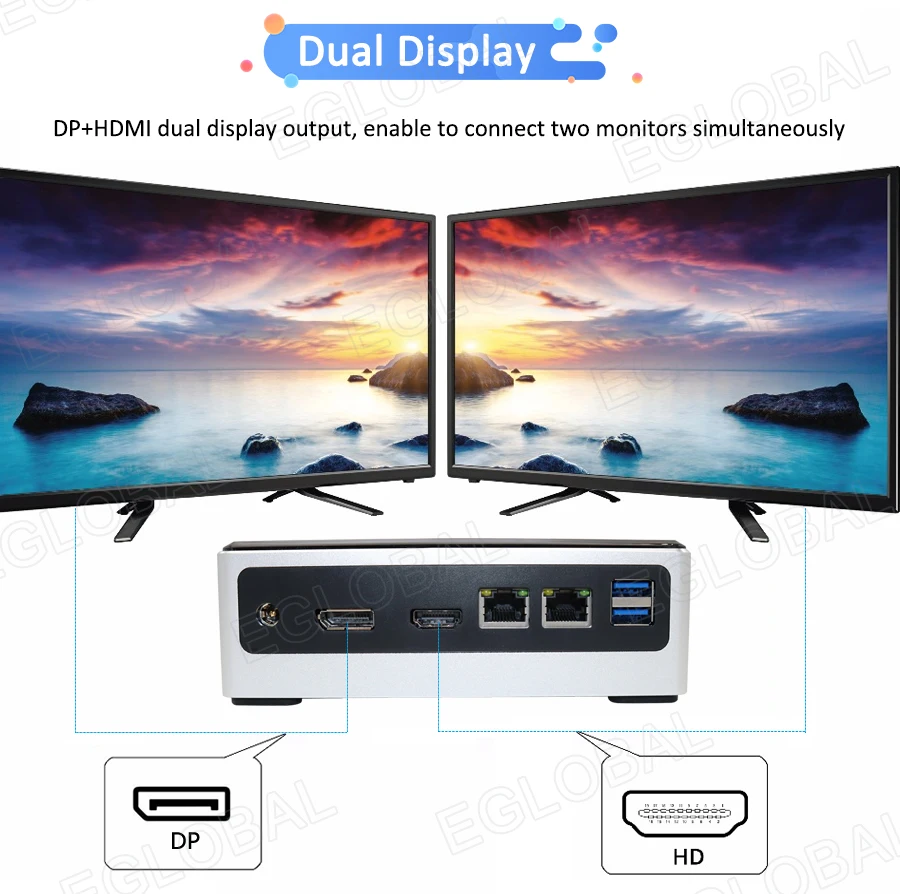

Display: 1 x DP(support DP to VGA/DVI adapter, don’t support DP to HDMI adapter), 1 x HDMI 1.4

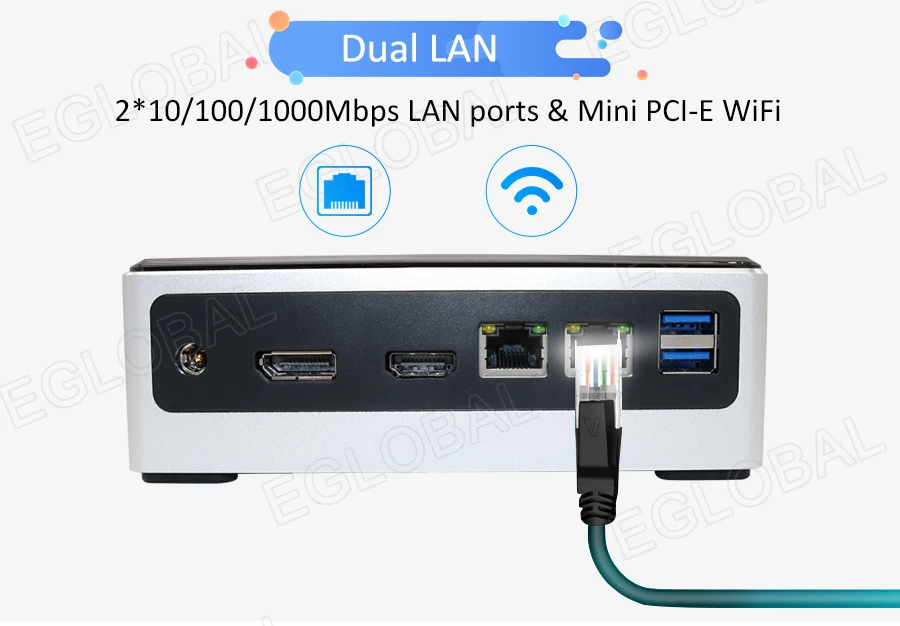

LAN: 2 x RJ45 Giga LAN
Audio: 1 x MIC, 1 x SPK

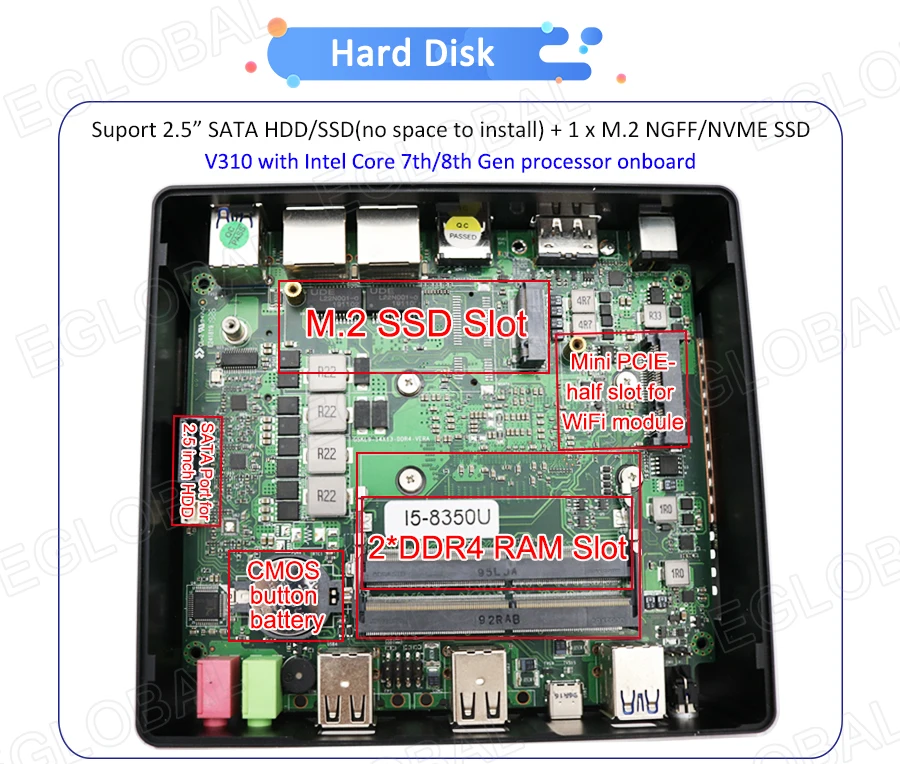

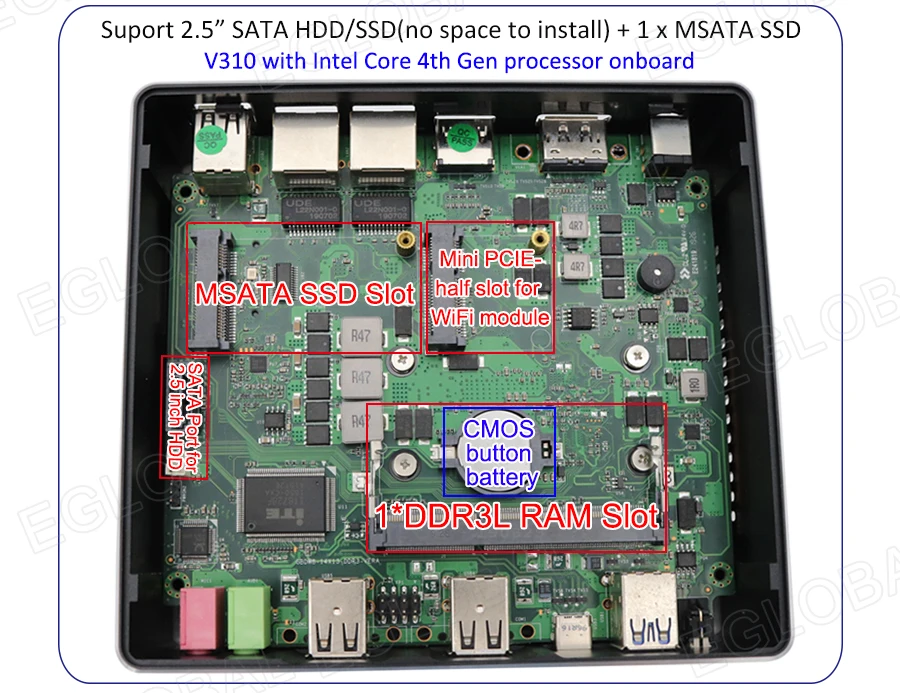

Storage: M.2

1 x M.2 slot for NGFF/NVMe/PCIe SSD 32Gb/s
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install, cant support)
Wi-Fi: Module

1 x MPCIe slot for Wi-Fi module
Antenna: 2 x inner RF cables and without external antenna
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: DC +12V~+19V, recommend 12V/5A
Operating Temperature: 0/70 Centigrade
Relative Humidity: 10%~85%

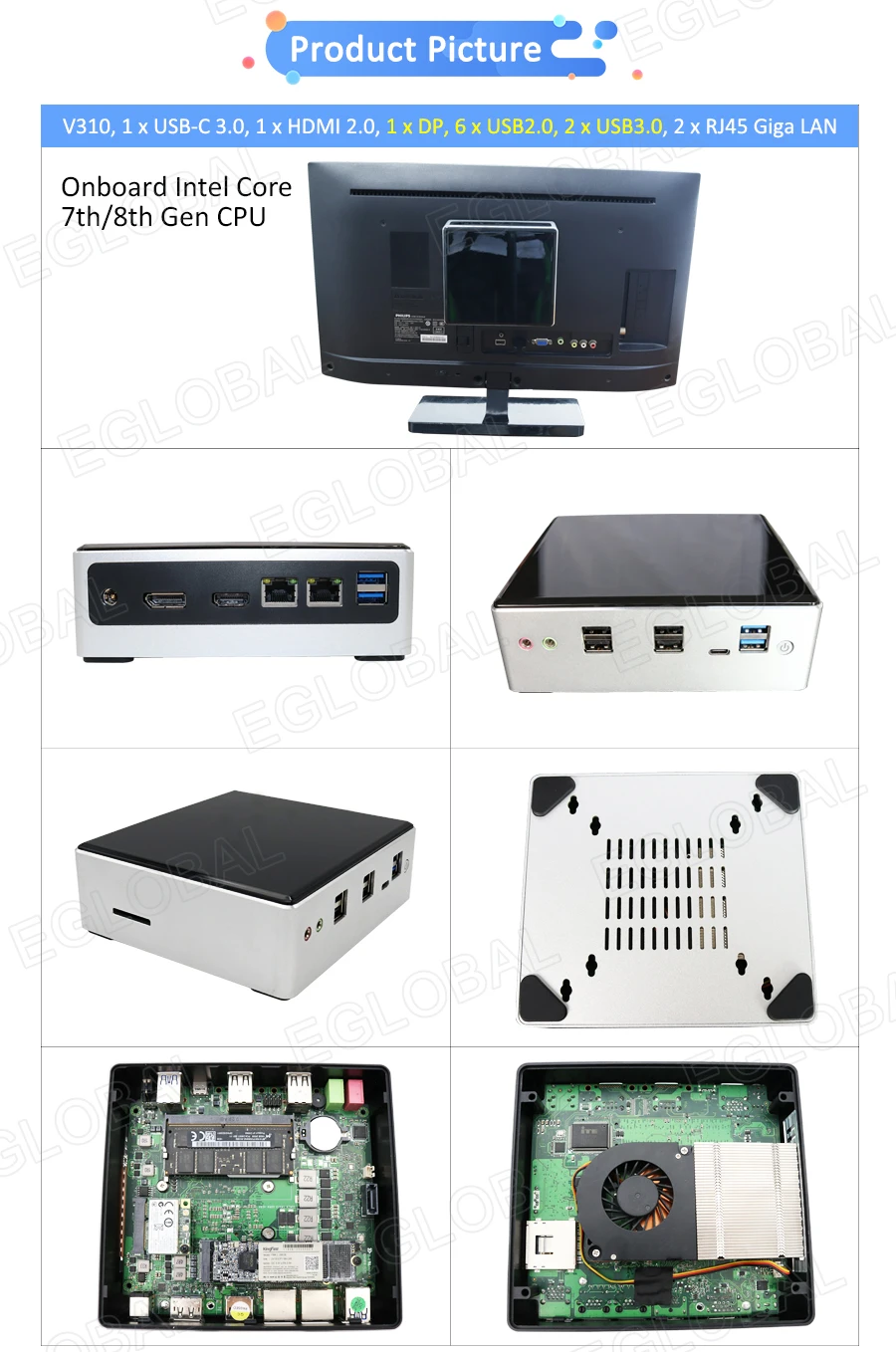

Product Dimension & Details

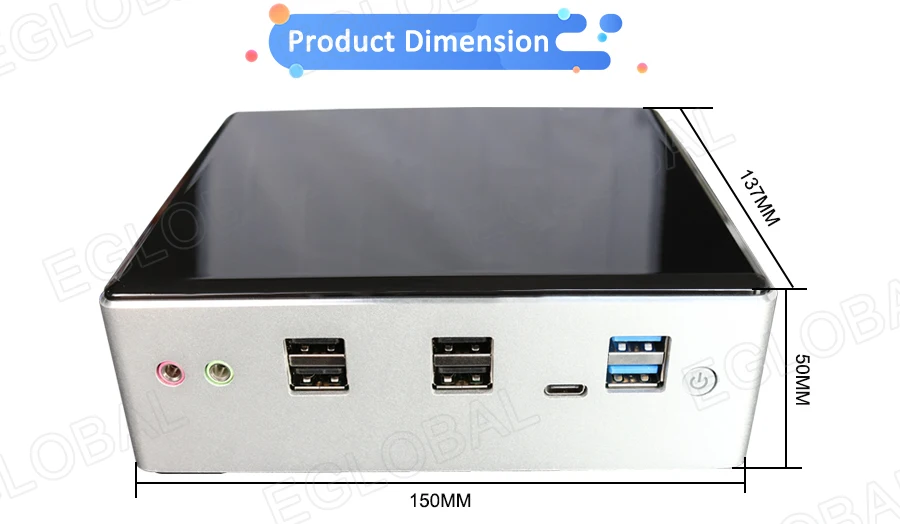

Size: 137*150*50mm
Weight: Net 0.65kg, Gross 1.15kg

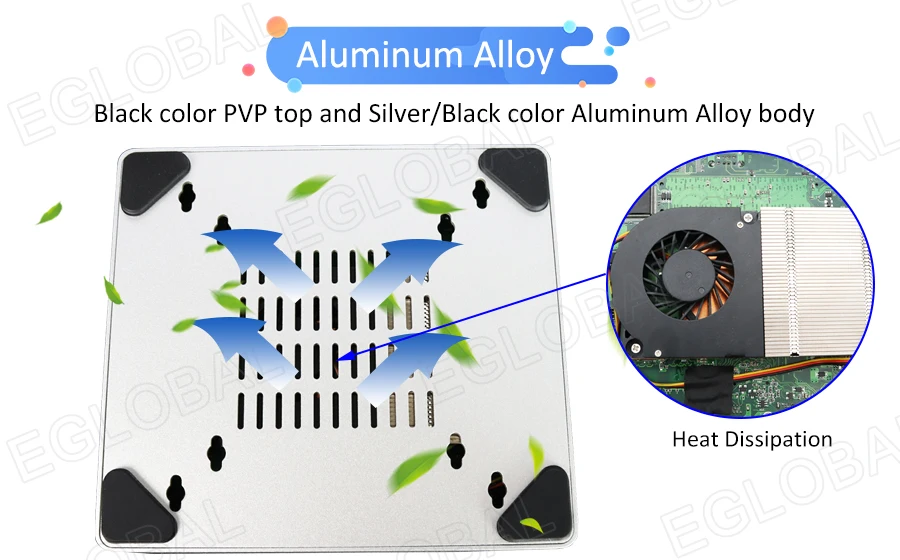

Shell: PVP top and aluminum alloy body
Cooling Mode: With a copper cooling fan
Functions: AWAL, PXE, Wake On LAN, RTC

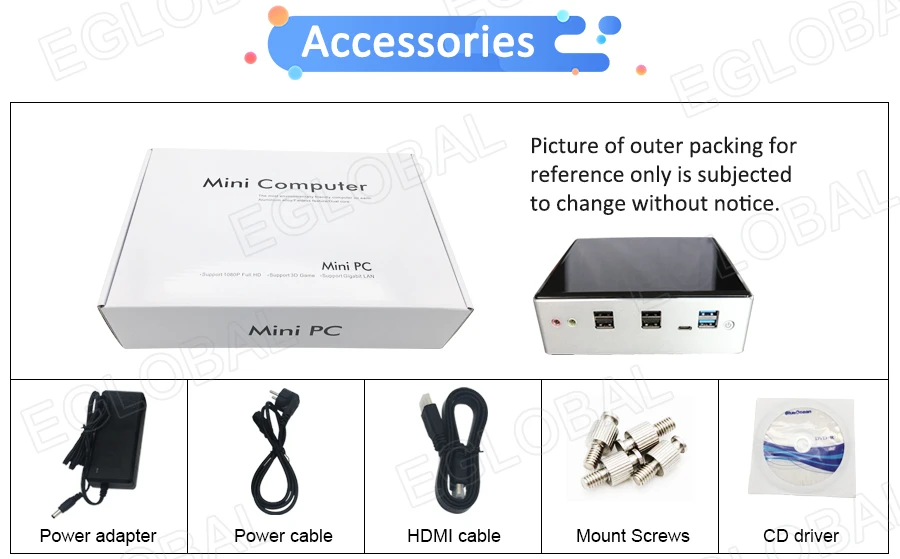

Package Content: Standard

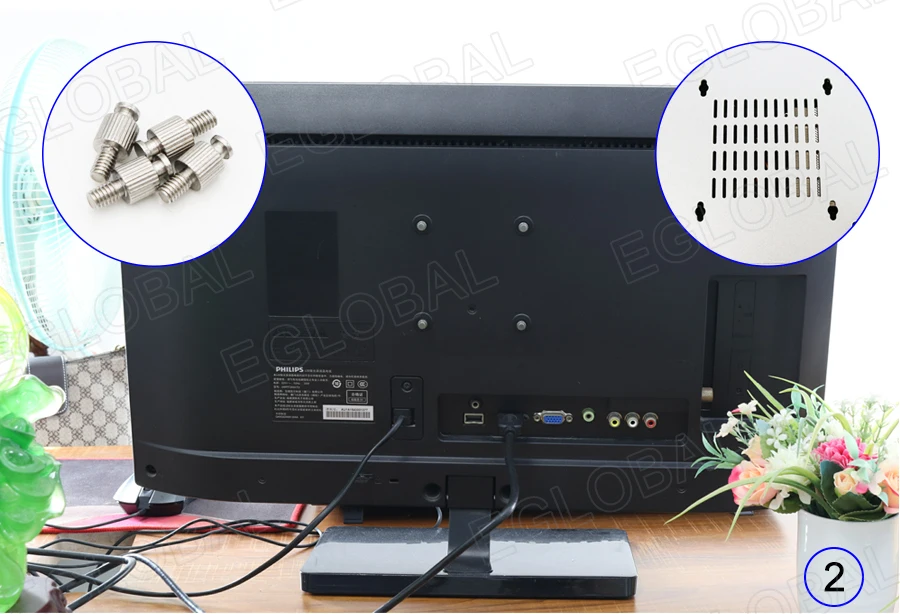

1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws
Optional: 1xHDMI cable, 1xUser Manual
