Description
Eglobal Industrial Fanless Computer Intel Core i5 i7 Windows 7/8/10 pfSense as VPN Router VGA HDMI Ordenador Mini PC 4G WiFi BT

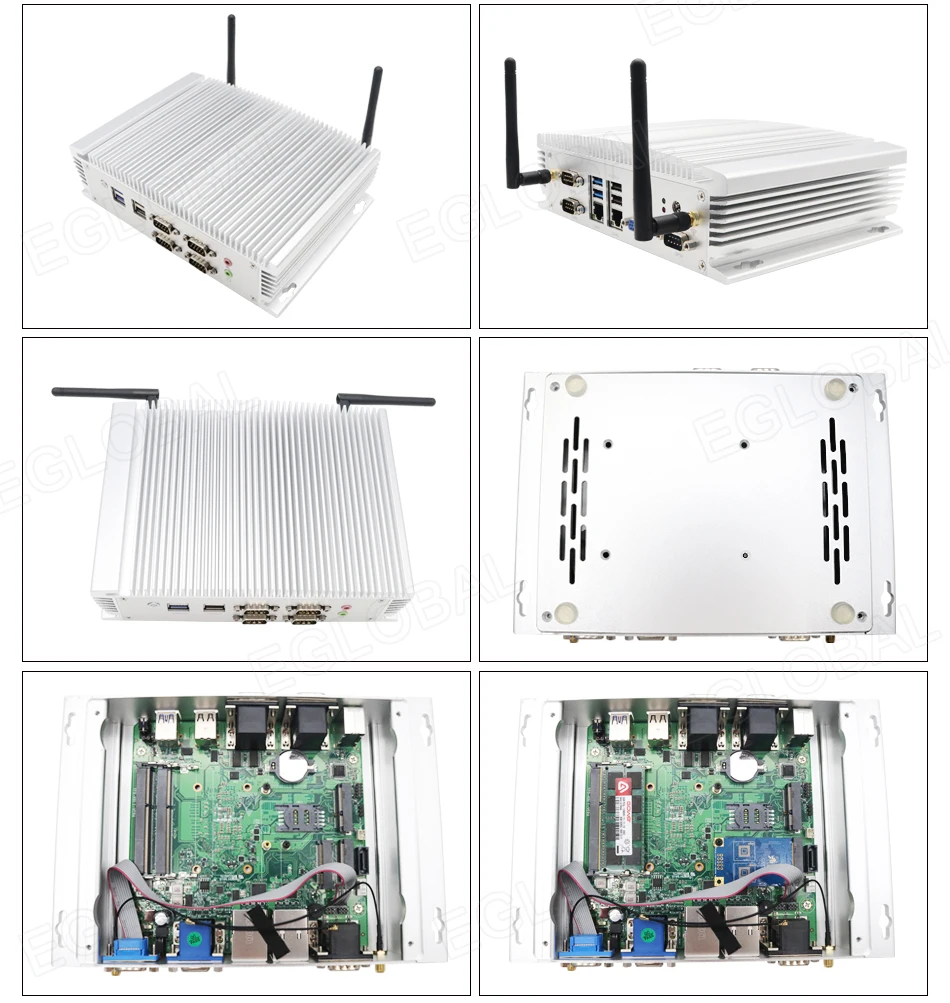

THIS EGLOBAL MINI PC DETAILS
Model: G6-6360U
CPU: Onboard Intel SKYLAKE 14nm CPU Intel Core i5-6360U 2.0GHz Max 3.1GHz(Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel® Iris® Graphics 540.
Barebone Mini PC (“No Ram No Storage” bundle) package DO NOT include WiFi(antennas), if you need, please pay extra US $7 at this link. Other bundles include WiFi(antennas).
PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer’s own ram and hard drive.

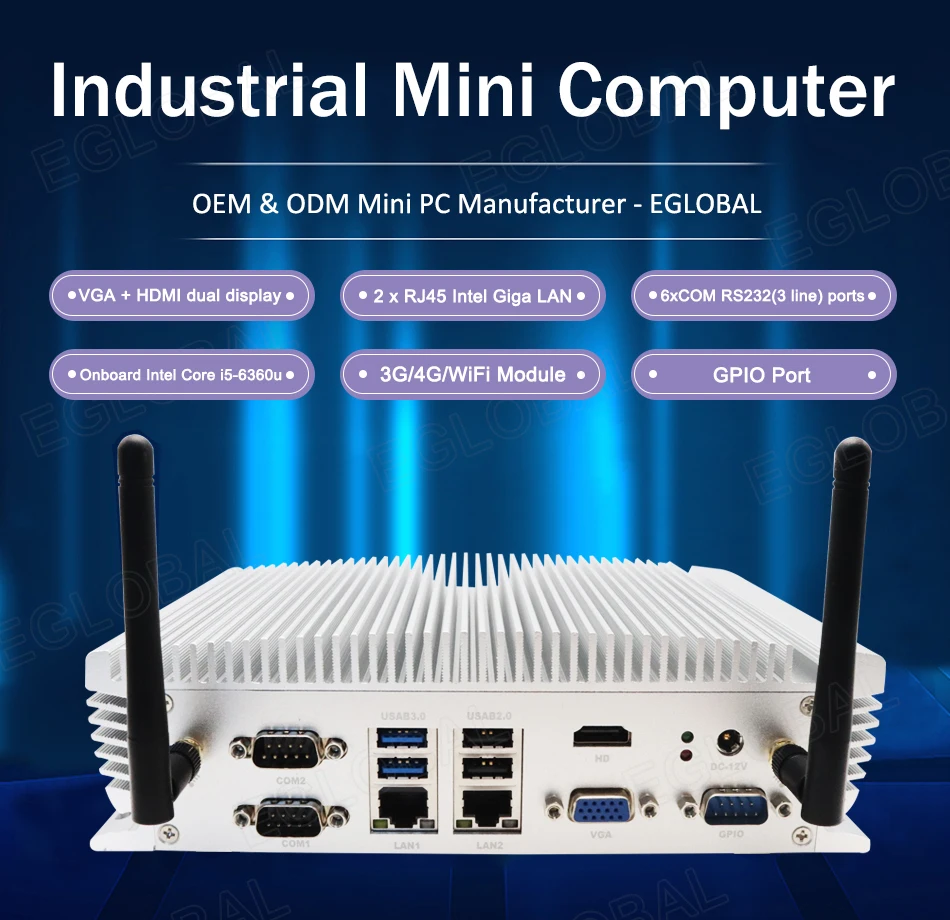

Product Highlight

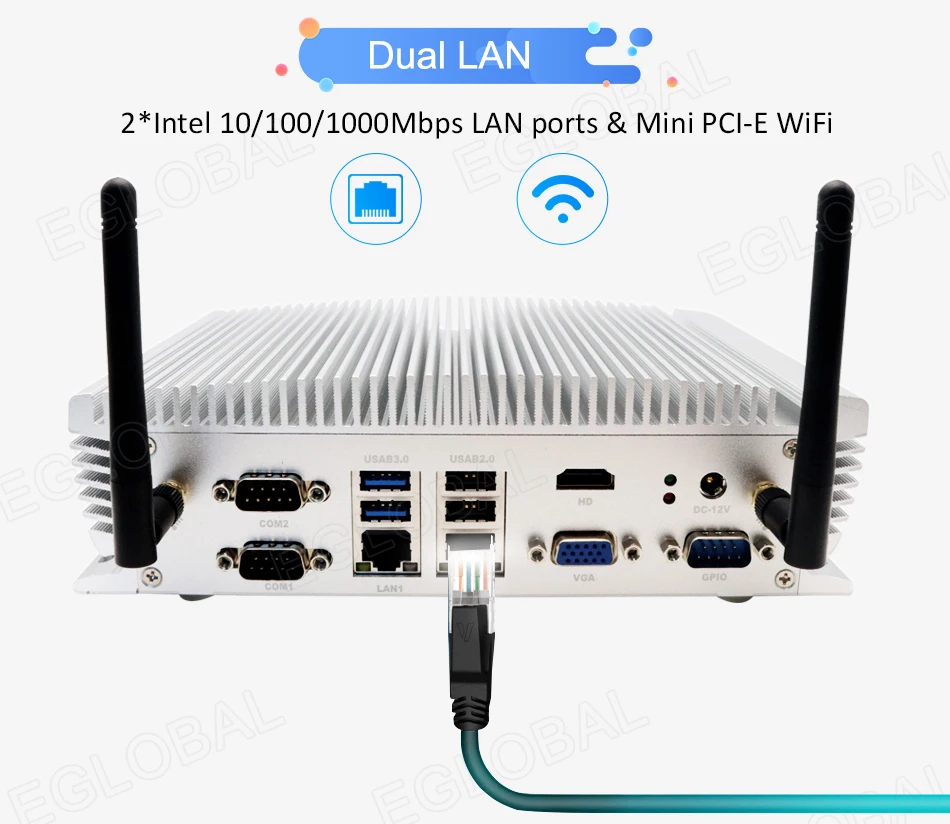

– 2 Intel i211 Gigabit RJ45 LAN and 6 COM(2 COM can change to RS485/422 from BIOS).

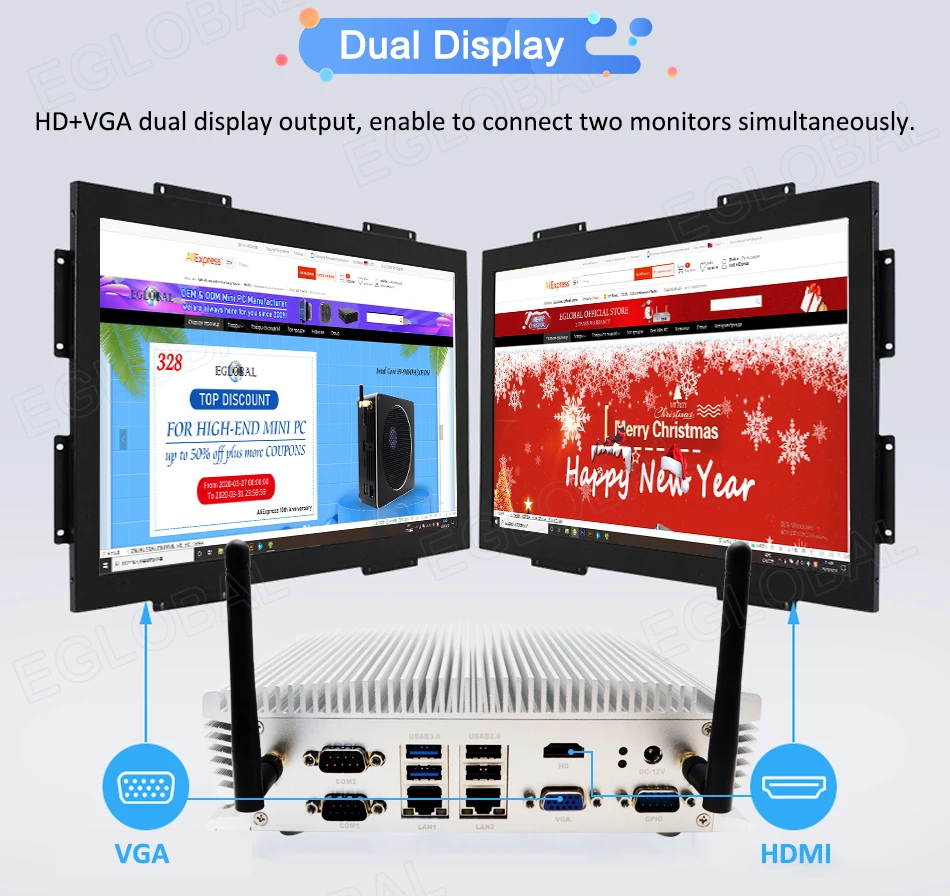

– Support VGA + HDMI dual display output synchronously.

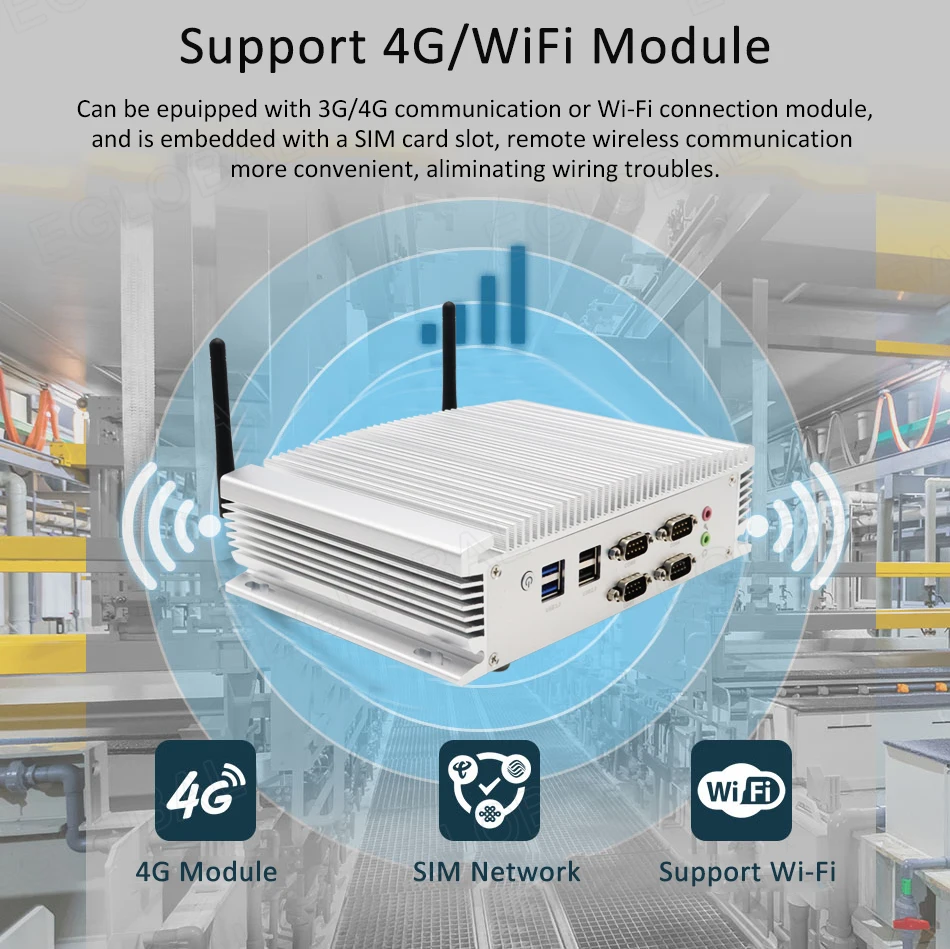

– One embedded SIM card slot onboard for 3G/4G Wi-Fi.

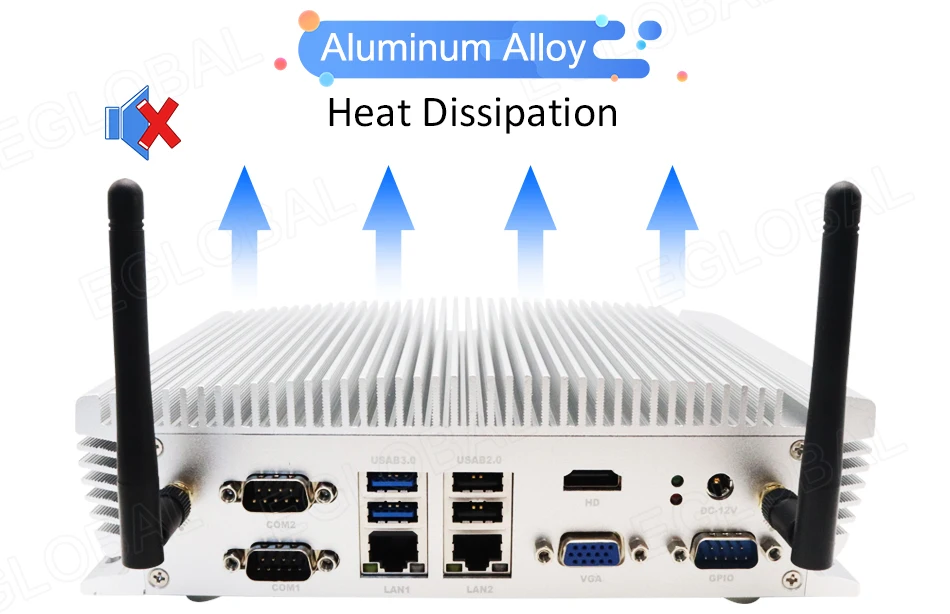

– Full Aluminum Alloy Silver color shell for heat dissipation, Exquisite production craft on outside design.

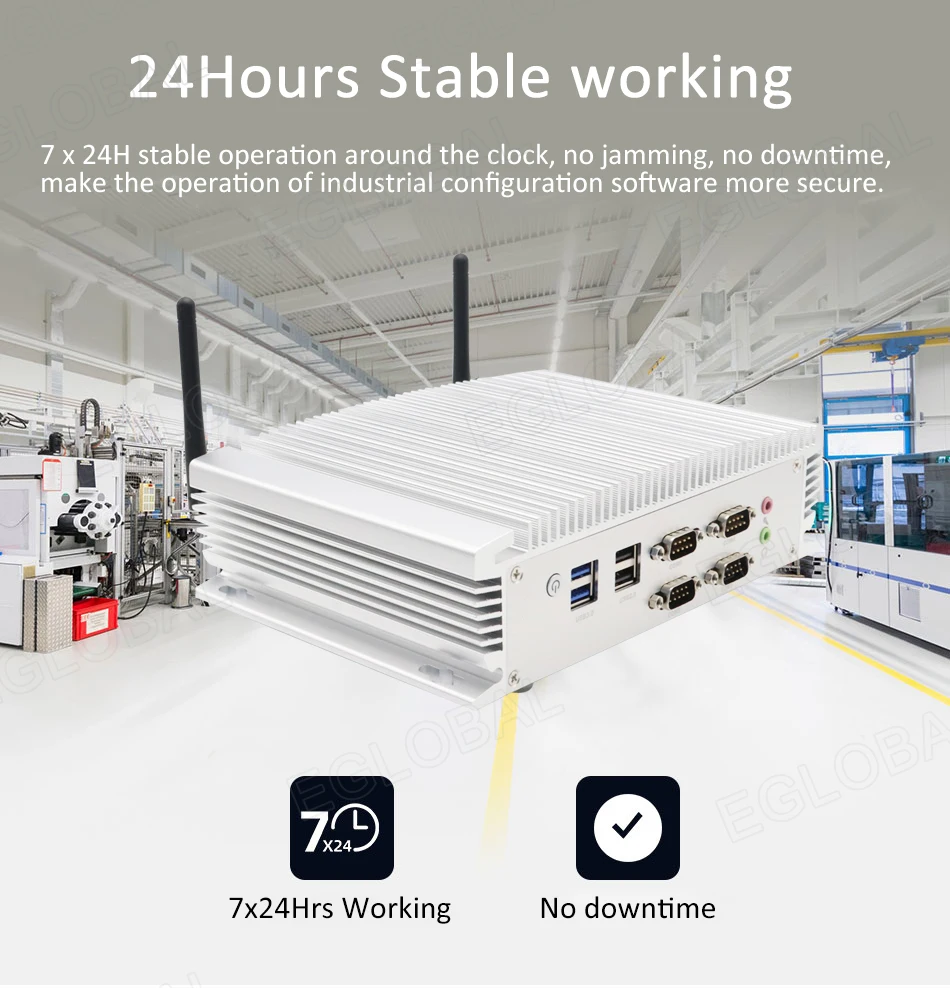

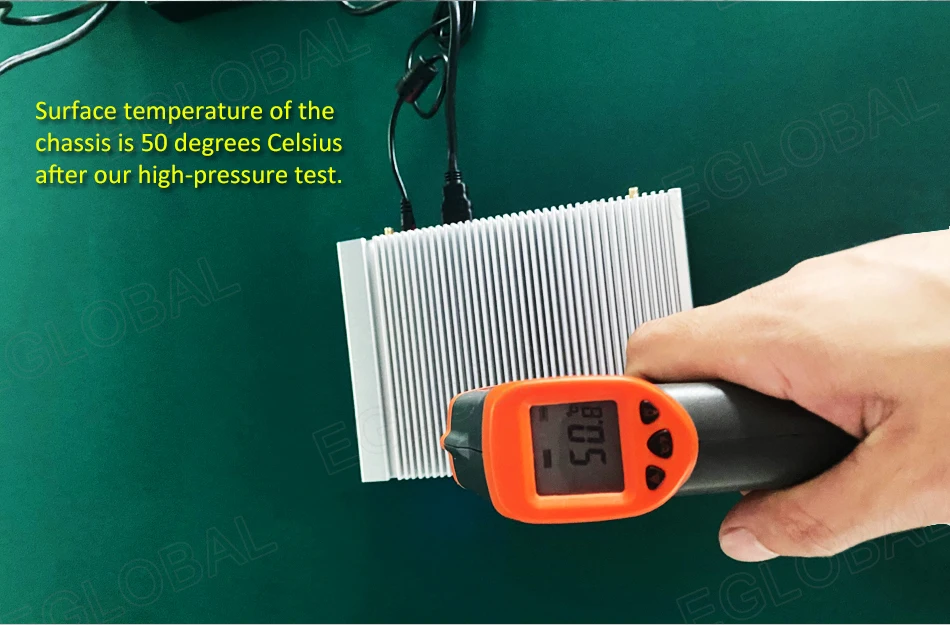

– Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
– Low consumption TDP only 15W and can be mounted on the wall.
– Support AWAL, Wake On LAN, RTC functions.
SPECIFICATION
Basic Information:
CPU: Onboard Intel Core i5-6360u
TDP: 15W

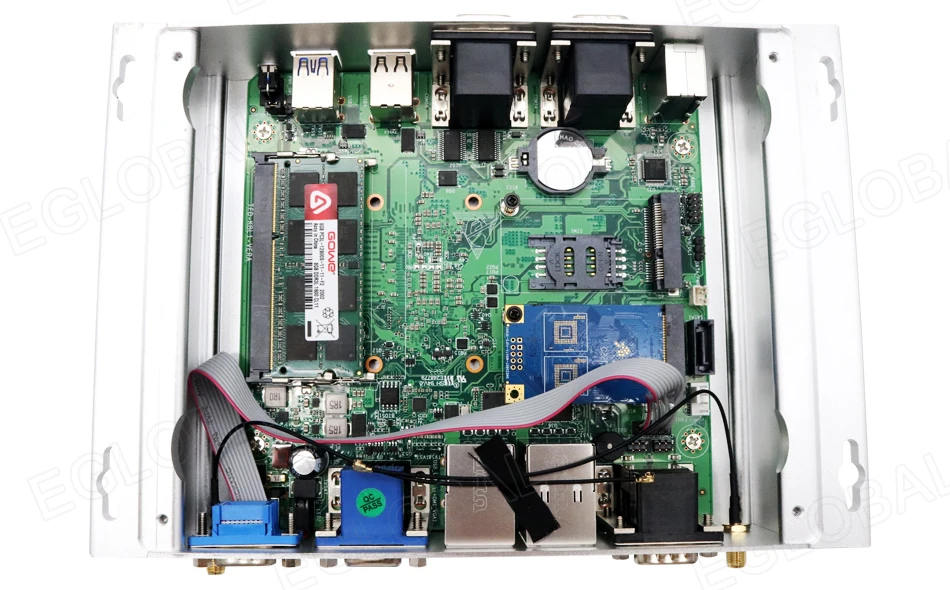

Motherboard: 14.5 x 14.7 cm
BIOS: American Megatrends Inc. 5.6.5
Chipset: Intel Sunrise Point-LP, Intel Skylake-U

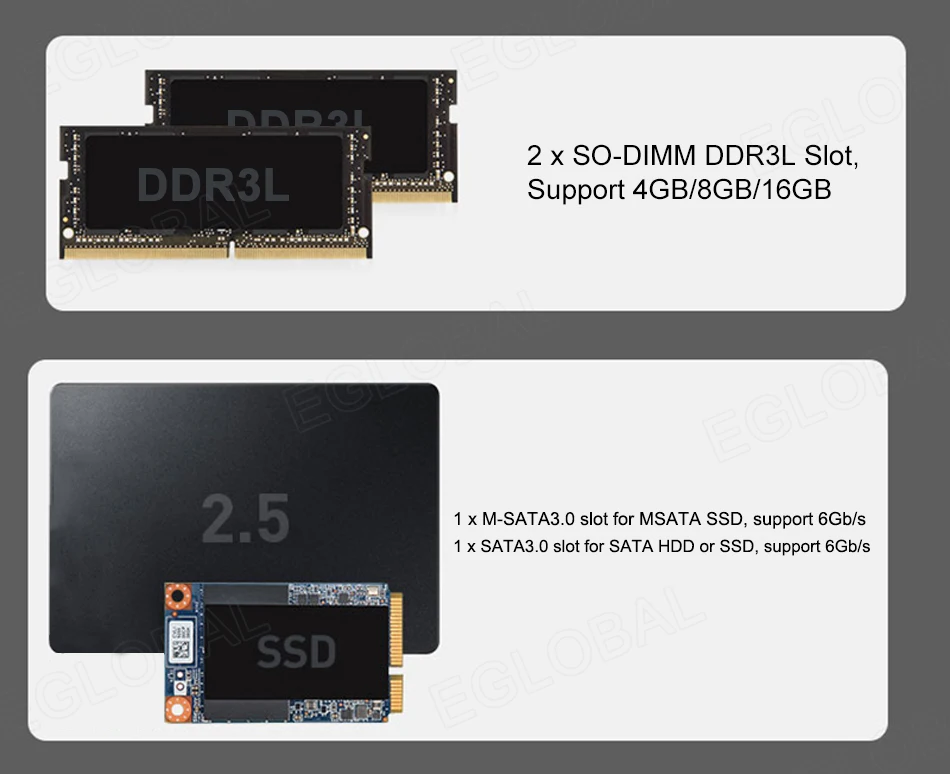

Memory: 2 x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB
DDR3L 1333/1600, LPDDR3 1333/1600

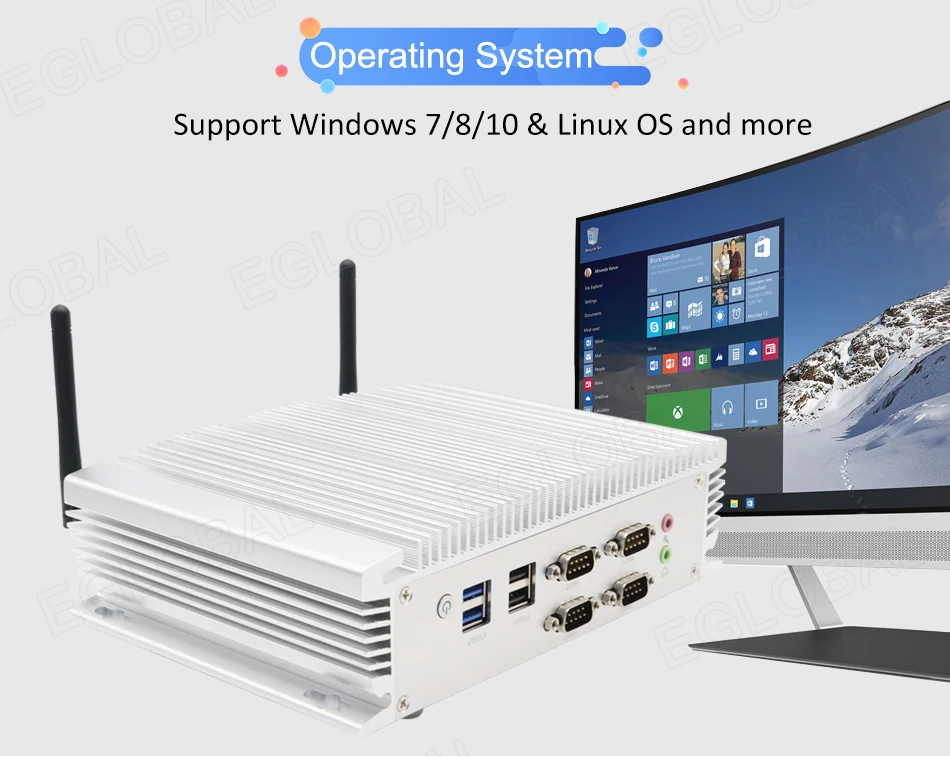

OS: Windows 7/Windows 8/Windows 10/Linux
PXE: YES
Audio: Network
2 x Onboard Intel i211 Gigabit Network Connection
10/100Mbps/1000Mbps BaseT LAN
Video: Intel(R) Iris(R) Graphics 540

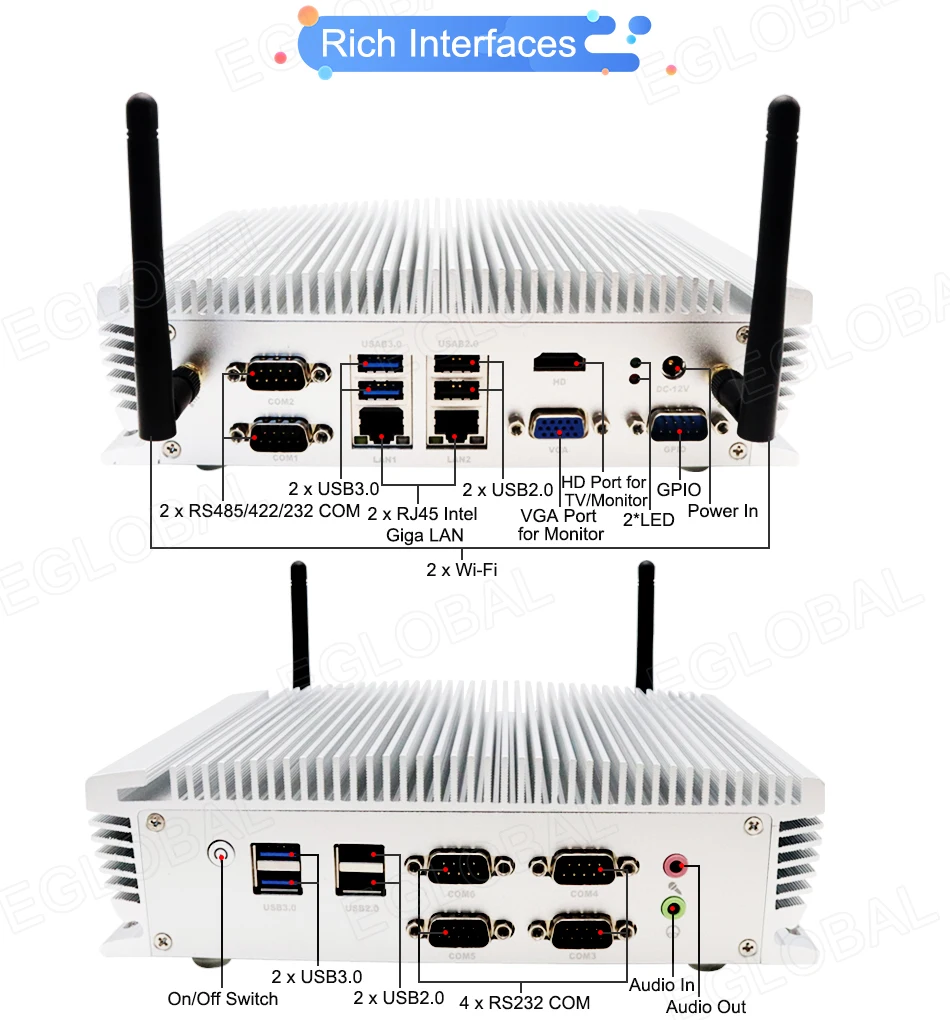

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 12V DC In
LED: 2 x LED
USB: 4 x USB2.0, 4 x USB3.0
Display: 1 x VGA, 1 x HDMI
LAN: 2 x RJ45 Intel Giga LAN

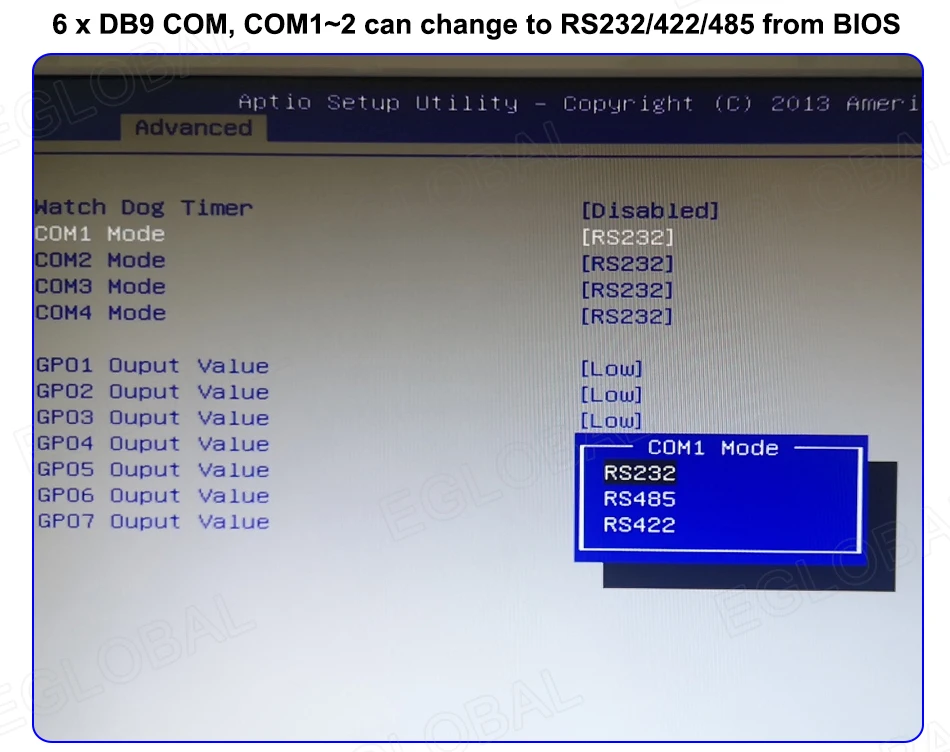

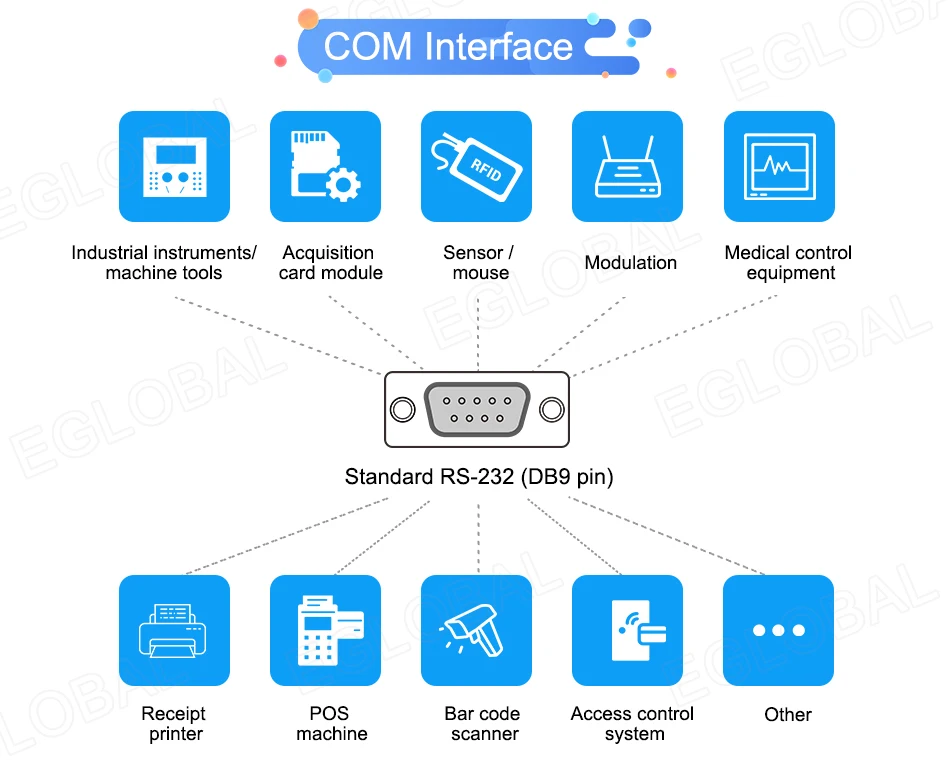

COM: 6 x COM RS232(3 line) ports, COM1 COM2 can change to RS485/422 from BIOS
SIM: 1 x embedded SIM card slot onboard

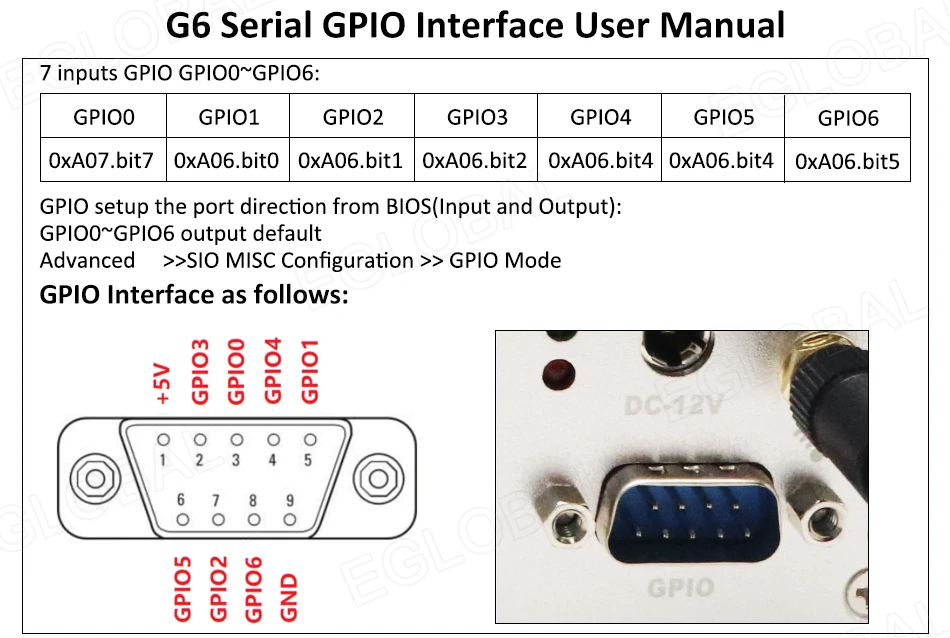

GPIO: 1 x GPIO
Audio: 1 x MIC, 1 x SPK

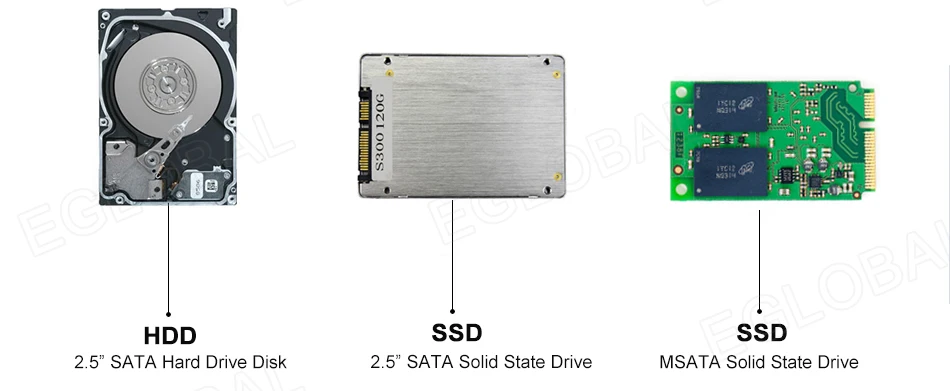

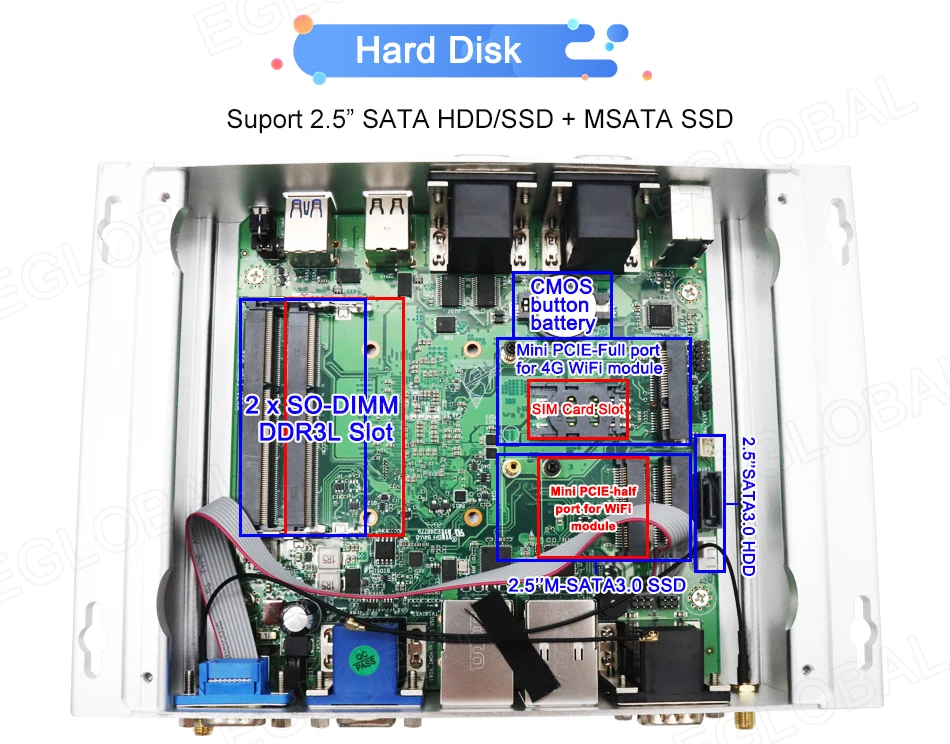

Storage: MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi: Module
1 x mini PCIE-half port for Wi-Fi/Bluetooth module
1 x mini PCIE-full port for 3G/4G module
Antenna: 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: DC +12V~+19V, recommend 12V/5A

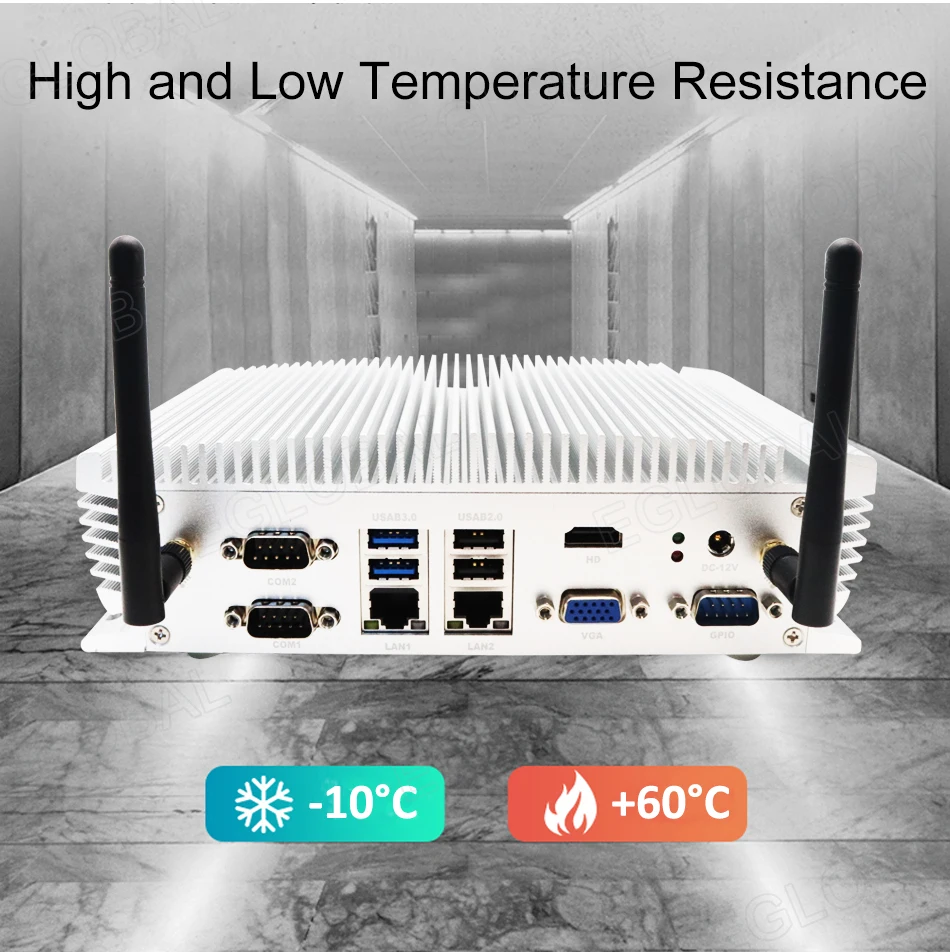

Operating Temperature: -20/+75 Centigrade
Storage Temperature: -40/+80 Centigrade
Relative Humidity: 0%~90% (non-condensing)

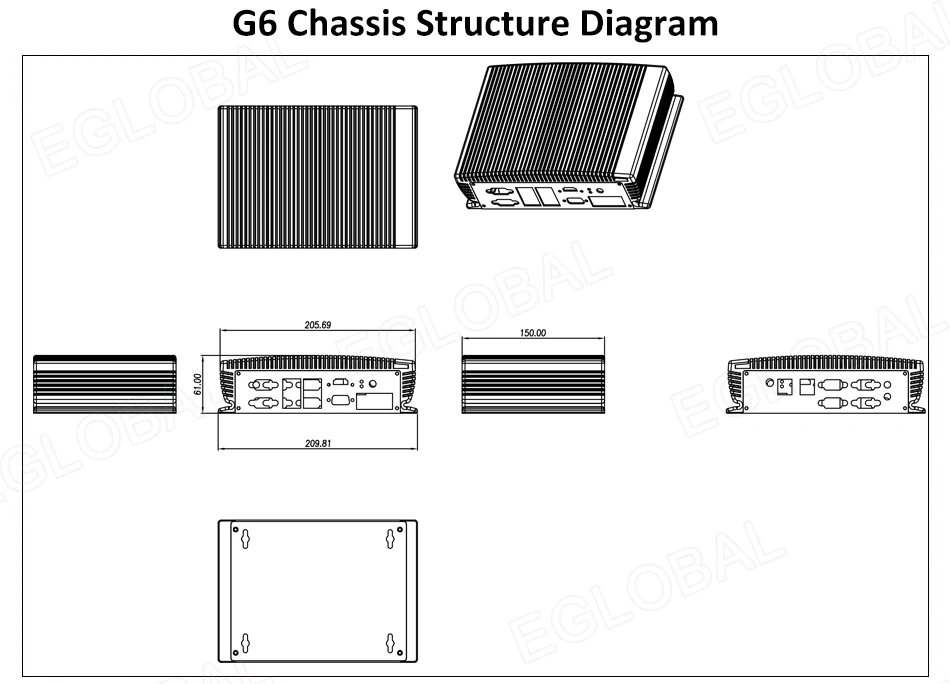

Product Dimension & Details

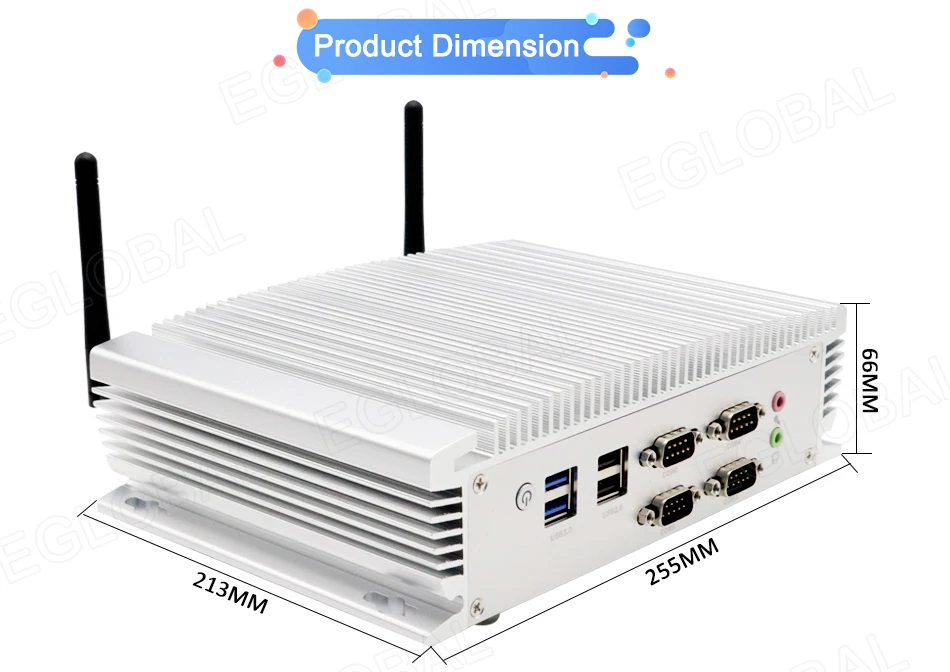

Size: 213*255*66mm
Weight: Net 1.6kg, Gross 2.5kg

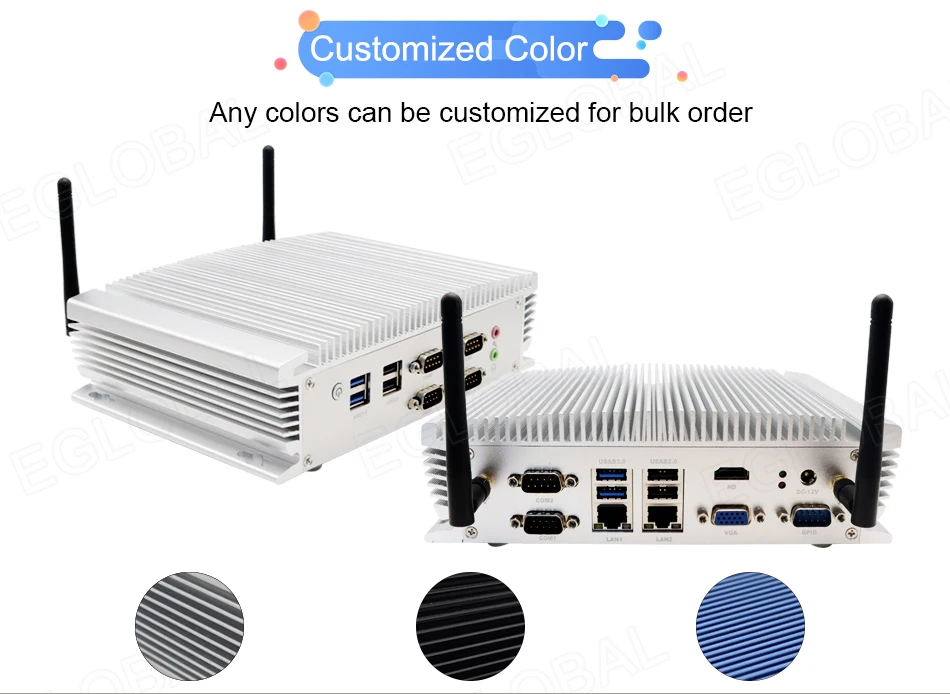

Shell: Silver color aluminum alloy(any customized color for bulk order)

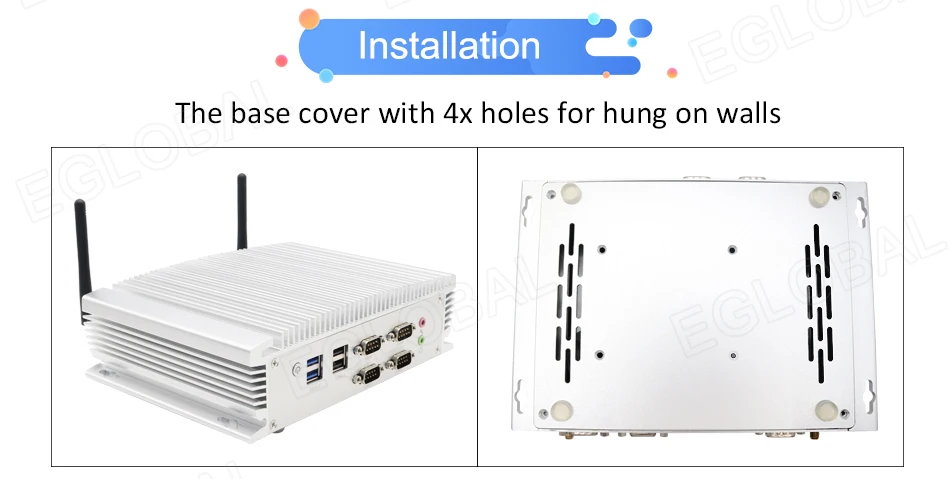

Mounting: 4 Mounting holes on case
Cooling Mode: Fanless
Functions: AWAL, Wake On LAN, RTC

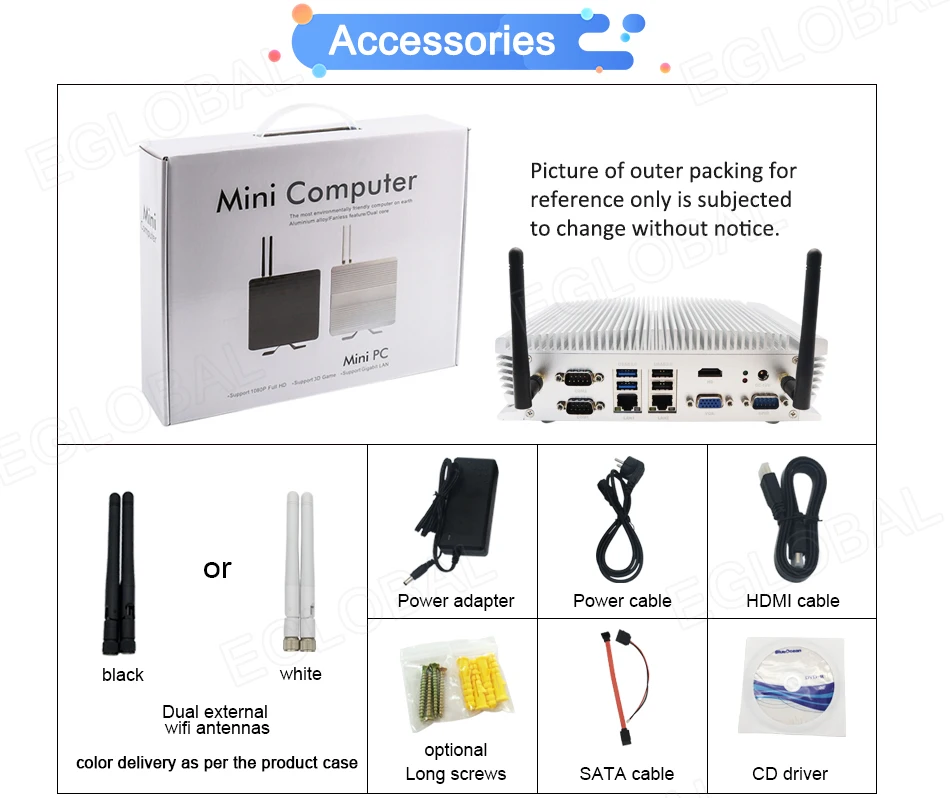

Package Content: Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag

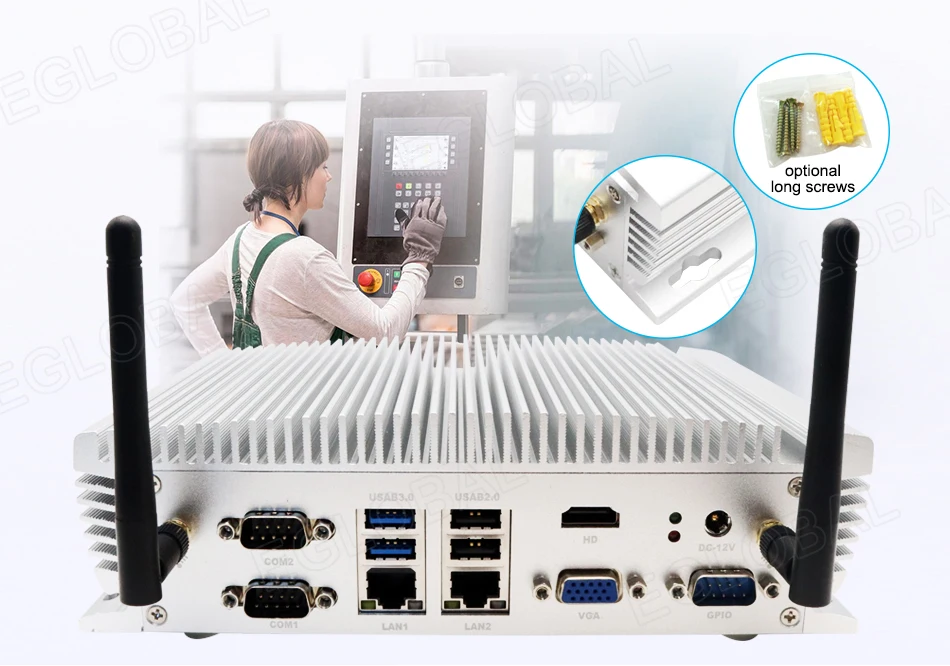

Optional: Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
