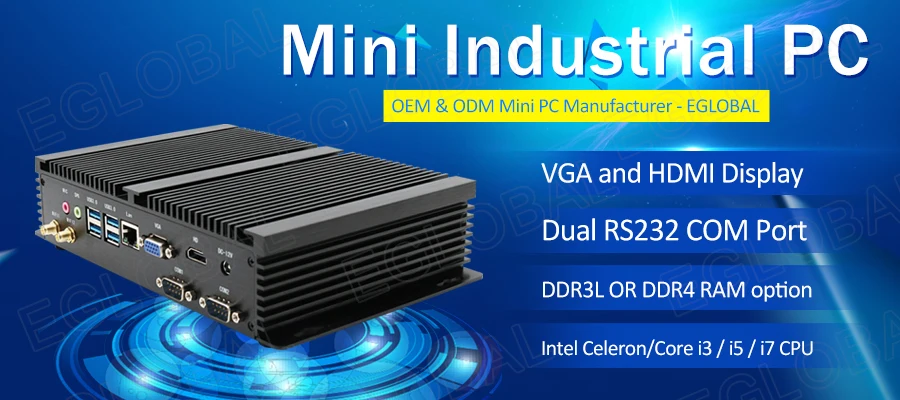

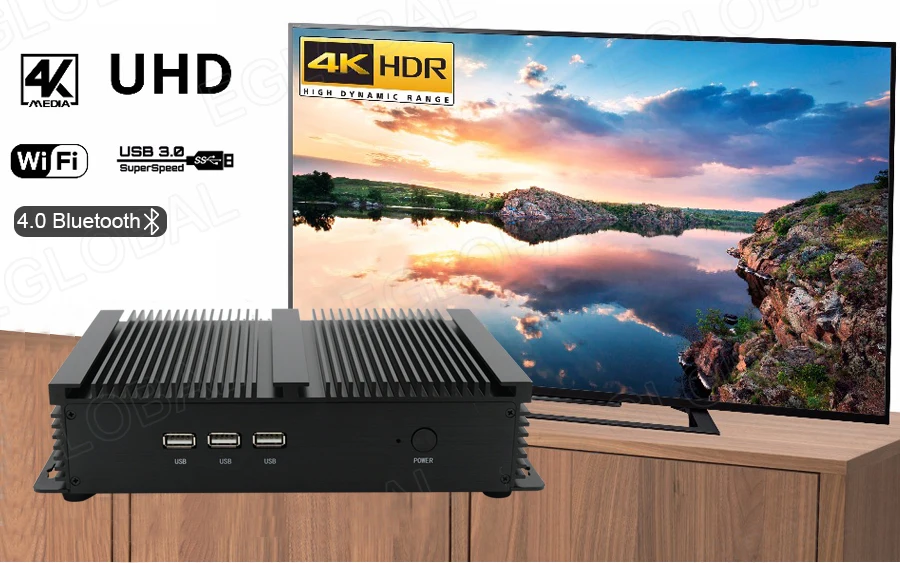

Eglobal Industrial Fanless Computer Intel Core i5 i7 Windows 7/8/10 pfSense as VPN Router VGA HDMI Ordenador Mini PC 4G WiFi BT

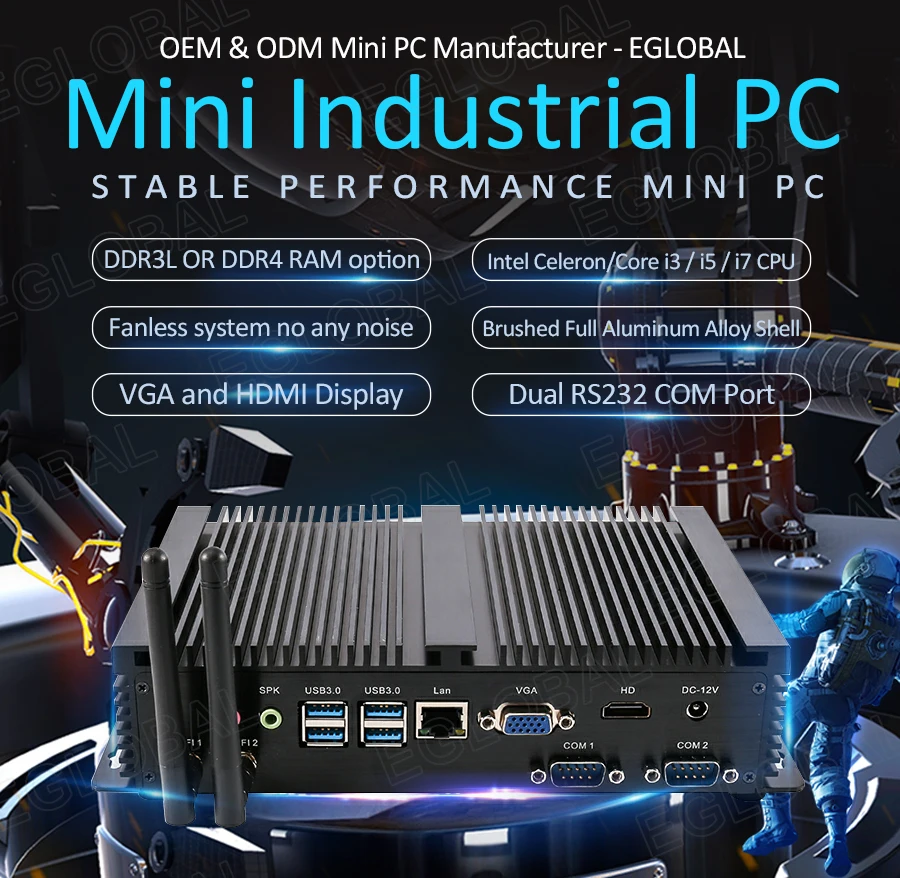

THIS EGLOBAL MINI PC DETAILS
This model has black and silver color, we usually send blak default, if you need silver, please write a note under your order, thanks !
Model: GK1-6200U/6300U

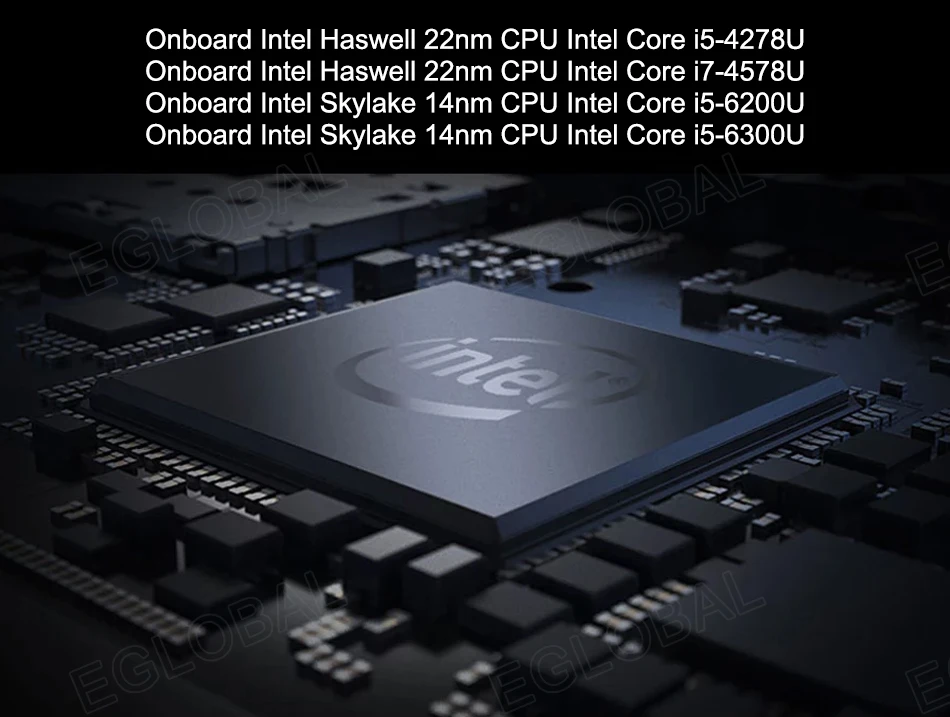

CPU: Onboard Intel Skylake 14nm CPU Intel Core i5-6200U/6300U 2.4GHz up to 3.0GHz(Max Turbo Frequency) 2 Cores 4 Threads 3MB cache TDP 15W Intel® UHD Graphics 520.
– 2 x RJ45 Intel 2.5G LAN and 6 x RS232 COM(COM1/COM2 can change to RS485/422 from BIOS).

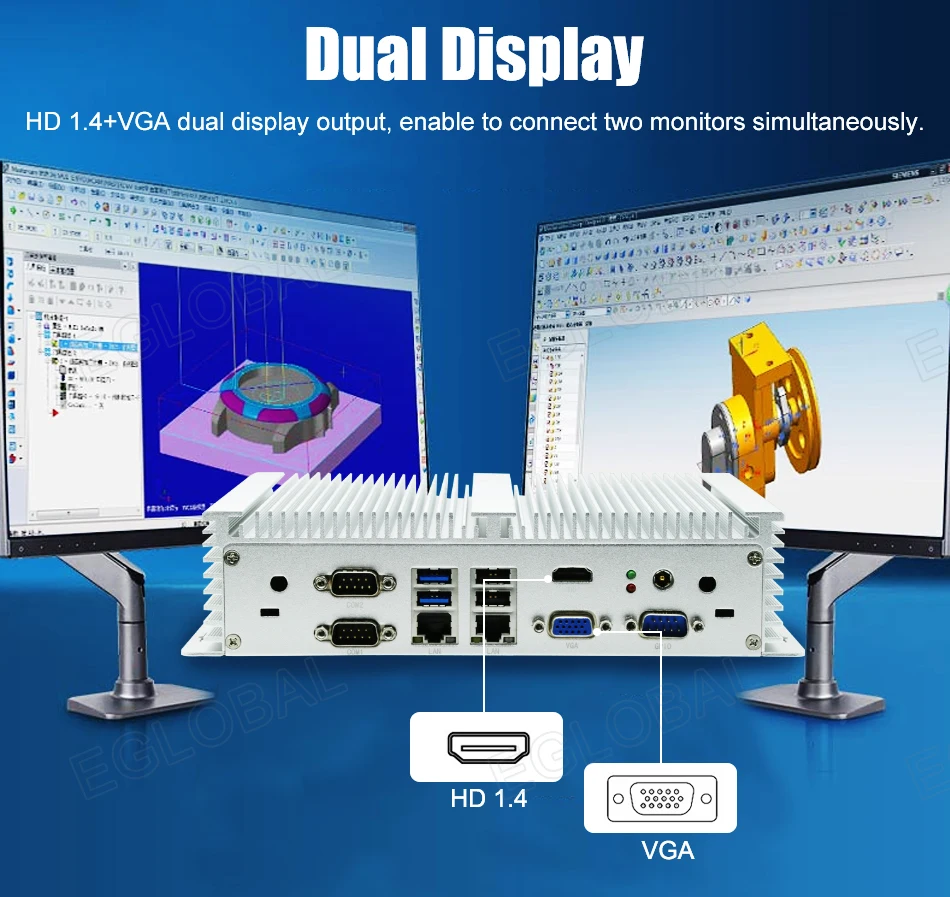

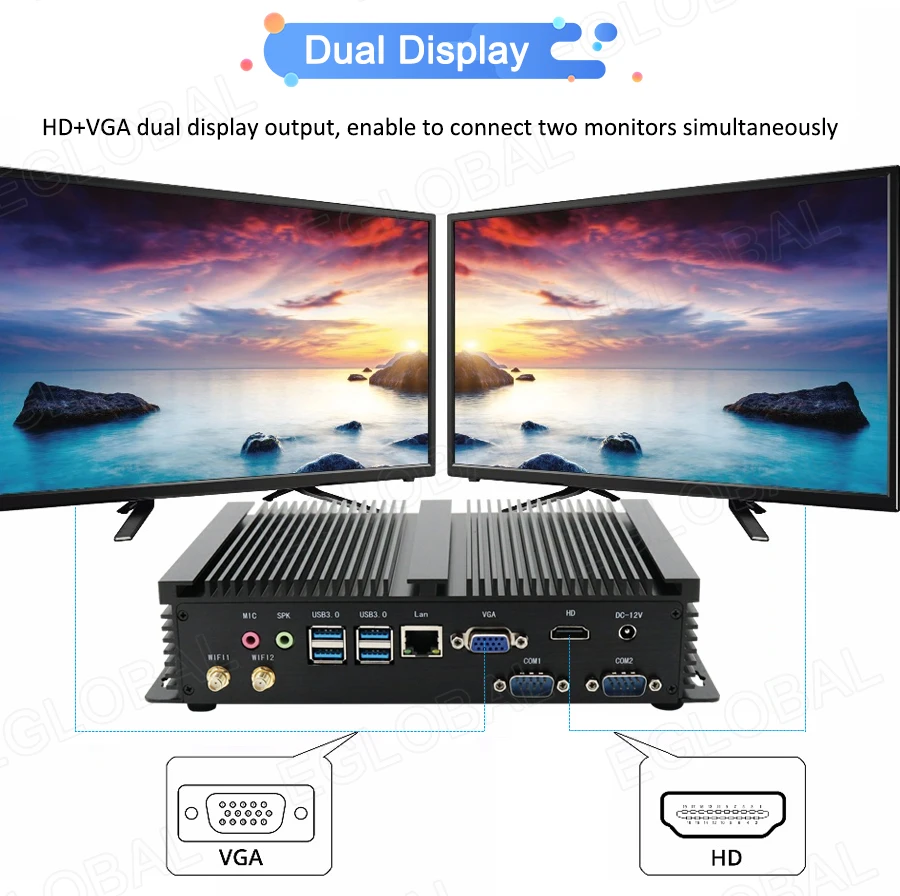

– Support VGA + HDMI 1.4 dual display output synchronously.

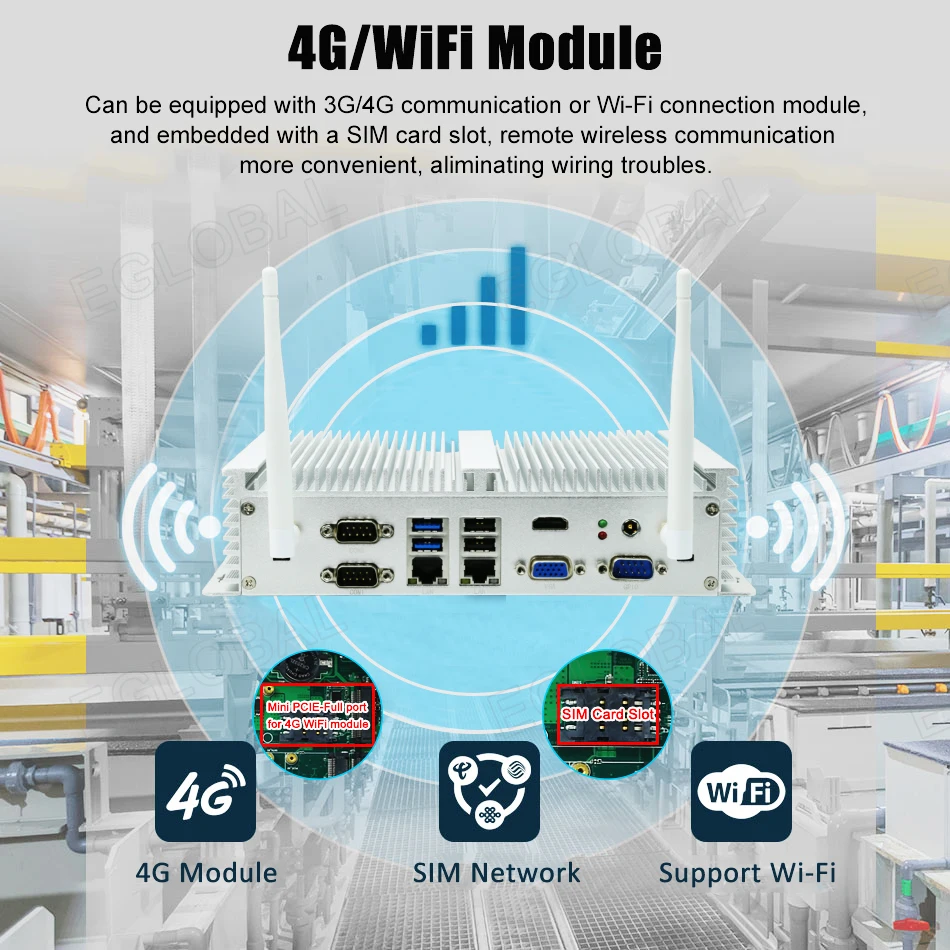

– One embedded SIM card slot onboard for 3G/4G Wi-Fi.

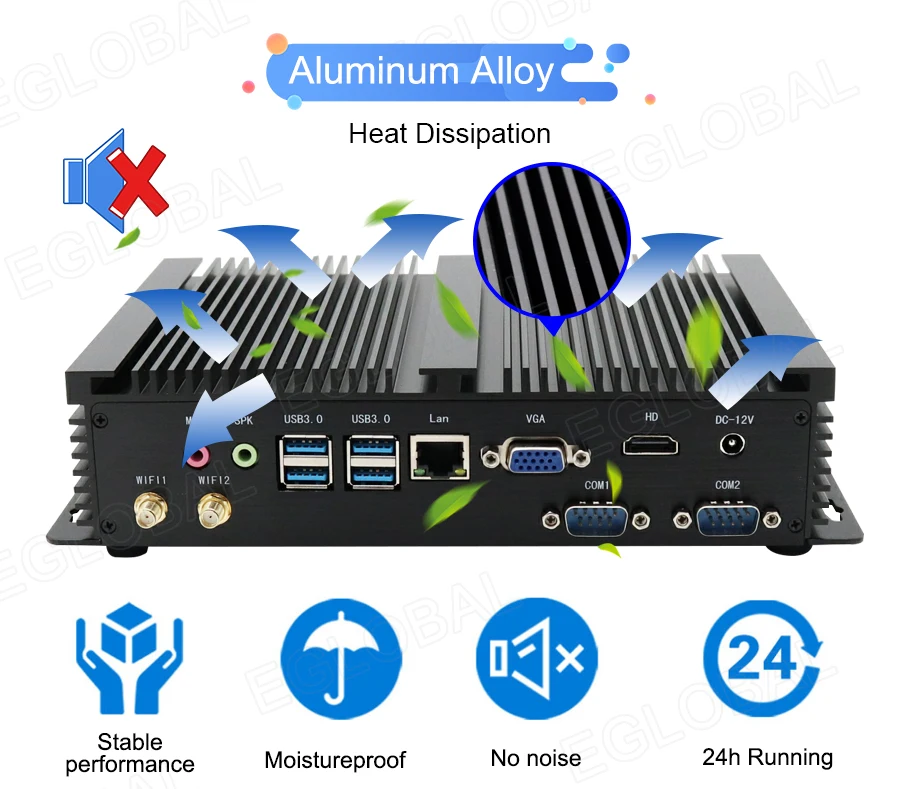

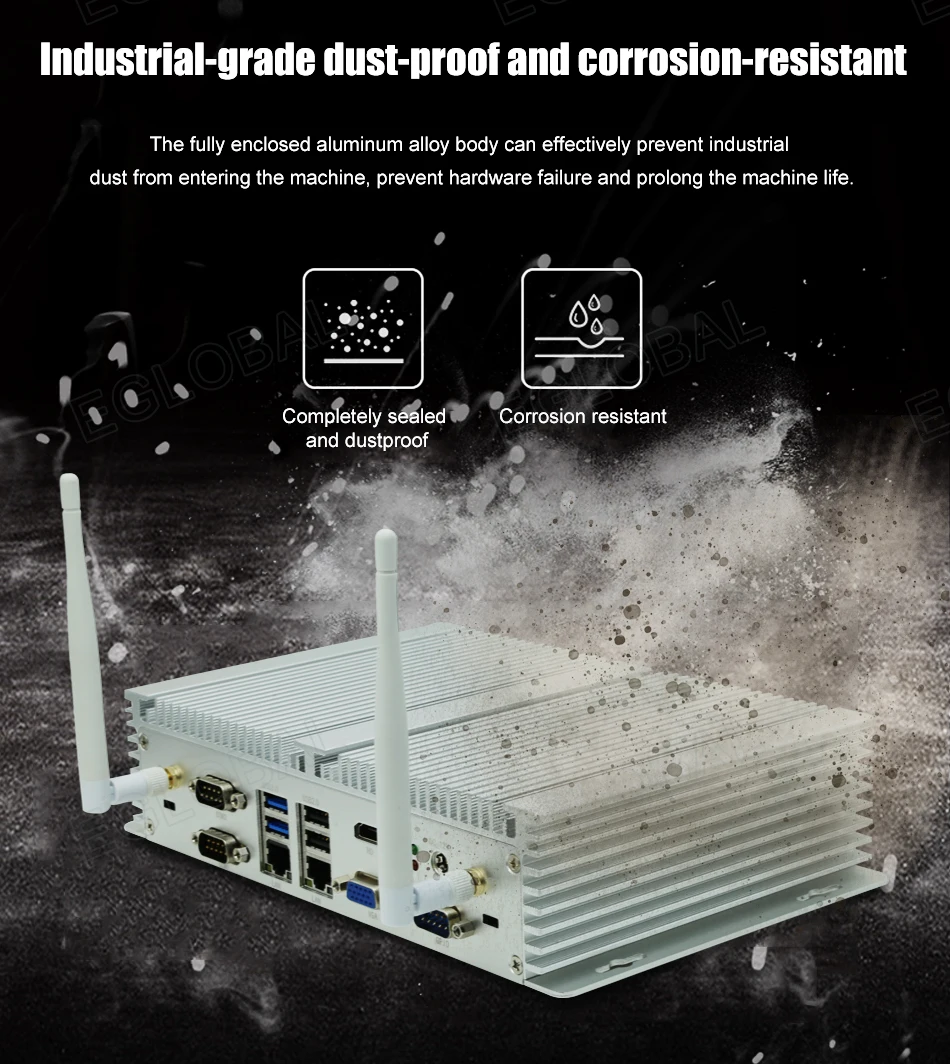

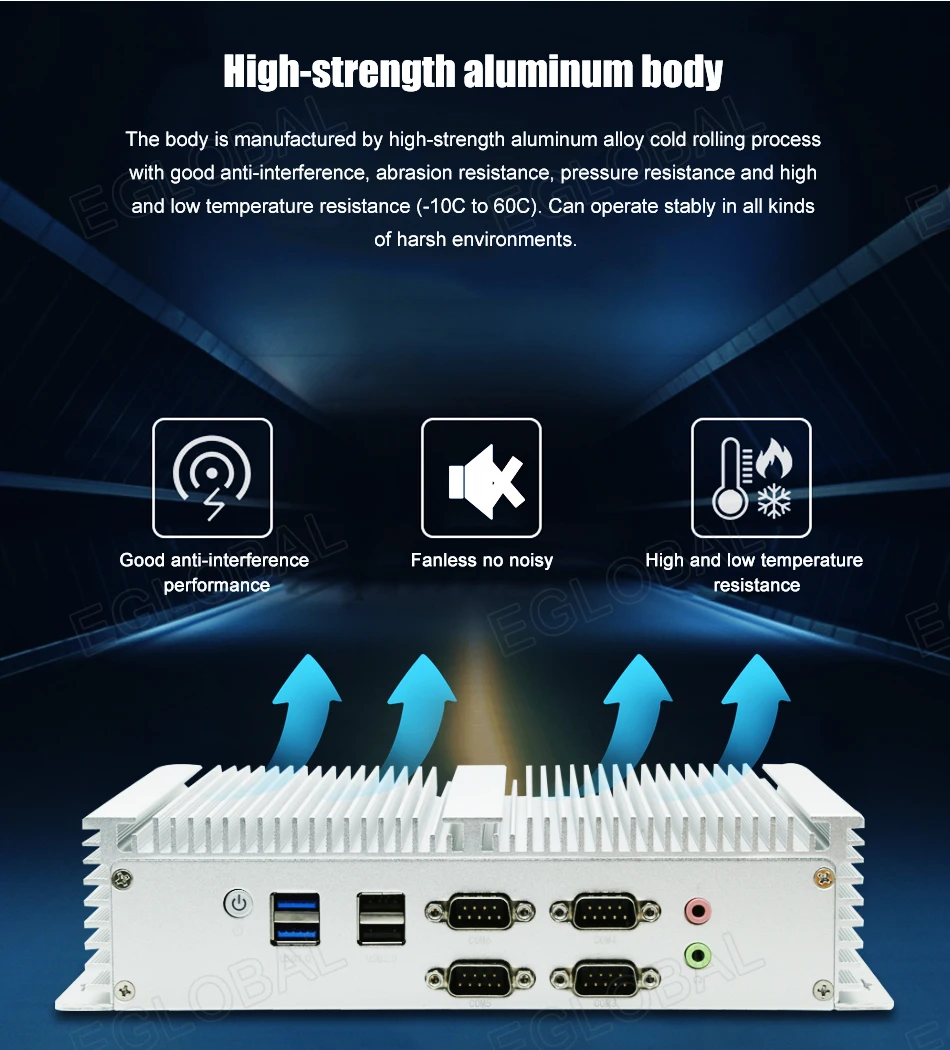

– Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on
Outside design.
– Fanless system without cooling fan, fifit for industrial grade fifield, work as long as 24 hours.
– Low consumption TDP only 28W and can be mounted on the wall.

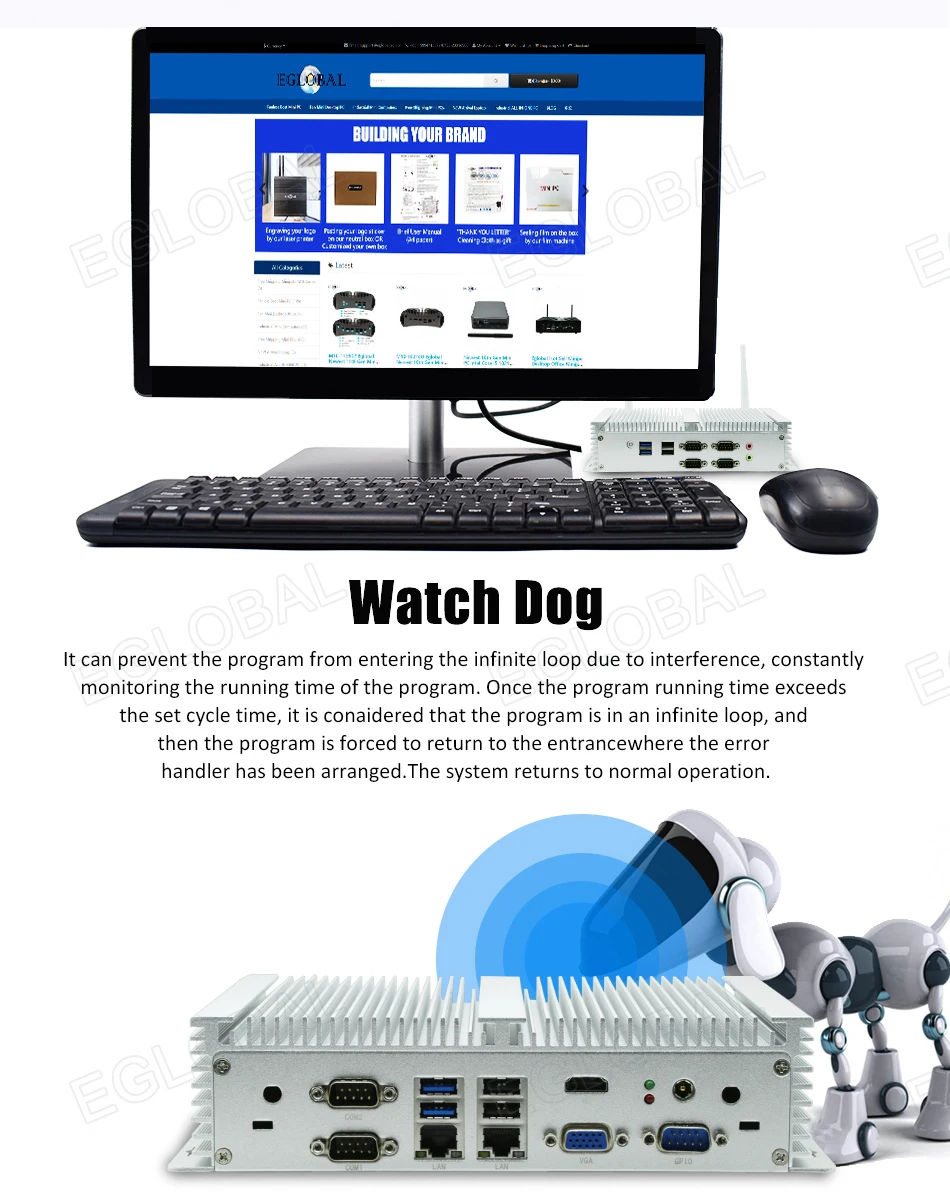

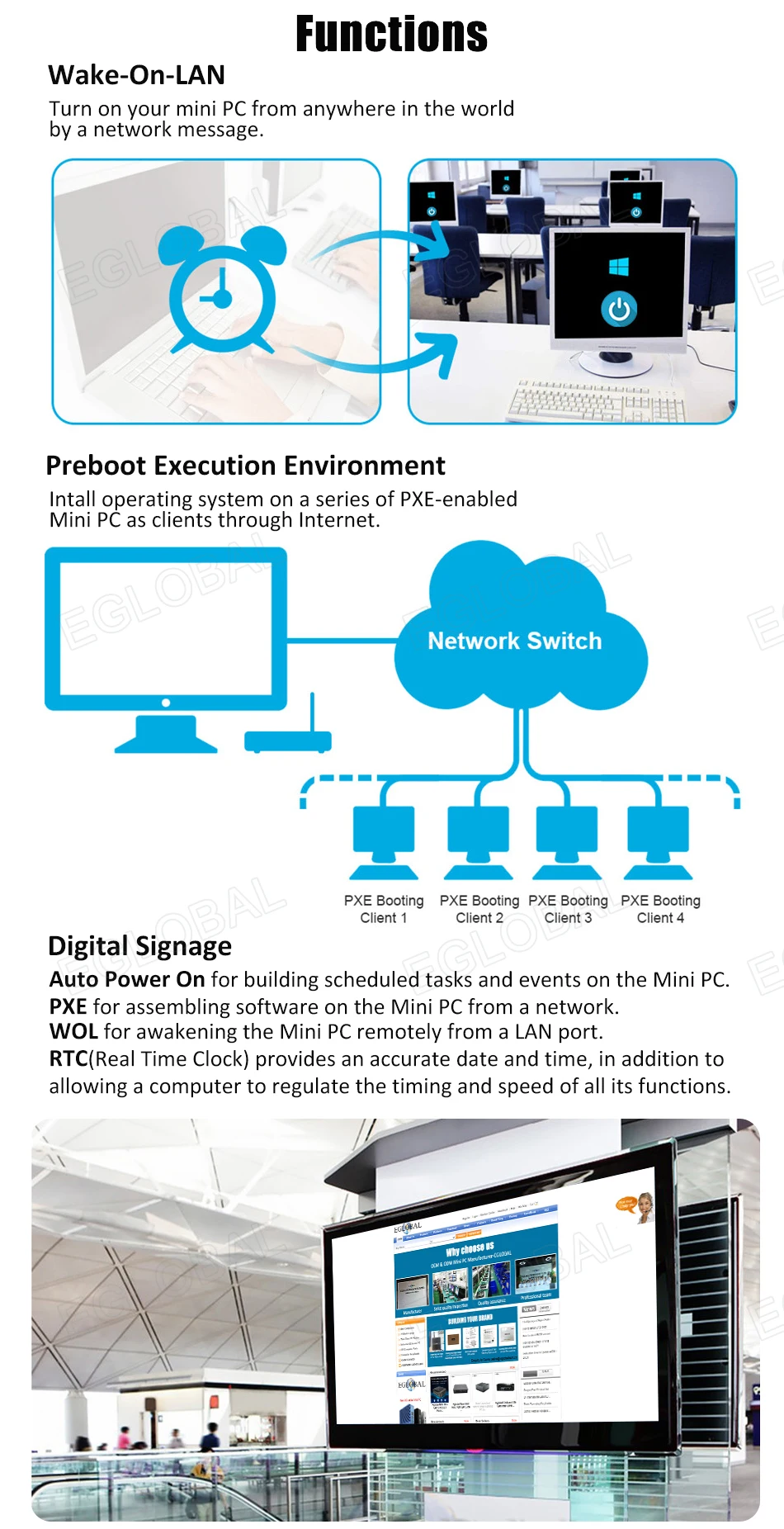

– Support AWAL, Wake On LAN, Watchdog, RTC functions.

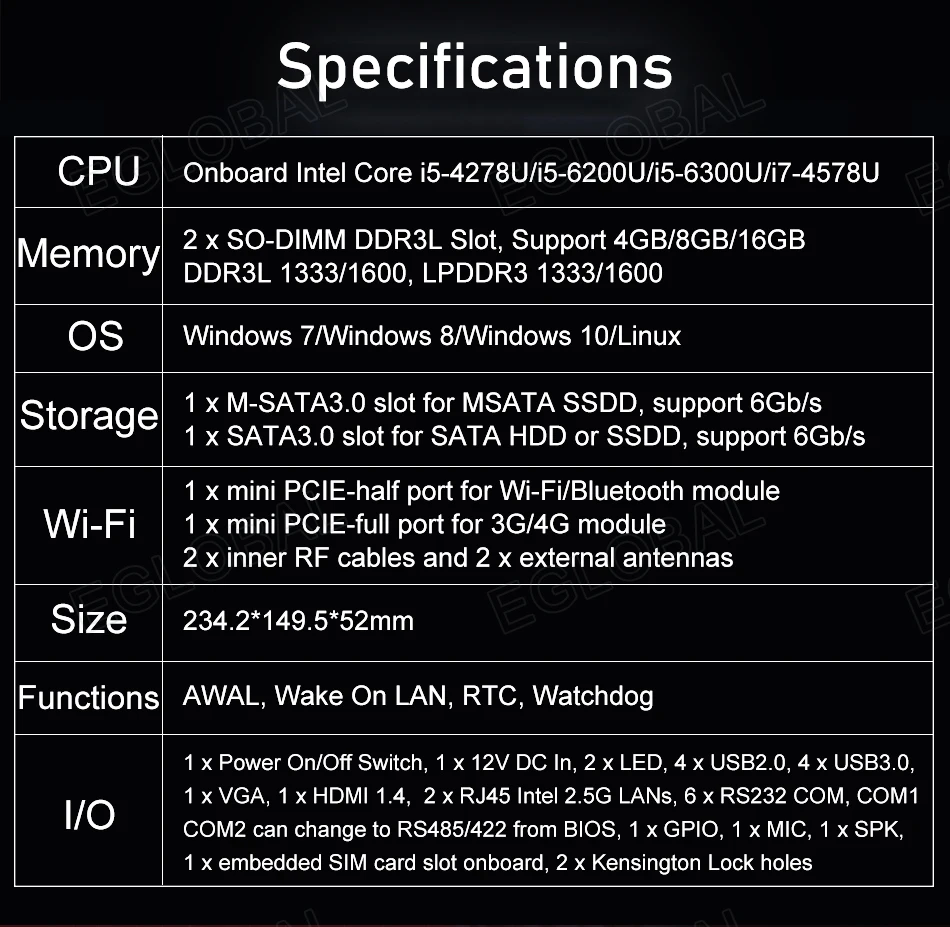

Basic Information:
CPU: Onboard Intel Core i5-6200U/ 6300U
TDP: 15W
Motherboard: 14.5 x 14.7 cm
BIOS: American Megatrends Inc. 5.6.5
Chipset: Intel Sunrise Point-LP, Intel Skylake-U

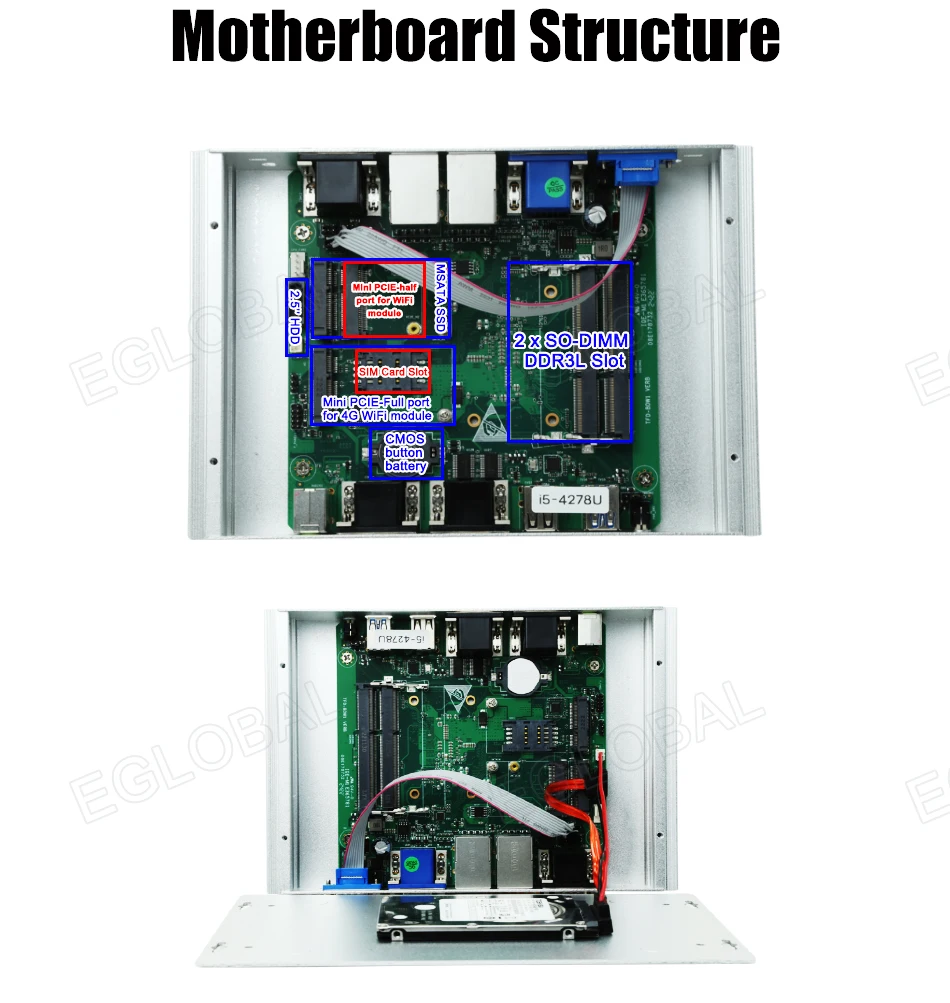

Memory: 2 x SO-DIMM DDR4L Slot, Support 4GB/8GB/16GB
DDR4L 1333/1600, LPDDR41333/1600

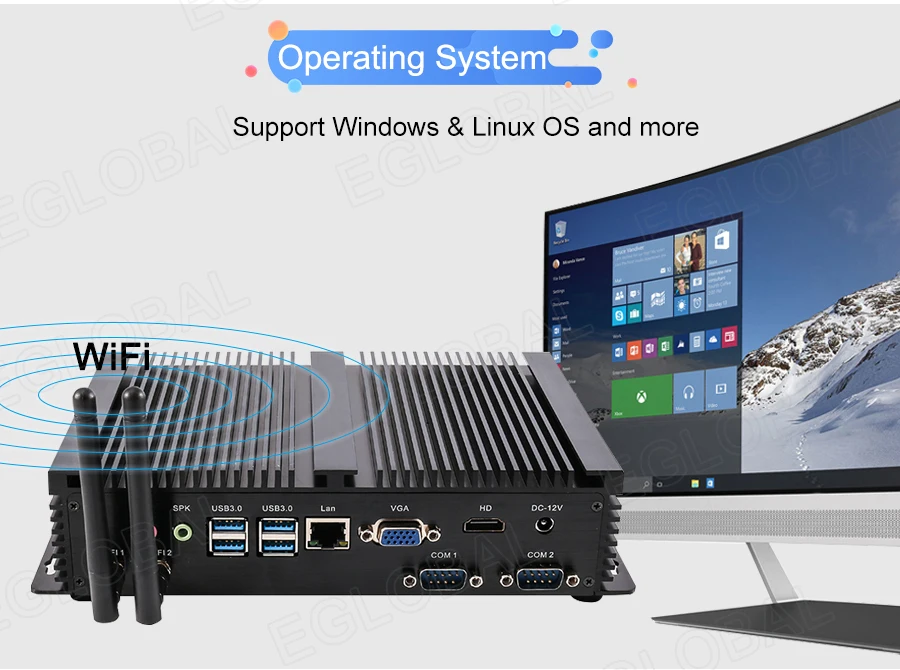

OS: Windows 7/Windows 8/Windows 10/Linux
PXE: YES
Audio: Intel High Defifinition Audio and USB Audio and HID
Network: Onboard Intel i225-V 2.5G Network Connection
Video: Intel® UHD Graphics 520

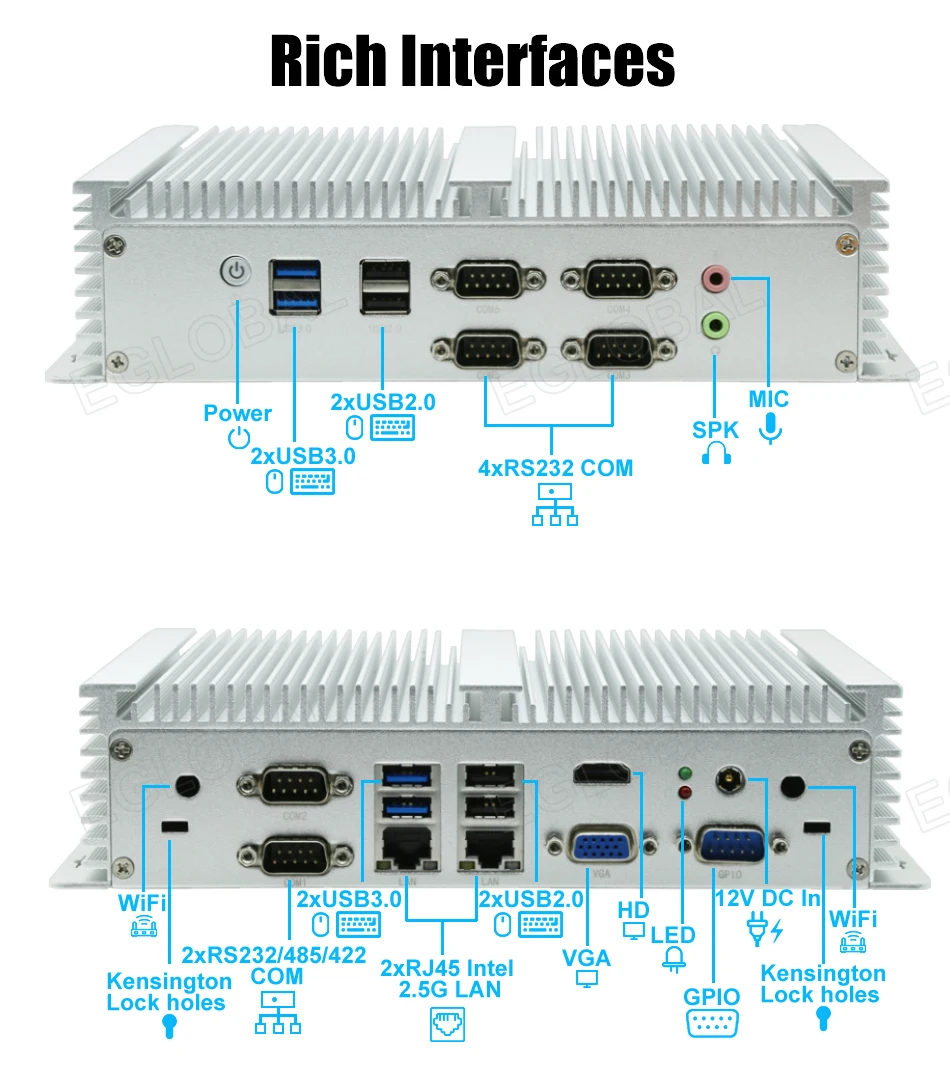

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 12V DC In
LED: 2 x LED
USB: 4 x USB2.0, 4 x USB3.0
Display: 1 x VGA, 1 x HDMI 1.4
LAN: 2 x RJ45 Intel Giga LAN

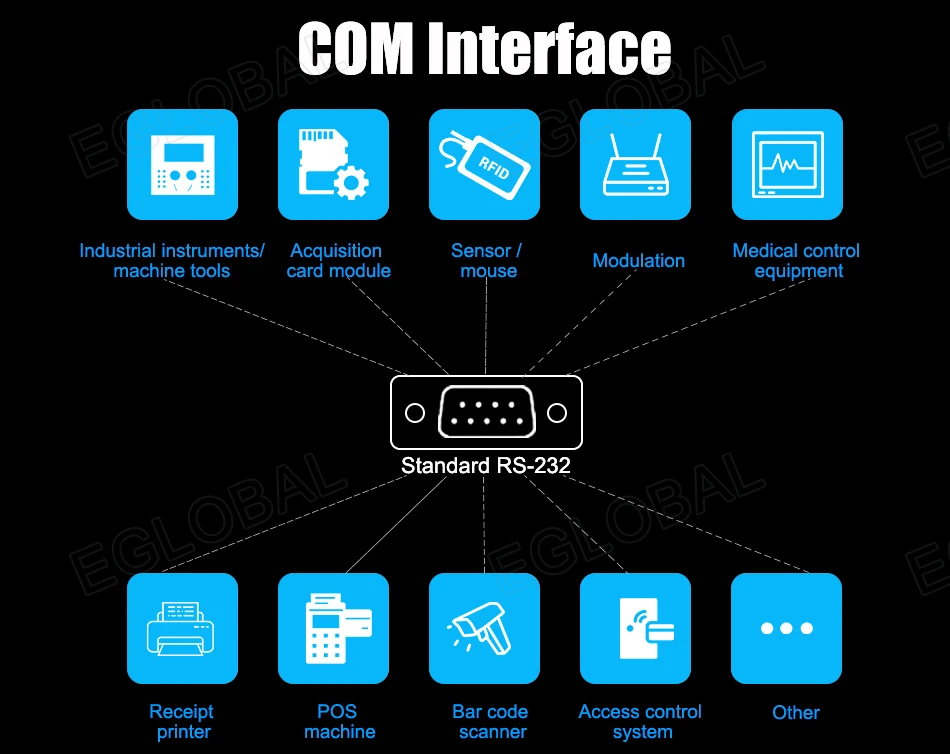

COM: 6 x COM RS232 ports, COM1 COM2 can change to RS485/422 from BIOS
SIM: 1 x embedded SIM card slot onboard
GPIO: 1 x GPIO
Audio: 1 x MIC, 1 x SPK

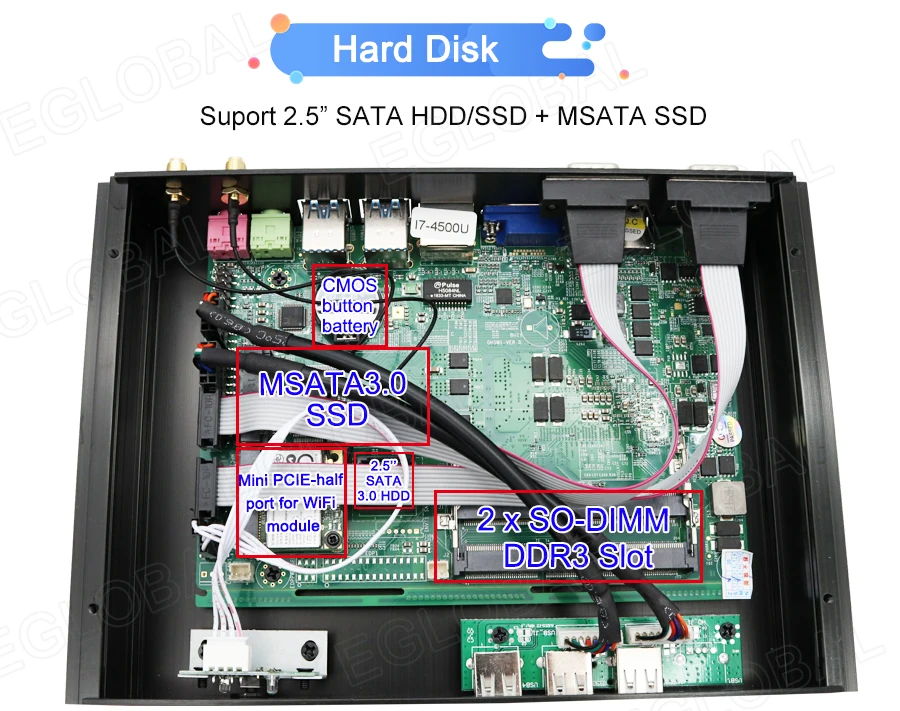

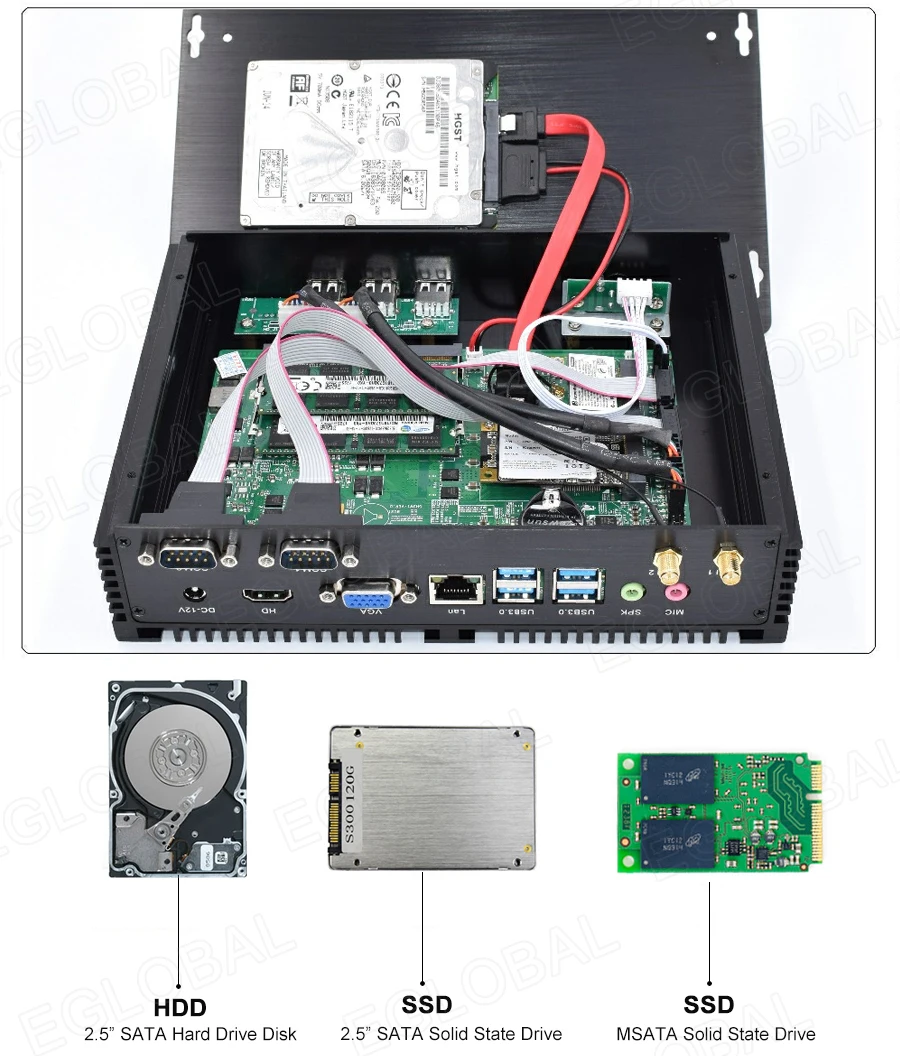

Storage: MSATA
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi: Module
1 x mini PCIE-half port for Wi-Fi/Bluetooth module
1 x mini PCIE-full port for 3G/4G module
Antenna: 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: Only 12V, recommend 12V/5A
Operating Temperature: -10/+60Centigrade
Storage Temperature: -20/+80 Centigrade
Relative Humidity: Product Dimension & Details

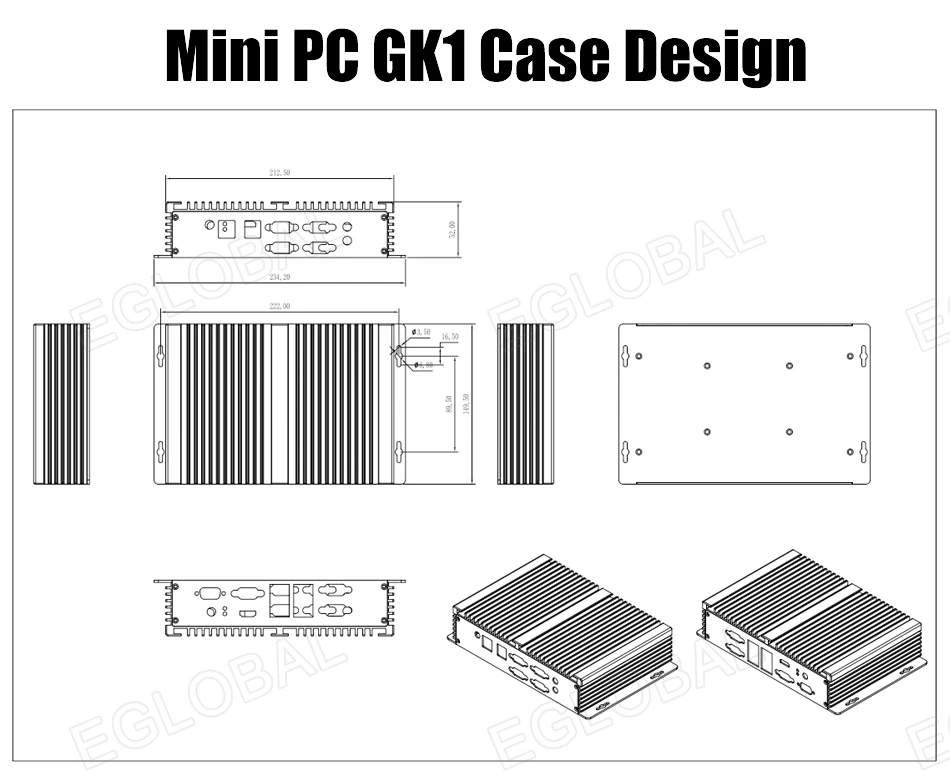

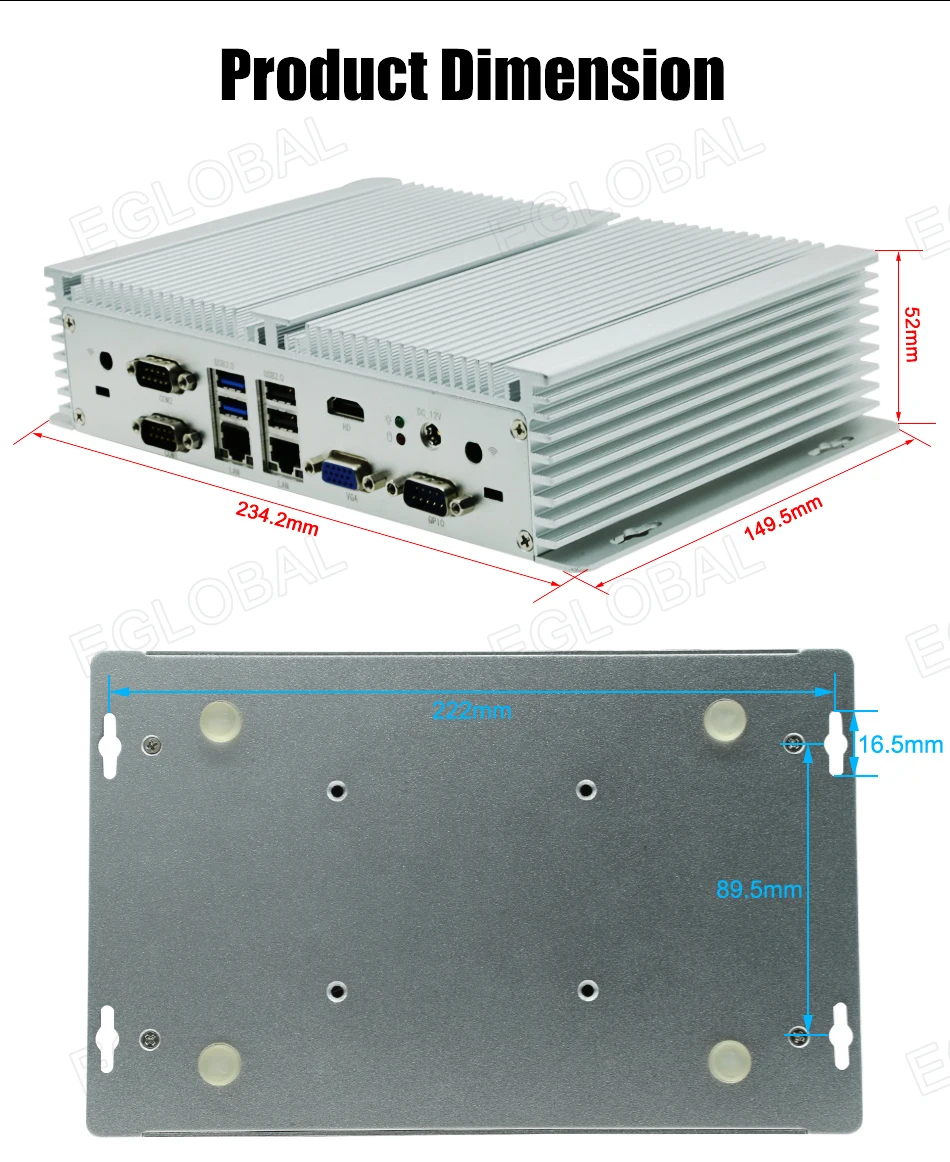

Size: 212.5*149.5*52mm(Baseplate length: 234.2mm)
Weight: Net 1.6kg, Gross 2.5kg
Shell: Black color aluminum alloy(any customized color for bulk order)

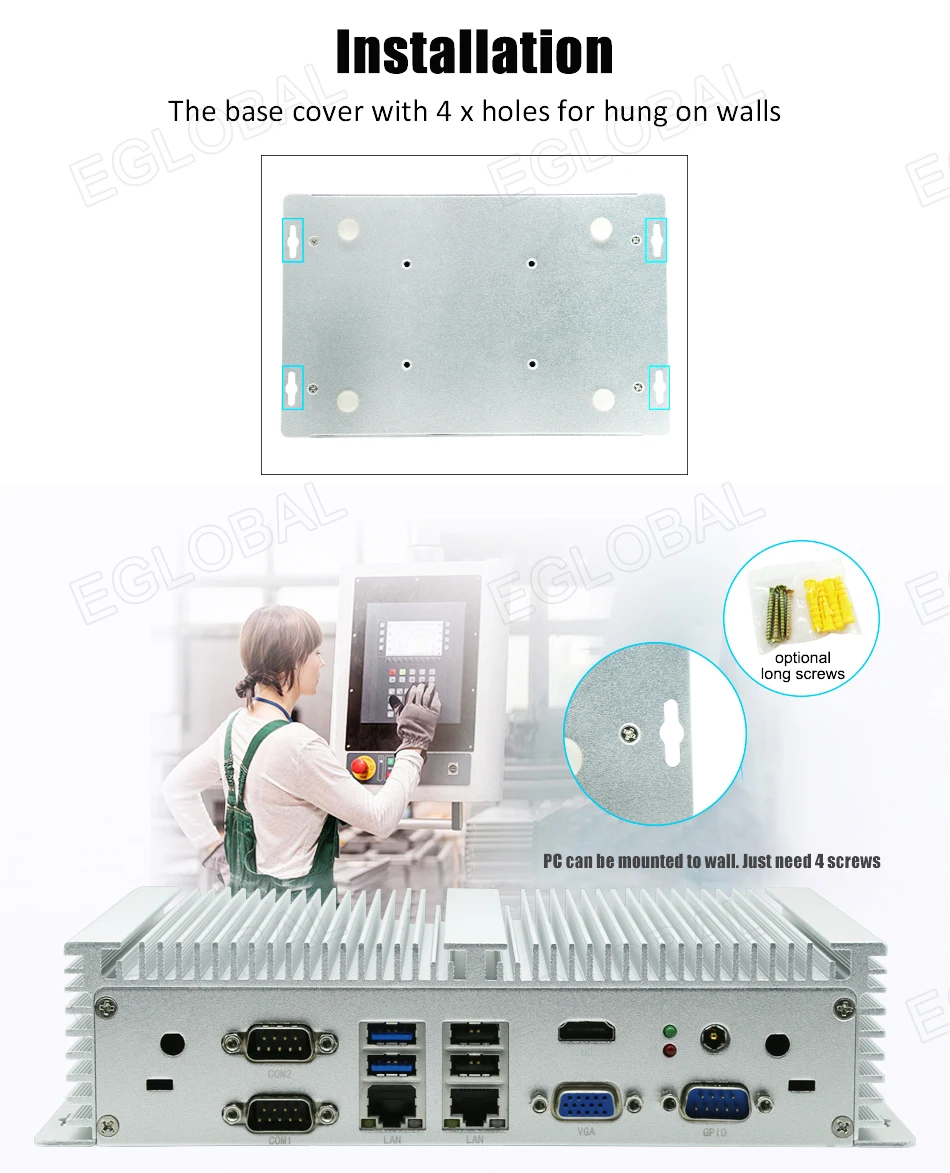

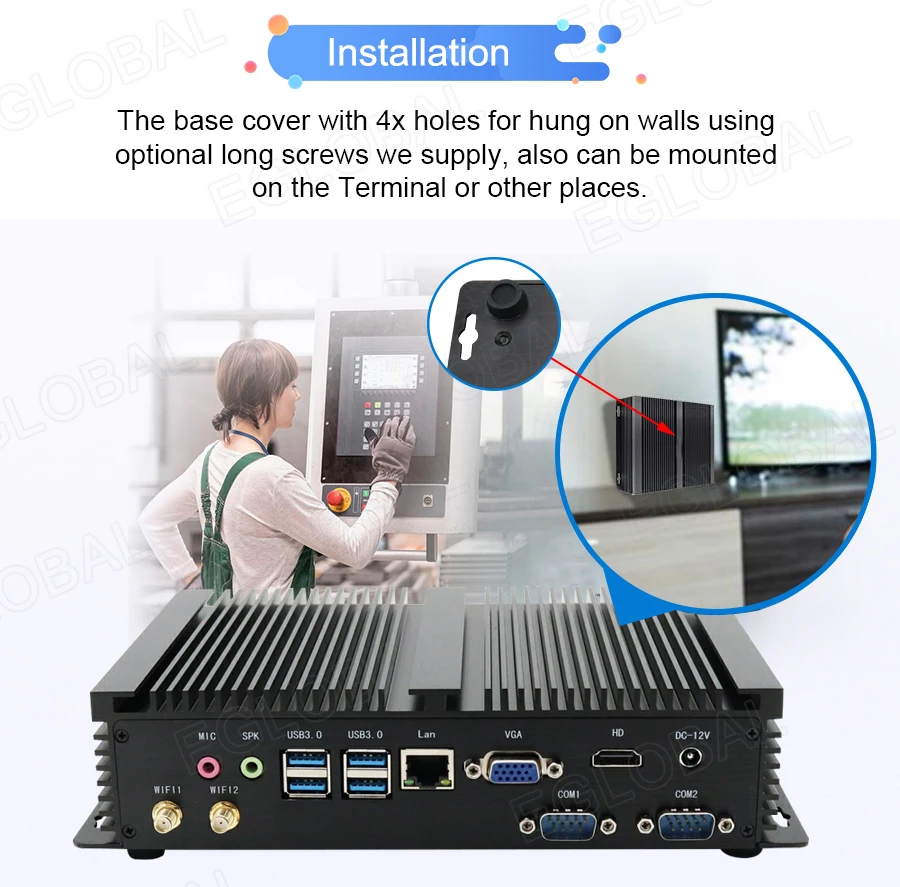

Mounting: 4 Mounting holes on case
Cooling Mode: Fanless
Functions: AWAL, Wake On LAN, RTC, Watchdog

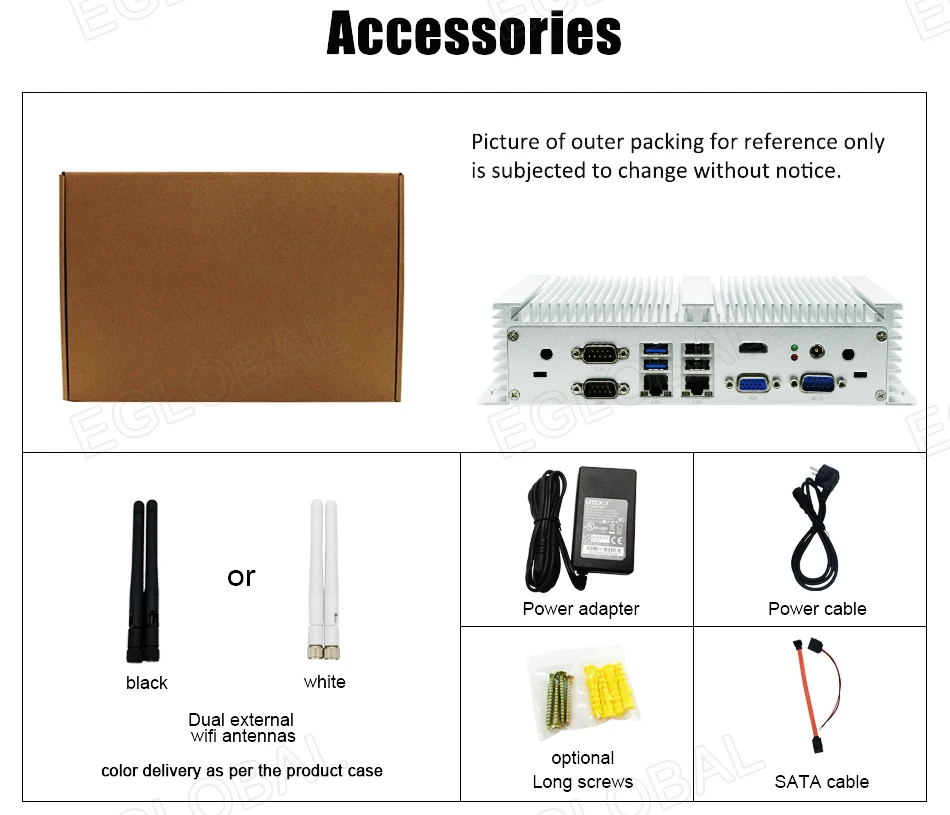

Package Content: Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional: Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
GK-4005U/8145U/10510U
Model: GK-4005U
CPU: Onboard Intel HASWELL 22nm CPU Intel Core i5 4005U 1.7GHz (Turbo boost Technology) Dual Core Four Threads 3MB cache TDP 15W Intel® HD Graphics 4400.
Memory: 2* SO-DIMM DDR3L Slot, Support8GB/16GB, Dual Channel, DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
Storage: 1x M-SATA3.0 port, support 6Gb/s and 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s.
Model: GK-8145U
CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i3-8145U Dual Cores Four Threads 2.1GHz up to 3.9GHz(Turbo boost Technology) 4MB cache TDP 15W Intel® UHD Graphics 620.
Memory: 2* SO-DIMM DDR4 Slot, Support 8GB/16GB/32GB, Dual Channel, DDR4-2400, LPDDR3-2133
Storage: 1x M-SATA3.0 port, support 6Gb/s, 1x M.2 SSD port, support 6Gb/s and 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s.
Model: GK-10510U
CPU: Onboard Intel Comet Lake Refresh Intel Core i7-10510U Processor, 8M Cache, 1.8GHz up to 4.90GHz (Turbo boost Technology) Quad Cores 8 Threads TDP 15W Intel® UHD Graphics.
Memory: 2* SO-DIMM DDR4 Slot, Support 8GB/16GB/32GB, Dual Channel, DDR4-2400, LPDDR3-2133
Storage: 1x M-SATA3.0 port, support 6Gb/s, 1x M.2 SSD port, support 6Gb/s and 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s.
Barebone Mini PC (“No Ram No Storage” bundle) package DO NOT include WiFi(antennas), if you need, please pay extra US $7 at this link. Other bundles include WiFi(antennas).
PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer’s own ram and hard drive.
-2xSODIMM DDR4 memory slot up to 32GB more powerful performance improve work efficiency and give you a smooth experience. (8145U/10510u)
-2xSODIMM DDR3 memory slot up to 32GB more powerful performance improve work efficiency and give you a smooth experience. (4005u)
-Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.

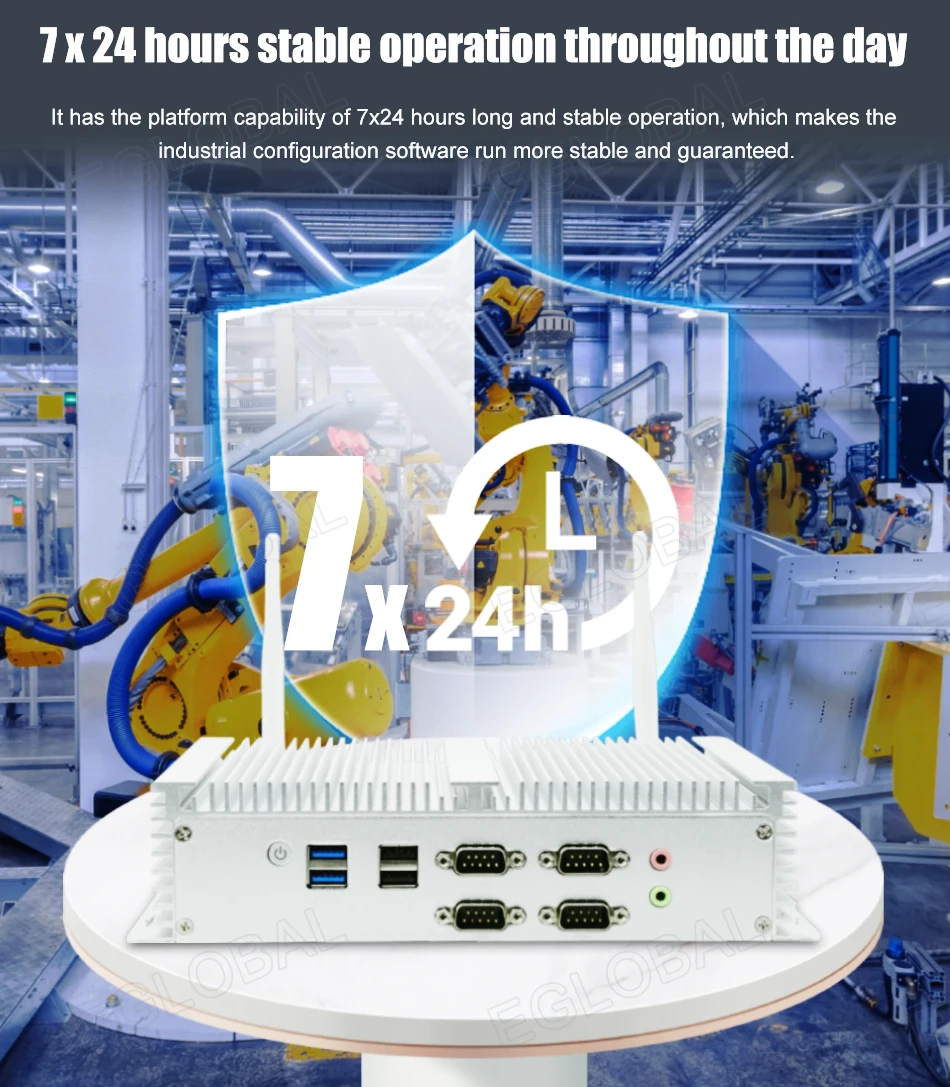

-Fanless system without cooling fan, no any noise, work as long as 24 hours.
-Low consumption TDP only 15W, save much energy and eco-friendly.

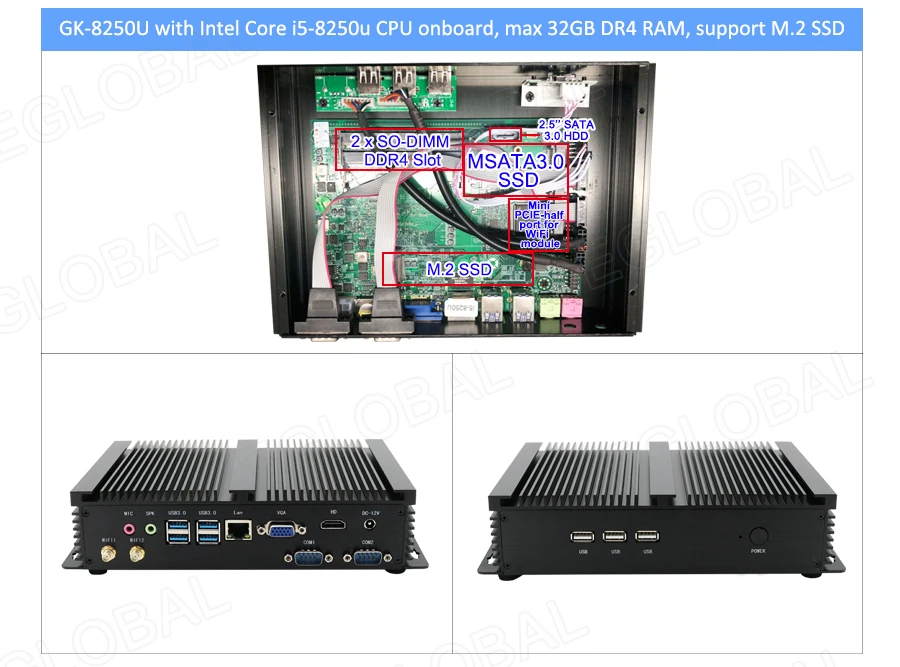

-Can install M.2 SSD+MSATA SSD+2.5” SATA HDD together.
-Support VGA + HDMI dual display output synchronously.
Basic Information:
CPU: Onboard Intel Core i3-4005u / Intel Core i3-8145u / Intel Core i7-10510u
TDP: 15W
BOIS: AMI BIOS, ACPI supported
Support calls on function automatically
Support Wake-On-LAN
Chipset: Refer to CPU
Memory: GK-8145U/10510U:
2* SO-DIMM DDR4 Slot, Support 8GB/16GB/32GB
Dual Channel, DDR4-2400, LPDDR3-2133
GK-4005U:
2* SO-DIMM DDR3L Slot, Support 8GB/16GB
Dual Channel, DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333

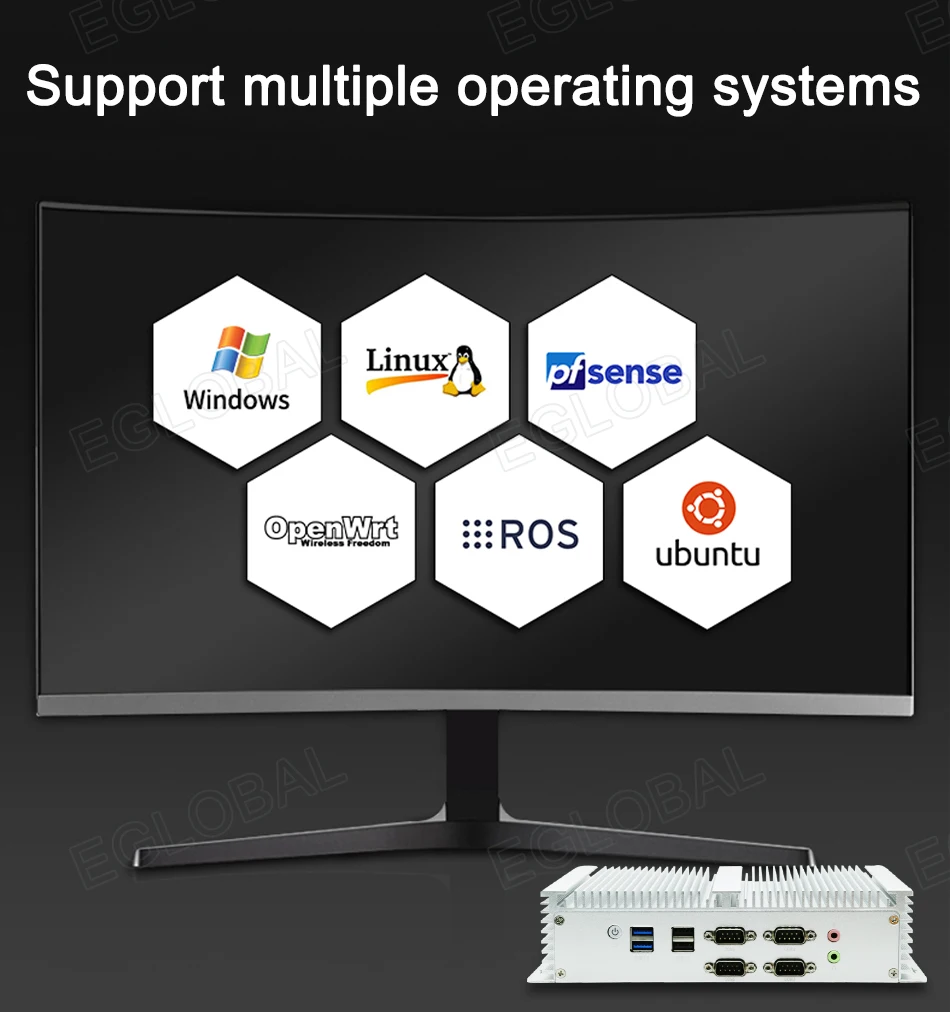

OS: Windows 7/Windows 8/Windows 10/Linux
Audio: ALC897 chip, 7.1 channel sound
Intel Lynx Point-LP HDA

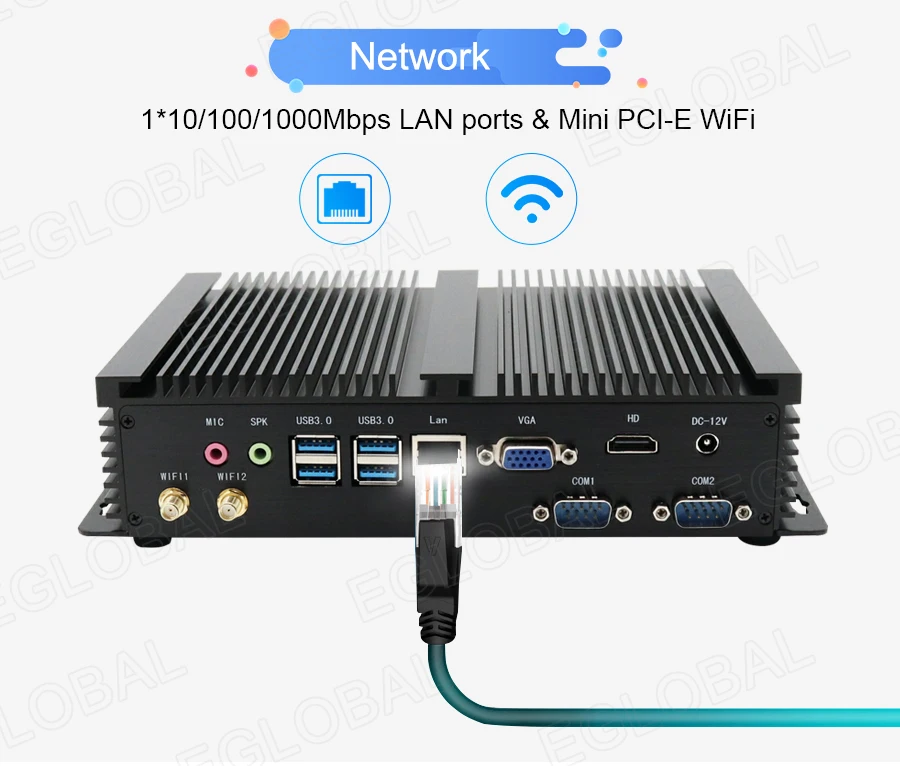

Network: Onboard Realtek RTL8168E PCI-E Gigabit Ethernet NIC
Onboard RTL8111DL10/100Mbps/1000Mbps BaseT LAN
Video: Refer to CPU

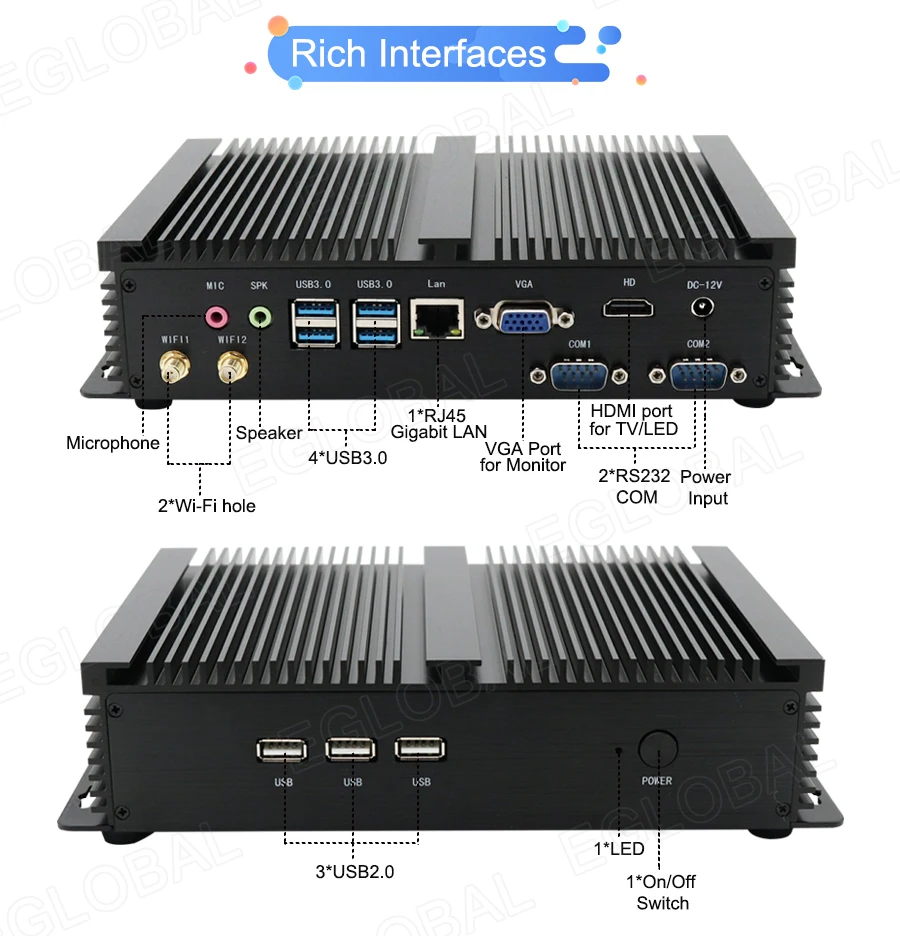

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 12V DC In
LED: 1 x LED
USB: 3 x USB2.0, 4 x USB3.0
Display: 1 x VGA, 1 x HDMI
LAN: 1 x RJ45 Intel Giga LAN
COM: 2 x RS232 COM
Audio: 1 x MIC, 1 x SPK
Storage: MSATA
1x M-SATA3.0 port, support 6Gb/s
1x M.2 SSD port, support 6Gb/s(only GK-8145U/10510U support)
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi: Module
1 x mini-PCIE port(WIFI&Bluetooth)
Antenna: 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: DC 12V/5A
Operating Temperature: 0/+70 Centigrade(32°F~140°F)
Storage Temperature: -20/+85 Centigrade
Relative Humidity: 0%~90% (non-condensing)

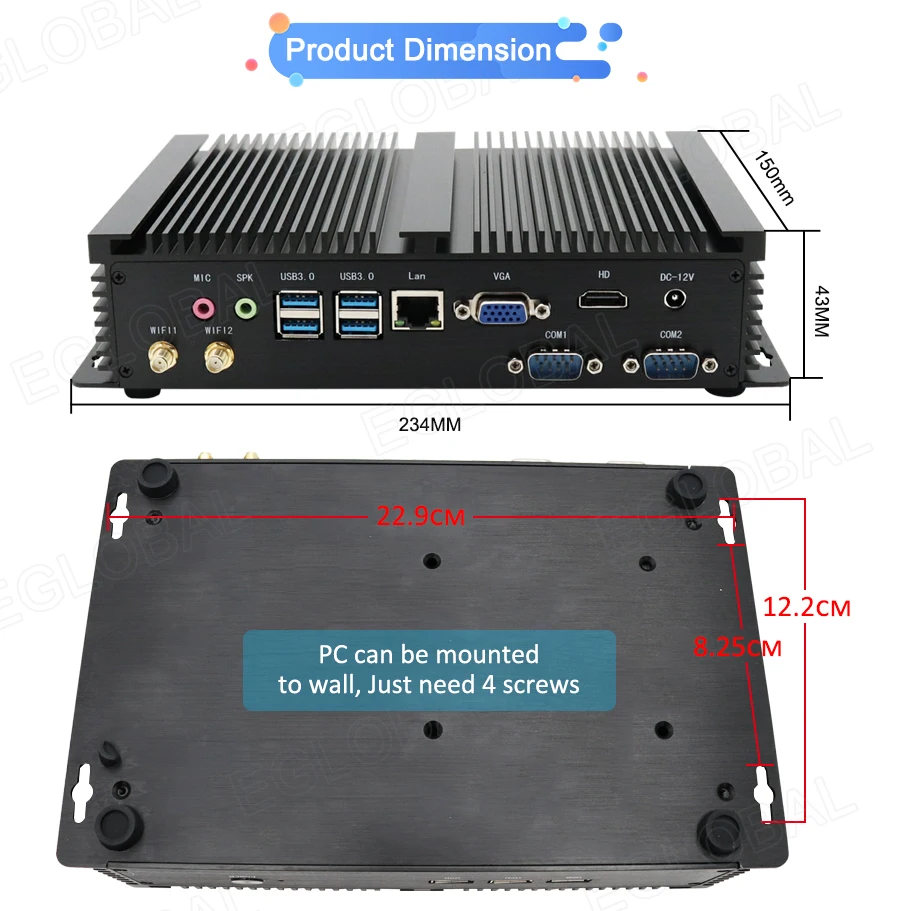

Product Dimension & Details
Size: 234*150*43mm
Weight: Net 2kg, Gross 2.5kg
Shell: Black color aluminum alloy
Mounting: 4 Mounting holes on case
Cooling Mode: Fanless
Package Content: Standard
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional: Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
DETAILS ABOUT OPERATING SYSTEM
Free Operating System: Default installed our trial activated OEM windows 10 pro license English for free, other languages can be selected among: Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Supplier is irresponsible and makes no compensation for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, What brand we use depends on our test and our stock.
TIPS
1. USB Infrared remote (can turn power off and control media center like kodi) add extra cost US$14.
2. External USB DVD-ROM add extra cost $18.
3. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
4. Genuine OEM license sticker cost $35.
5. 2.5” 500GB HDD add extra $50, 2.5” 1TB HDD add extra $65, 2.5” 2TB HDD add extra $100.
(how many dollars to upgrade, pay how many pieces, US$1=1pc, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for. . . )
Buy with confidence! 3 Years long warranty for the Industrial fanless system!
