BKHD Network Server Barebone Mini PC – I3-9100/I5-9400/I7-9700, Firewall, Pfsense, Mikrotik ROS, Openwrt, ESXI, Vmware, 1U

Description

Product Parameters
CPU: Intel Celeron G3900 (2 core 2 threads)
Intel Core i3-9100 (4 core 4 threads, up to 4.20 GHz)
Intel Core i5-9400 (6 core 6 threads, up to 4.10 GHz)
Intel Core i7-9700 (8 core 8 threads, up to 4.70 GHz)
RAM: 2*DDR4 2133-2666 memory
Support 64GB of memory
Storage interface: 1 x SATAinterface,1 x SSD mSATA interface
Graphics chip: Integrated Intel HD Graphiacs core graphics
Display interface: 1*HDMI Display connector

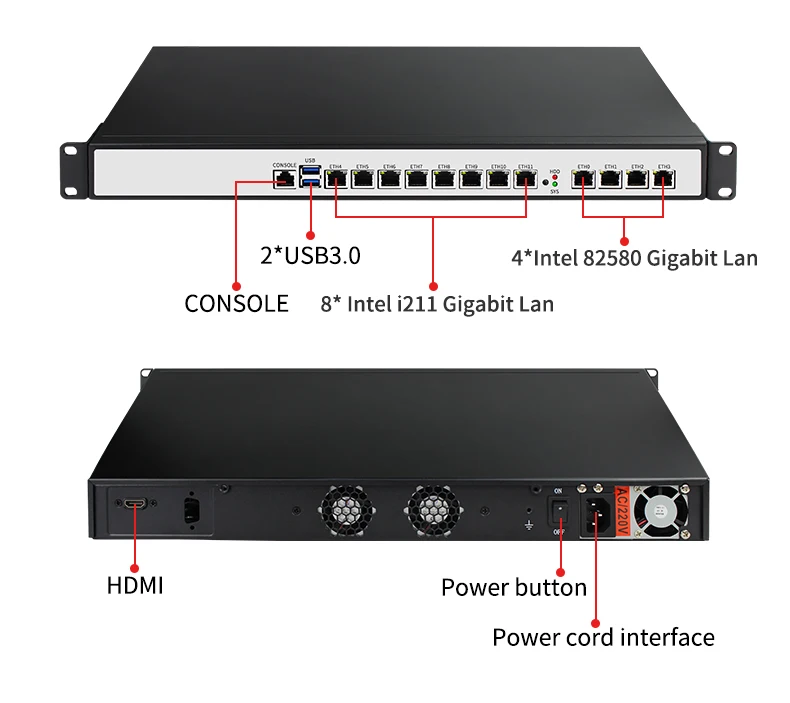

Front I / O: 8*Intel I211 Gigabit network card
Expandable optical port
2*USB3.0
1*CONSOLE
Back I / O: 1*HDMI
1*Power button
1*Power cord interface
Extension port: Optional expansion card:
Gigabit optical port: 4*intel82580B
USB2.0, miniPCie (WiFi/4G optional for PCI protocol)
CPU fan: 1U Leopard Turbo Silent Fan
Power supply: 200W, 110V-240V 50-60Hz AC input
(optional redundant dual power supply)
Operating system: Pfsense/Windows,10, Server2012/EXSI/Ikuai/WayOS
/Mikrotik/Openwrt/Ubuntu/Centos/Lede/Liunx
Working humidity: 0%~60% （Non-condensing state）
Operating temperature: 0°C~60°C
Safety certificate: CE/CCC/FCC Class A/ROHS

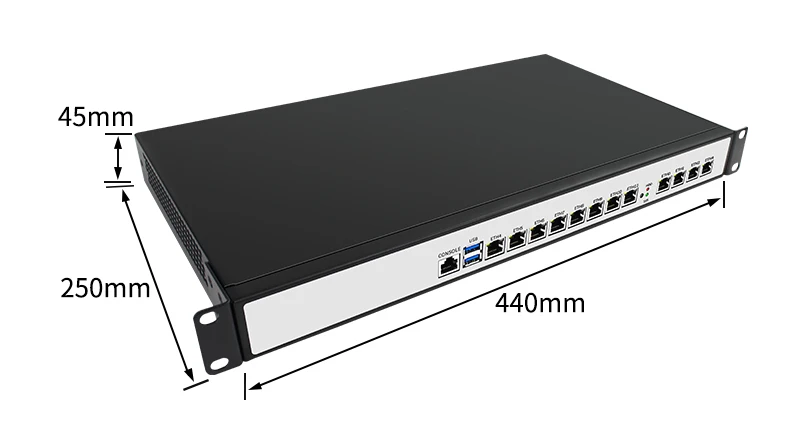

Product Size: 440*250*45mm(Built-in dust net)(L*W*H)
Net weight of whole machine: 4.5kg
Package weight of the whole machine: 5kg
Chassis fan: 40*40*10mm (Dual silent fans)
Material: Cold rolled steel 1 3.5/2.5 hard drive
Product List: A host, a power cord, a pair of rack ears, a pack of screws, and a set of warranty card certificates.
Our service:
1. We can provideOEM/ODMservices.
2. We can sellone samplefor your test.
3. High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free.
But we will charge for the parts that need to change.
1. Delivery Time: 1 ~ 3 Days for one sample, 4~6 days for a large quantity.
2. Packaging Ways: Each pc for one neutral box.
3. Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
FAQ:
1. How long are these warranty periods?
Answer: We support 1 year warranty, and in the second and third year, we can repair it for free. However, we charge for the parts that need to be changed.
2. Can you print my logo or company name on your product?
Answer: Yes. We can print your logo, company name on the product; we can provide OEM / ODM services for you.
3. What is the minimum order quantity (MOQ)?
Answer: We can sell one sample for your test.
4. What is the delivery time? (How long do you need to prepare my goods?)
Answer: Sample orders take 1-3 days, mass production orders take 4-6 days (depending on the quantity, OEM, etc. )
5. How will you hand over the goods to me?
Answer: We are generally airlifted. At the same time, we work with internationally renowned companies such as DHL, UPS, FedEx and TNT to enable our customers to get their products quickly.
