22-inch LCD Panel Assembly Retrofit 485mm CCFL Dual Lamp Backlight

Description

Specifications:
Material: Fiberglass panels
Driver board size: 7x2cm
Input: DC 10-30V
LED strip size: 485x4mm
Features:

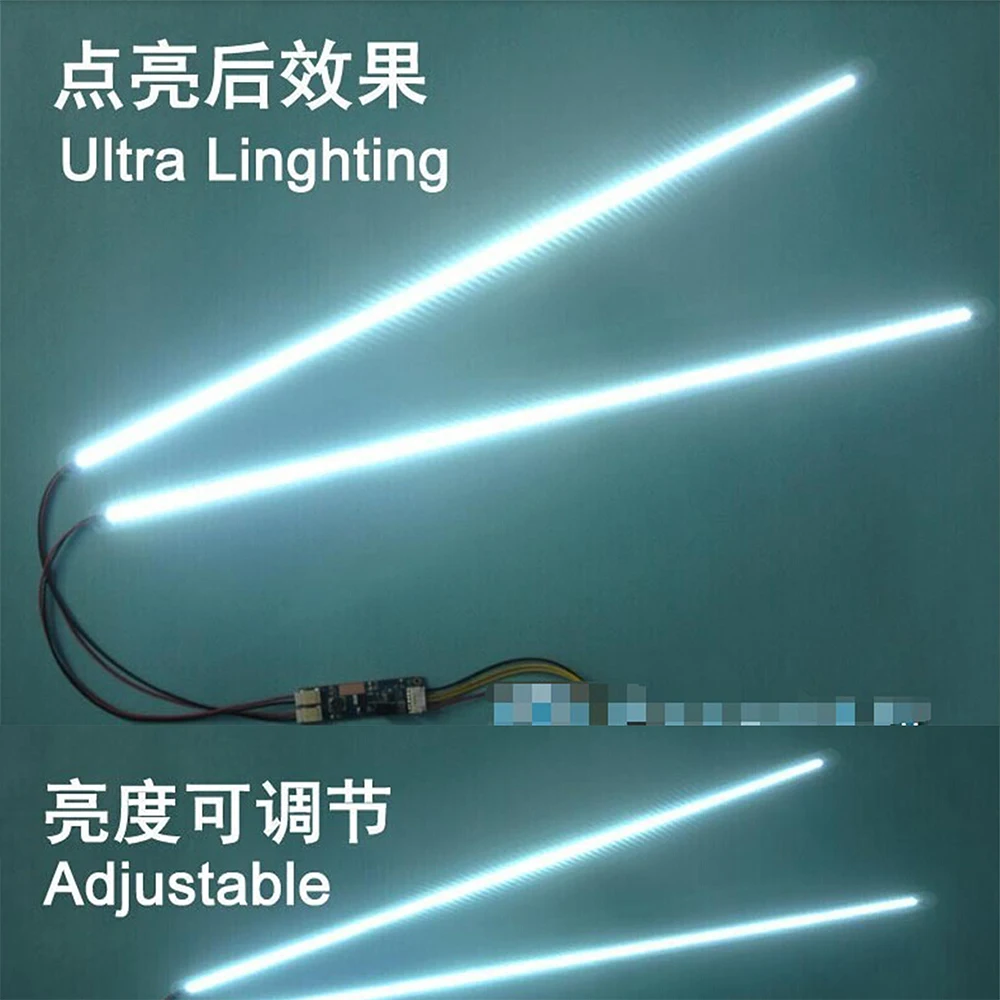

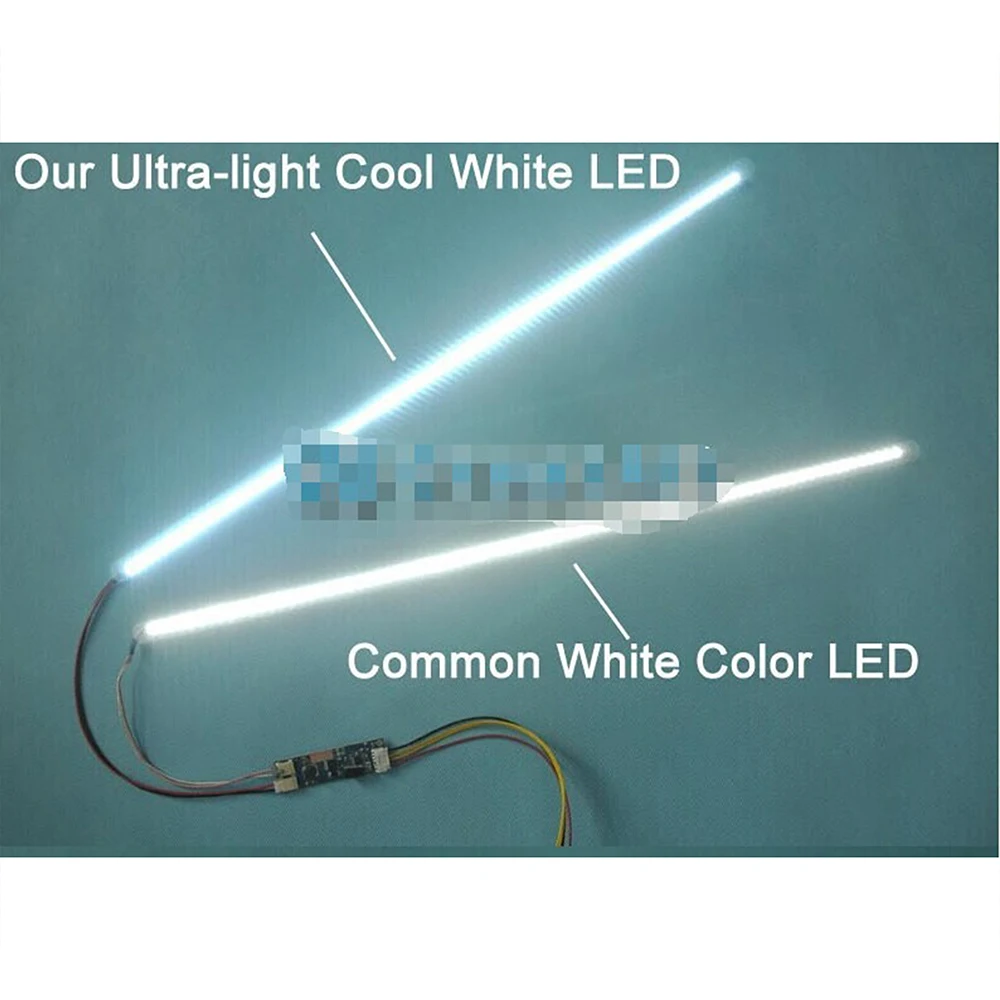

This backlight strip is perfectly design for screen, high brightness, environmental protection and energy saving.
LED particles closely, high-density arrangement, import highlight LED strips.
Long service life, with lifetime of 100000 hours.
Easy to install, use double-sided adhesive can be attached to the display original LCD groove, or elsewhere.
Installation:
If your monitor is using a inverter, then this kit replace the inveter to plug into the driver board ;
If your monitor is a high-voltage integrated power supply board, then: the board energized, find 12V (capacitance), and then unplug the power supply,
Use a multimeter to find and 12V (capacitance) Disconnect original connecting
The negative terminal, the board received three line: 12V, ON, GND, the 12v of the inverter connect with 12v positive
Electrode of hign-voltage intergrated power supply board, GND is connected with the negative electrode, ON connect with the ON / OFF.
In simple terms, tThe original high voltage power supply is disconnected, instead of the inverter,
In the original high-pressure front to take power

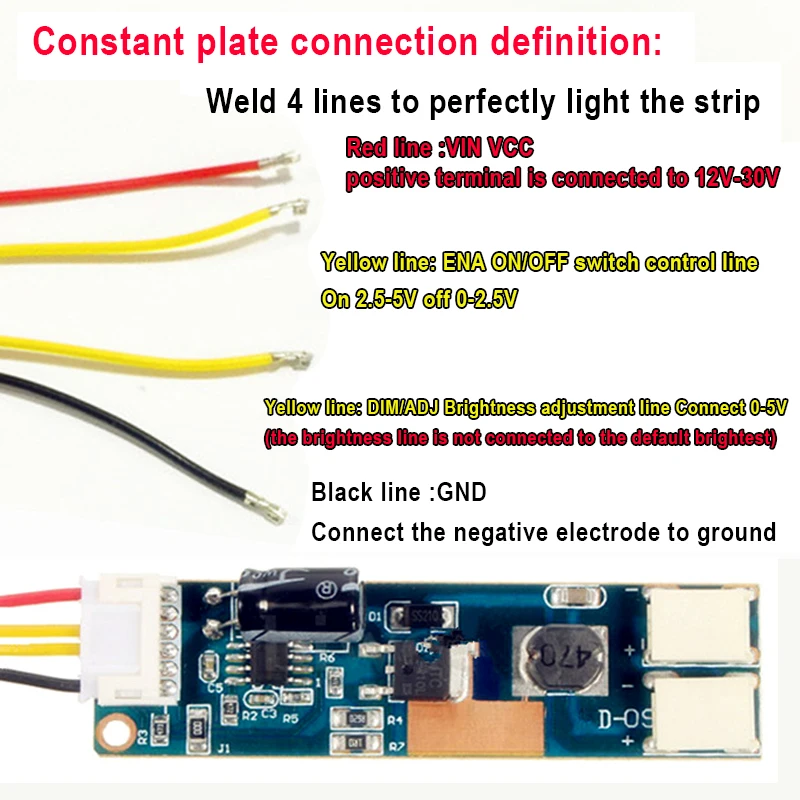

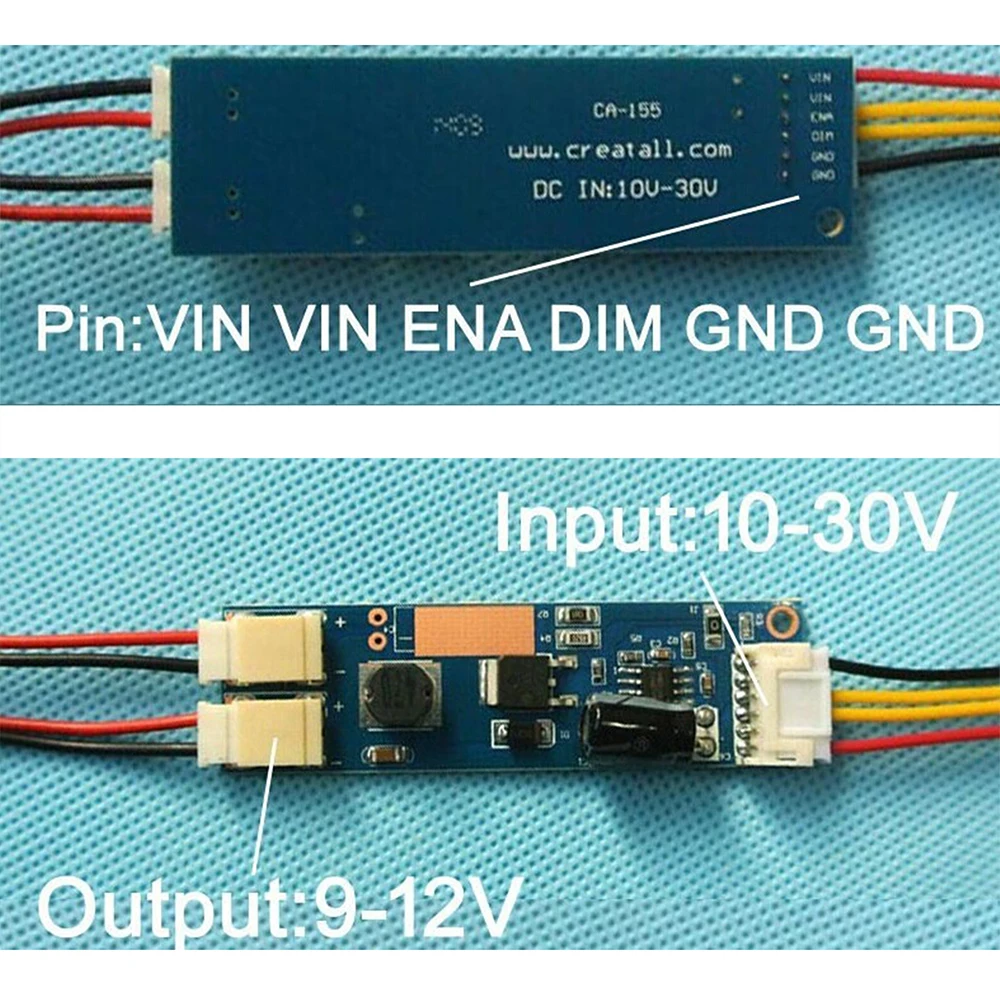

Pin description:
VIN: Voltage
ENA: ON/OFF
DIM: ADJ adjust brightness
GND: Connecting Ground

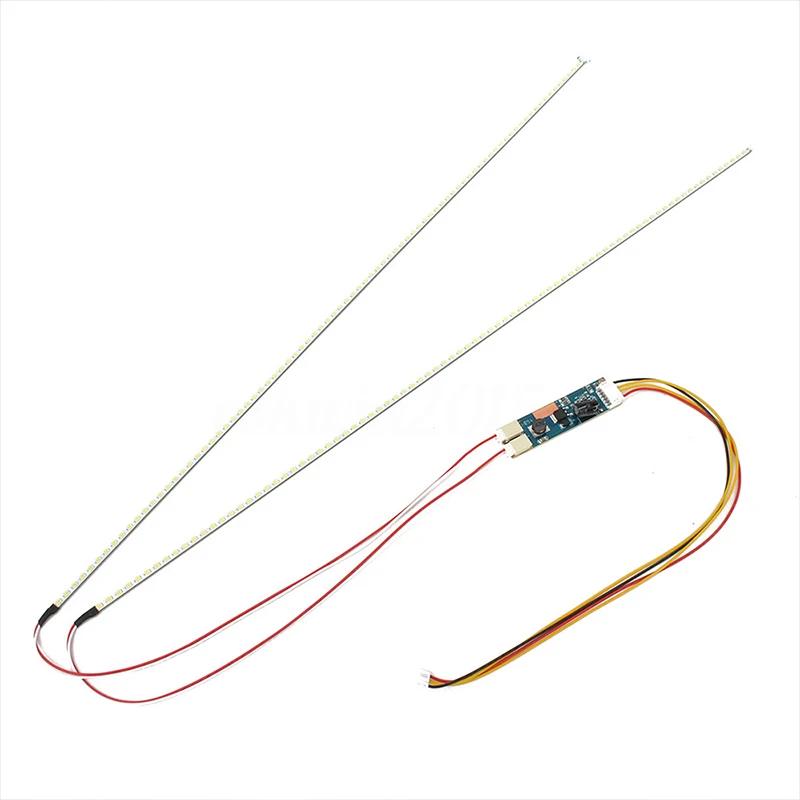

Package includes:

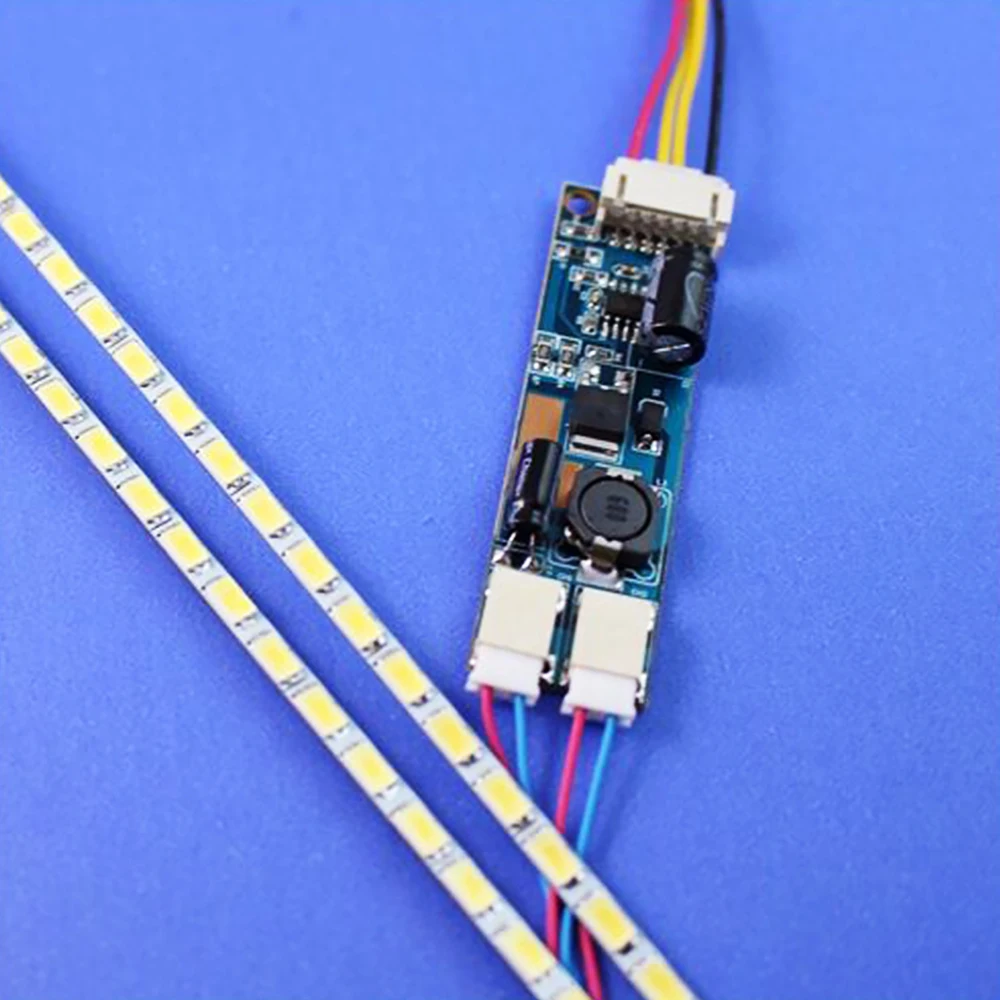

2 x LED strip
1 x Driver board
1 x Cable
