2022 Latest Slim Desktop Computer with Intel Core i3-7100U, i5-7200U, i7-7500U and DDR4 RAM Support

Description

Item nameQ500S
Dimension：1345*128*45mm(L*H*W)
Onboard CPU
Q510S=Intel Celeron 3855U,1.6GHz,2M Cache, dual core, Intel HD Graphics 510
Q515S=Intel Celeron 3865U,1.8GHz, dual core, Intel HD Graphics 610
Q530S=Intel Core i3-6100U,2.3GHz, dual core, Intel HD Graphics 520 (Support AES NI)
Q550S=Intel Core i5-6200U,2.3GHz, to 2.8GHz, dual core, Intel HD Graphics 520(Support AES NI)
Q570S=6Intel Core i7-6500U,2.5GHz, to 3.1GHz, dual core, Intel HD Graphics 520(Support AES NI)
6, Q535S=Intel Core i3-7100U Processor,3M Cache, up to 2.40 GHz, Intel HD Graphics 620(Support AES NI)
7, Q555S=Intel Core i5-7200U Processor,3M Cache, up to 3.10 GHz, Intel HD Graphics 620(Support AES NI)
8, Q575S=Intel Core i7-7500U Processor,4M Cache, up to 3.50 GHz, Intel HD Graphics 620(Support AES NI)
Memory(RAM): DDR4L SO-DIMM Socket (Up 16G,2133/2400MHz)
Storage: 1x 2.5 inch HDD/SSD1 x M.2 slot forNVMeSSD (M. key, Type: 2280)
LAN: 2 x RJ-45 Port for Gigabit LAN
Audio Solution: Realtek ALC662 HD Audio
Expansion port:
1 x M.2 slot for NVMe SSD (M key, Type: 2280)1 x M.2 slot for WIFI (E key, Type: 2230)
Automatically Boot Jumper: 1
VGA: 1( Optonal)
GPIO: 1
USB: 1
DC-IN: 1 (Optional)

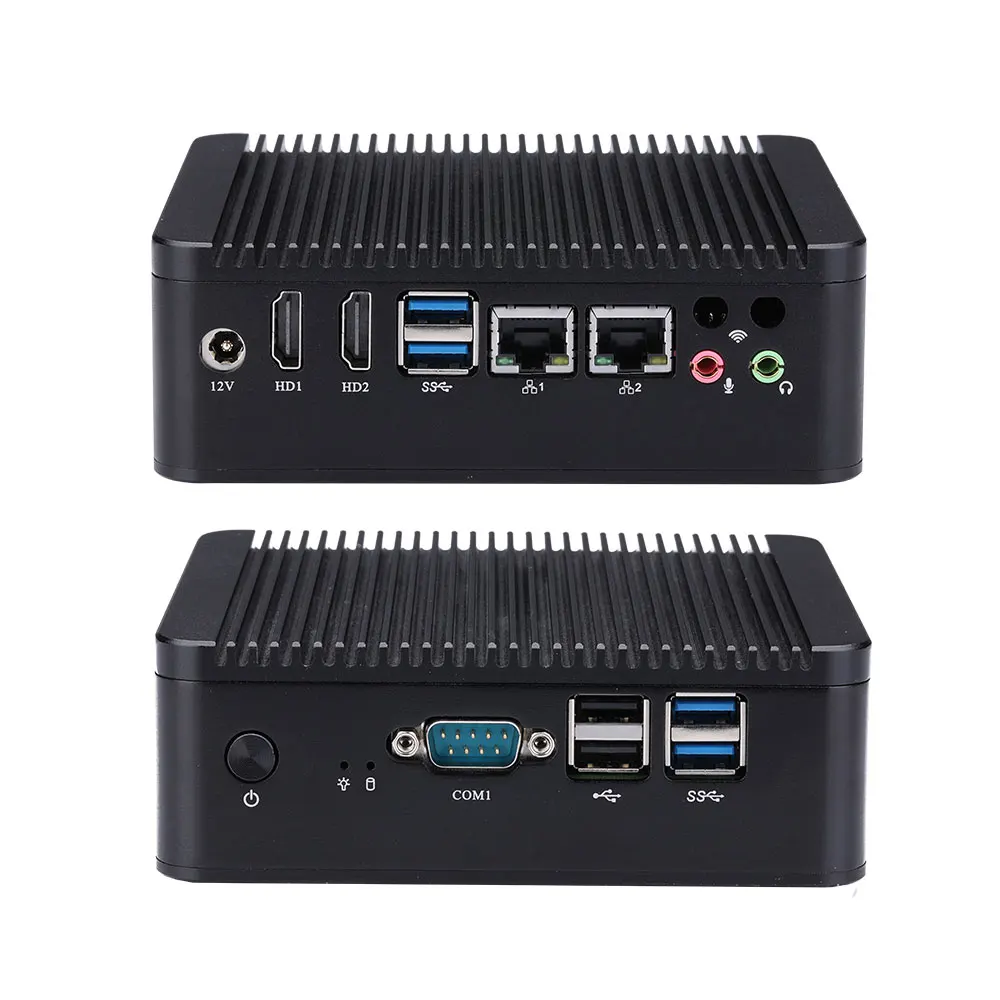

Front-Panel:
Connectorspower on/off button
HDD LED, Power LEDs
2 *USB 2.0 Ports
2 * USB 3.0 ports
Serial port: 1RS-232(COM 1)
HD Video port

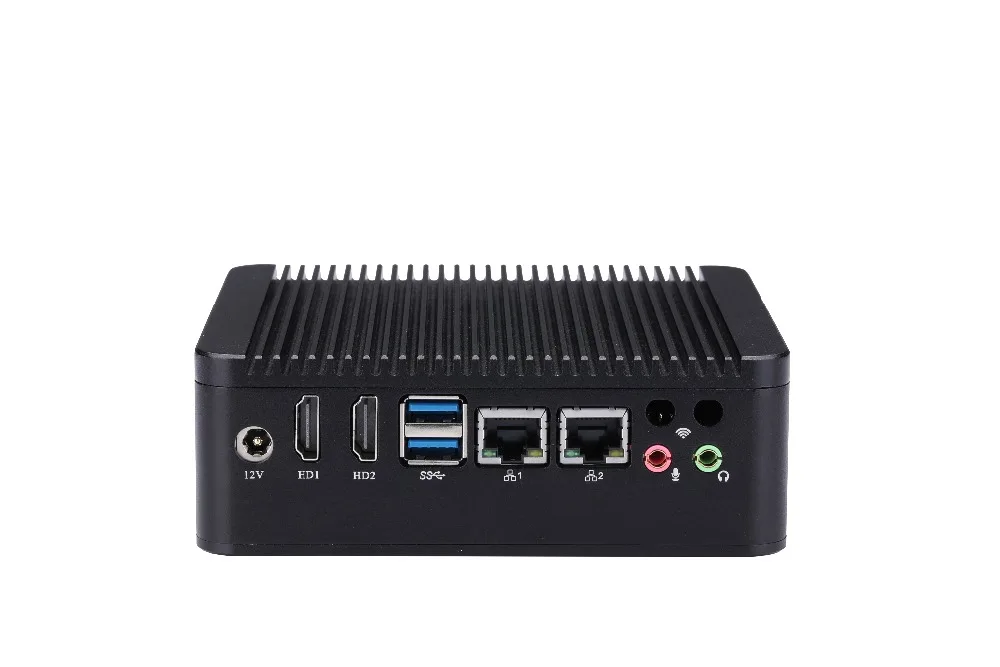

Rear-Panel Connectors
12V DC input, (DC Jack 5.5mm,2.5mm)
2 *HD Video
2* RJ-45 Ports for Gigabit LAN
2 * USB 3.0 ports
2*Audio (Line-out, Mic-in)
Support system: support linux Ubuntu, Windows 7/8/10 etc.
We preinstall Windows 7 inactivated for all of the pc, There is no OS for Barebone PC.
Operating Temp: 0°C~50°C
Non-Operating Temp: -20°C~80°C
Humidity: 10%~90%
Material: Aluminum
Dimension: 134 x 128 x 45mm
Weight: 0.75kg
Mounting: VESA Mounting Bracket
Packaging Dimension: 261 x 218 x 75mm
Kensington Lock: Support
Cooling Mode: With Fan
Here are all optional configurations. Any requirements, pls contact me.
Memory: 4G/8G/16G RAM
Hard disk: 8GB/ 16G/32G/64G/128G/256G/512GB Msata SSD
2.5″ HDD: 500G or 1T
WIFI: optional

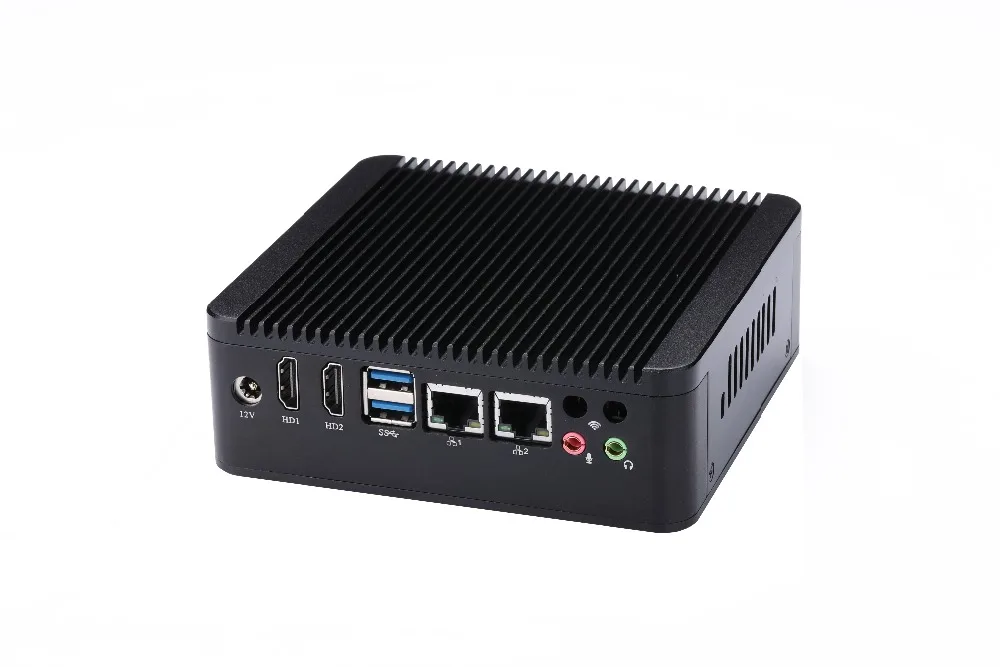

Detailed Image
