15” Large Screen All-In-One Computer with Intel Core i5 6360U, Rugged Touch Screen Monitor, WES7 Operating System – Industrial Panel PC.

Description

15” Large Screen All in One Computer Intel Core i5 7200U Rugged Touch Screen Monitor WES7 Operating System Industral Panel
Product Highlights:
-Full aluminum silver color shell, Exquisite production craft on outside design
-Fanless system without cooling fan and slim design 208*180*45MM
-Low consumption TDP only 15W
-Can stand up or can be mounted back of monitor or wall
-Can install 1pc MSATA SSD and 1pc 2.5” SATA HDD together
-Support PXE, RTC, AWAL functions
CPU for your reference:
CPU: Onboard Intel® Core i5-6360U, 2.0GHz, up to 3.1GHz
CPU: Onboard Intel® Core i5-7200U, 2.5GHz, up to 3.1GHz
CPU: Onboard Intel® Core i7-7500U, 2.7GHz, up to 3.5GHz
Specifications:
Basic Information:
CPU: Intel® Core i5-6360U / Intel® Core i5-7200U / Intel® Core i7-7500U
TDP: 15W
Chipset: Refer to CPU
Memory: Onboard DDR3L 8GB RAM
OS: Windows 7/Windows 8/Windows 10/Linux/ WES7
Watchdogtimer: 1 ~ 255 seconds programmable
Video: Refer to CPU

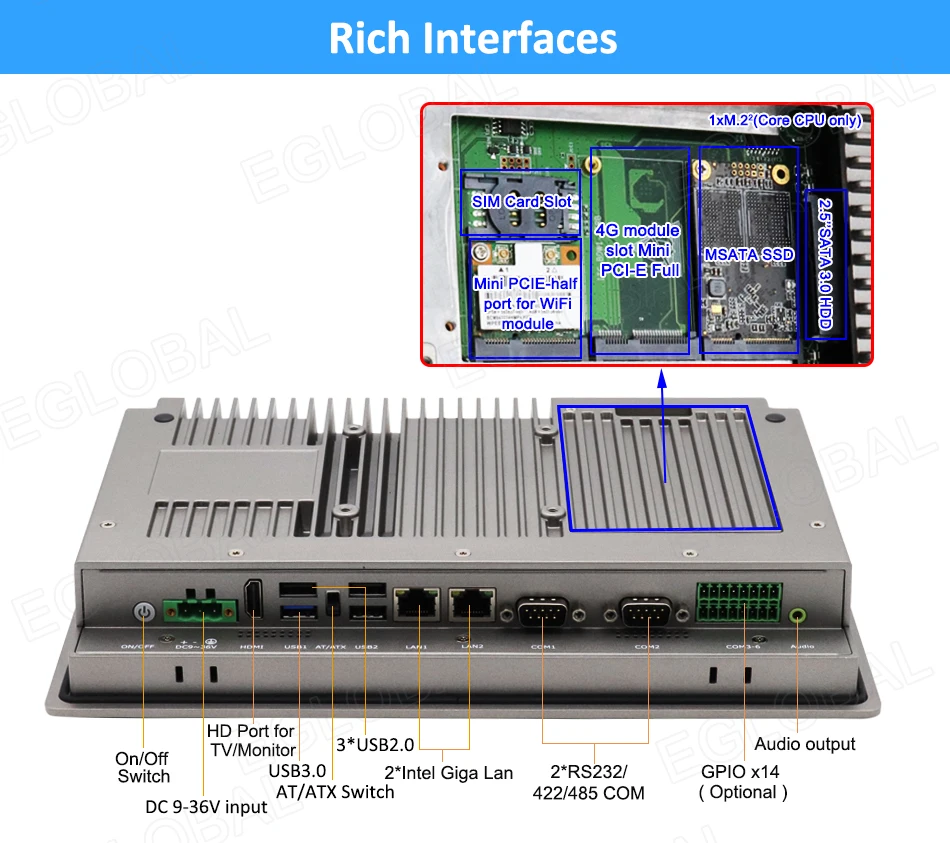

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x DC 9 ~ 36V 3-pin Phoenix Terminal
Amplifier: 2 x 8Ω 1W Amplifie output (Optional)
USB: 3 x USB2.0, 1 x USB3.0, Built-in 1xUSB2.0 Dongles Port
Display: 1 x HD
LAN: 2x Gigabit Ethernet RJ45 Intel i211-AT
Audio: 1 x Audio Line-out

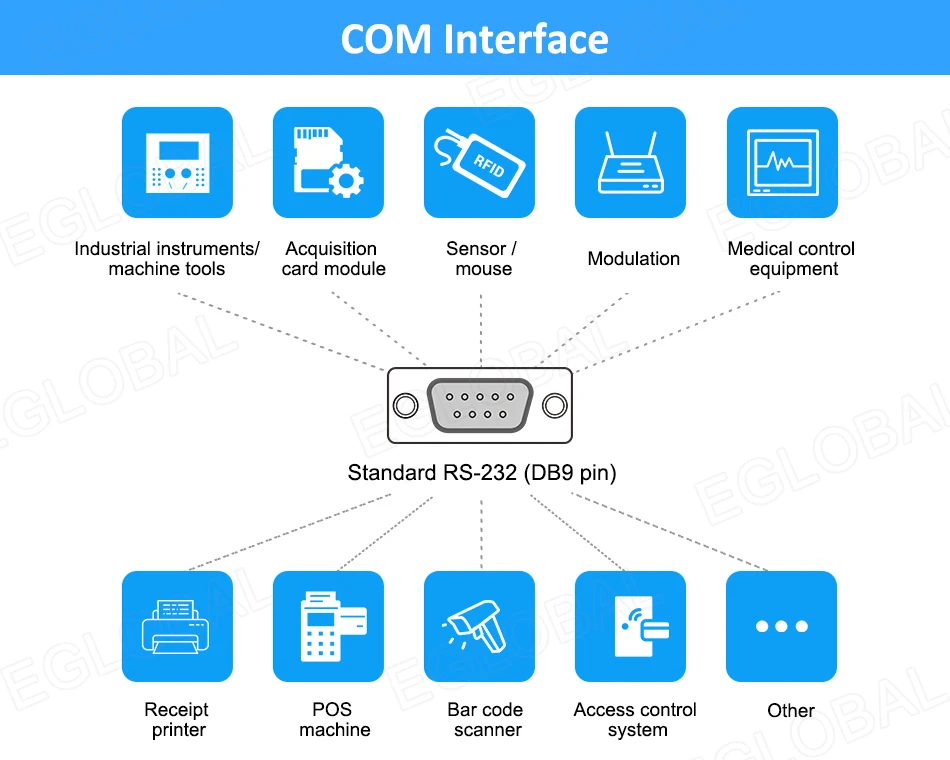

COM: 2 x DB-9 COM1&COM2, RS-232/422/485
GPIO: 1 x 14bit GPIO (Optional)
Others: 2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal
2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal
1x Phoenix terminal remote switch interface

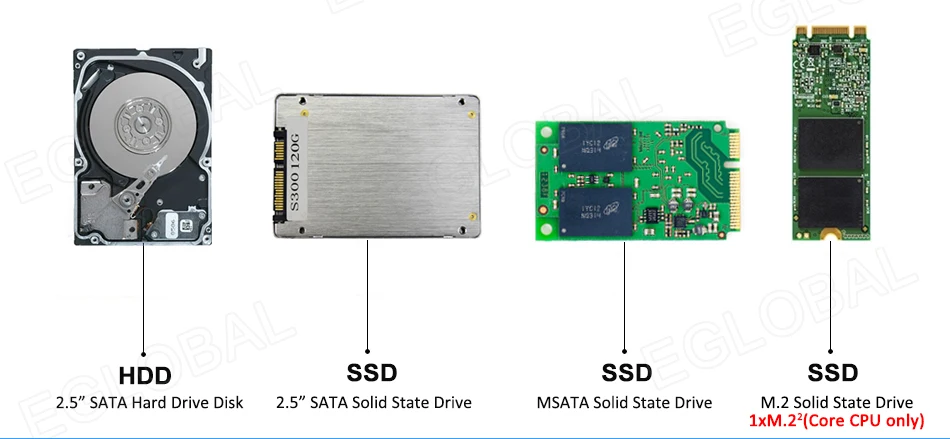

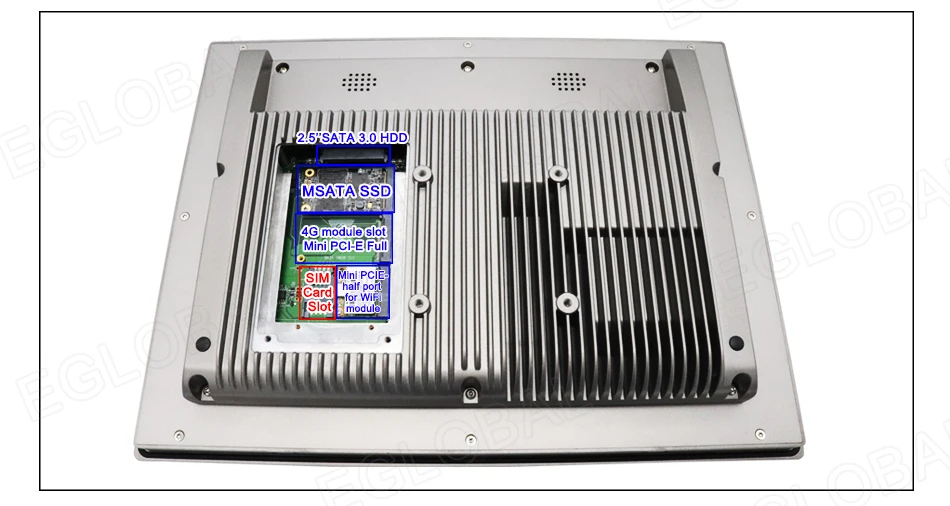

Storage: MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1xM.2² (Core CPU only)
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi: Module

1x Mini PCIE Half port for WiFi module
1x Mini PCIE Full port for 3G/4G module
Antenna: 2 x inner RF cables without external antennas,
Power and Working Environment
Input: DC 9 ~ 36V 3-pin Phoenix Terminal
Operating Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Storage Humidity: Display Information

LCD Type: 15″ TFT-LCD
Resolution: 1024×768
Max color: 16.7M
Brightness: 350 cd/m²
Perspective (CR>=10): -85~85° (H), -85~85°
(V)
Backlight: LED
Backlight life (hour): 30,000

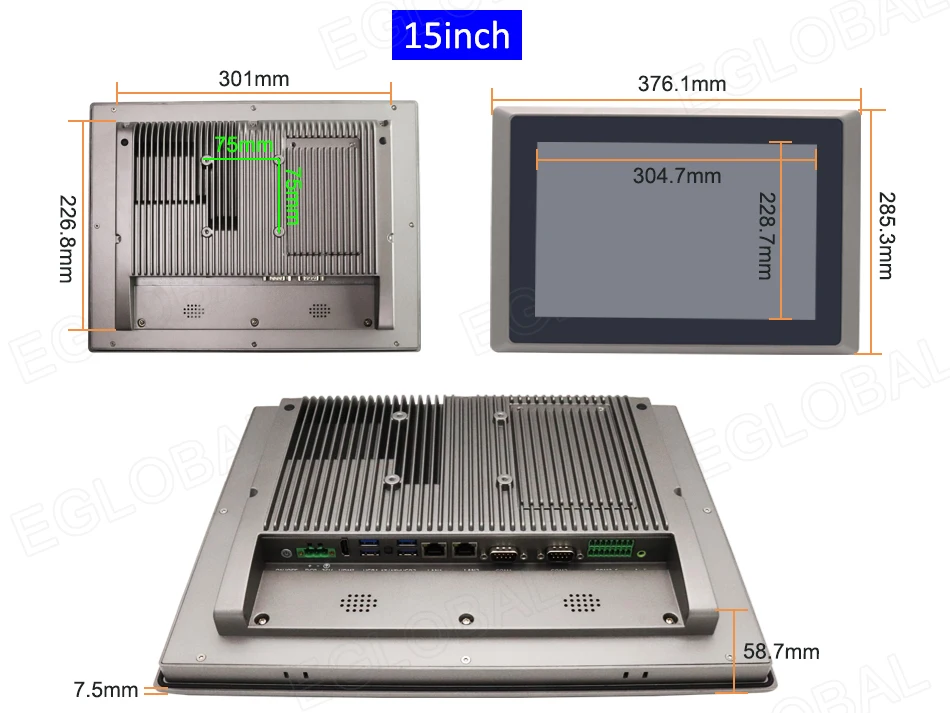

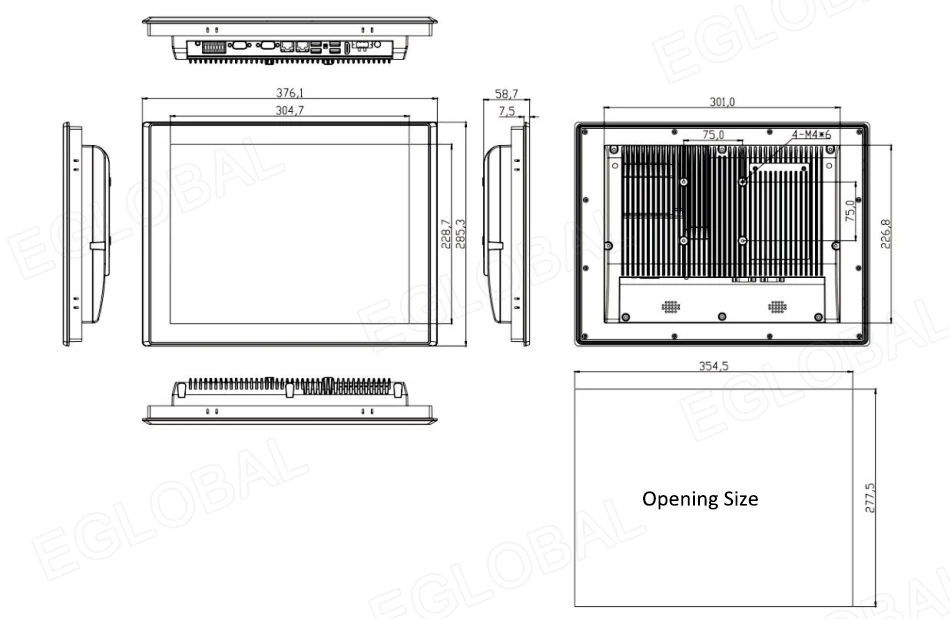

Product Dimension & Details
Size: 376.1*285.3*58.7
Mm
Weight: Net 6kg, Gross 7.6kg
Shell: Silver color aluminum alloy(any customized color for bulk order)

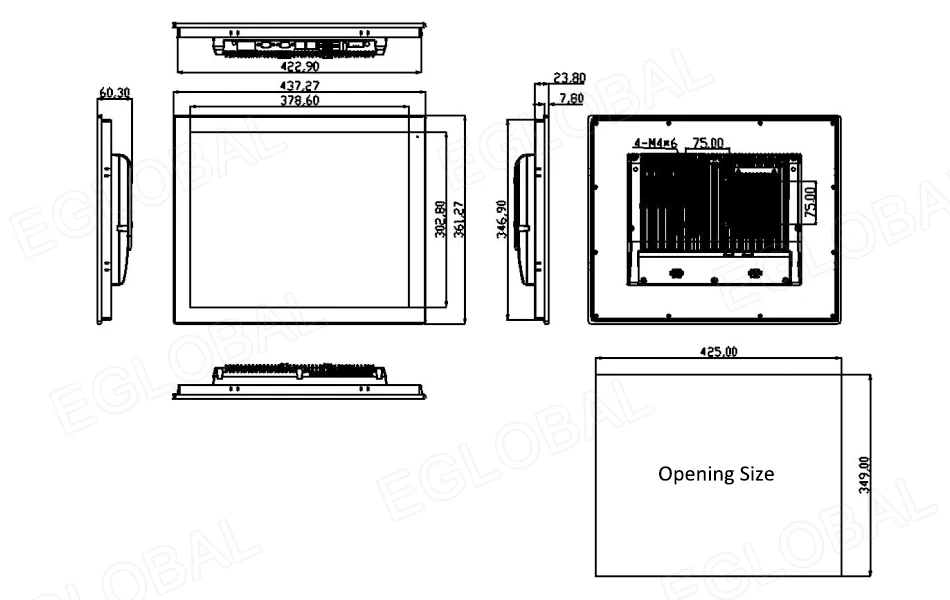

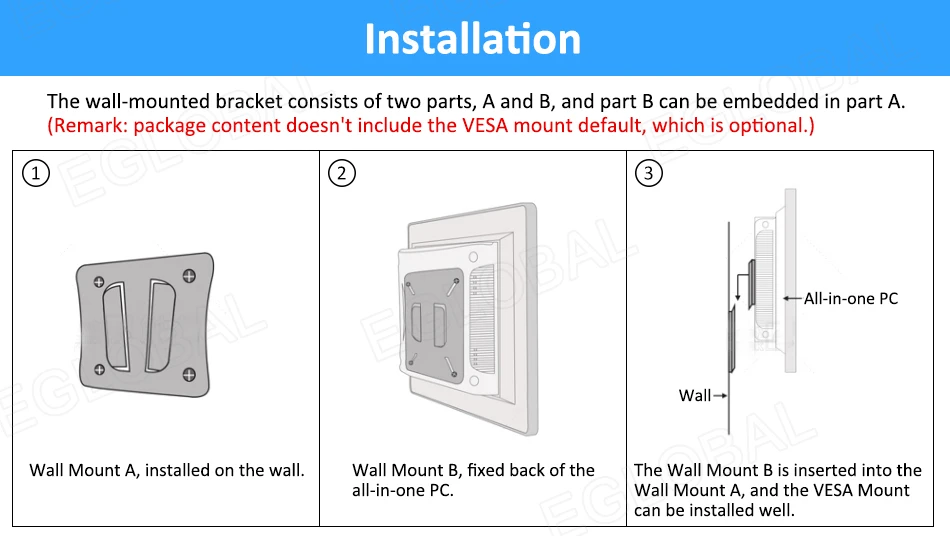

Installation method: VESA 75/ Panel mounting

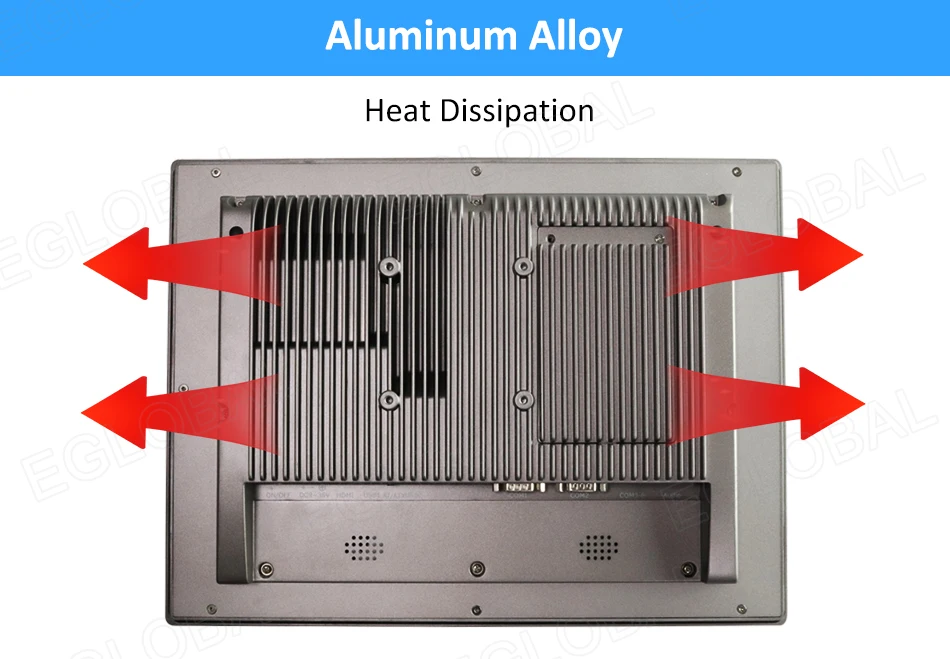

Cooling Mode: Fanless

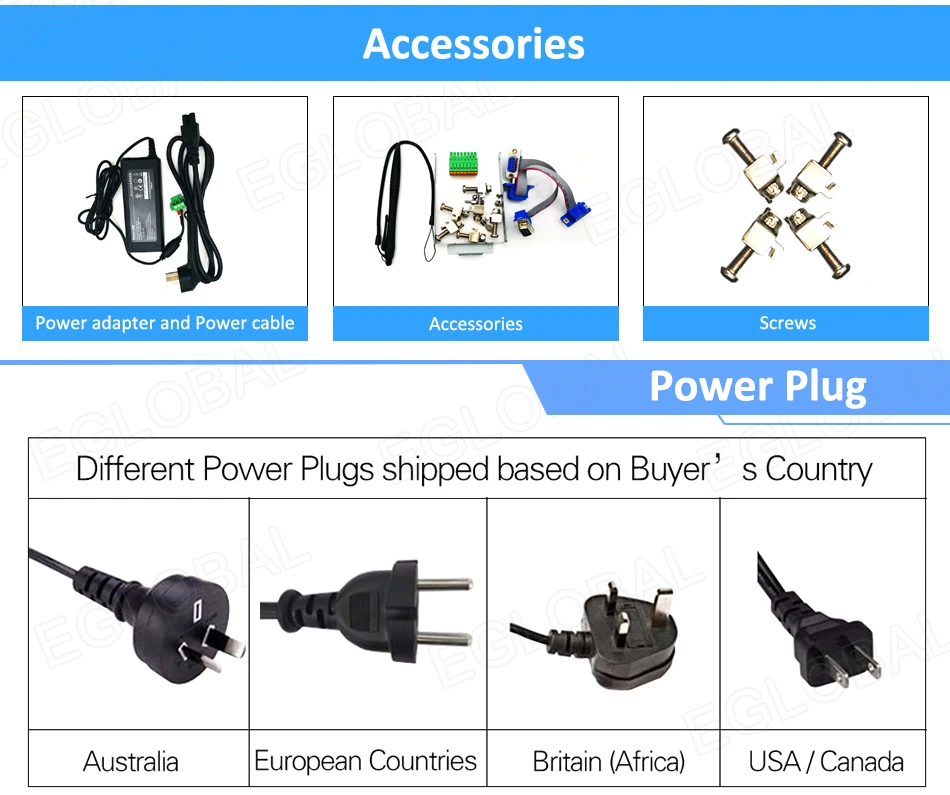

Package Content: Standard

1xAll-in-one PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xTouchpen
Touch Screen Information: Type

5-wire resistive
Transmitiance: 78%
Lifetime: 250g clicks 10 milliontimes
DETAILS ABOUT OPERATING SYSTEM
Free Operating System: Default installed our trial activatedOEM windows 10 pro licenseEnglish for free, other languages can be selected among: Russian, Spanish, Portuguese, French, German, Arabic, Italian, Japanese, Turkish, Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need. Supplier is irresponsible and makes no compensation for trial OEM system.
Accessories as Ram, SSD, HDD, we use famous brand: samsung, micron, SanDisk, toshiba, hynix, crucial, liteon, kingfast, phison etc, What brand we use depends on our test and our stock.
TIPS
1. USB Infrared remote (can turn power off and control media center like kodi) add extra cost US$14.
2. External USB DVD-ROM add extra cost $18.
3. USB 2.4GHz Air Keyboard& Mouse, add extra cost $20.
4. Genuine OEM license sticker cost $35.
5. 2.5” 500GB HDD add extra $50, 2.5” 1TB HDD add extra $65, 2.5” 2TB HDD add extra $100.
(how many dollars to upgrade, pay how many pieces, US$1=1pc, For example upgrade USB IR remote, pay 14pcs for US$14, remember to leave message noting which one you uprade for. . . )
Buy with confidence! 3 Years long warranty for EGLOBAL Mini PC!
