12.1 Inch Fanless Intel Celeron 4205U Resistance Touch Panel PC

Description

12.1 inch Intel Celeron 4205U Fanless Resistance Touch Panel PC
Warm tips: This products price arenot included Ram, Hard disk, Wifi card, WiFi antennas and Bluetooth, if you need them, you need to pay extra fee, please contact us to change the price. Thanks.
And If you need other Configuration of ram and hardisk, please contact us.
For now, European buyers(included UK) have to pay customs fee and VAT, so please tell us your VAT number or ID number or passport number. thank you.
1. This computer only works with RAM at lower voltage 1.35V instead of normal 1.5V RAM.
2. The RAM and SSD/HDD are from famous brand, the RAM is normally Kingston, Sam’sung, etc.
The SSD is normally from Hoodisk, Biwin, FORESEE, Sam’sung, ADATA, SanDisk, etc. they will be shipped out at random for stock.
3. Barebone system means no ram no storage, and we won’t install OS to you.
4. The Operating System is just for testing, copied but NOT activated and not licensed, please install the licensed one by yourself if you prefer. All of our products don’t support Windows XP OS, please know it.
5. About customs fees, we are not responsible for buyer’s customs taxes or VAT. We will declare true value by default. If you need us to offer an invoice, please leave a message. Pls do not open a dispute or give us a bad feedback due to the extra importing fees, otherwise pls do not buy it, thanks.
6. Please carefully read the SHOPPING GUIDELINES on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won’t take responsibility for any problems might caused except the quality problem of the product.
Thank you !

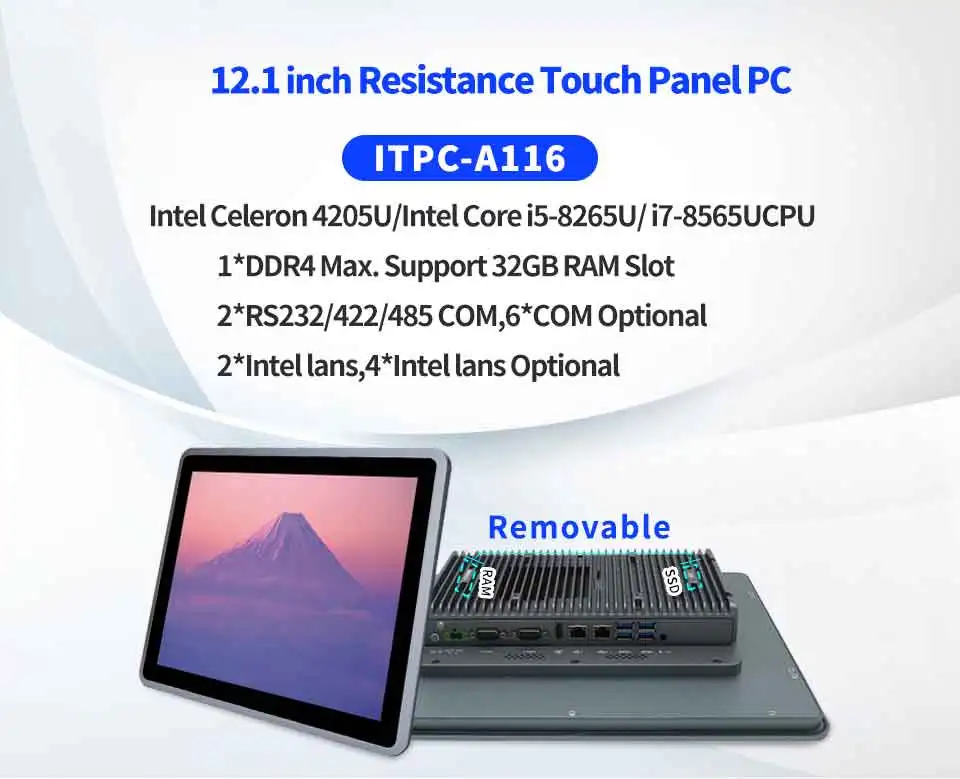

Model: ITPC-A116 Fanless Panel PC
Brand Name: Yanling
Case Color: Titanium gray (color can be customized, more details please contact us)
Case Material: Aluminum alloy chassis
CPU: Intel Celeron 4205U(Dual core dual threads,1.8Ghz,2MB Cache)
Intel Core i5-8265U(Quad core eight threads,1.6Ghz, Max turbo 3.9Ghz,6MB Cache) Optional
Ram: 1*DDR4 2133/2400 SODIMM Memory Slot, Max 32GB
Storage: 1*M.2 2280 slot(SATA Protocol),1*2.5” HDD (16G/32G/64G/128G/500G/1TB optional)
Audio: 1*Audio (Support Mic and Speaker at the same time)
Display Port: 1*HDMI, 1*LVDS
Display Chip: Integrated Intel UHD Graphic card
Network Card: 2*Intel 1000M LAN（4*LAN Optional）

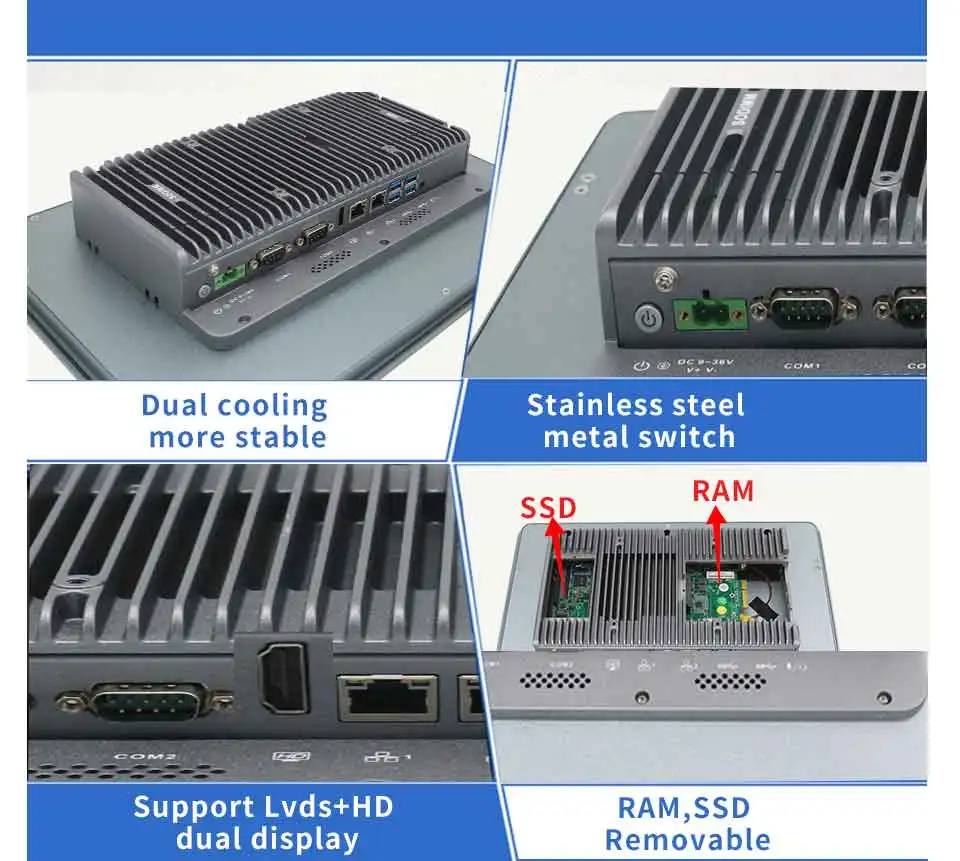

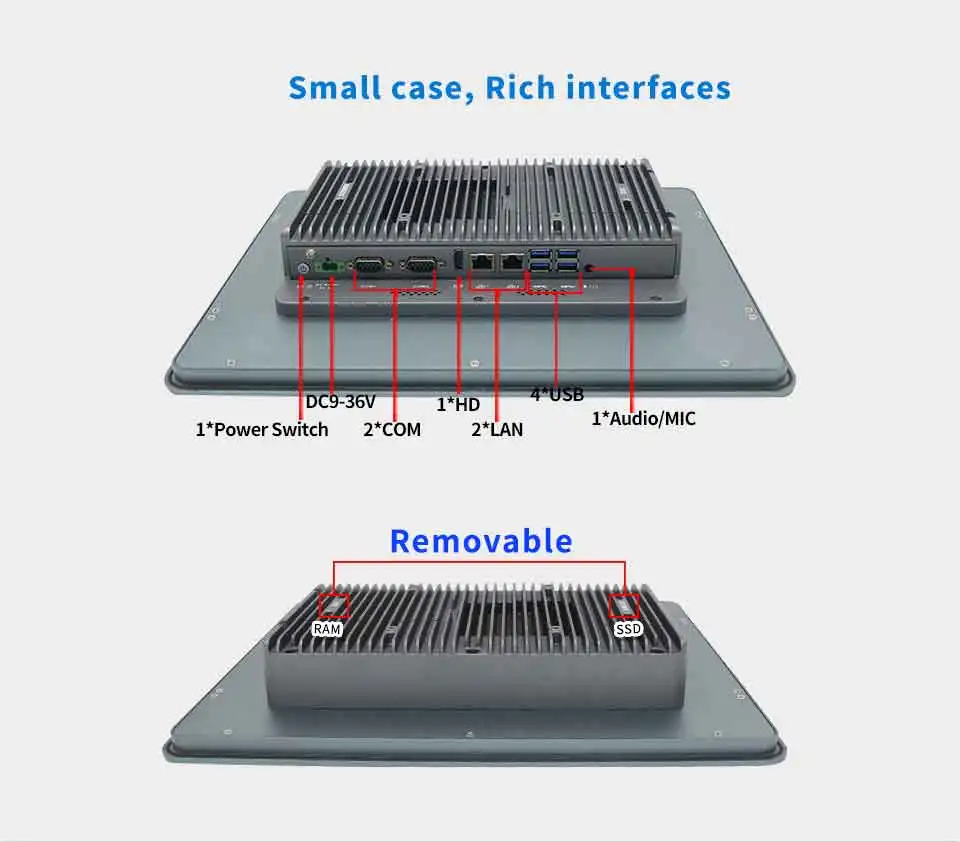

I/O: 1*HDMI
2*COM(COM1&COM2 RS232/RS422/RS485 Optional,6*COM Optional),
4*USB3.0,2*Intel 1000M LAN（4*LAN Optional）
1*2Pin power supply phoenix connector,1*Audio (Support Mic and Speaker at the same time)
1*Power Switch
1*DC-IN 12V
Touch Screen: Size：12 inch
Ratio：4：3
Resolution：1024 * 768
Brightness ：350cm/m2
Industrial grade multi-touch resistance touch screen，Life Time: more than 50000 Thousand Times;
Power Supply: DC 9V ～ 36V wide voltage Input，support positive pole and negative electrode connect reversely protection;
Operating System: Support Windows 10/11, Linux
Working Temperature: -20degC – +60degC
Working Humidity: 0% – 95% relative humidity, Non-condensing
Size: 309.5 * 248 * 60 mm (L*W*H)
Embedded Size: 298.5 * 237 mm
Application: Industrial Automation, Medical, Logistics Transportation, Warehousing, Machine Vision, etc
12.1 inch Intel Celeron 4205U Fanless Resistance Touch Panel PC
