10.1″ Industrial Panel PC with IP65, Intel Core i5, Capacitive Touch Screen, 2 LAN, 2 COM, HDMI, LCD

Description

Product Highlights:
– Industrial-grade anless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7×24 hours durably;

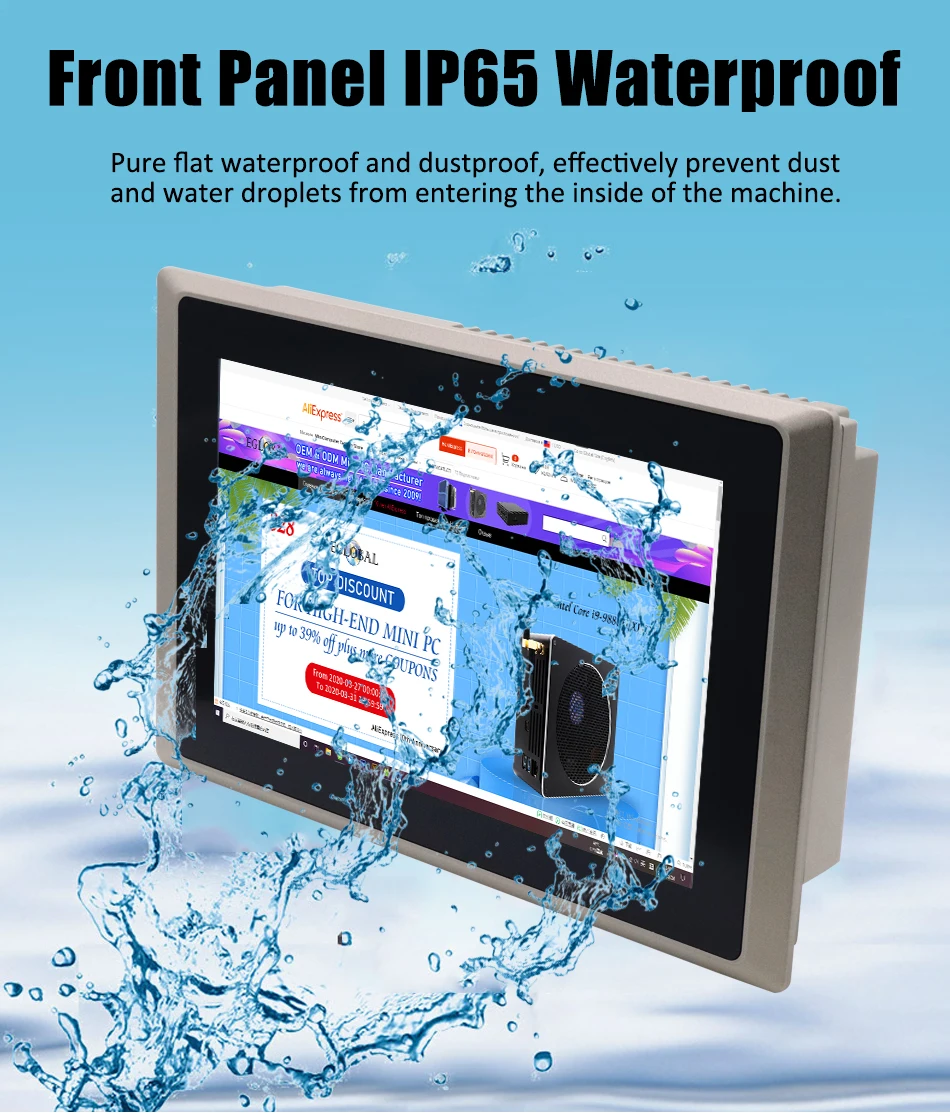

– Capacitive Touch Screen IP65 level waterproof and dustproof, support Ten-point sensitive touch;
– LCD+HD dual display synchronously and asynchronously;
– 1xmSATA SSD+1×2.5”SATA SSD/HDD installation supported;
– 2xGigabit Ethernet RJ45 Intel i211-AT;
– 2xDB-9 COM1&COM2, support RS-232/422/485;
– 1x14bit GPIO, 7 ways input, 7 ways output;
– One embedded SIM card slot onboard, 3G/4G/WiFi optional;
– 9-36V Wide voltage input;
– Support Watchdog, Auto Power On, RTC, Wake On Lan, PXE, Reset etc functions.
CPU for your reference:
1. CPU: Onboard Intel J1900 2.0GHz Quad Cores Four Thread Max 2.41GHz 2MB cache TDP 10W Intel HD Graphics.
2. CPU: Onboard Intel Haswell 22nm CPU Intel Core i5-4200U 1.6GHz Max 2.6GHz Dual Cores Four Threads 3MB cache TDP 15W Intel® HD Graphics 4400.
3. CPU: Onboard Intel Core i7 4500U 1.8GHz, max 3.0GHz Dual Cores Four Threads 4MB cache Intel HD Graphics 4400
Touch Screen
LCD Size: 10.1″ TFT LCD
Aspect Ratio: 4: 3
Resolution: 1280×800(Optional 1024×600)
Brightness: 400 cd/m²
Max Color: 16.2M
Viewing angle (CR>=10): -85~85° (H), -85~85° (V)
Backlit: LED
Backlight life (hour): 30,000
Notice:
1. We have an Official Fedex Express IP account which picks up the package that day and you will receive it about 3-7 days.
2. We install OEM Windows 10 Pro on some PC by default, please remark if you want OEM Windows 7 Pro.
CPU: Intel Celeron J1900/ Intel Core i5-4200U/Intel Core i7-4500U
TDP: 15W
Memory: Onboard DDR3L 4GB RAM/8GB RAM
OS: Windows 7/Windows 8/Windows 10/Linux/ WES7
Watchdogtimer: 1 ~ 255 seconds programmable
Video: Graphics HD Intel 4400

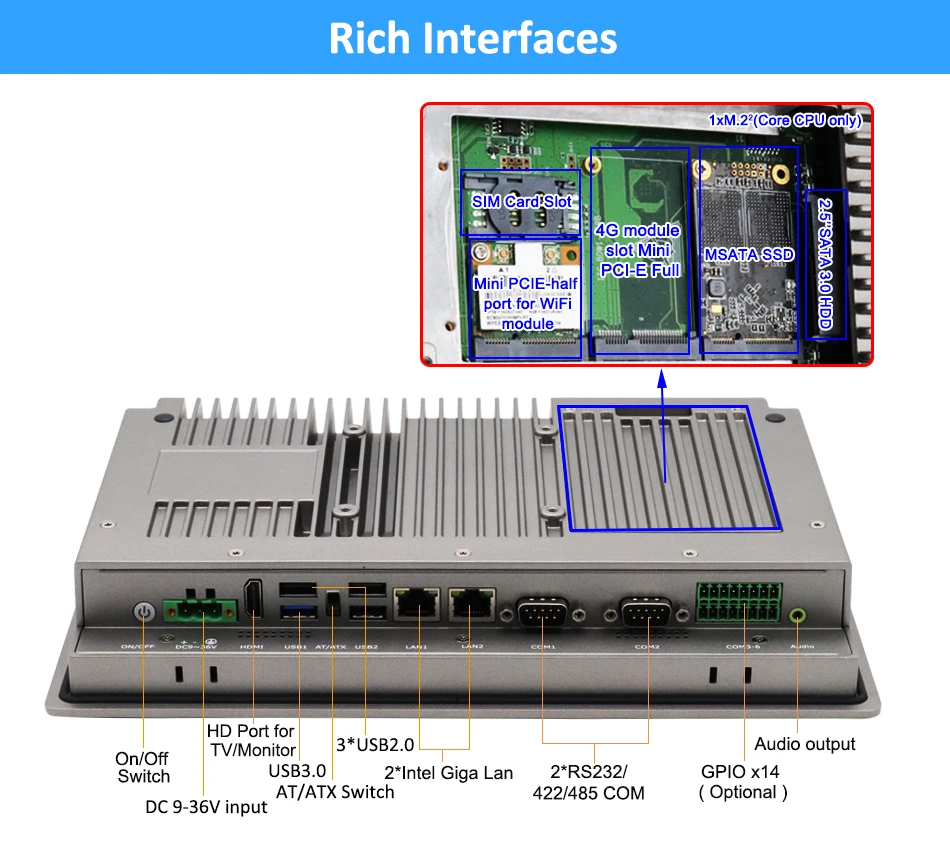

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x DC 9 ~ 36V 3-pin Phoenix Terminal
Amplifier: 2 x 8Ω 1W Amplifier output (Optional)
USB: 3 x USB2.01, 1 xUSB3.01, Built-in 1xUSB2.0 Dongles Port
Display: 1 x HD
LAN: 2x Gigabit Ethernet RJ45 Intel i211-AT
Audio: 1 x Audio Line-out

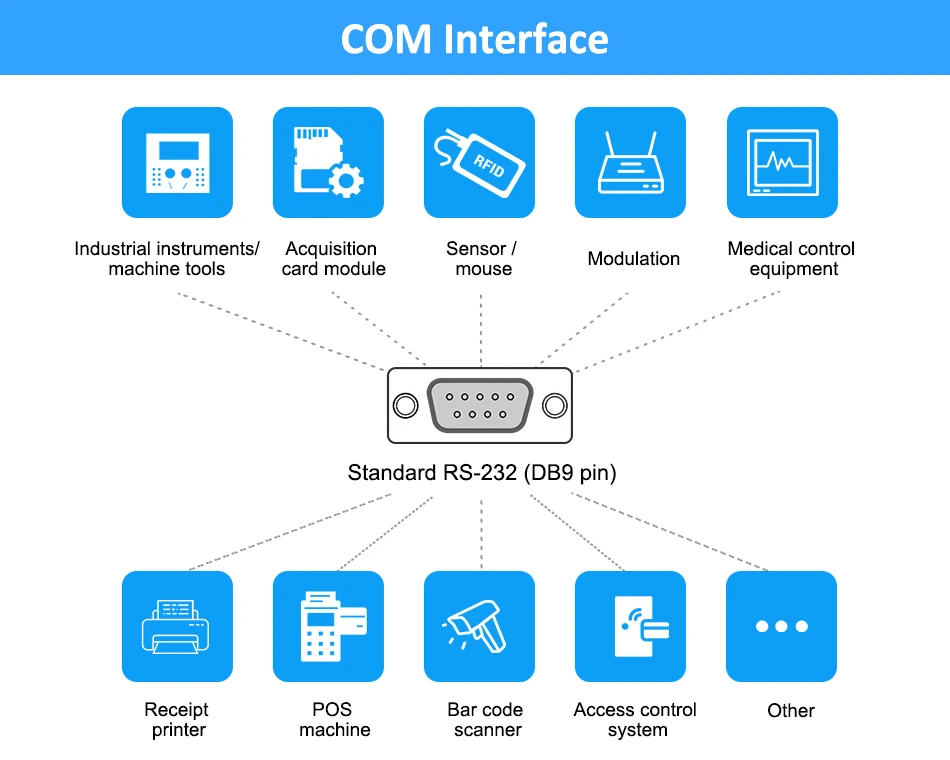

COM: 2 x DB-9 COM1&COM2, RS-232/422/485
GPIO: 1 x 14bit GPIO (Optional)
Others: 2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal
2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal
1x Phoenix terminal remote switch interface

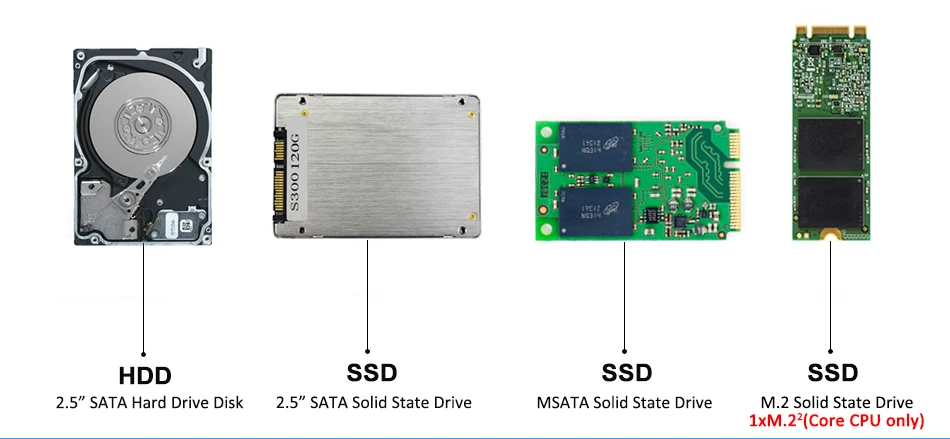

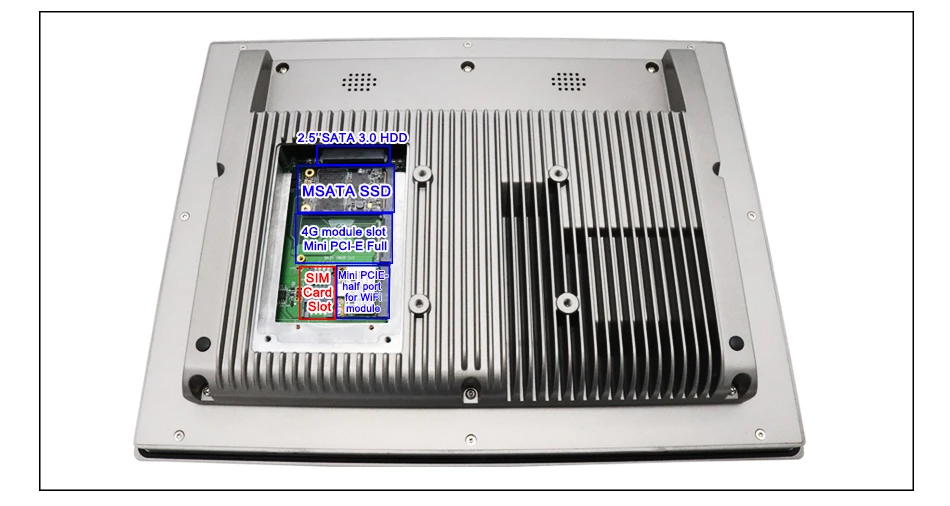

Storage

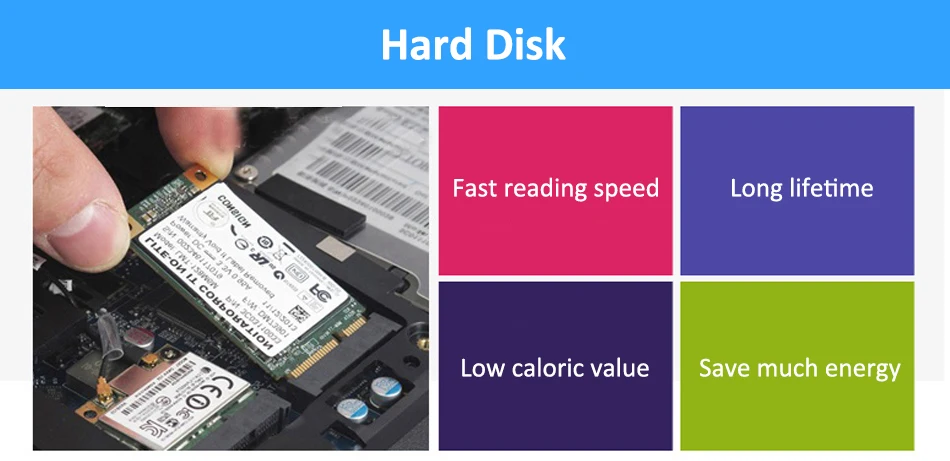

MSATA: 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
1xM.2² (Core CPU only)
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi: Module

1x Mini PCIE Half port for WiFi module
1x Mini PCIE Full port for 3G/4G module
Antenna: 2 x inner RF cables without external antennas,
Power and Working Environment
Input: DC 9 ~ 36V 3-pin Phoenix Terminal
Operating Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Storage Humidity: Display Information
LCD Type: 10.1″ TFT-LCD
Resolution: 1280×1024
Max color: 16.2M
Brightness: 400 cd/m²
Perspective (CR>=10): -85~85° (H), -85~85°(V)
Backlight: LED
Backlight life (hour): 30,000

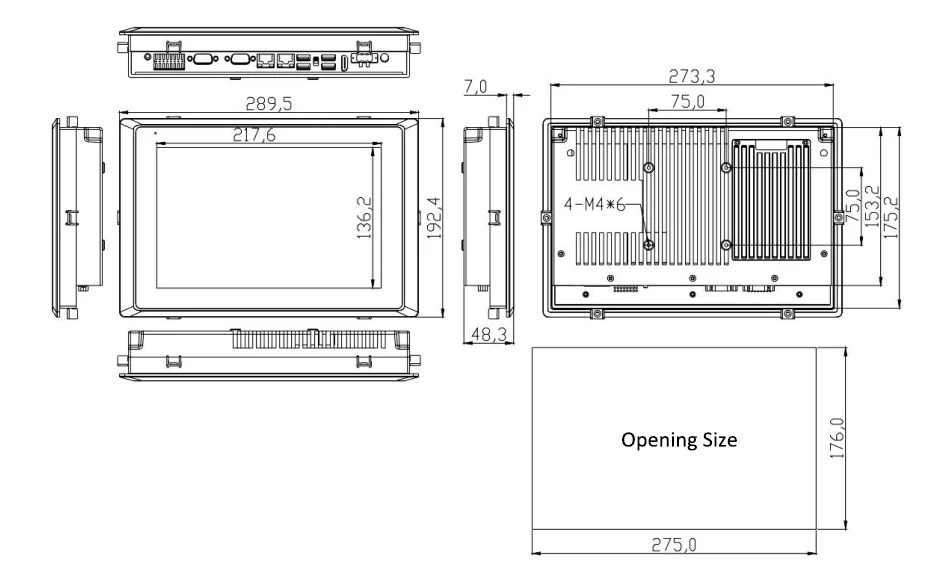

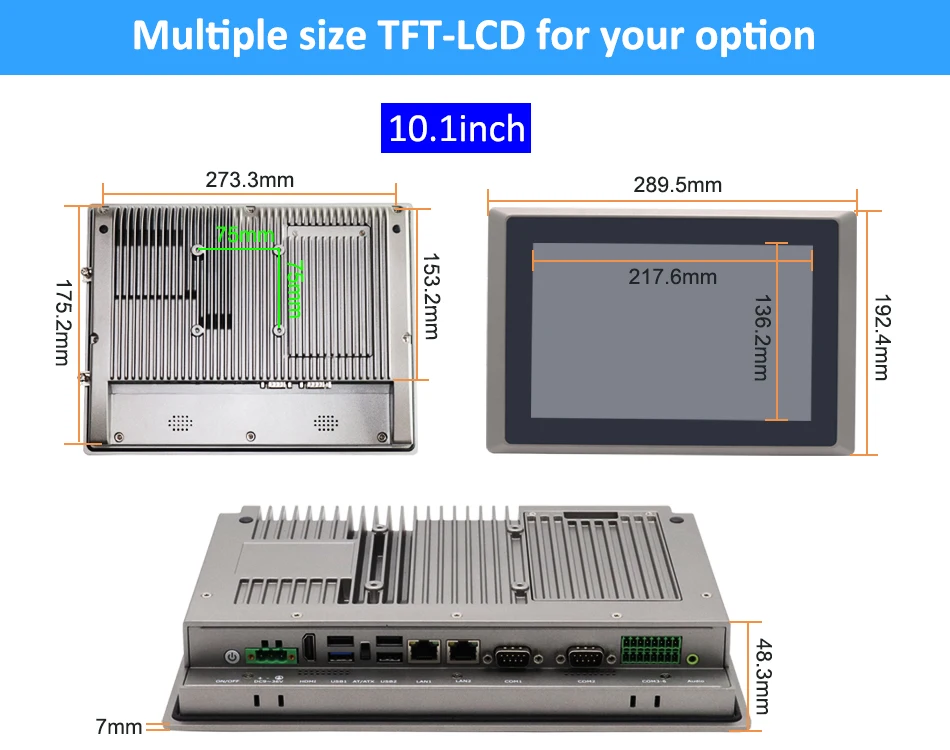

Product Dimension & Details
Size: 289.53×192.44×48.3 mm
Weight: Net 2.5kg, Gross 4 kg
Shell: Silver color aluminum alloy(any customized color for bulk order)

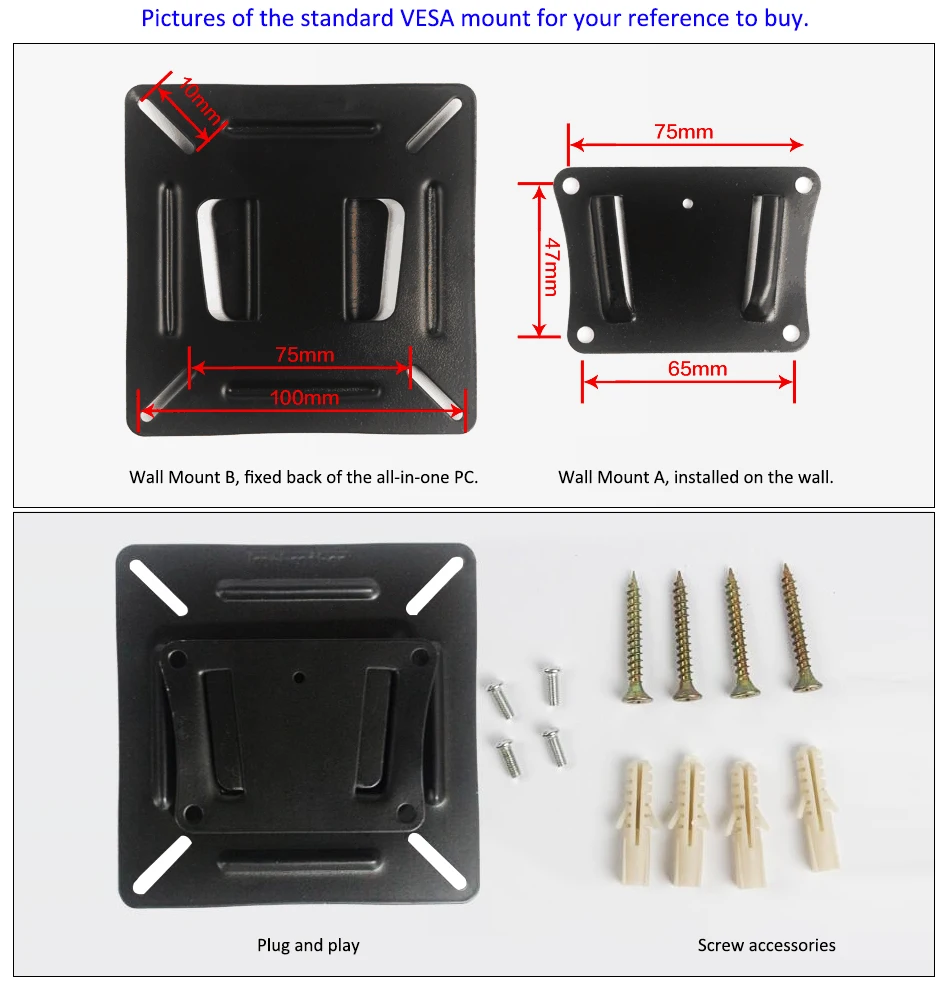

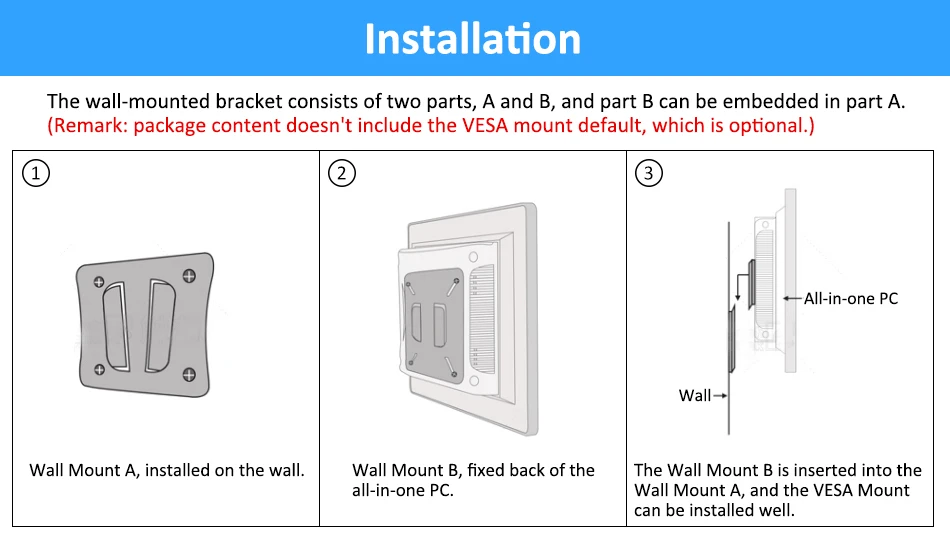

Installation method: VESA 75/ Panel mounting

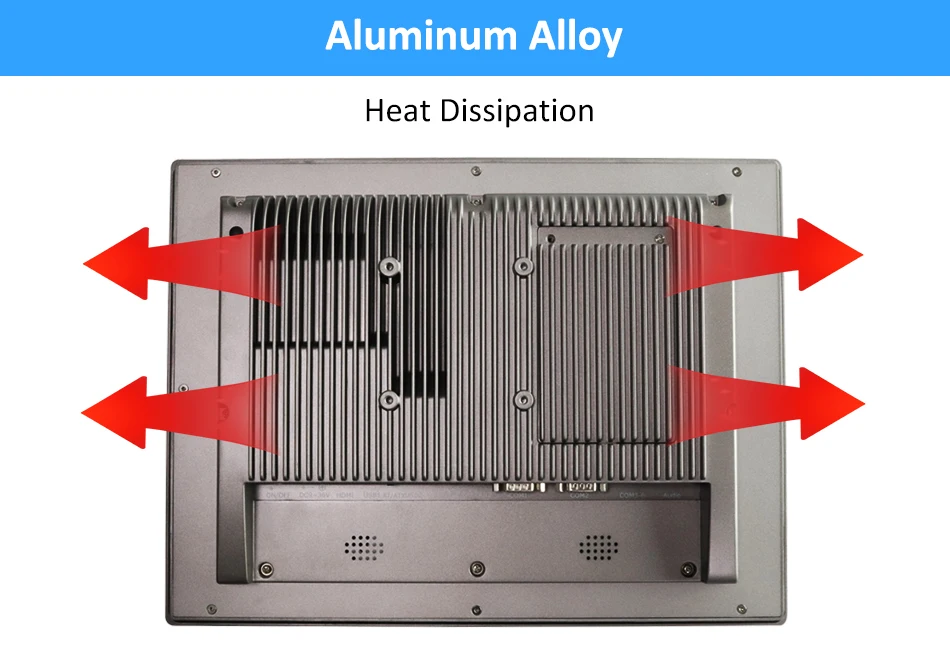

Cooling Mode: Fanless

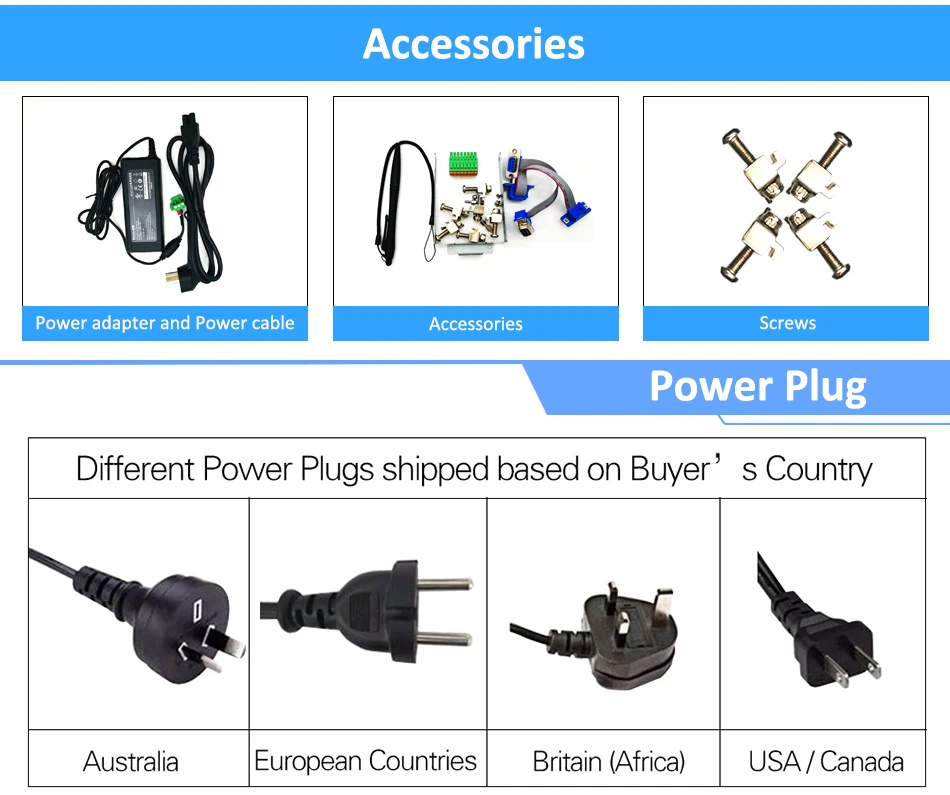

Package Content
Standard: 1xAll-in-one PC, 1xPower Adapter,1xPower Cord, 1xScrews Bag, 1xTouchpen
Touch Screen Information
Type: 5-wire resistive
Transmitiance: 85%
Lifetime: 250g clicks 10 milliontimes
